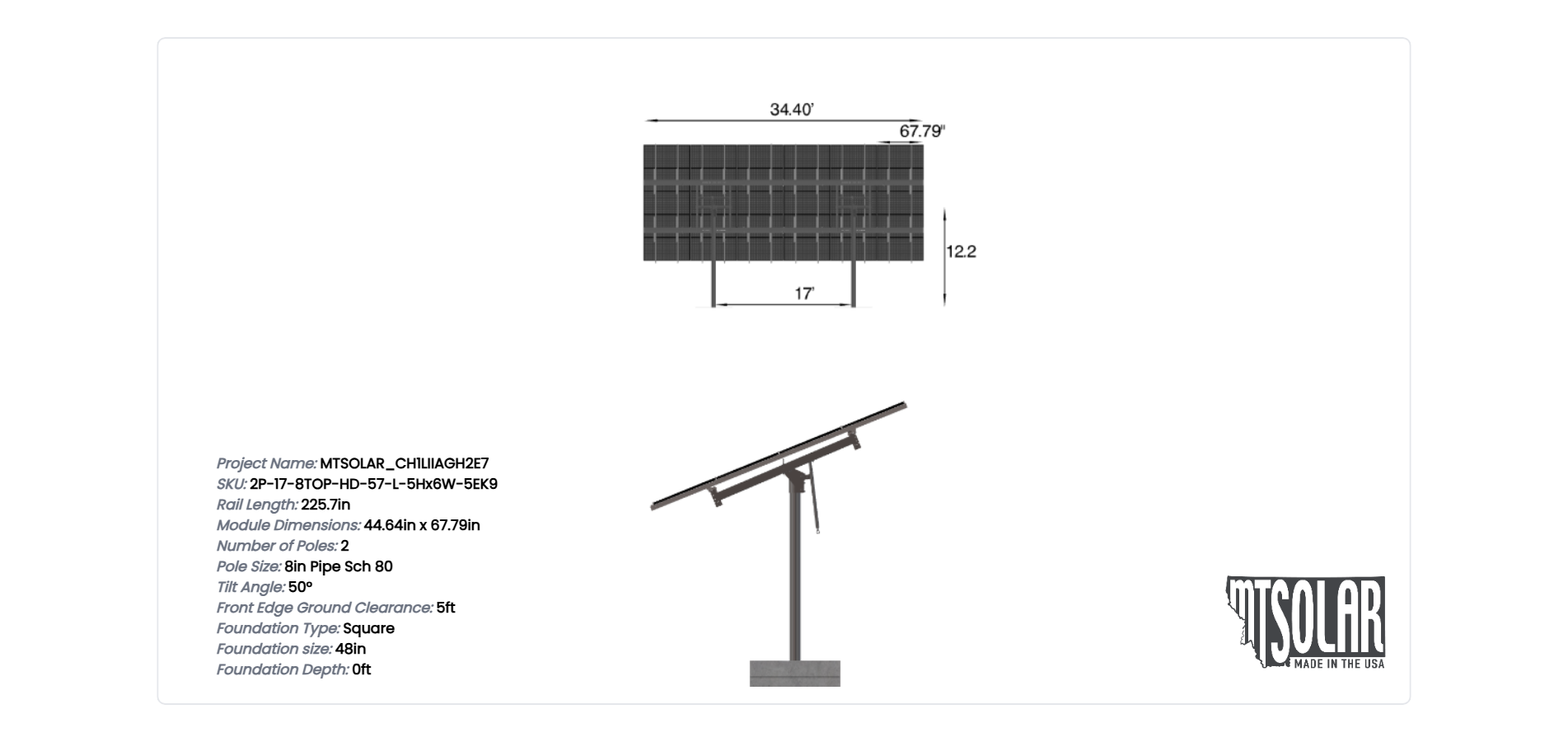

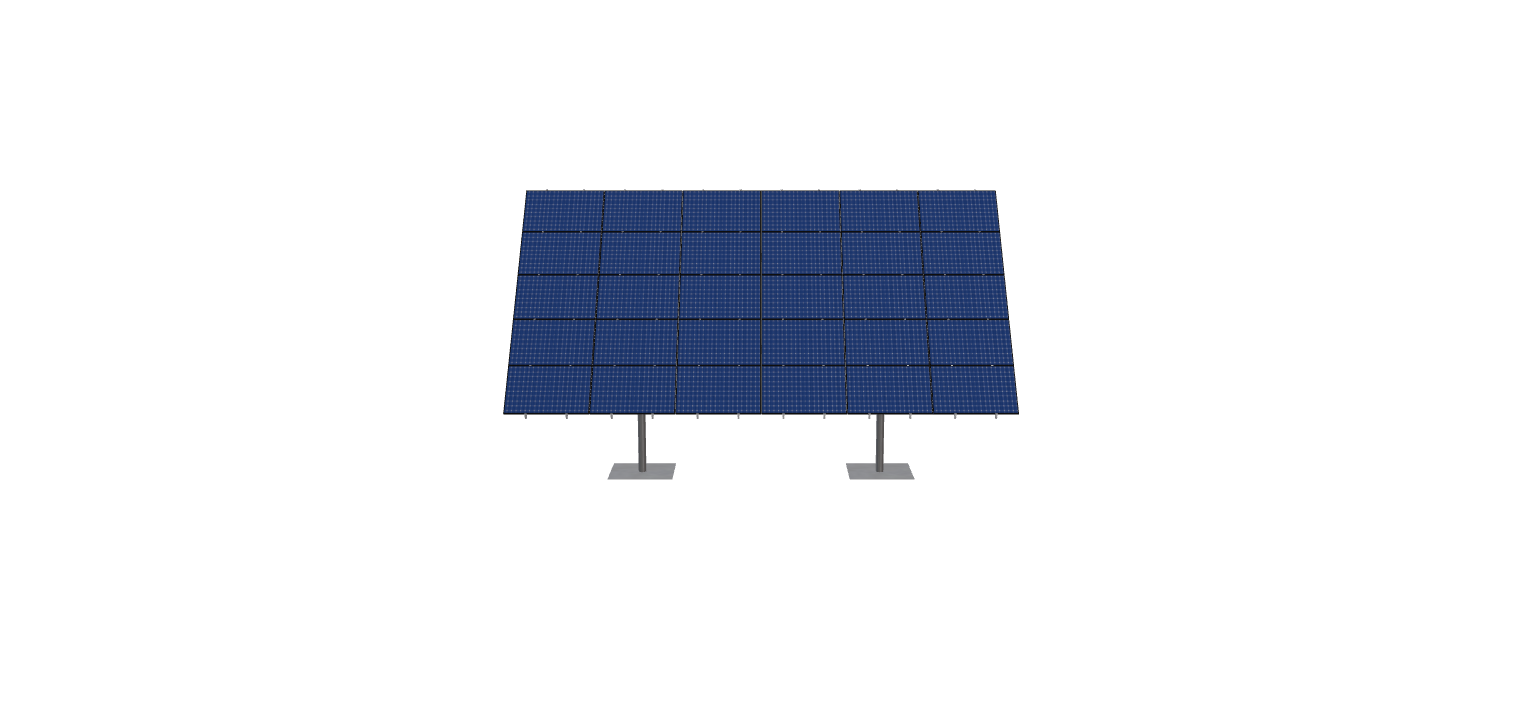

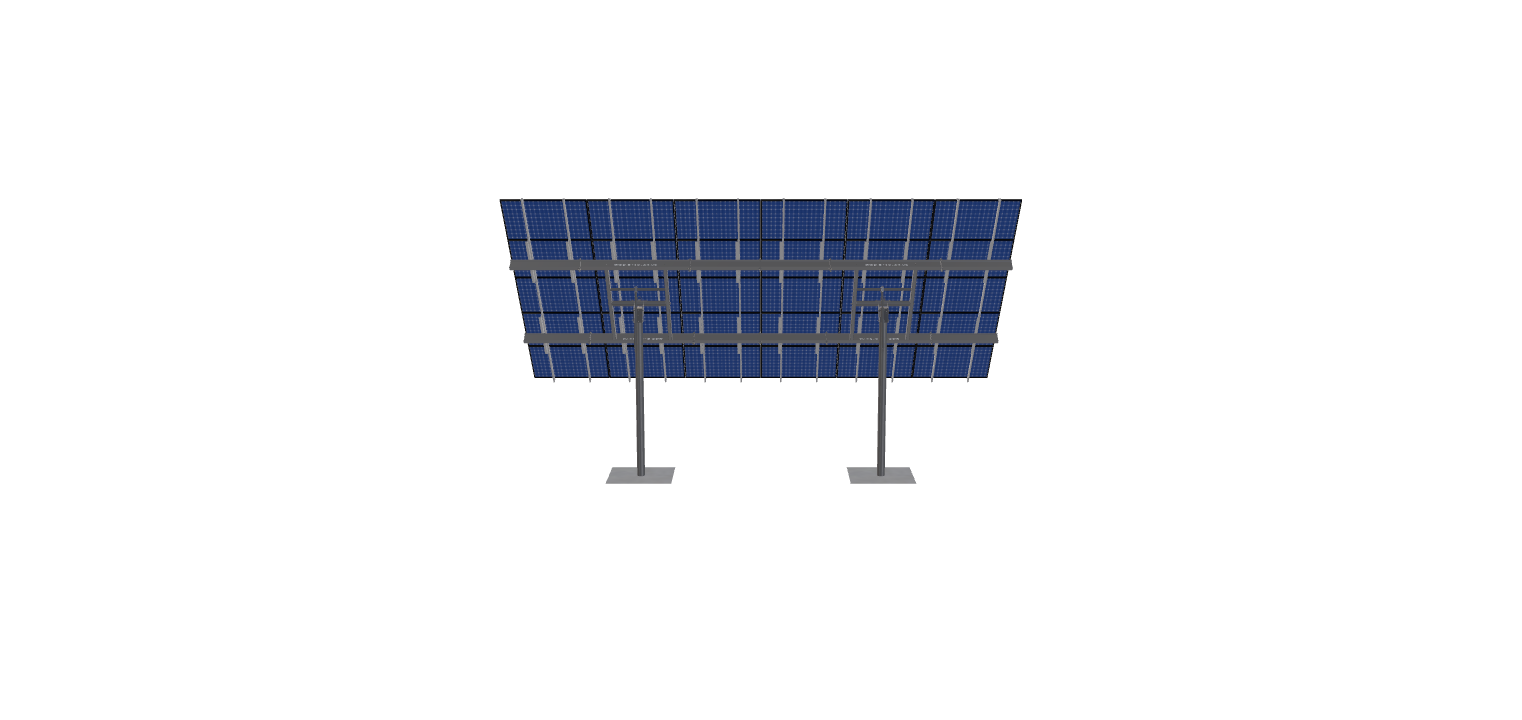

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.79 inches by 44.64 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_CH1LIIAGH2E7
$11,149.34
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.79 inches by 44.64 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2082.86 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-8TOP-HD-57-L-5HX6W-5EK9 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 12.20 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 0.00 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 408.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 646.91 |
| ARRAY WIDTH | 34.40 |
| ARRAY HEIGHT | 18.81 |
| RAIL LENGTH | 225.70 |
| MODULE LENGTH | 67.79 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 34.00 |
| GROUND TO TOP | 19.41 |
| PROJECTED PANEL HEIGHT | 14.41 |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | MTSOLAR, CH1LIIAGH2E7 |
| SITE ADDRESS | 120, SAND, BAR, RD, ROCKWOOD, ME, 04478, USA |
| MODULE INFO | |
| MODULE WIDTH | 44.64 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 120.00 |
| SNOW LOAD OVERRIDE | 70.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 11149.34 |
| TOTAL WEIGHT | 2082.86 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/b555504a-1823-44fd-ae51-5742c1fcc779.pdf |
|
| ID | 13680.00 |
| 3D Solar link |
