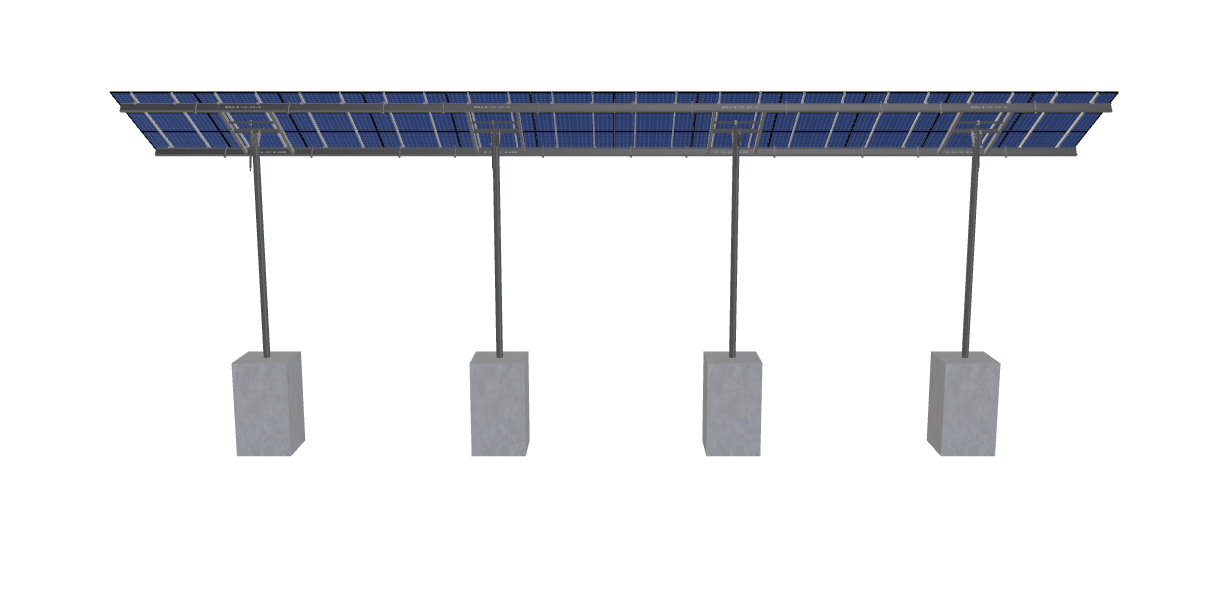

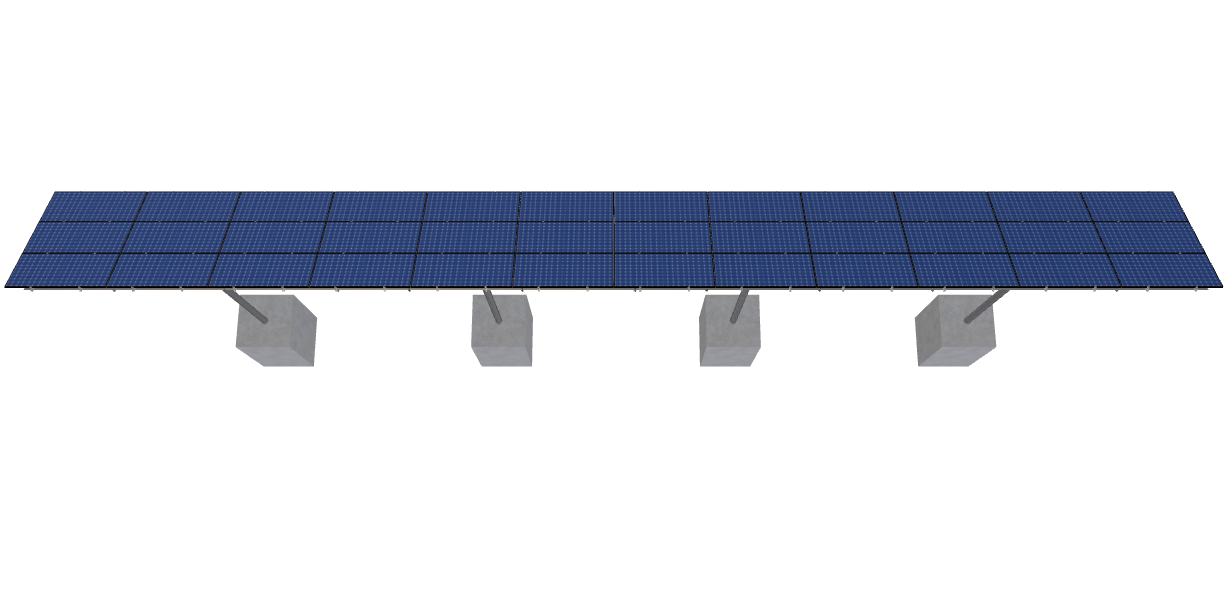

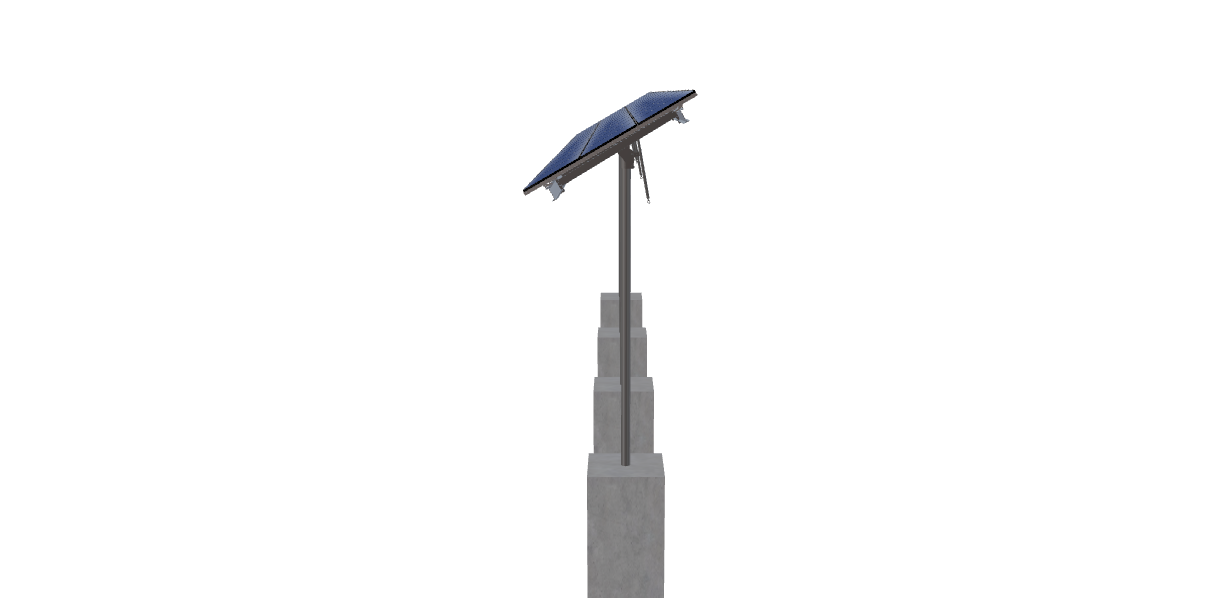

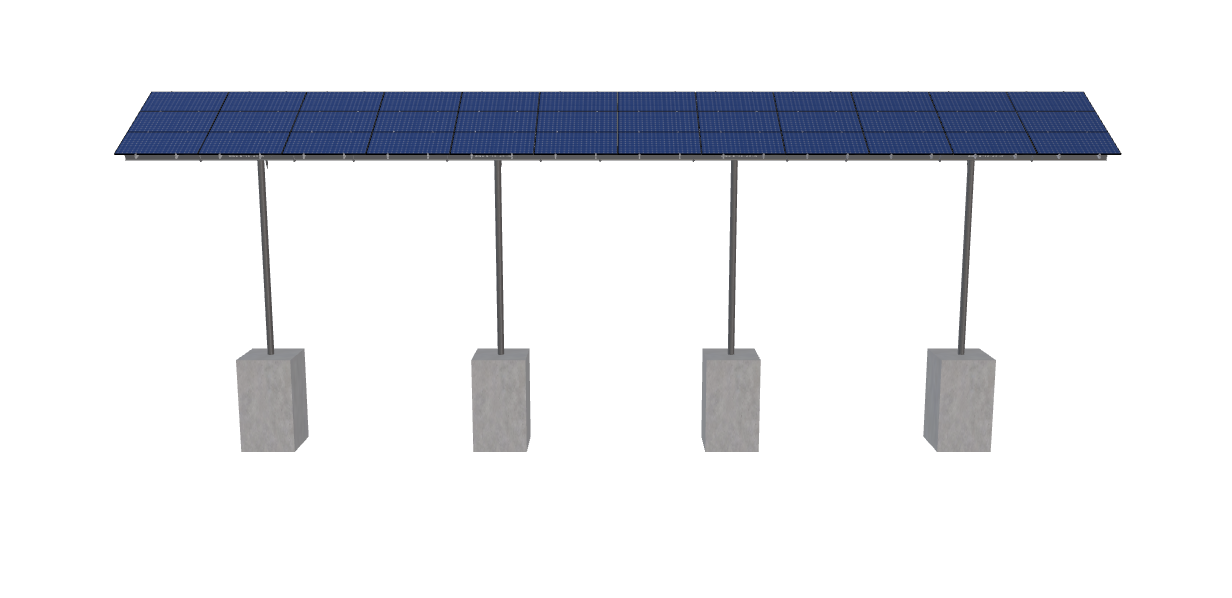

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79.1 inches by 39.5 inches and an array layout of 12 wide by 3 high.
This mount fits on 4 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_DBH1E13JAJG5
$19,909.02
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79.1 inches by 39.5 inches and an array layout of 12 wide by 3 high.
This mount fits on 4 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

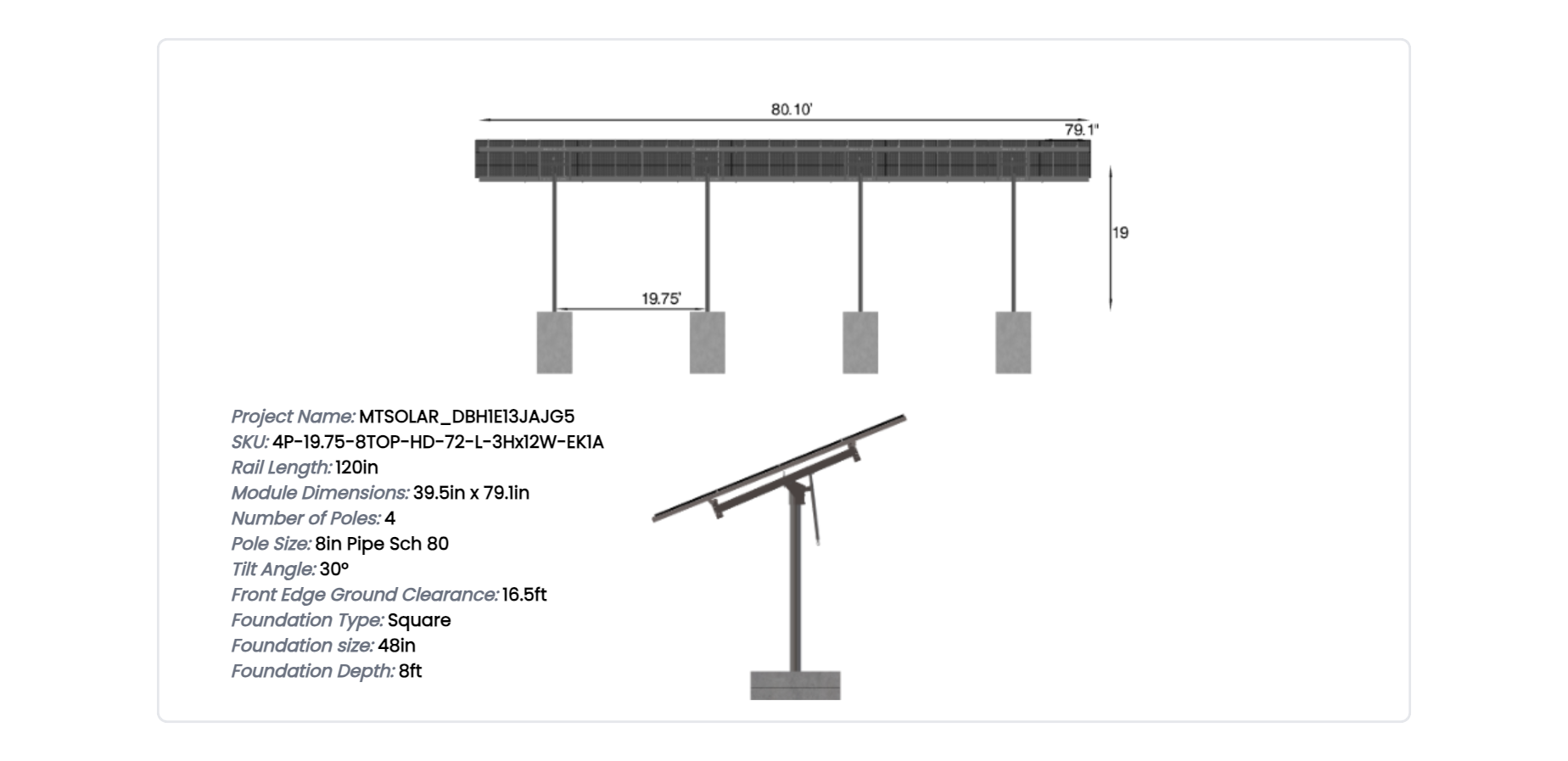

Additional information
| Weight | 3551.1800000000003 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-8TOP-HD-72-L-3HX12W-EK1A |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 19.00 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 8.00 |
| TILT ANGLE | 30.00 |
| CANTILEVER | 945.00 |
| GROUND CLEARANCE | 16.50 |
| NO POLES | 4.00 |
| MODULE AREA | 801.00 |
| ARRAY WIDTH | 80.10 |
| ARRAY HEIGHT | 10.00 |
| RAIL LENGTH | 120.00 |
| MODULE LENGTH | 79.10 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 78.75 |
| GROUND TO TOP | 21.47 |
| PROJECTED PANEL HEIGHT | 4.94 |
| PROJECT ID | MTSOLAR, DBH1E13JAJG5 |
| SITE ADDRESS | PW2R+JH, COACHELLA, CA, USA |
| MODULE WIDTH | 39.50 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 12.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 0.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 18960.97 |
| TOTAL WEIGHT | 3551.18 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/fc649eb5-503f-412a-970a-e2a8042ad873.pdf |
|
| ID | 2915.00 |
| 3D Solar link |
