This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 42 inches and an array layout of 5 wide by 4 high.

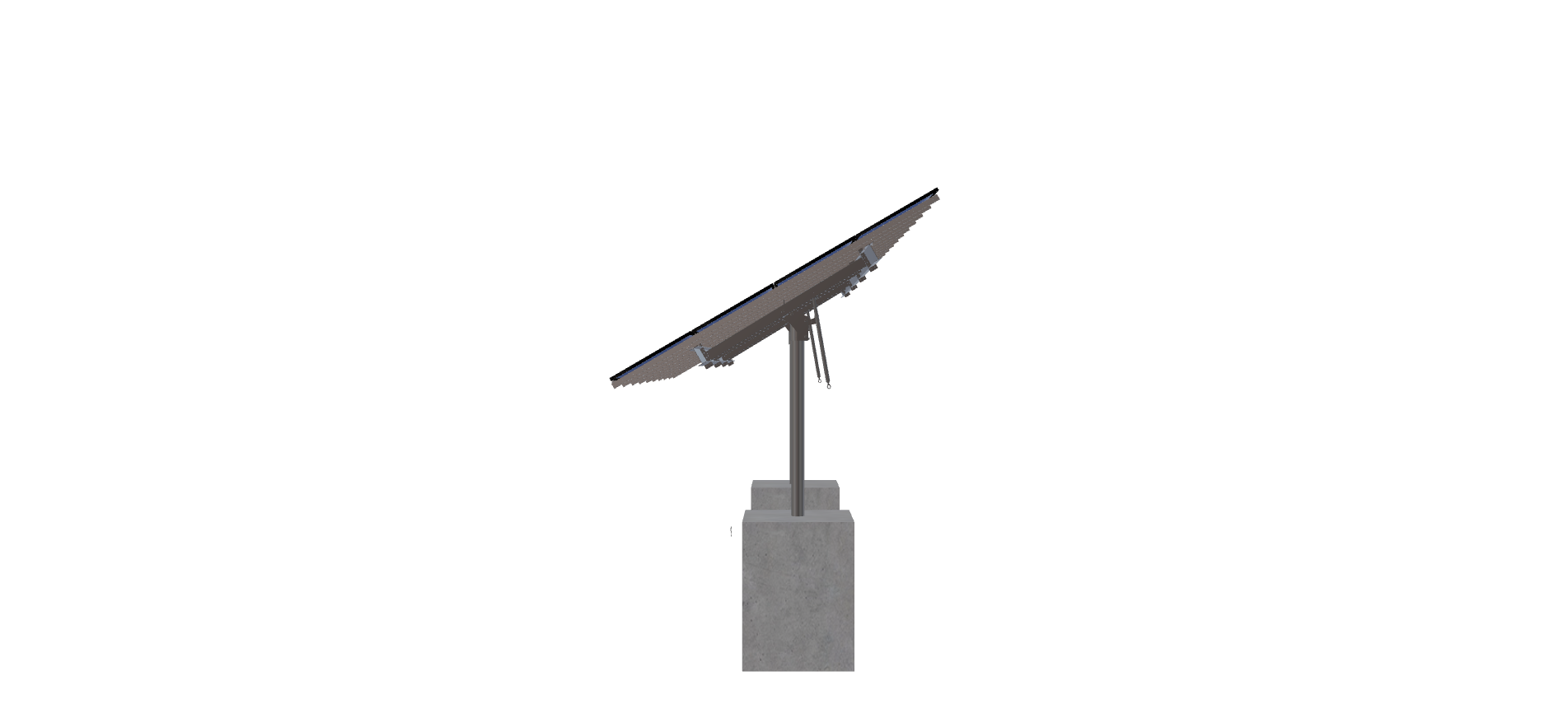

This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_DD1947433CKE
$10,018.34
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 42 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1751.1999999999998 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-15-8TOP-XD-45-L-4HX5W-6I6B |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 8.54 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 30.00 |
| CANTILEVER | 360.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 442.71 |
| ARRAY WIDTH | 31.25 |
| ARRAY HEIGHT | 14.17 |
| RAIL LENGTH | 170.00 |
| MODULE LENGTH | 74.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 30.00 |
| GROUND TO TOP | 12.04 |
| PROJECTED PANEL HEIGHT | 7.00 |
| PROJECT ID | MTSOLAR, DD1947433CKE |
| SITE ADDRESS | 50, OLIVER, RD, MARLBOROUGH, NH, 03455, USA |
| MODULE WIDTH | 42.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 90.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 9541.28 |
| TOTAL WEIGHT | 1751.20 |
| TOTAL PALLETS | 2.00 |
