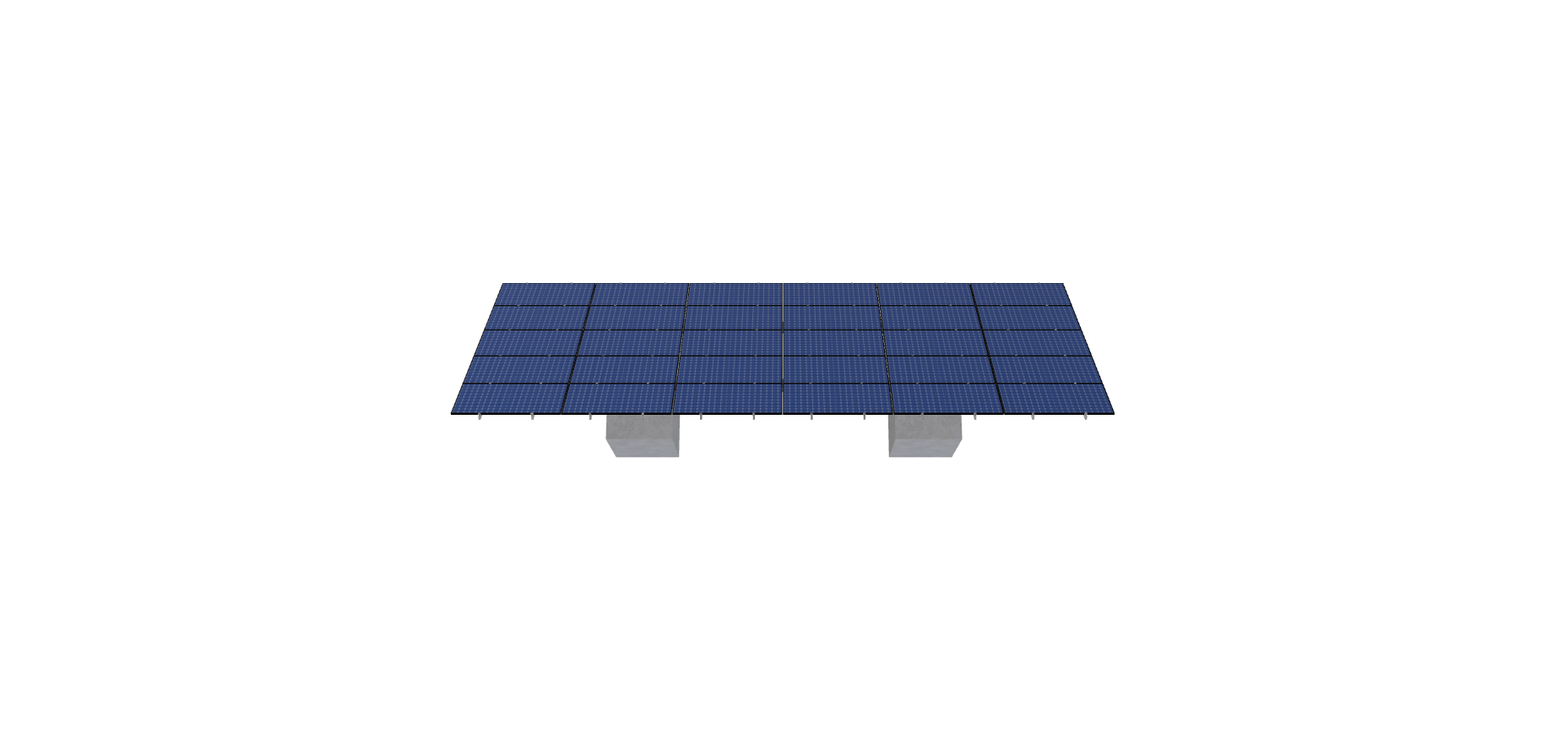

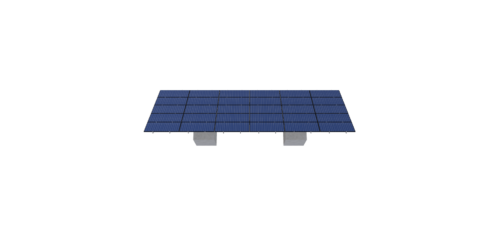

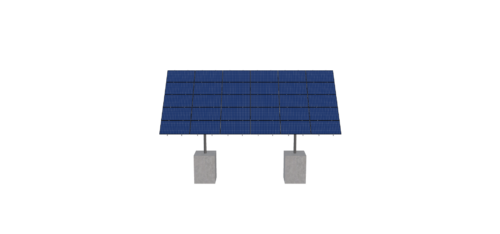

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.44 inches by 40.8 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_DJ2JEC4GEF88-Alam-30-Panel
$9,869.34
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.44 inches by 40.8 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1858.1399999999999 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-19.75-6TOP-SD-57-L-5HX6W-HF77 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 11.20 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 6.25 |
| TILT ANGLE | 46.10 |
| CANTILEVER | 441.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 640.49 |
| ARRAY WIDTH | 37.22 |
| ARRAY HEIGHT | 17.21 |
| RAIL LENGTH | 206.50 |
| MODULE LENGTH | 73.44 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 36.75 |
| GROUND TO TOP | 17.32 |
| PROJECTED PANEL HEIGHT | 12.25 |
| WIND SPEED OVERRIDE | 87.00 |
| SNOW LOAD OVERRIDE | 20.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | MTSOLAR, DJ2JEC4GEF88-ALAM-30-PANEL |
| SITE ADDRESS | NICE, CA, 95464, USA |
| MODULE WIDTH | 40.80 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 9399.37 |
| TOTAL WEIGHT | 1858.14 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/7a538379-b259-4279-966c-d39fcc655fef.pdf |
|
| ID | 7931.00 |
| 3D Solar link |
