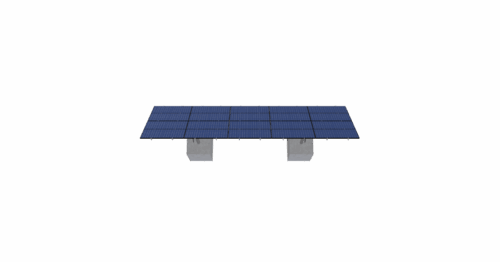

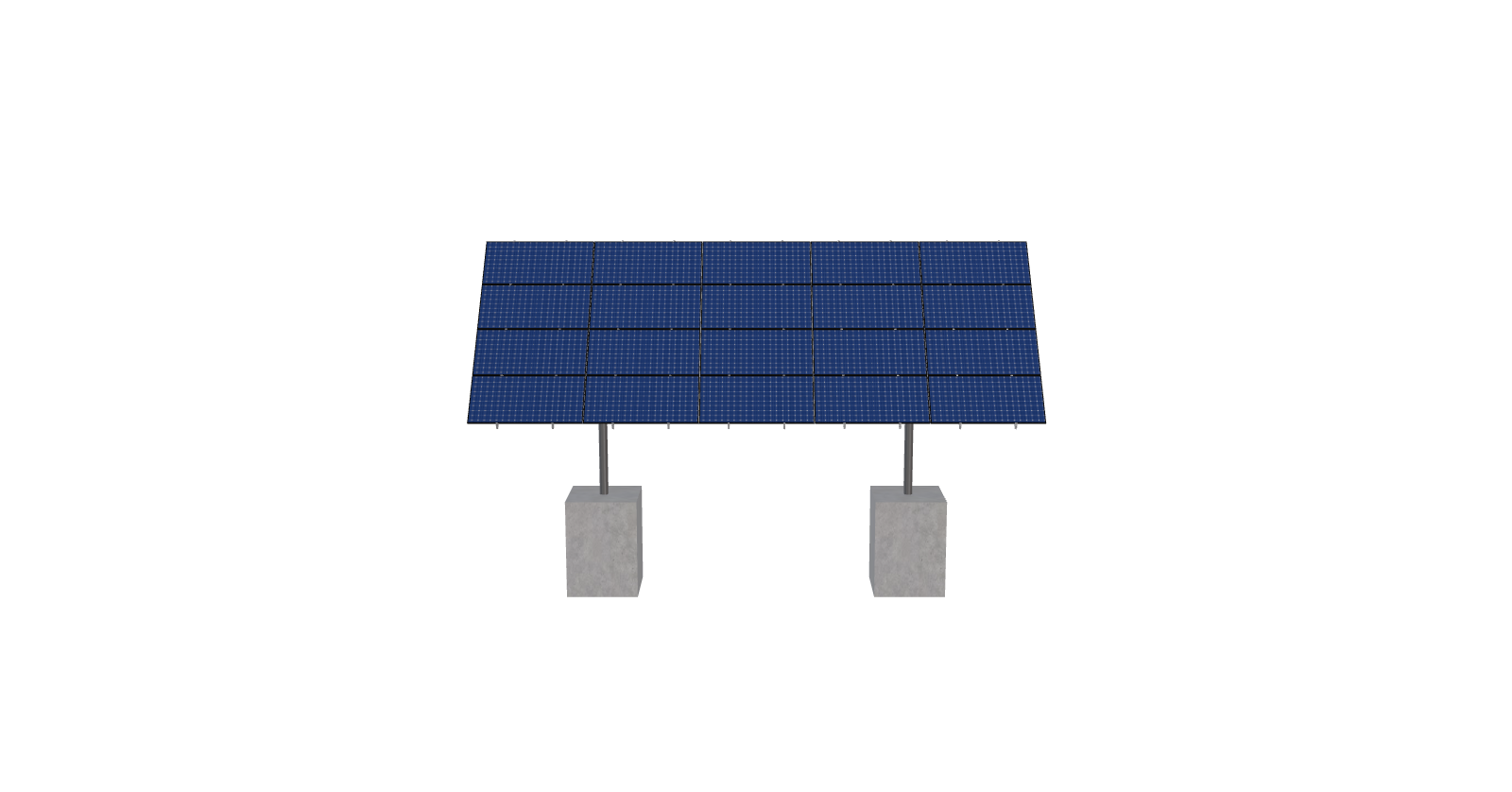

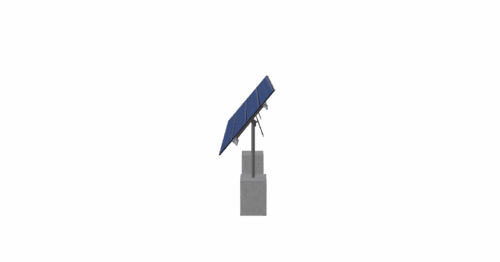

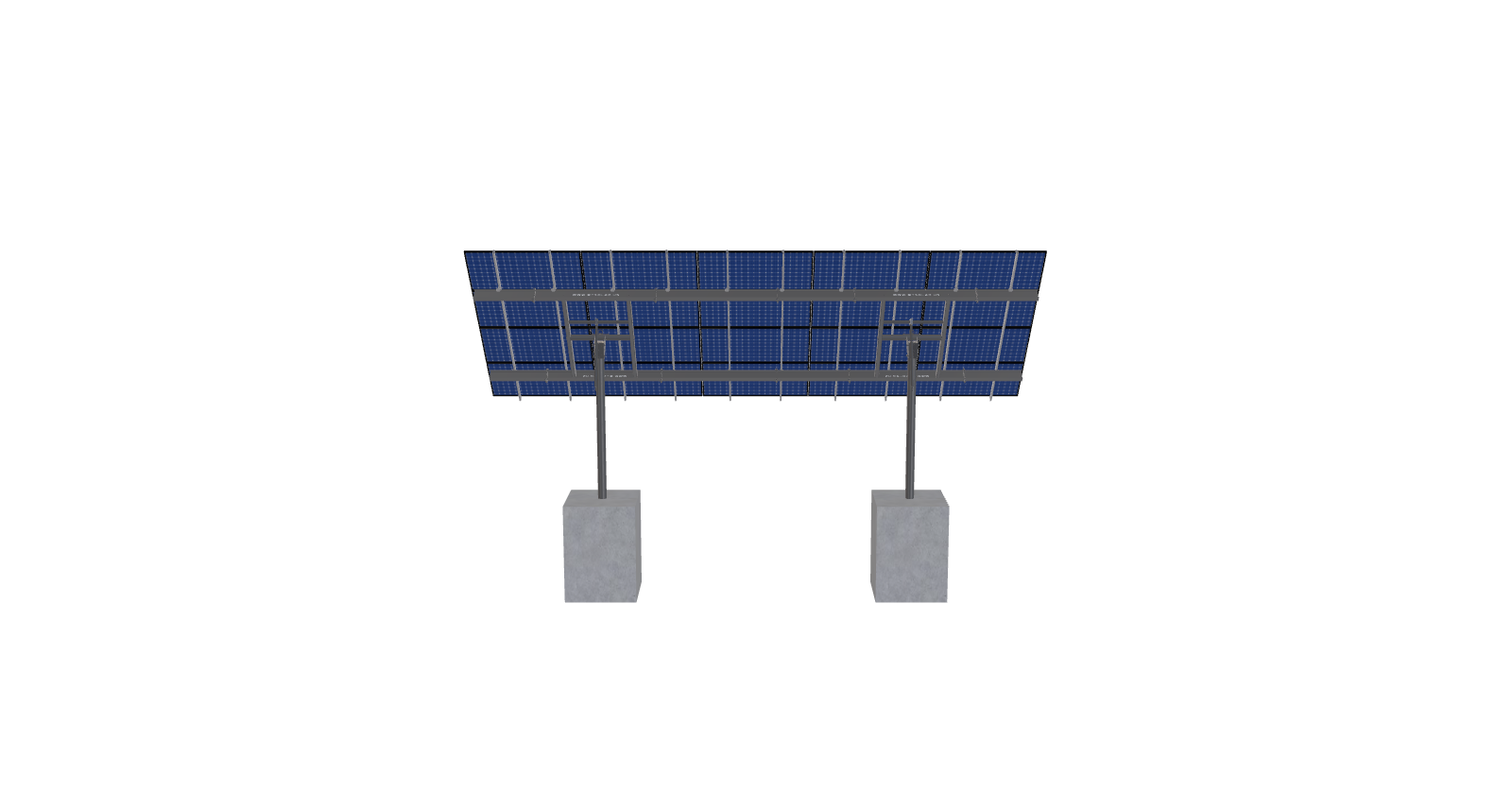

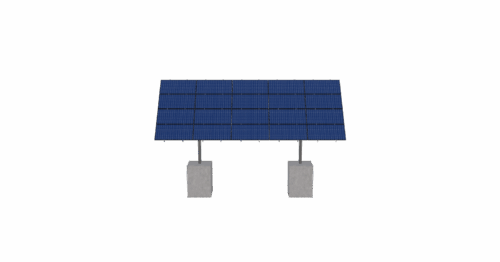

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 84.06 inches by 41.19 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_DL6E03IL983I-v3cu
$9,460.04
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 84.06 inches by 41.19 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

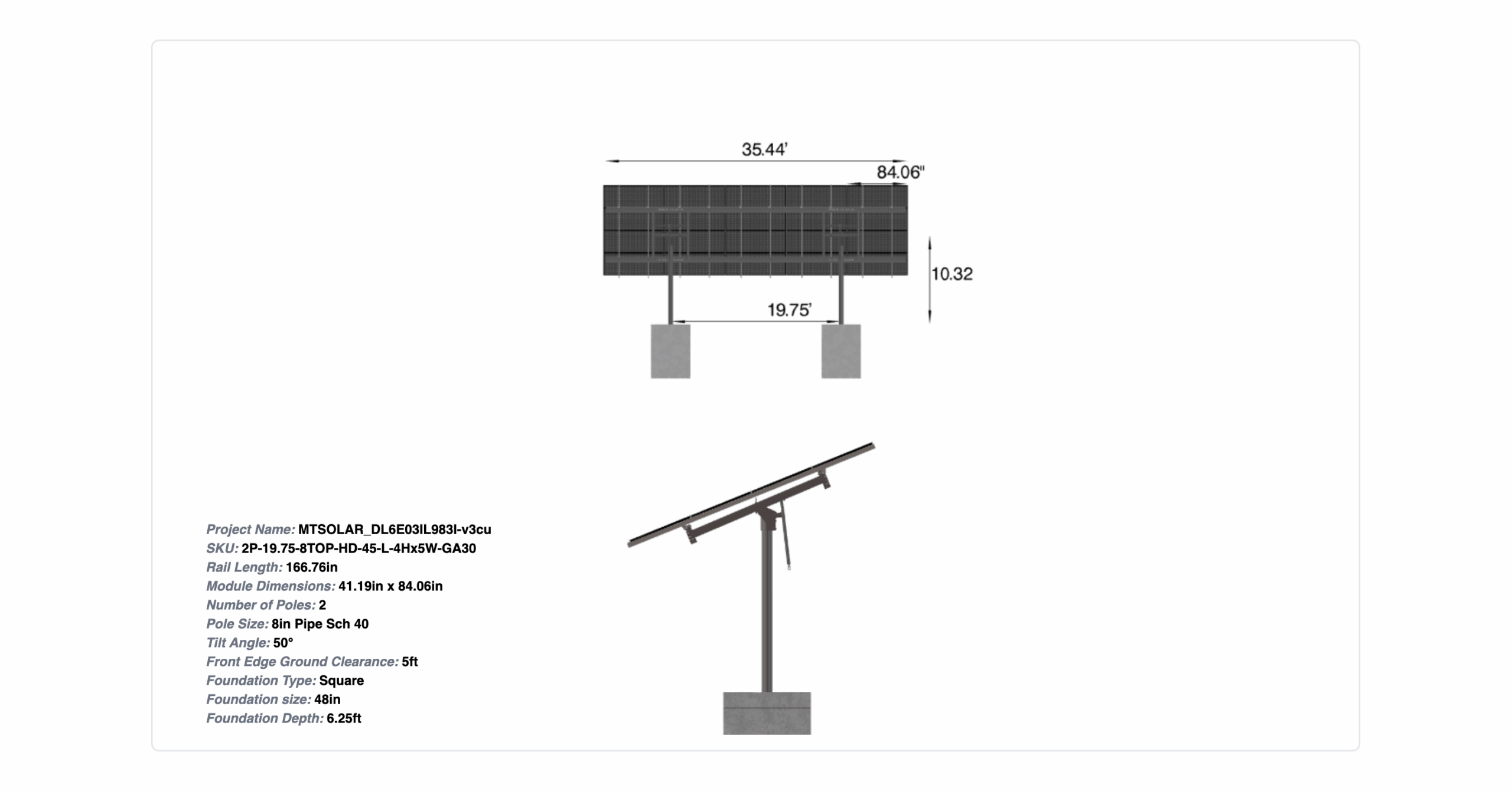

Additional information
| Weight | 1706.1000000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-19.75-8TOP-HD-45-L-4HX5W-GA30 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 10.32 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.25 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 417.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 492.52 |
| ARRAY WIDTH | 35.44 |
| ARRAY HEIGHT | 13.90 |
| RAIL LENGTH | 166.76 |
| MODULE LENGTH | 84.06 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 34.75 |
| GROUND TO TOP | 15.65 |
| PROJECTED PANEL HEIGHT | 10.65 |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 144.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | MTSOLAR, DL6E03IL983I-V3CU |
| SITE ADDRESS | BECKWOURTH, GENESEE, RD, BECKWOURTH, CA, USA |
| MODULE INFO | BOVIET, SOLAR, 450W |
| MODULE WIDTH | 41.19 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | II |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | HD |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 9460.04 |
| TOTAL WEIGHT | 1706.10 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/216f2aff-72c2-4488-9020-2df707456f05.pdf |
|
| ID | 11504.00 |
| 3D Solar link |
