This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.24 inches by 41.14 inches and an array layout of 10 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

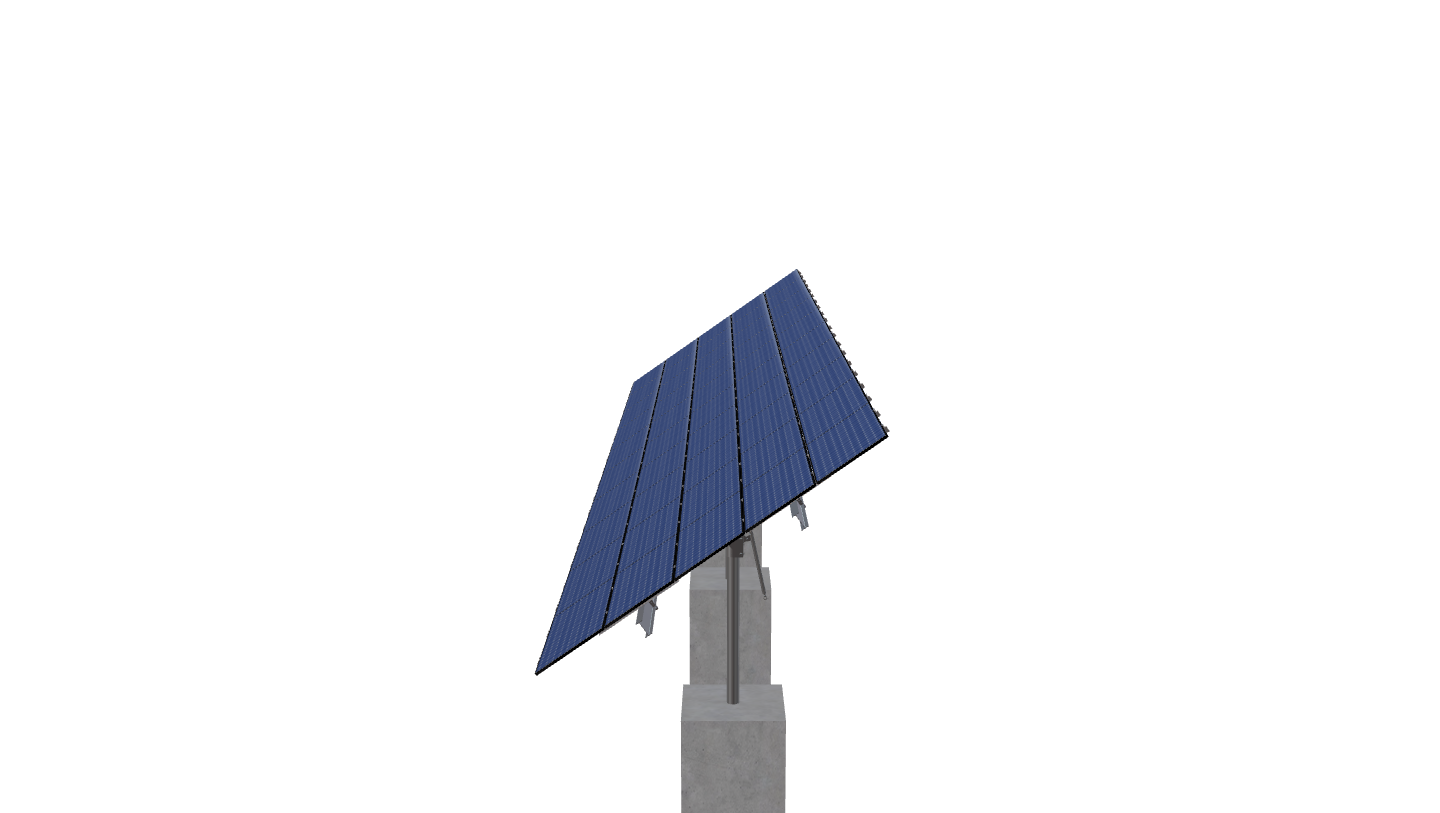

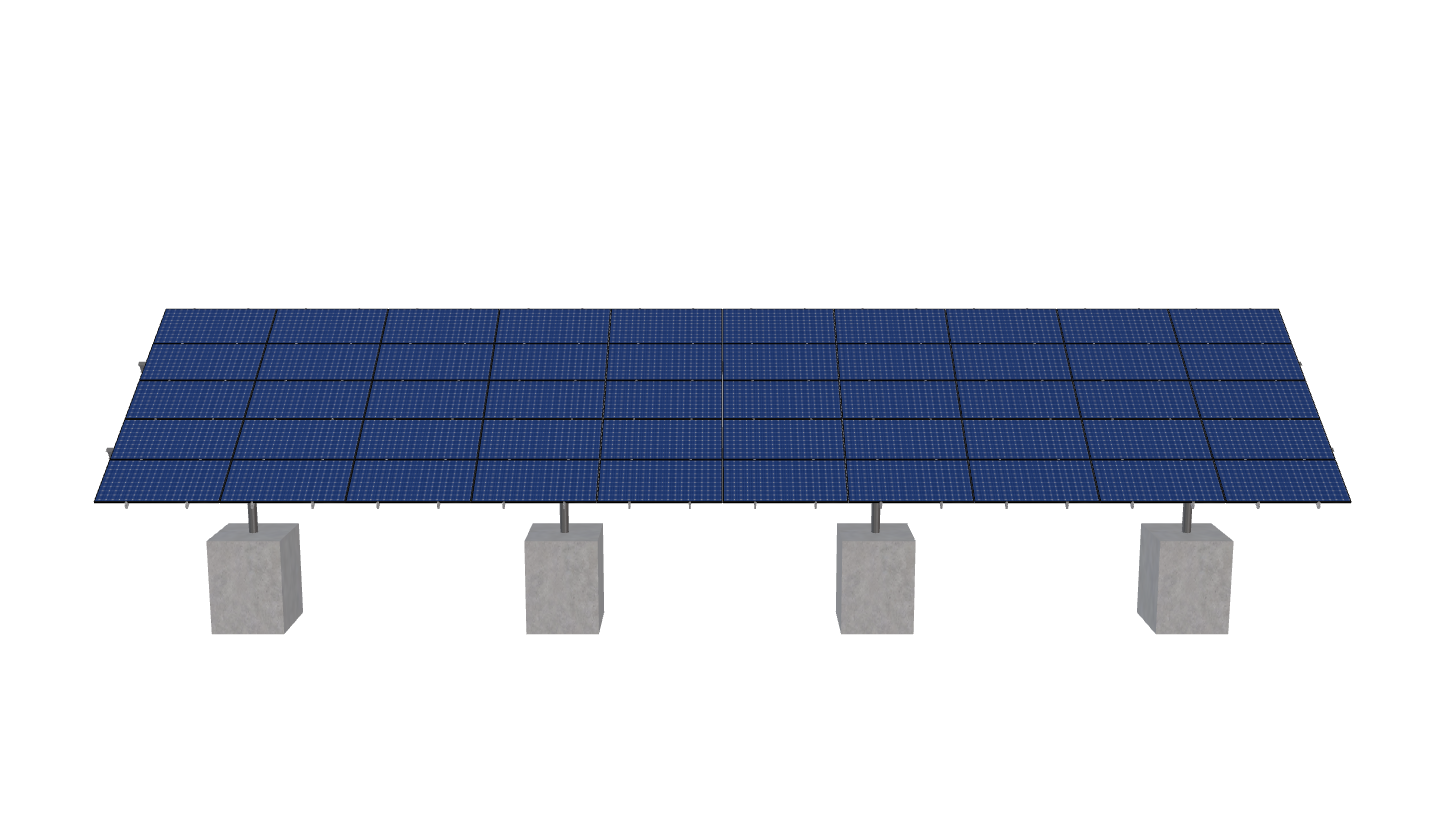

See 3D Model Here
MTSOLAR_E1F708HL98CK
$20,461.82
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.24 inches by 41.14 inches and an array layout of 10 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4116.58 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-8TOP-HD-45-L-5HX10W-K3I9 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 7.98 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 891.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1275.80 |
| ARRAY WIDTH | 73.53 |
| ARRAY HEIGHT | 17.35 |
| RAIL LENGTH | 208.20 |
| MODULE LENGTH | 87.24 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 74.25 |
| GROUND TO TOP | 12.89 |
| PROJECTED PANEL HEIGHT | 9.83 |
| PROJECT ID | MTSOLAR, E1F708HL98CK |
| SITE ADDRESS | 1838, EASTSIDE, RD, ETNA, CA, 96027, USA |
| MODULE WIDTH | 41.14 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 90.00 |
| SNOW LOAD OVERRIDE | 40.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 20461.82 |
| TOTAL WEIGHT | 4116.58 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/eb5c1f4b-0c60-4588-9542-79205e9438ff.pdf |
|
| ID | 4578.00 |
| 3D Solar link |
