This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

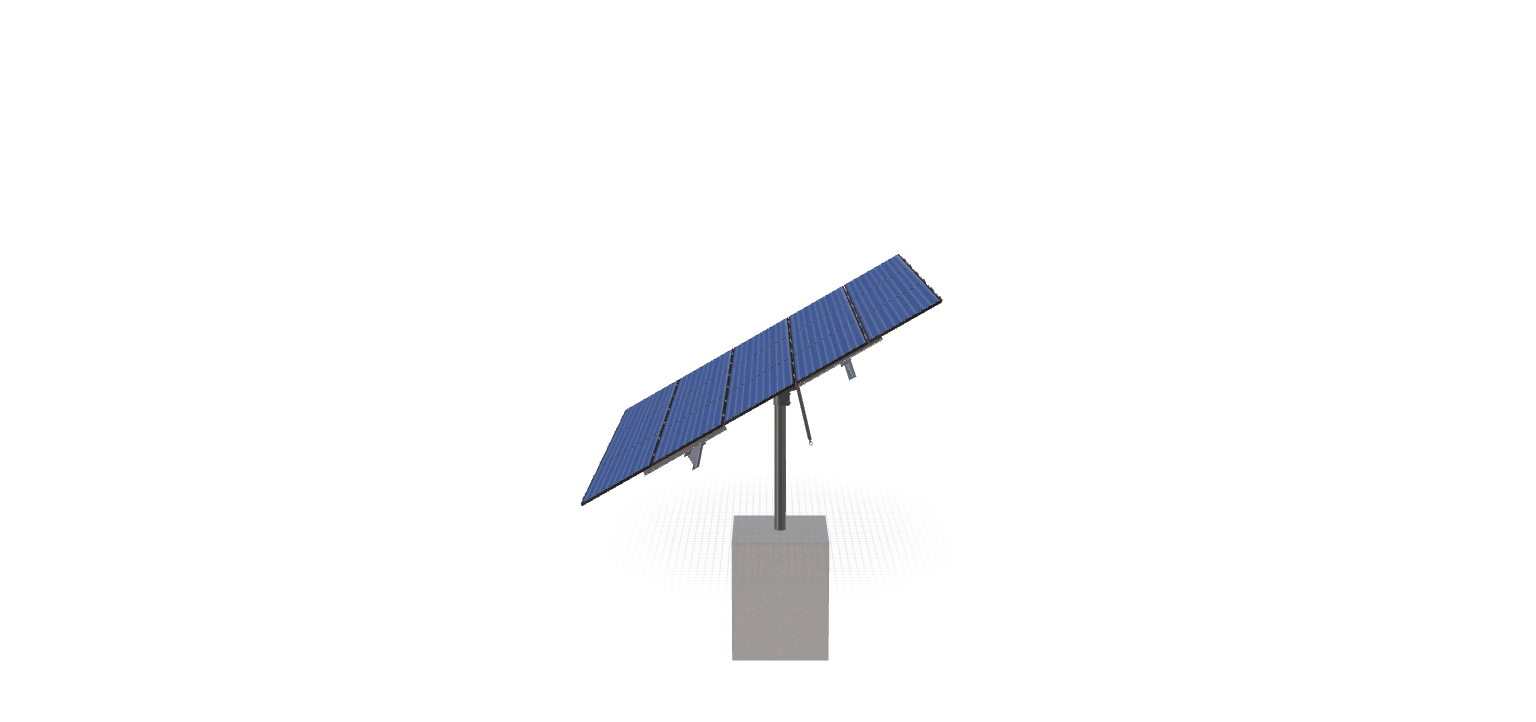

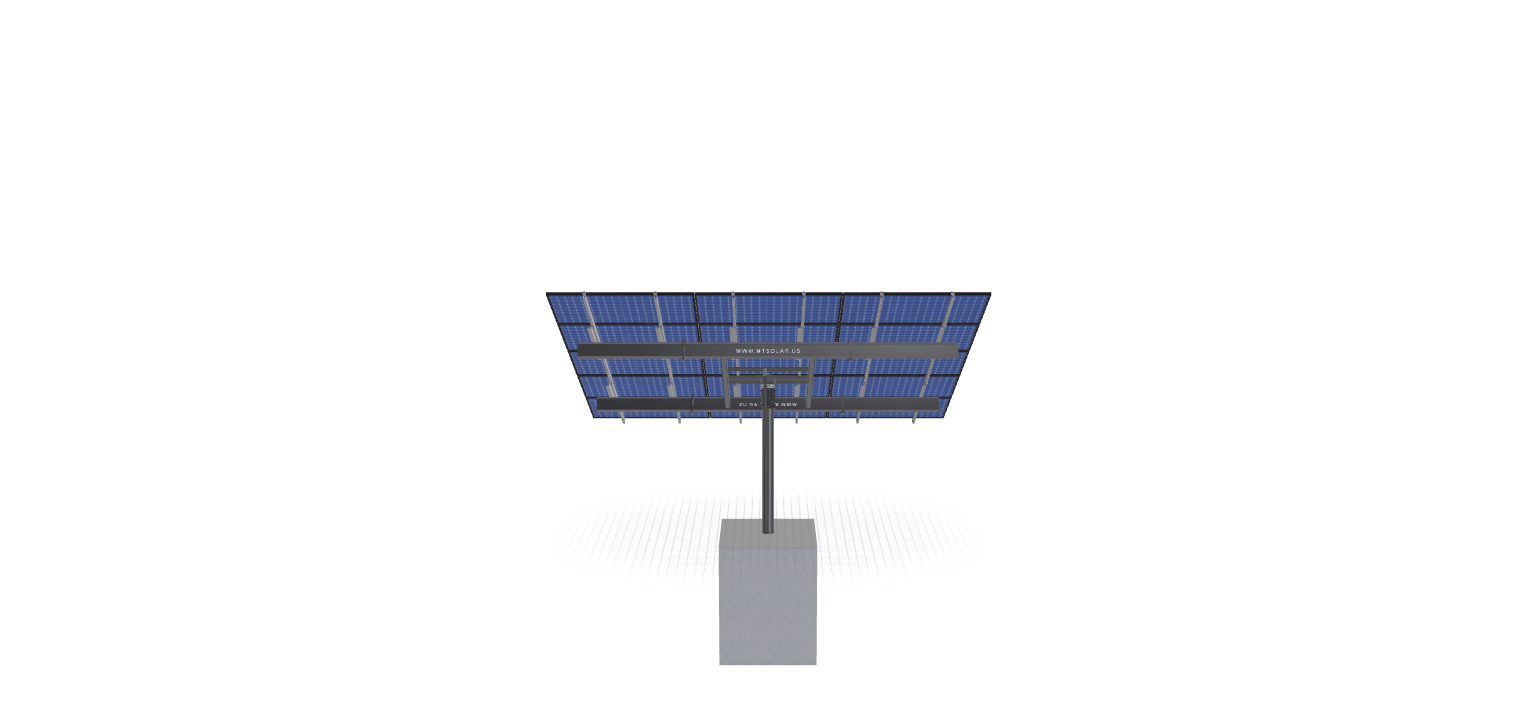

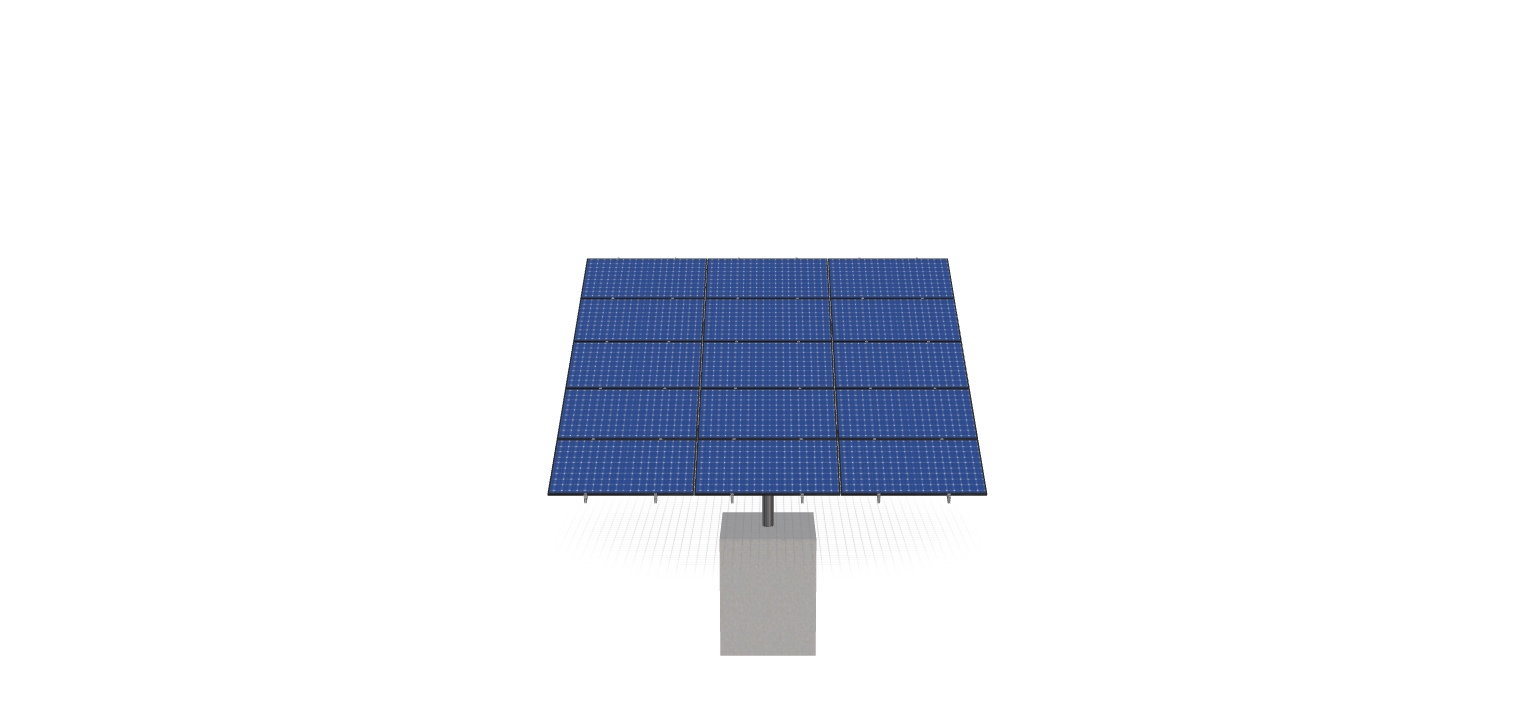

See 3D Model Here
MTSOLAR_E76KGF6JE5I4
$5,596.13
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 1118.8700000000001 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 1P-0-6TOP-XD-57-L-5HX3W-FJ78 |
DUTY SIZE | XD |
POLE SIZE | 6IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 1.00 |
POLE SPACING | 0.00 |
POLE HEIGHT | 7.33 |
WING SPAN | 57.00 |
MAX FOUNDATION DEPTH | 5.75 |
TILT ANGLE | 30.00 |
CANTILEVER | 204.00 |
GROUND CLEARANCE | 3.00 |
NO POLES | 1.00 |
MODULE AREA | 325.00 |
ARRAY WIDTH | 18.75 |
ARRAY HEIGHT | 17.33 |
RAIL LENGTH | 208.00 |
MODULE LENGTH | 74.00 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 17.00 |
GROUND TO TOP | 11.61 |
PROJECTED PANEL HEIGHT | 8.56 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
PROJECT ID | MTSOLAR, E76KGF6JE5I4 |
SITE ADDRESS | 35, LA, MER, DR, RYE, NH, 03870, USA |
MODULE WIDTH | 41.10 |
NUMBER ROWS | 5.00 |
NUMBER COLUMNS | 3.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 5596.13 |
TOTAL WEIGHT | 1118.87 |
TOTAL PALLETS | 1.00 |
