MTSOLAR_ED43273219H

$12,913.44

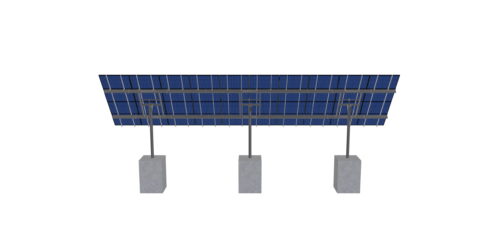

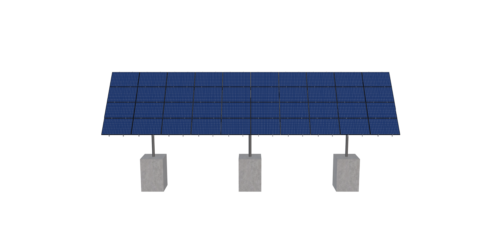

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 45 inches and an array layout of 10 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

Product price: $12,913.44
Total options:
Order total:
SKU: 3P-19.75-6TOP-SD-57-L-4Hx10W-1AFA Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 45 inches and an array layout of 10 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2283.2 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-19.75-6TOP-SD-57-L-4HX10W-1AFA

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 80

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

19.75

POLE HEIGHT

10.81

WING SPAN

57.00

MAX FOUNDATION DEPTH

6.75

TILT ANGLE

50.00

CANTILEVER

678.00

GROUND CLEARANCE

5.00

NO POLES

3.00

MODULE AREA

872.08

ARRAY WIDTH

57.50

ARRAY HEIGHT

15.17

RAIL LENGTH

182.00

MODULE LENGTH

68.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

56.50

GROUND TO TOP

16.55

PROJECTED PANEL HEIGHT

11.49

PROJECT ID

MTSOLAR, ED43273219H

SITE ADDRESS

MIDDLETOWN, MD, 21769, USA

MODULE WIDTH

45.00

NUMBER ROWS

4.00

NUMBER COLUMNS

10.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

100.00

SNOW LOAD OVERRIDE

4.40

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

12913.44

TOTAL WEIGHT

2283.20

TOTAL PALLETS

3.00
