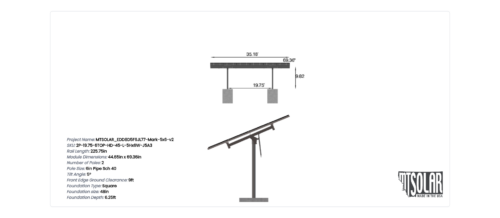

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.36 inches by 44.65 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

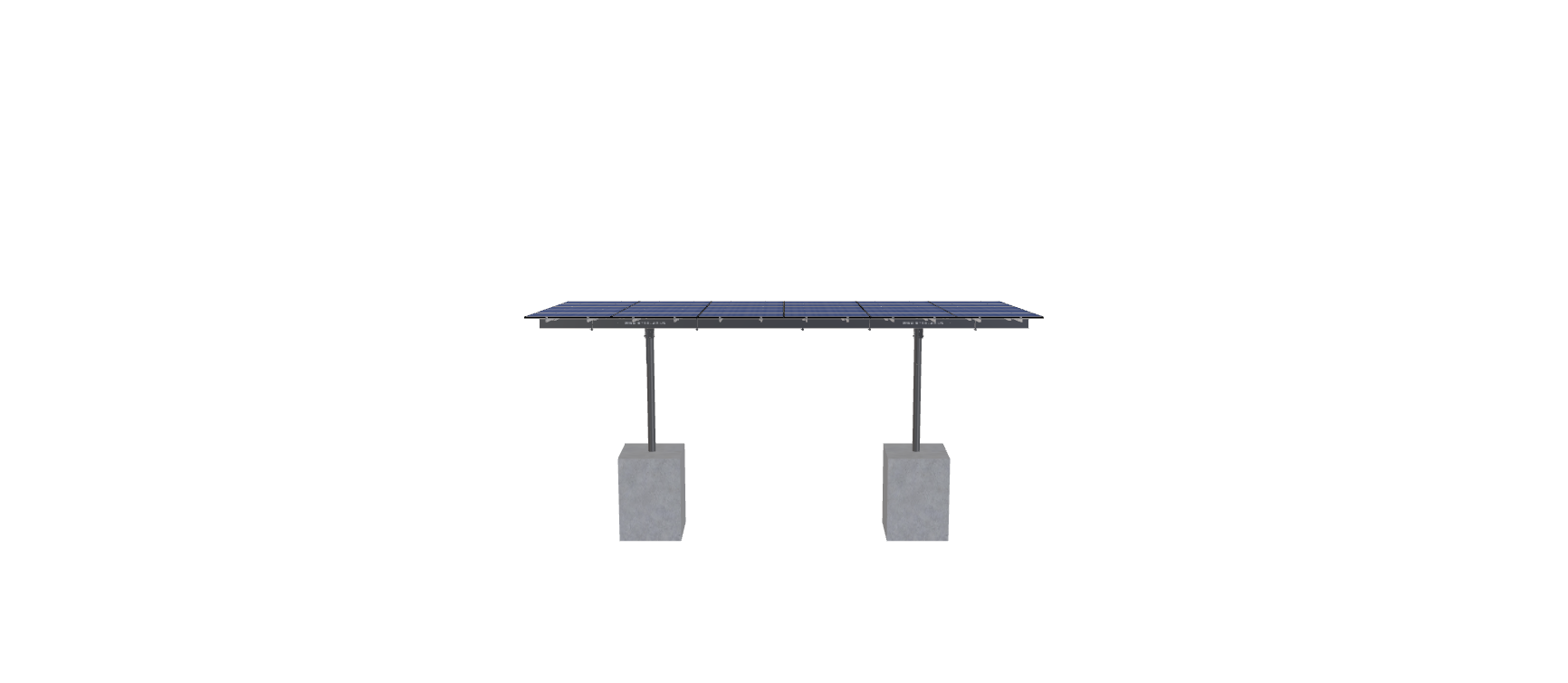

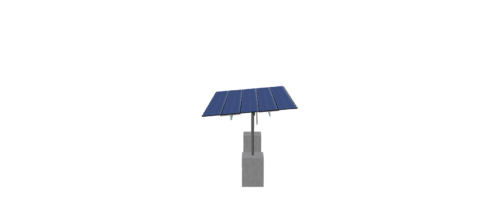

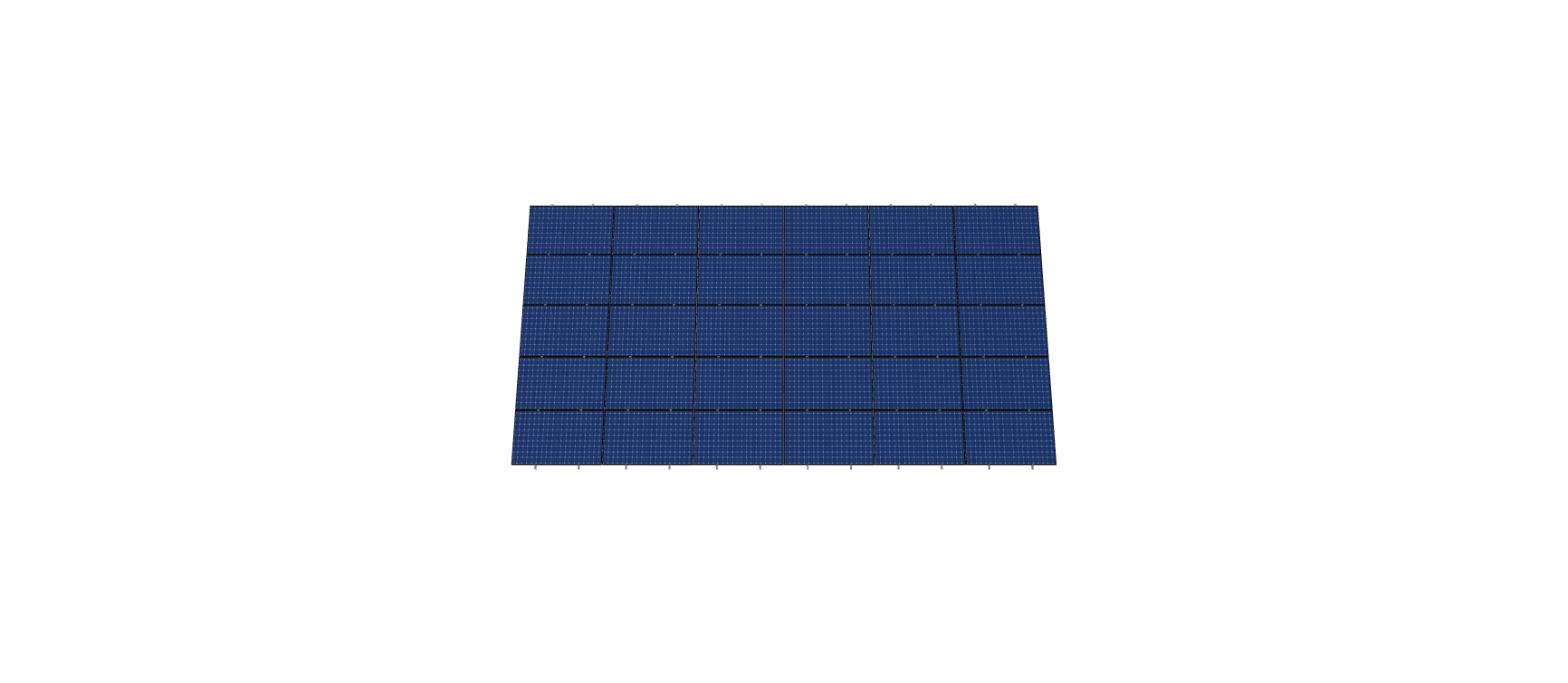

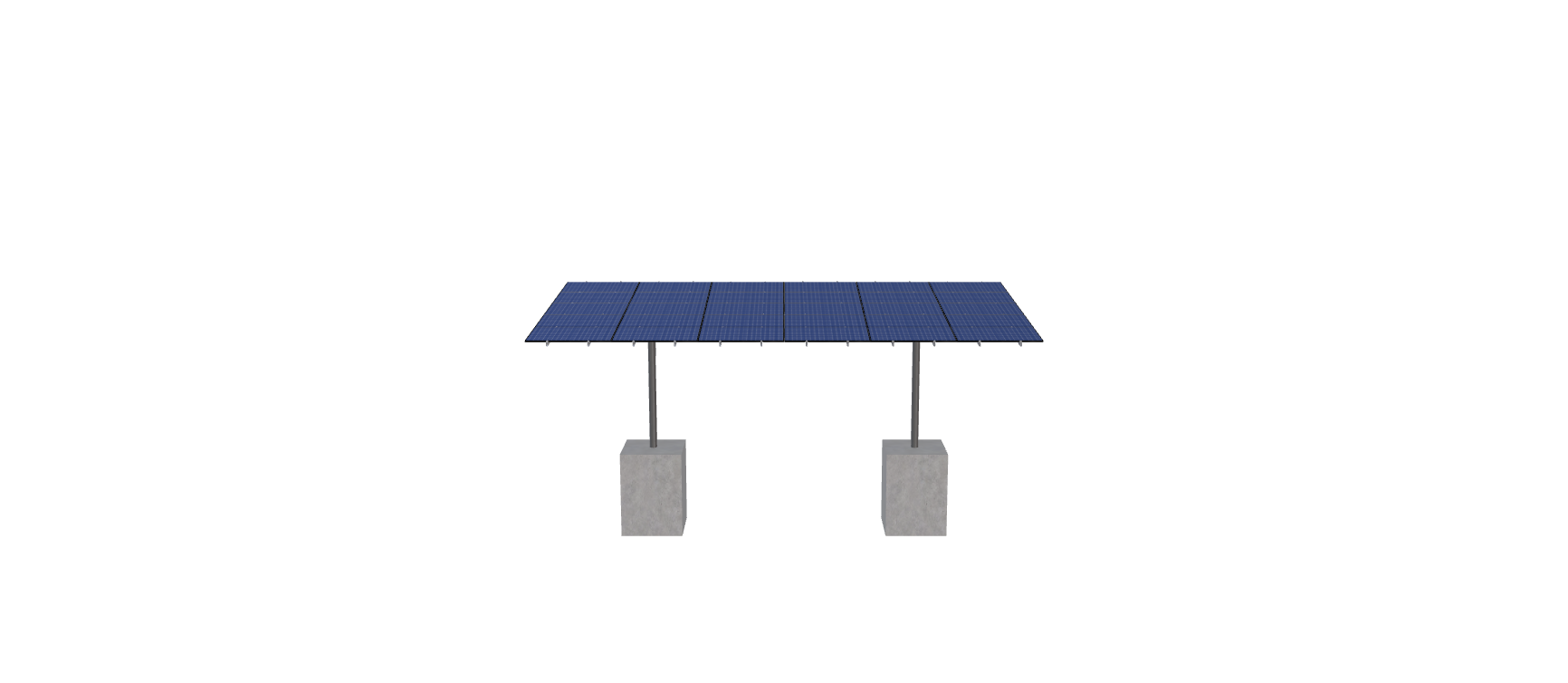

See 3D Model Here
MTSOLAR_EDD8D5F6JL77-Mark-5×6-v2
$10,737.17
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.36 inches by 44.65 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2067.84 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-19.75-6TOP-HD-45-L-5HX6W-J5A3 |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 9.82 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.25 |
| TILT ANGLE | 5.00 |
| CANTILEVER | 417.00 |
| GROUND CLEARANCE | 9.00 |
| NO POLES | 2.00 |
| MODULE AREA | 661.82 |
| ARRAY WIDTH | 35.18 |
| ARRAY HEIGHT | 18.81 |
| RAIL LENGTH | 225.75 |
| MODULE LENGTH | 69.36 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 34.75 |
| GROUND TO TOP | 10.64 |
| PROJECTED PANEL HEIGHT | 1.64 |
| WIND SPEED OVERRIDE | 181.00 |
| SNOW LOAD OVERRIDE | 0.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | MTSOLAR, EDD8D5F6JL77-MARK-5X6-V2 |
| SITE ADDRESS | DALLAS, TX, USA |
| MODULE INFO | |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 10737.17 |
| TOTAL WEIGHT | 2067.84 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/cfe012e4-8a0b-4a1e-aafe-f873d088e6e0.pdf |
|
| ID | 11183.00 |
| 3D Solar link |
