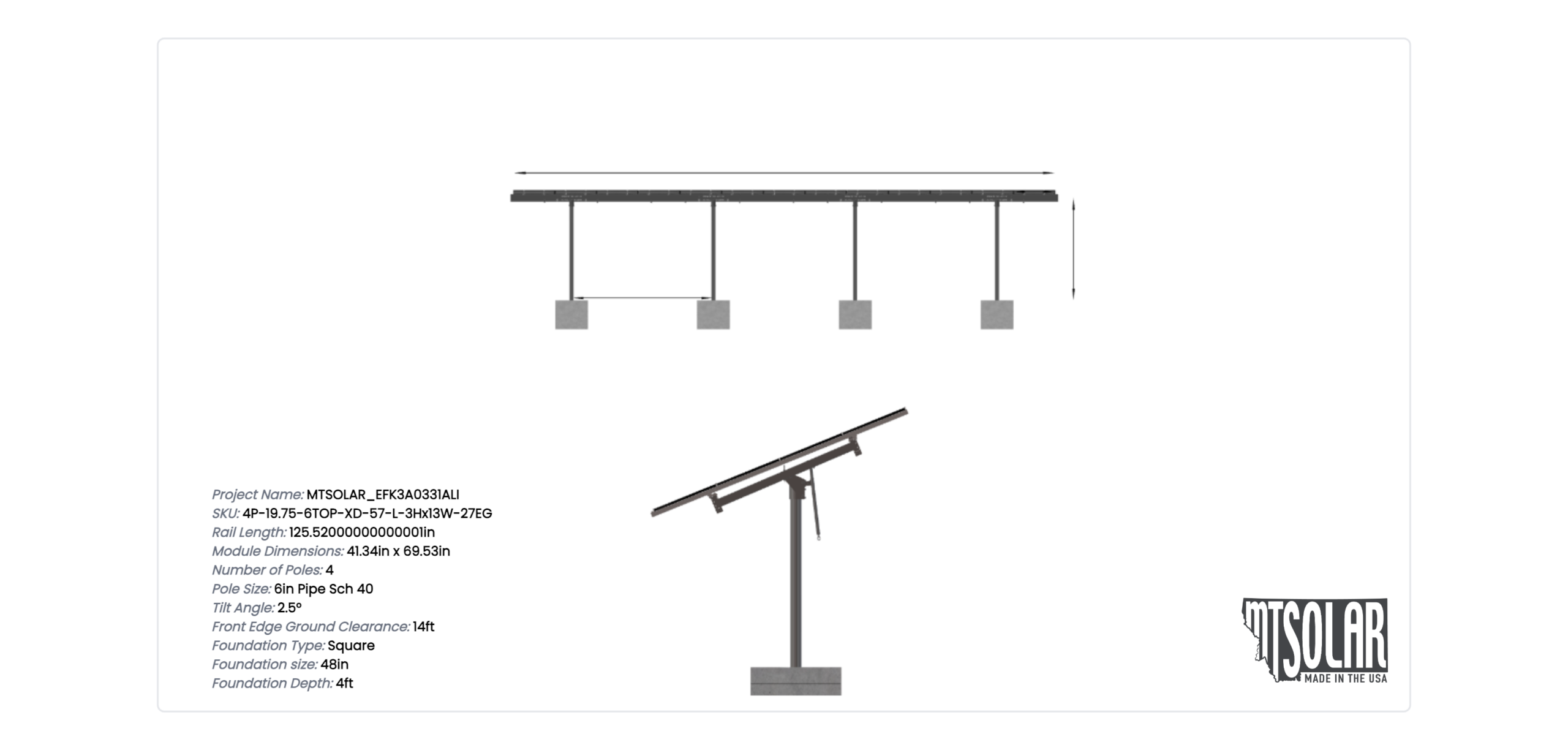

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.53 inches by 41.34 inches and an array layout of 13 wide by 3 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

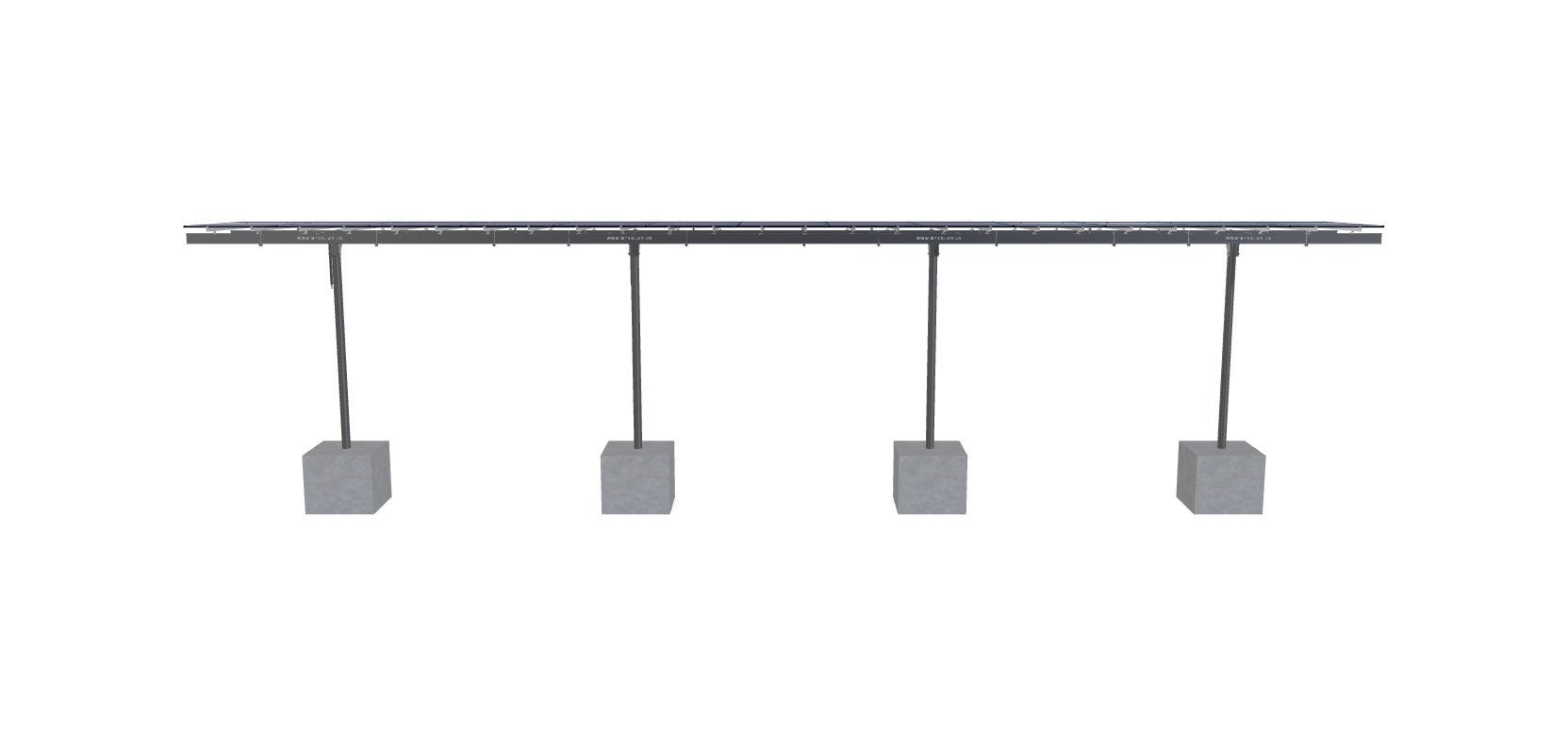

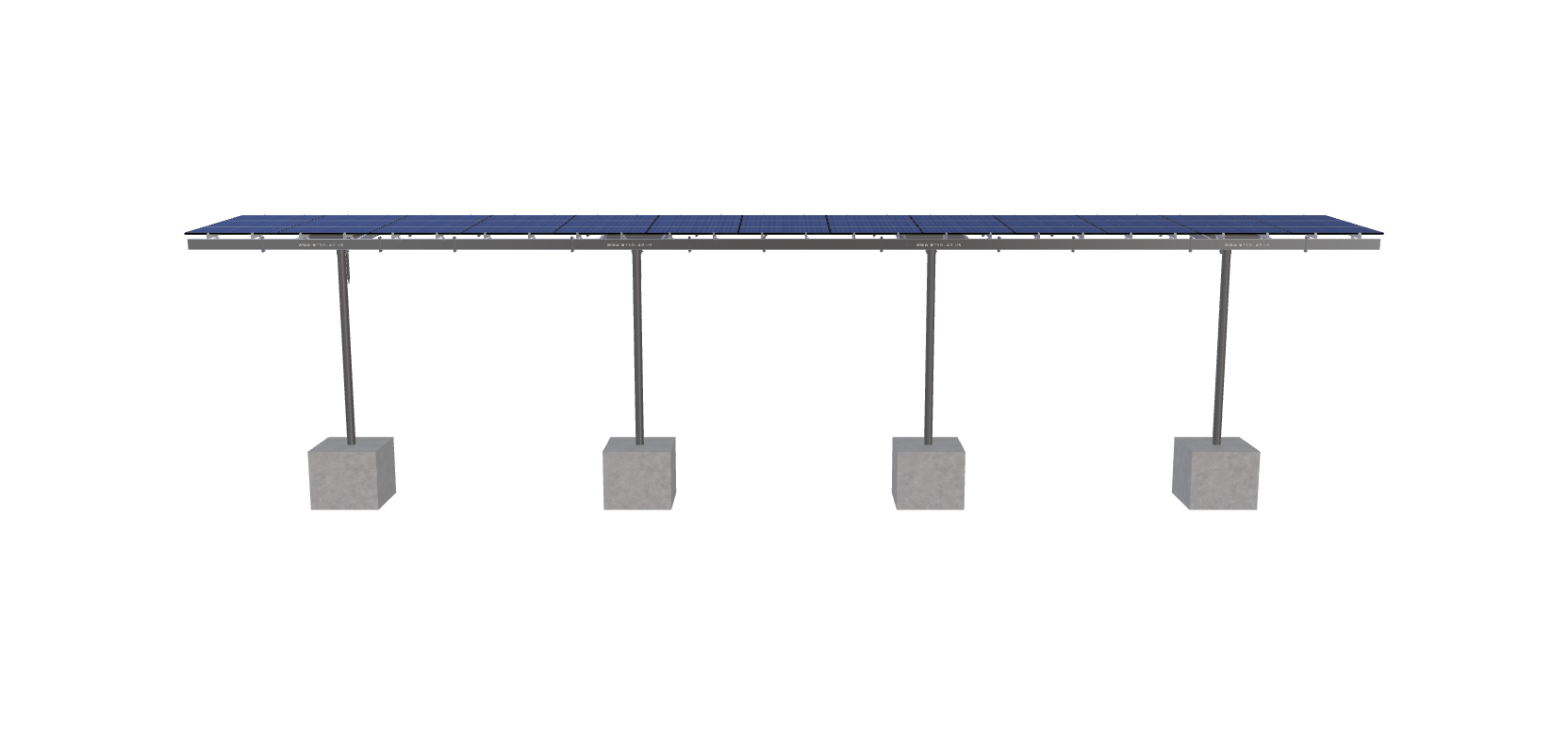

See 3D Model Here
MTSOLAR_EFK3A0331ALI
$22,029.68
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.53 inches by 41.34 inches and an array layout of 13 wide by 3 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3945.96 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-6TOP-XD-57-L-3HX13W-27EG |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 14.23 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 4.00 |
| TILT ANGLE | 2.50 |
| CANTILEVER | 915.00 |
| GROUND CLEARANCE | 14.00 |
| NO POLES | 4.00 |
| MODULE AREA | 799.22 |
| ARRAY WIDTH | 76.41 |
| ARRAY HEIGHT | 10.46 |
| RAIL LENGTH | 125.52 |
| MODULE LENGTH | 69.53 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 76.25 |
| GROUND TO TOP | 14.46 |
| PROJECTED PANEL HEIGHT | 0.46 |
| DESIGNER NAME | ISAAC, KETCHAM |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 303-718-6681 |
| PROJECT ID | MTSOLAR, EFK3A0331ALI |
| SITE ADDRESS | 740, N, RAILROAD, ST, RIDGWAY, CO, 81432, USA |
| MODULE WIDTH | 41.34 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 13.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 65.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 20980.65 |
| TOTAL WEIGHT | 3945.96 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/606bffd5-3c7e-4765-b8ed-843807142aba.pdf |
|
| ID | 10229.00 |
| 3D Solar link |
