This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 97.01 inches by 44.65 inches and an array layout of 9 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

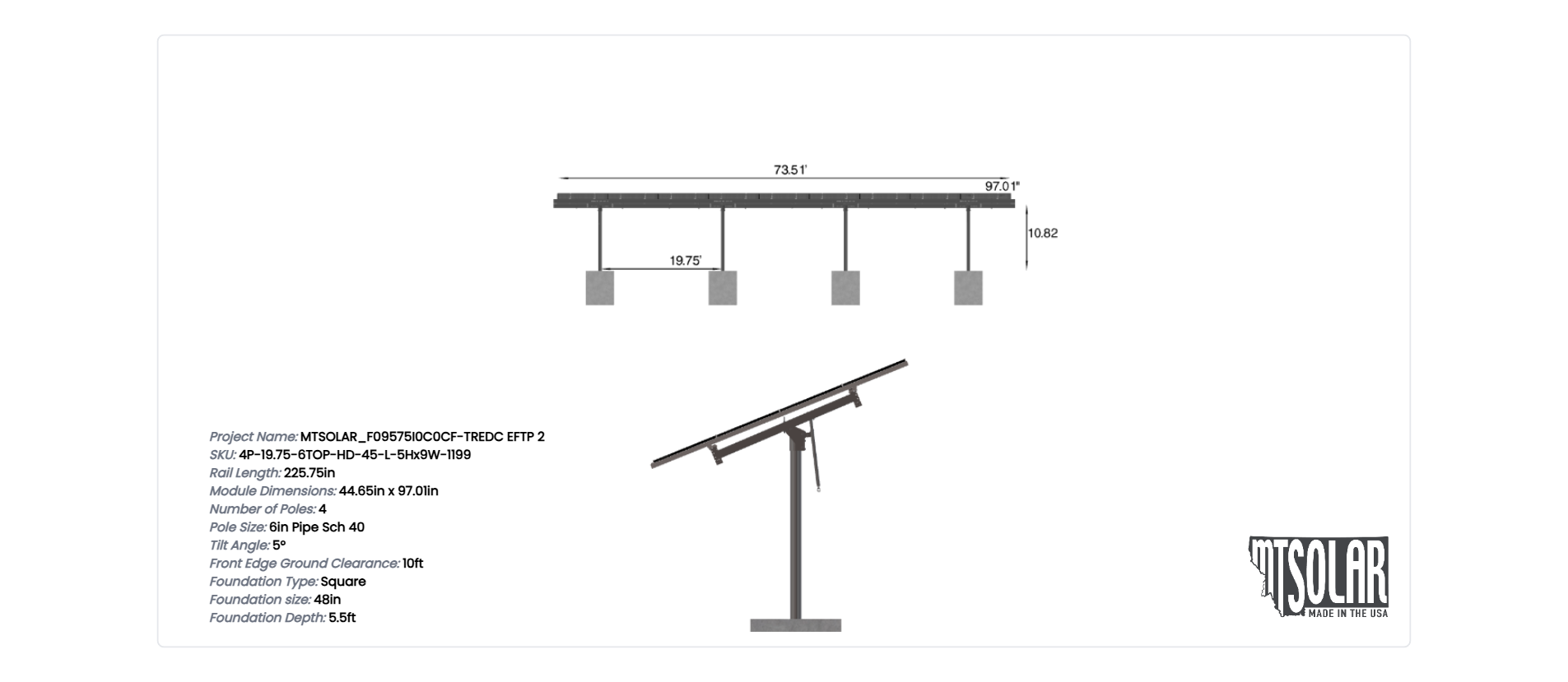

MTSOLAR_F09575I0C0CF-TREDC EFTP 2
$20,509.95
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 97.01 inches by 44.65 inches and an array layout of 9 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3955.1400000000003 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-6TOP-HD-45-L-5HX9W-1199 |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 10.82 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 5.50 |
| TILT ANGLE | 5.00 |
| CANTILEVER | 891.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1382.86 |
| ARRAY WIDTH | 73.51 |
| ARRAY HEIGHT | 18.81 |
| RAIL LENGTH | 225.75 |
| MODULE LENGTH | 97.01 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 74.25 |
| GROUND TO TOP | 11.64 |
| PROJECTED PANEL HEIGHT | 1.64 |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | MTSOLAR, F09575I0C0CF-TREDC, EFTP, 2 |
| SITE ADDRESS | CA-33, AVENAL, CA, USA |
| MODULE INFO | |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 9.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 120.00 |
| SNOW LOAD OVERRIDE | 15.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 20509.95 |
| TOTAL WEIGHT | 3955.14 |
| TOTAL PALLETS | 4.00 |
