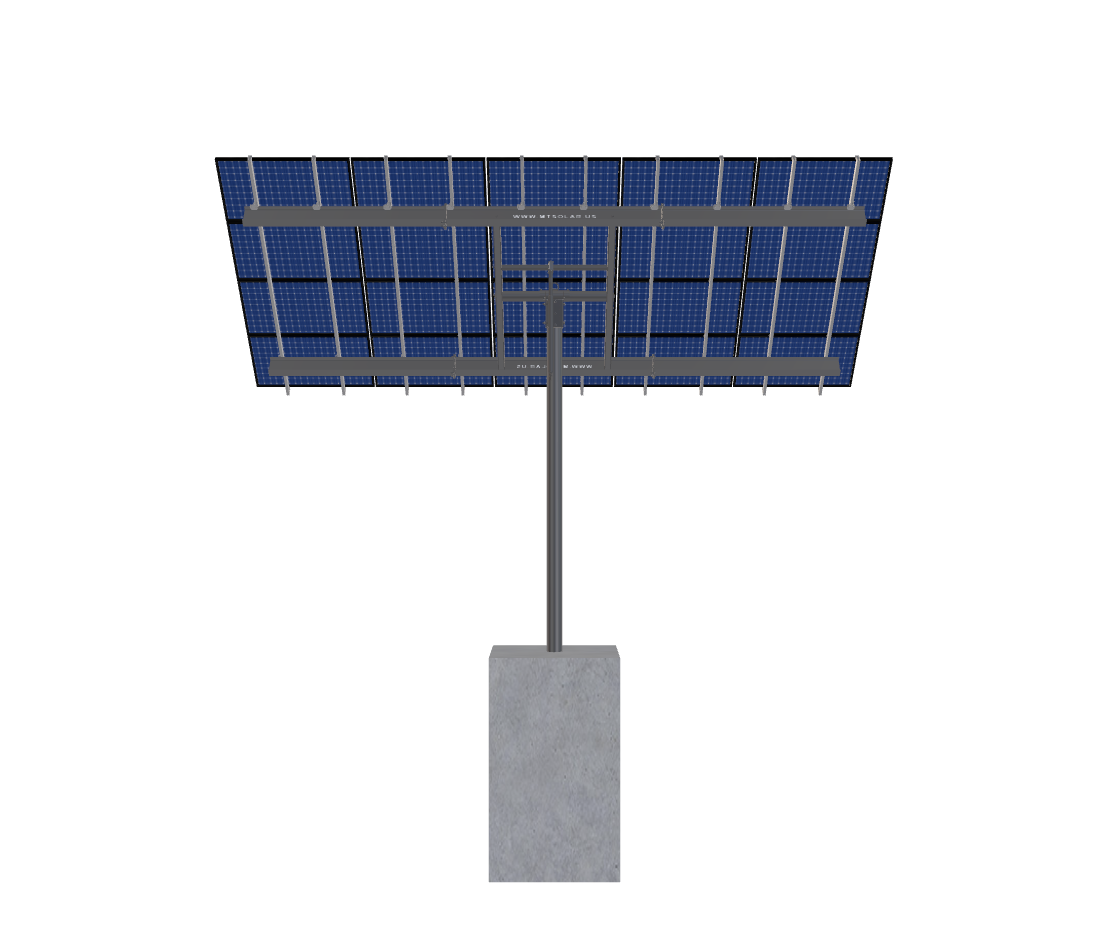

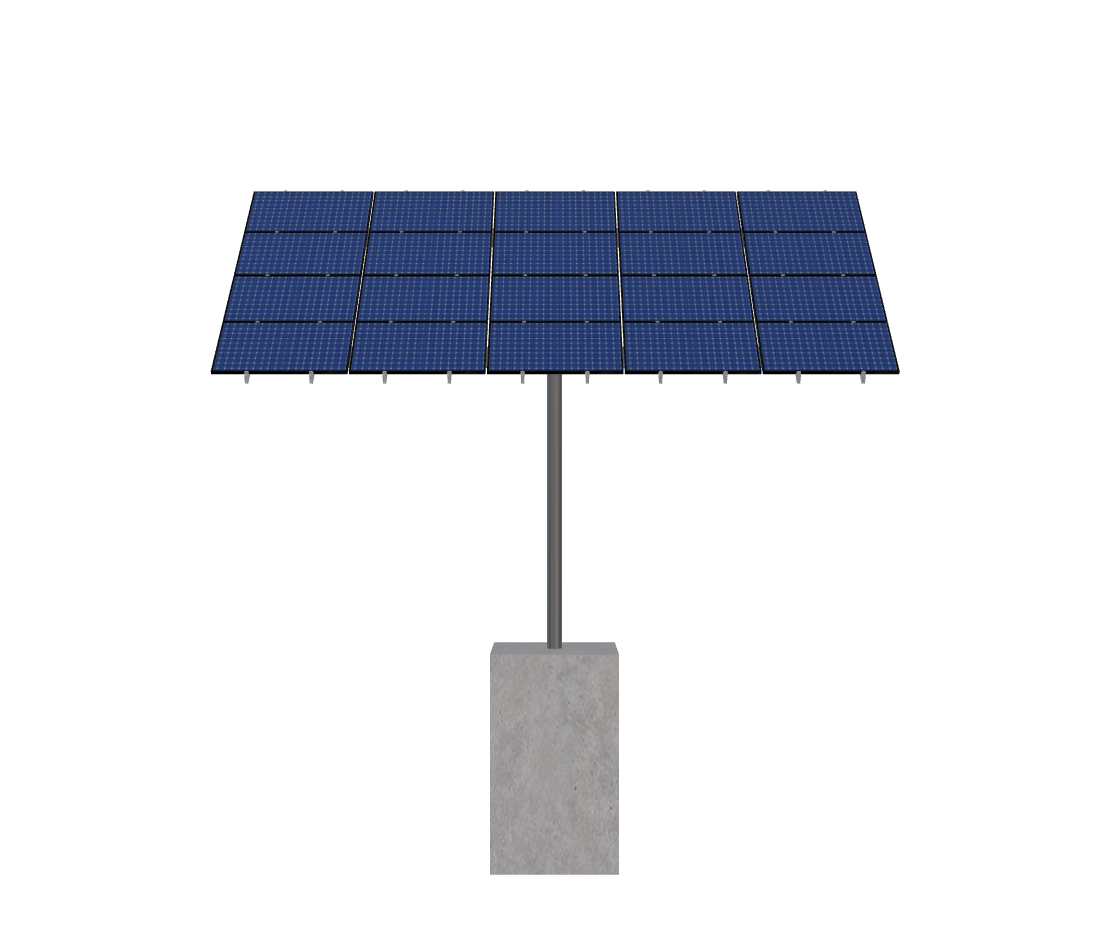

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 55 inches by 35 inches and an array layout of 5 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_G8BBGJB7L3H6_TEST
$5,859.62
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 55 inches by 35 inches and an array layout of 5 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1002.91 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-HD-84-L-4HX5W-7658 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 12.80 |
| WING SPAN | 84.00 |
| MAX FOUNDATION DEPTH | 7.75 |
| TILT ANGLE | 40.00 |
| CANTILEVER | 258.00 |
| GROUND CLEARANCE | 9.00 |
| NO POLES | 1.00 |
| MODULE AREA | 276.11 |
| ARRAY WIDTH | 23.33 |
| ARRAY HEIGHT | 11.83 |
| RAIL LENGTH | 142.00 |
| MODULE LENGTH | 55.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 21.50 |
| GROUND TO TOP | 16.55 |
| PROJECTED PANEL HEIGHT | 7.50 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | MTSOLAR, G8BBGJB7L3H6 |
| SITE ADDRESS | CHICAGO, IL, USA |
| MODULE WIDTH | 35.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 5580.59 |
| TOTAL WEIGHT | 1002.91 |
| TOTAL PALLETS | 1.00 |
