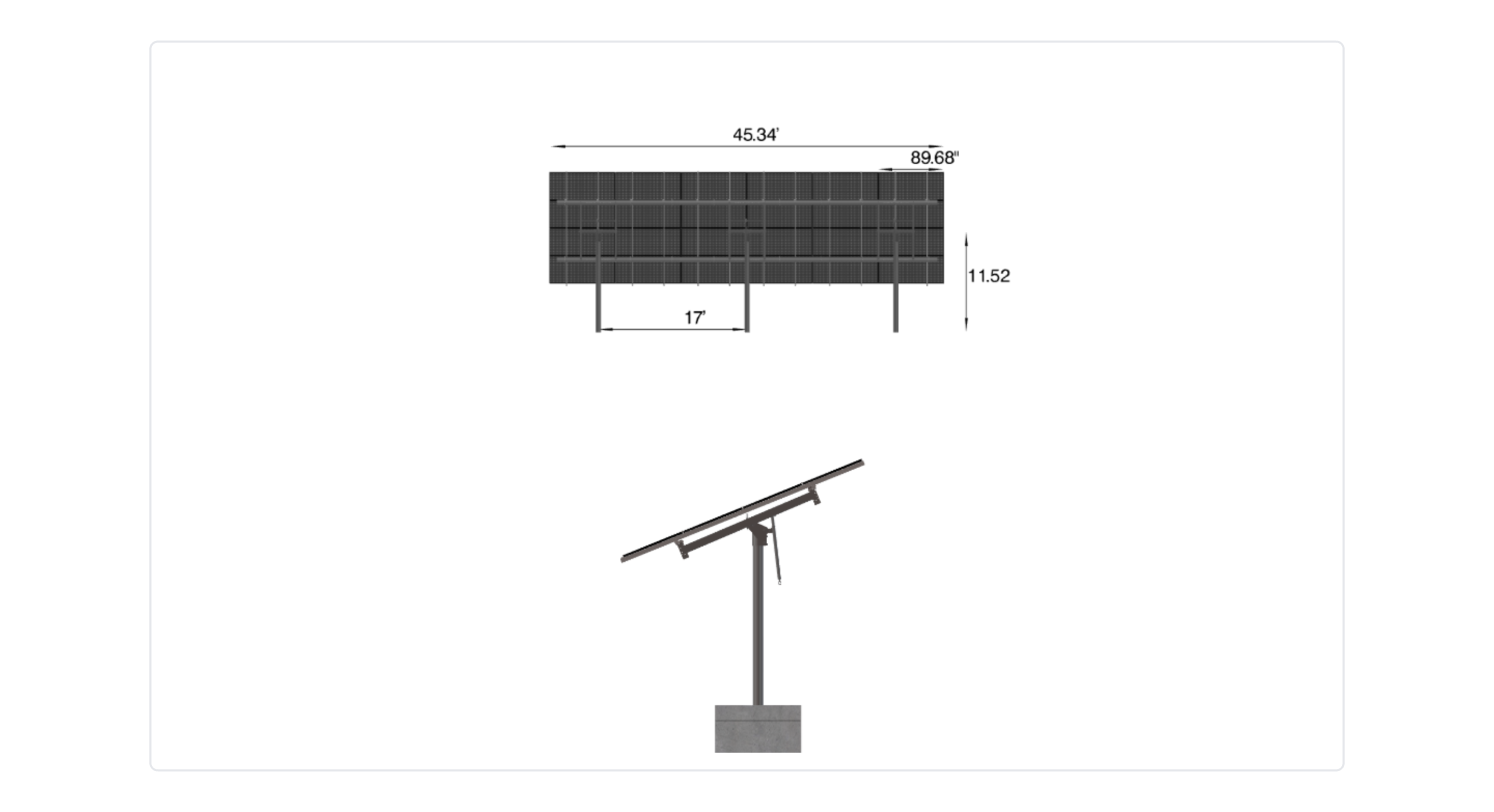

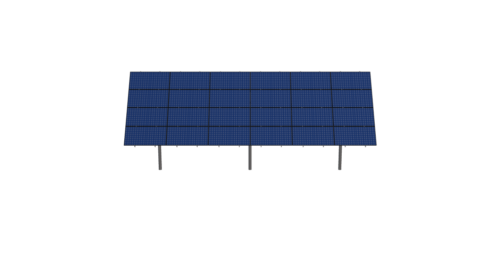

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.68 inches by 44.64 inches and an array layout of 6 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

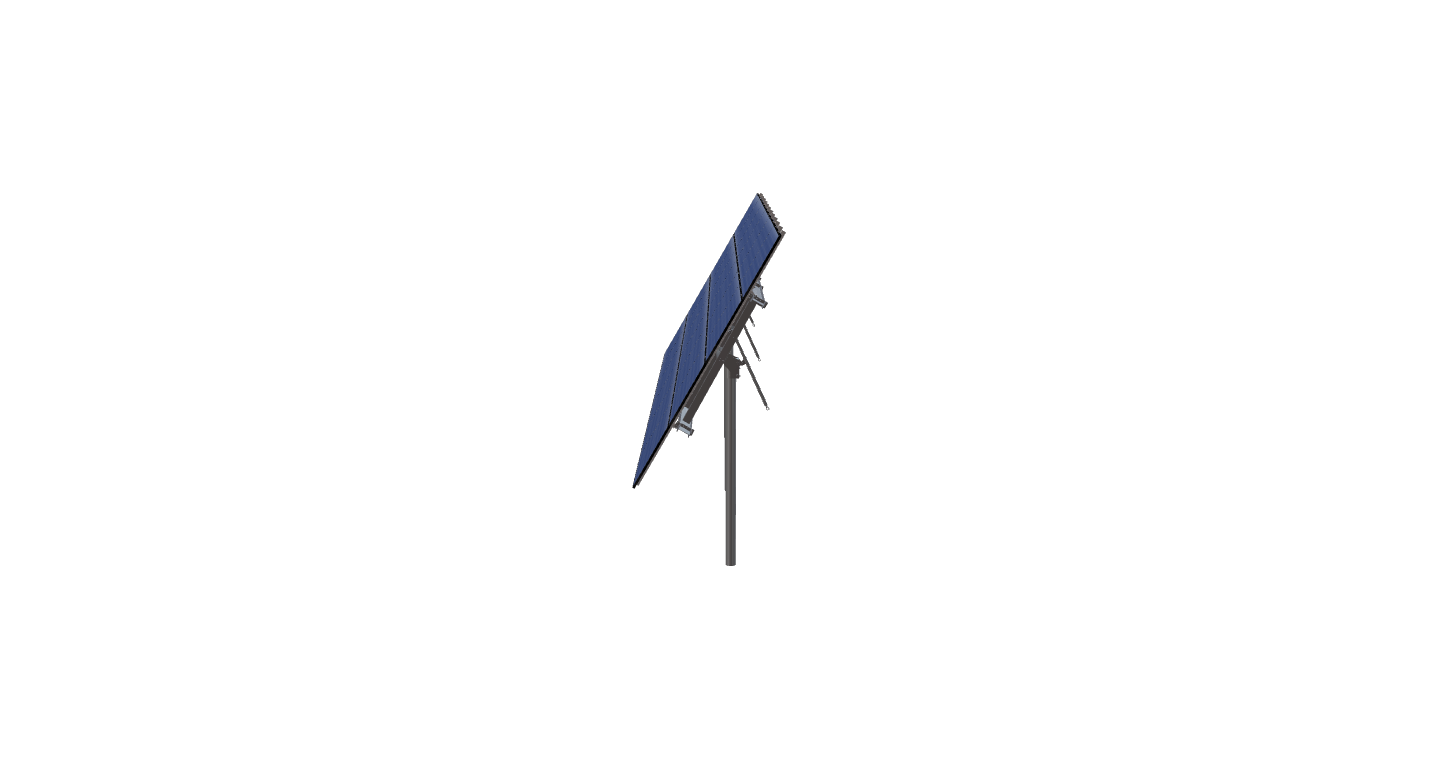

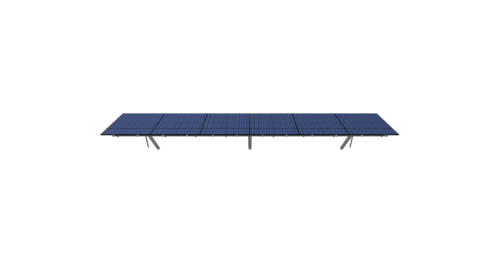

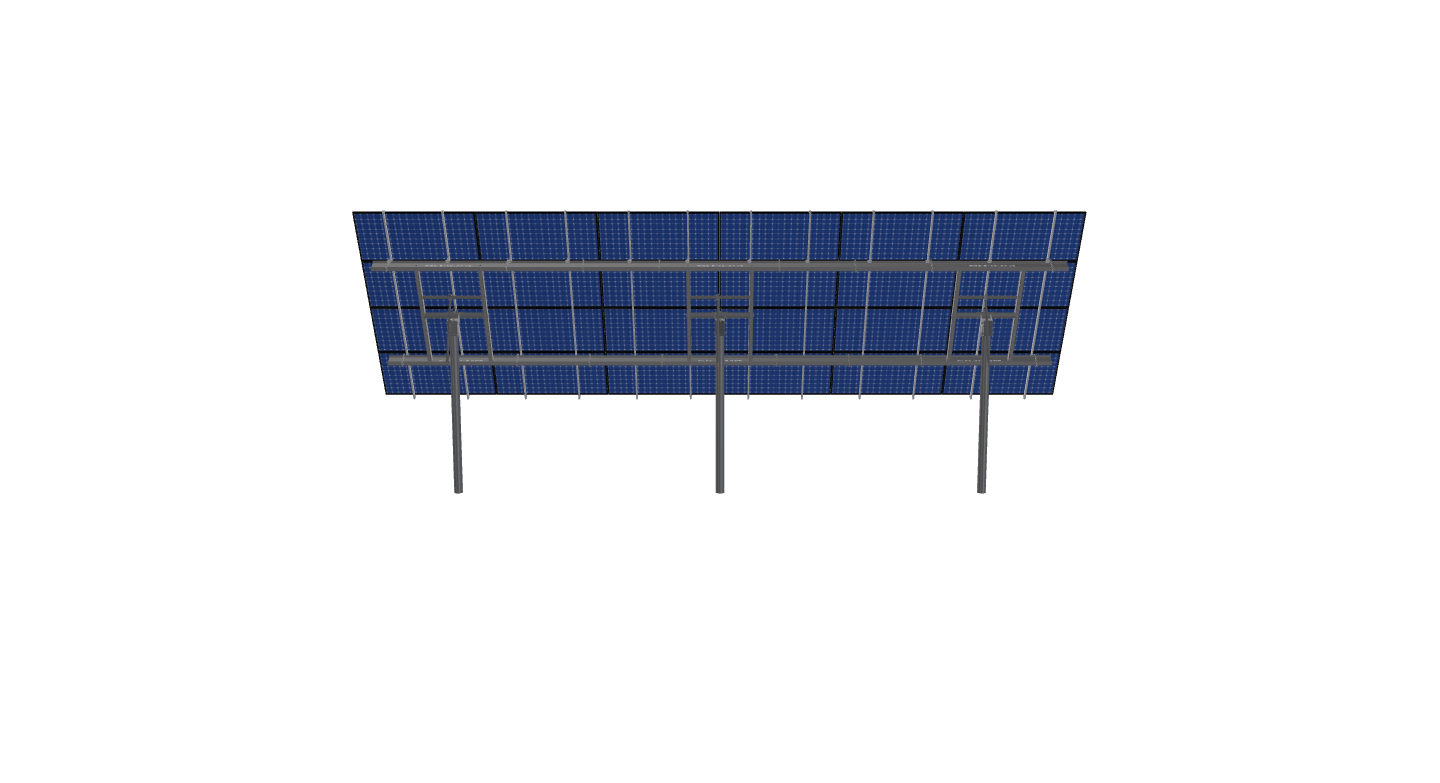

See 3D Model Here
MTSOLAR_H7A459J9645B-JB-RevA
$14,470.47
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.68 inches by 44.64 inches and an array layout of 6 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2554.17 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-6TOP-XD-12-L-4HX6W-5J08 |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 11.52 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 9.25 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 522.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 3.00 |
| MODULE AREA | 682.22 |
| ARRAY WIDTH | 45.34 |
| ARRAY HEIGHT | 15.05 |
| RAIL LENGTH | 180.56 |
| MODULE LENGTH | 89.68 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 43.50 |
| GROUND TO TOP | 17.96 |
| PROJECTED PANEL HEIGHT | 12.89 |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 70.00 |
| DIRECT SNOW LOAD | TRUE |
| ADD ANGLE BRACE | TRUE |
| PROJECT ID | MTSOLAR, H7A459J9645B-JB-REVA |
| SITE ADDRESS | RWWP+WH, LITTLE, ROCK, MN, 56373, USA |
| MODULE WIDTH | 44.64 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 13781.40 |
| TOTAL WEIGHT | 2554.17 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/125fdf0a-e903-46de-9269-9d21711aab1a.pdf |
|
| ID | 3314.00 |
| 3D Solar link |
