This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 85.7 inches by 51.3 inches and an array layout of 4 wide by 3 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

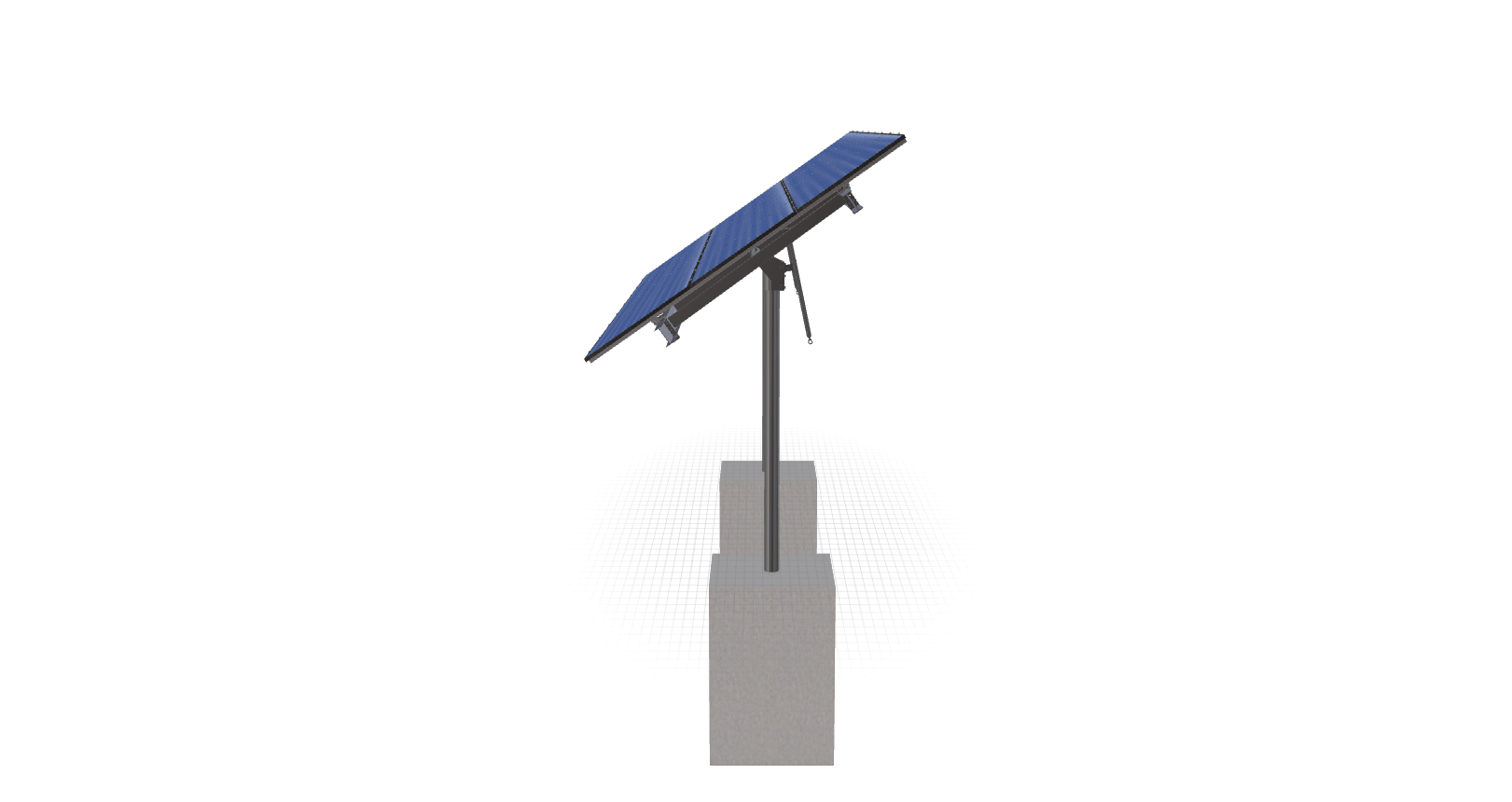

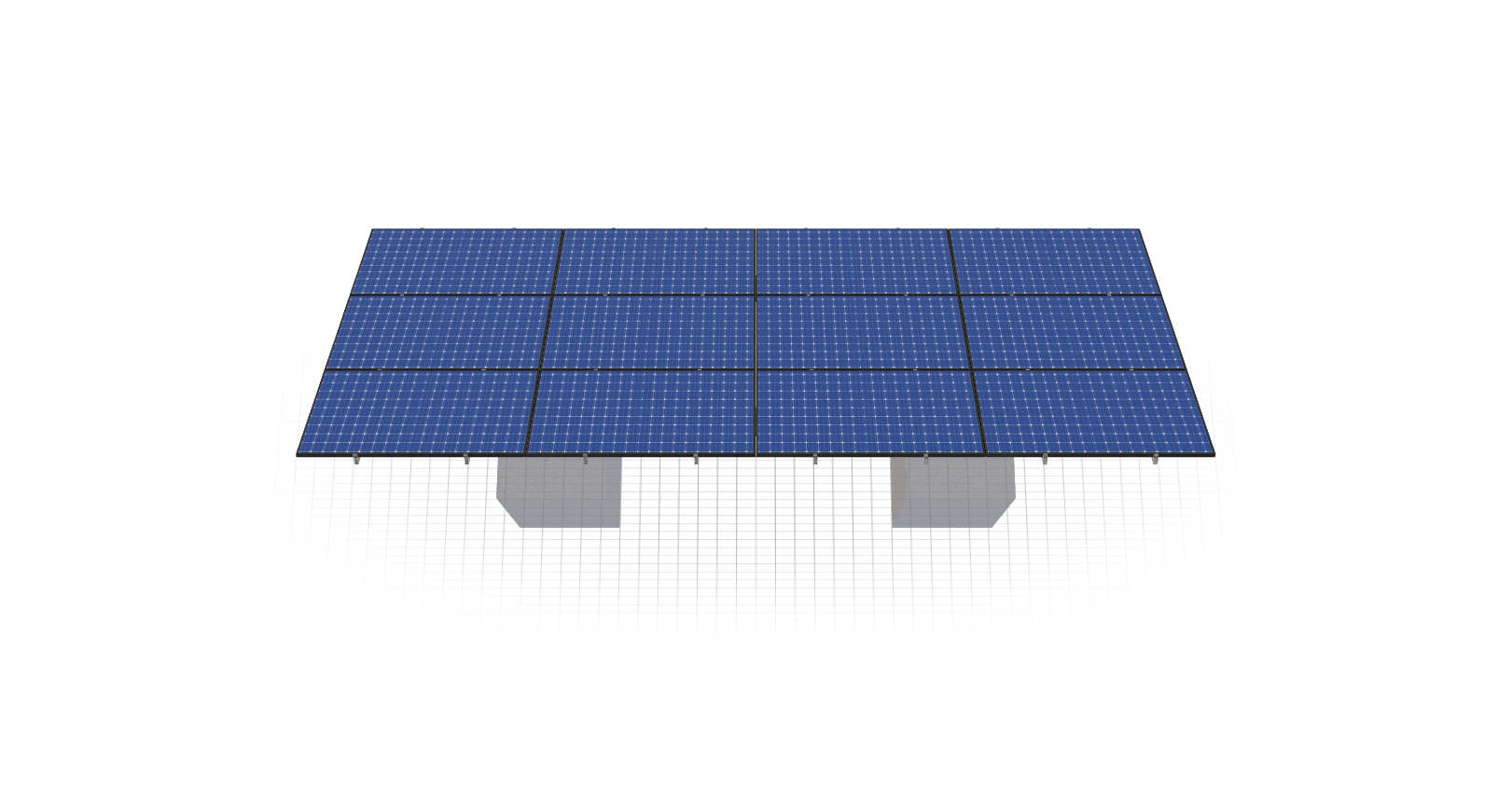

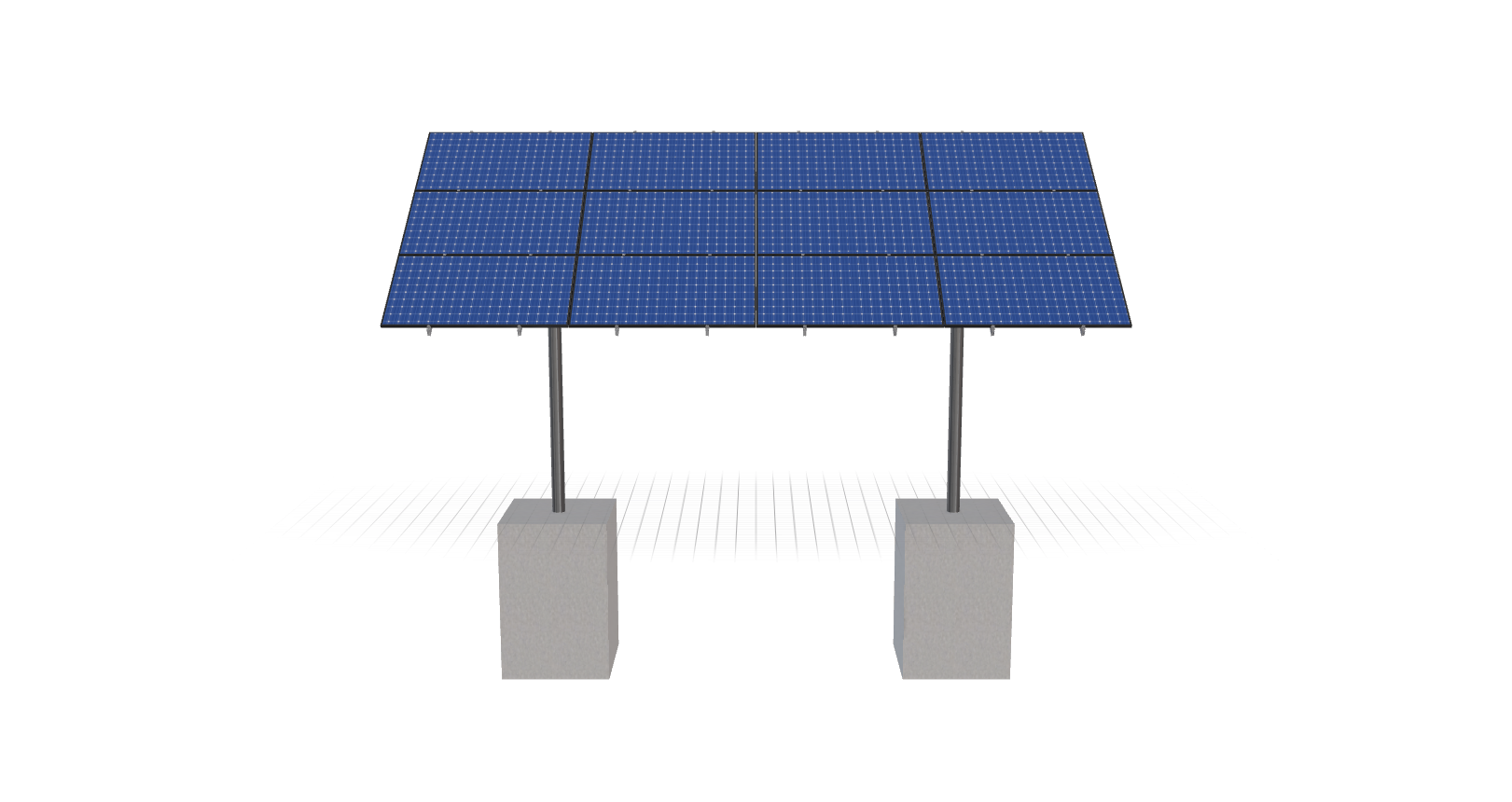

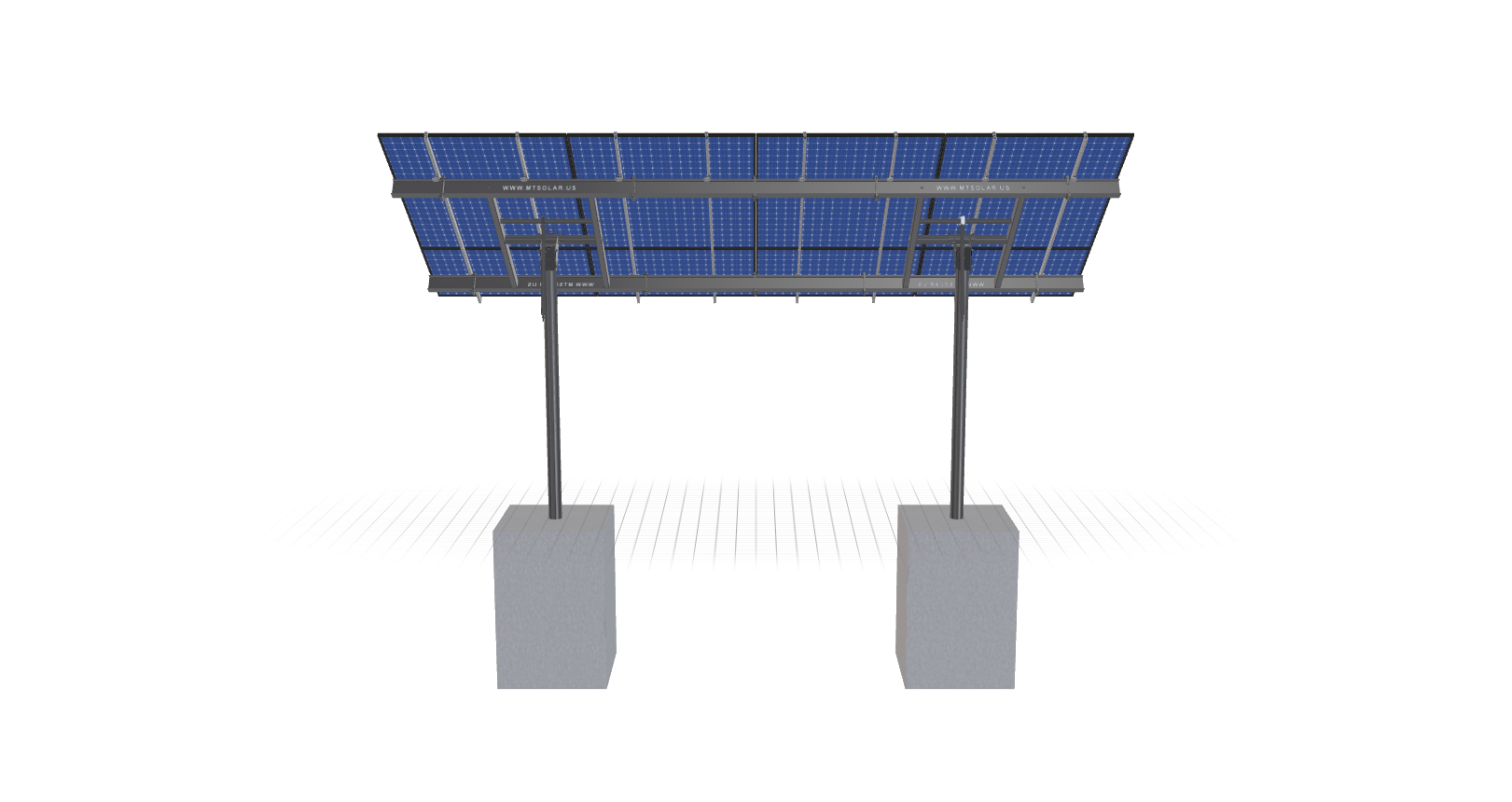

See 3D Model Here
MTSOLAR_HH17G0B2LF86
$8,043.19
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 85.7 inches by 51.3 inches and an array layout of 4 wide by 3 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1483.94 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-8TOP-HD-24-L-3HX4W-I22I |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 11.71 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 6.75 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 342.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 2.00 |
| MODULE AREA | 374.25 |
| ARRAY WIDTH | 28.90 |
| ARRAY HEIGHT | 12.95 |
| RAIL LENGTH | 155.40 |
| MODULE LENGTH | 85.70 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 28.50 |
| GROUND TO TOP | 15.39 |
| PROJECTED PANEL HEIGHT | 7.36 |
| PROJECT ID | MTSOLAR, HH17G0B2LF86 |
| SITE ADDRESS | 463, SHERIDAN, RD, MOULTONBOROUGH, NH, 03254, USA |
| MODULE WIDTH | 51.30 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 60.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 8043.19 |
| TOTAL WEIGHT | 1483.94 |
| TOTAL PALLETS | 2.00 |
