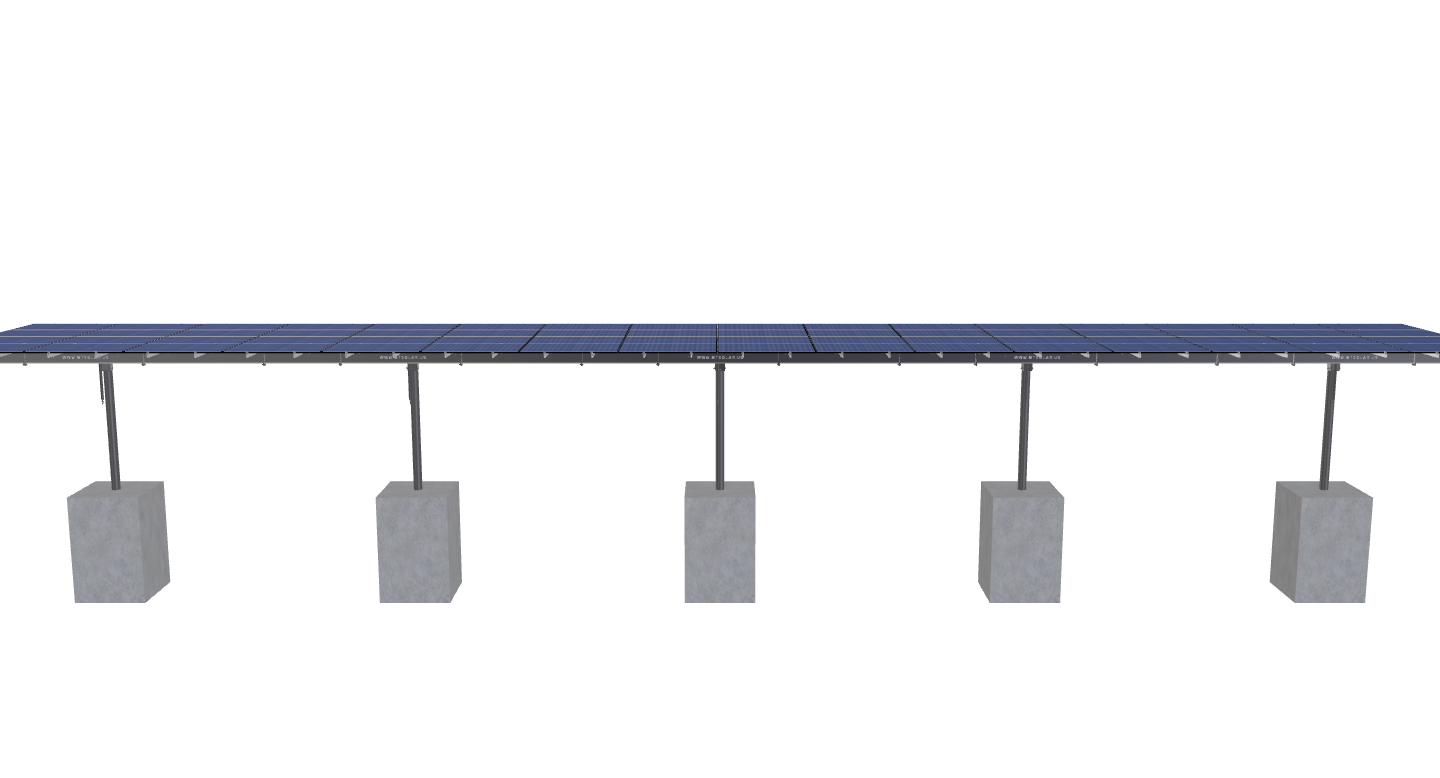

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 70.9 inches by 44.6 inches and an array layout of 16 wide by 4 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

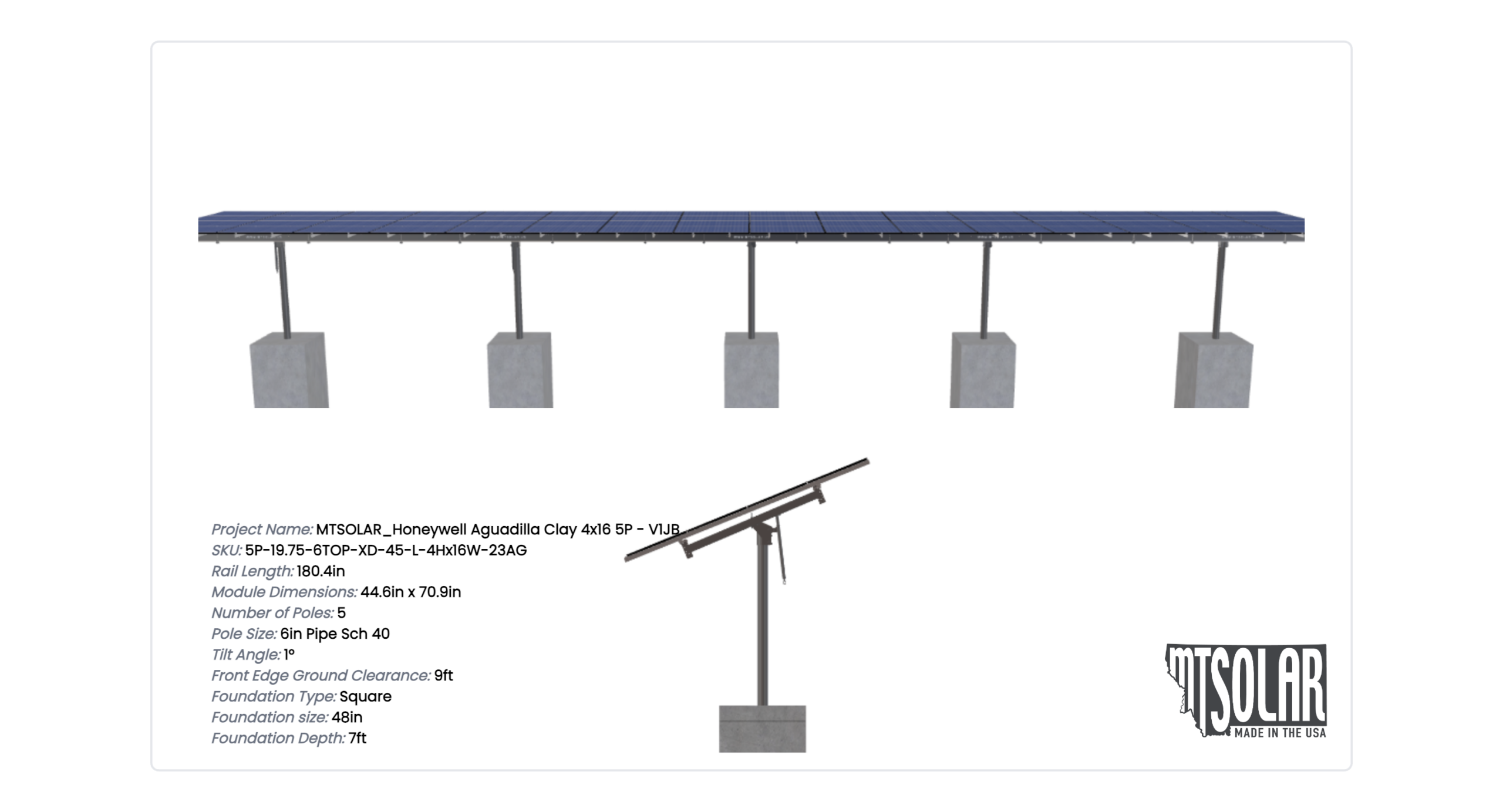

See 3D Model Here
MTSOLAR_Honeywell Aguadilla Clay 4×16 5P – V1JB
$28,505.85
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 70.9 inches by 44.6 inches and an array layout of 16 wide by 4 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 5117.2300000000005 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-19.75-6TOP-XD-45-L-4HX16W-23AG |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 9.13 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 7.00 |
| TILT ANGLE | 1.00 |
| CANTILEVER | 1128.00 |
| GROUND CLEARANCE | 9.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1441.20 |
| ARRAY WIDTH | 95.87 |
| ARRAY HEIGHT | 15.03 |
| RAIL LENGTH | 180.40 |
| MODULE LENGTH | 70.90 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 94.00 |
| GROUND TO TOP | 9.26 |
| PROJECTED PANEL HEIGHT | 0.26 |
| WIND SPEED OVERRIDE | 175.00 |
| SNOW LOAD OVERRIDE | 0.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | ALEXANDRA, GARCIA |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 7873655298.00 |
| PROJECT ID | MTSOLAR, HONEYWELL, AGUADILLA, CLAY, 4X16, 5P, -, V1JB |
| SITE ADDRESS | FHMW+FW, HOMESTEAD, BASE, FL, USA |
| MODULE INFO | |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 16.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | CLAY |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 28505.85 |
| TOTAL WEIGHT | 5117.23 |
| TOTAL PALLETS | 5.00 |
