This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 88.82 inches by 44.61 inches and an array layout of 9 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

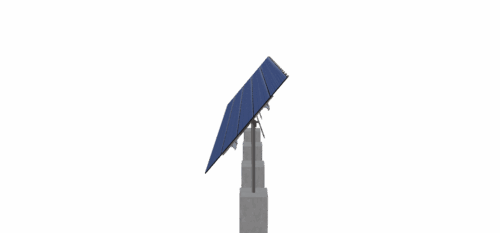

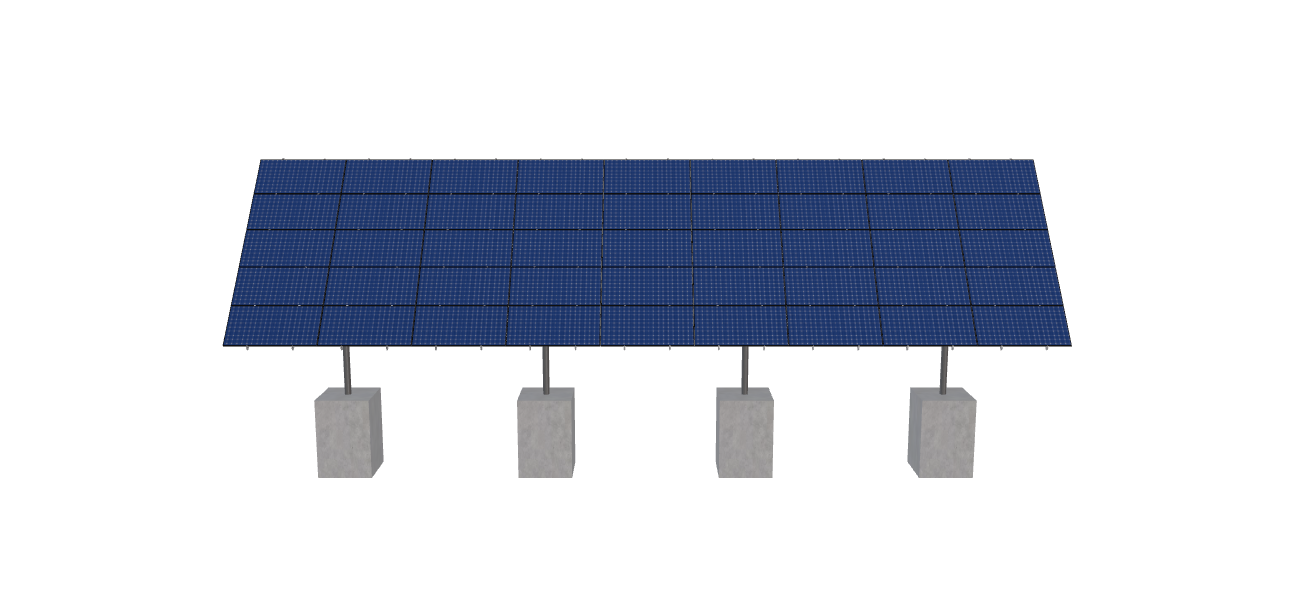

See 3D Model Here
MTSOLAR_IB5JG70KJ4E1
$20,134.83
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 88.82 inches by 44.61 inches and an array layout of 9 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3850.2000000000003 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-17-8TOP-HD-45-L-5HX9W-5GLF |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 12.20 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.75 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 792.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1266.18 |
| ARRAY WIDTH | 67.36 |
| ARRAY HEIGHT | 18.80 |
| RAIL LENGTH | 225.55 |
| MODULE LENGTH | 88.82 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 66.00 |
| GROUND TO TOP | 19.40 |
| PROJECTED PANEL HEIGHT | 14.40 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | HUNZEKER |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 2086819422.00 |
| PROJECT ID | MTSOLAR, IB5JG70KJ4E1 |
| SITE ADDRESS | 960, BENCH, RD, MONTPELIER, ID, 83254, USA |
| MODULE INFO | JINKO, 545 |
| MODULE WIDTH | 44.61 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 9.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | HD |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 20134.83 |
| TOTAL WEIGHT | 3850.20 |
| TOTAL PALLETS | 4.00 |
