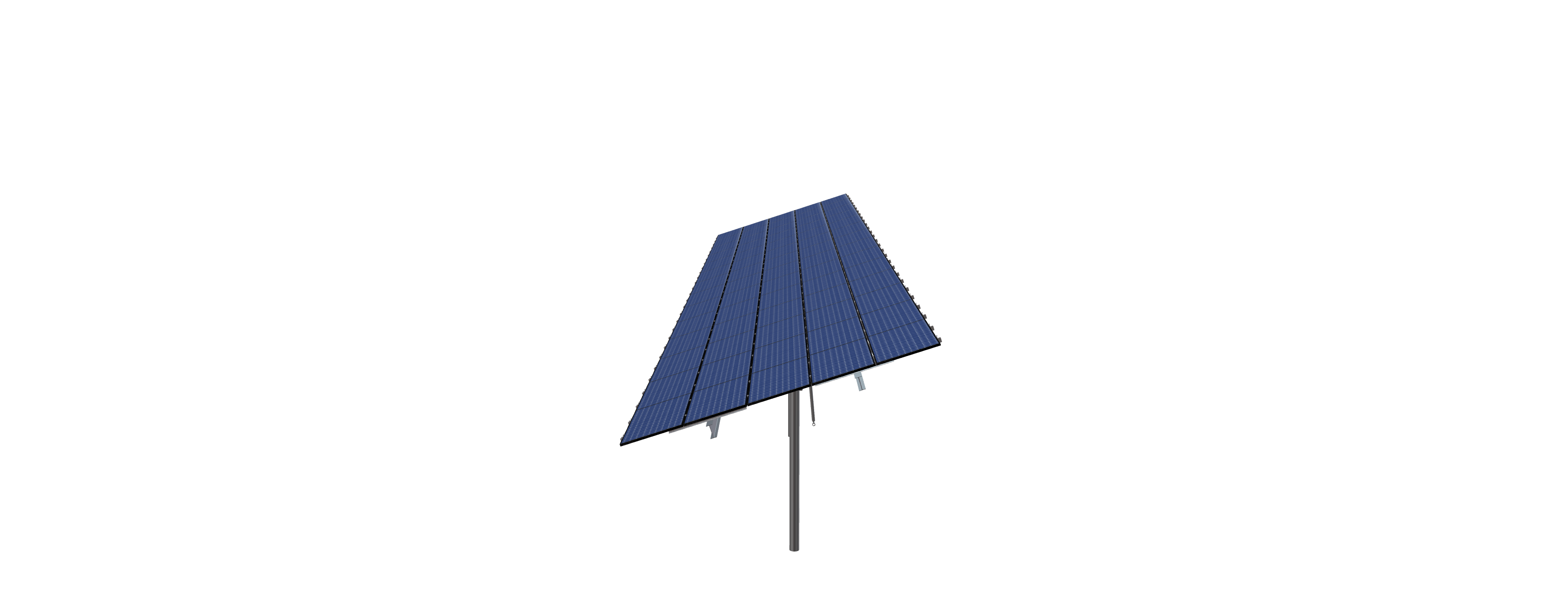

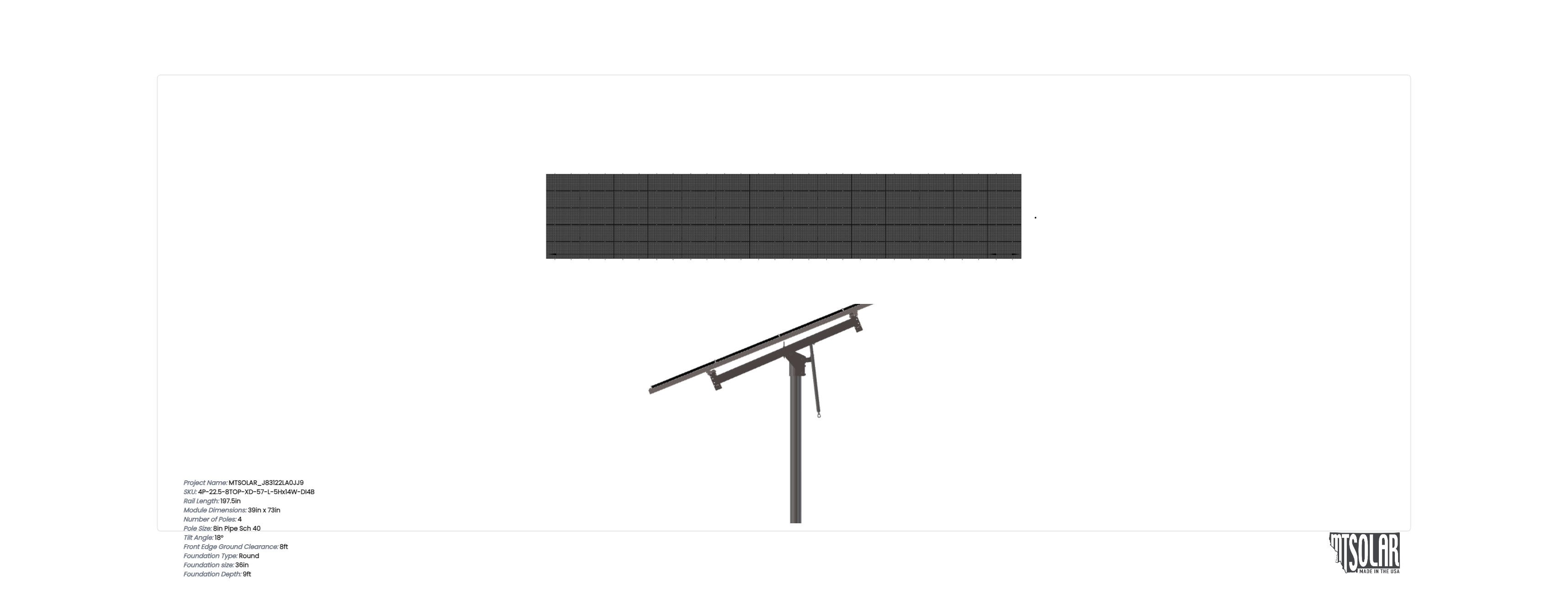

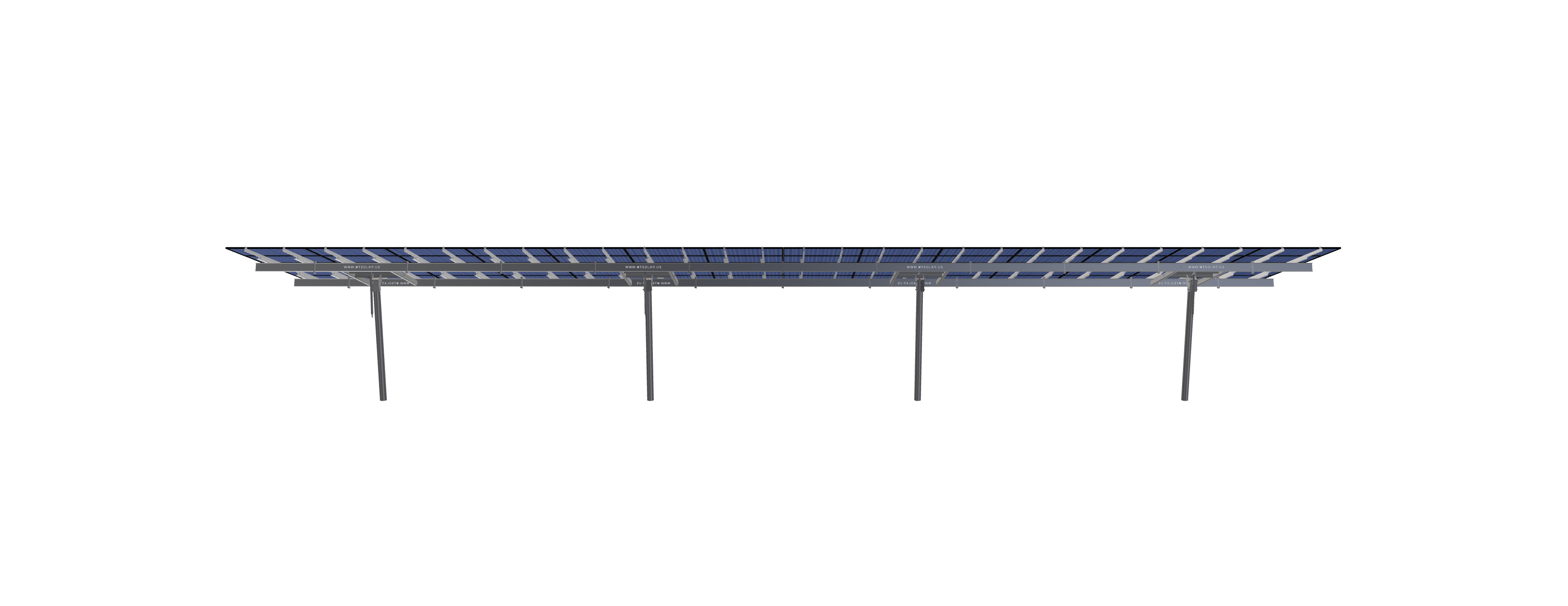

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73 inches by 39 inches and an array layout of 14 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_J83122LA0JJ9
$25,612.93
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73 inches by 39 inches and an array layout of 14 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 5235.16 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 4P-22.5-8TOP-XD-57-L-5HX14W-DI4B |
DUTY SIZE | XD |
POLE SIZE | 8IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 4.00 |
POLE SPACING | 22.50 |
POLE HEIGHT | 10.54 |
WING SPAN | 57.00 |
MAX FOUNDATION DEPTH | 9.00 |
TILT ANGLE | 18.00 |
CANTILEVER | 1014.00 |
GROUND CLEARANCE | 8.00 |
NO POLES | 4.00 |
MODULE AREA | 1420.90 |
ARRAY WIDTH | 86.33 |
ARRAY HEIGHT | 16.46 |
RAIL LENGTH | 197.50 |
MODULE LENGTH | 73.00 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 84.50 |
GROUND TO TOP | 13.05 |
PROJECTED PANEL HEIGHT | 5.02 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
PROJECT ID | MTSOLAR, J83122LA0JJ9 |
SITE ADDRESS | 509, S, 10TH, AVE, E, MALTA, MT, 59538, USA |
MODULE WIDTH | 39.00 |
NUMBER ROWS | 5.00 |
NUMBER COLUMNS | 14.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | C |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
FOUNDATION TYPE | ROUND |
FOUNDATION SIZE | 36.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 25612.93 |
TOTAL WEIGHT | 5235.16 |
TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/36936417-d04e-4381-aa2a-a59fdac163eb.pdf |
|
ID | 4569.00 |
3D Solar link |
