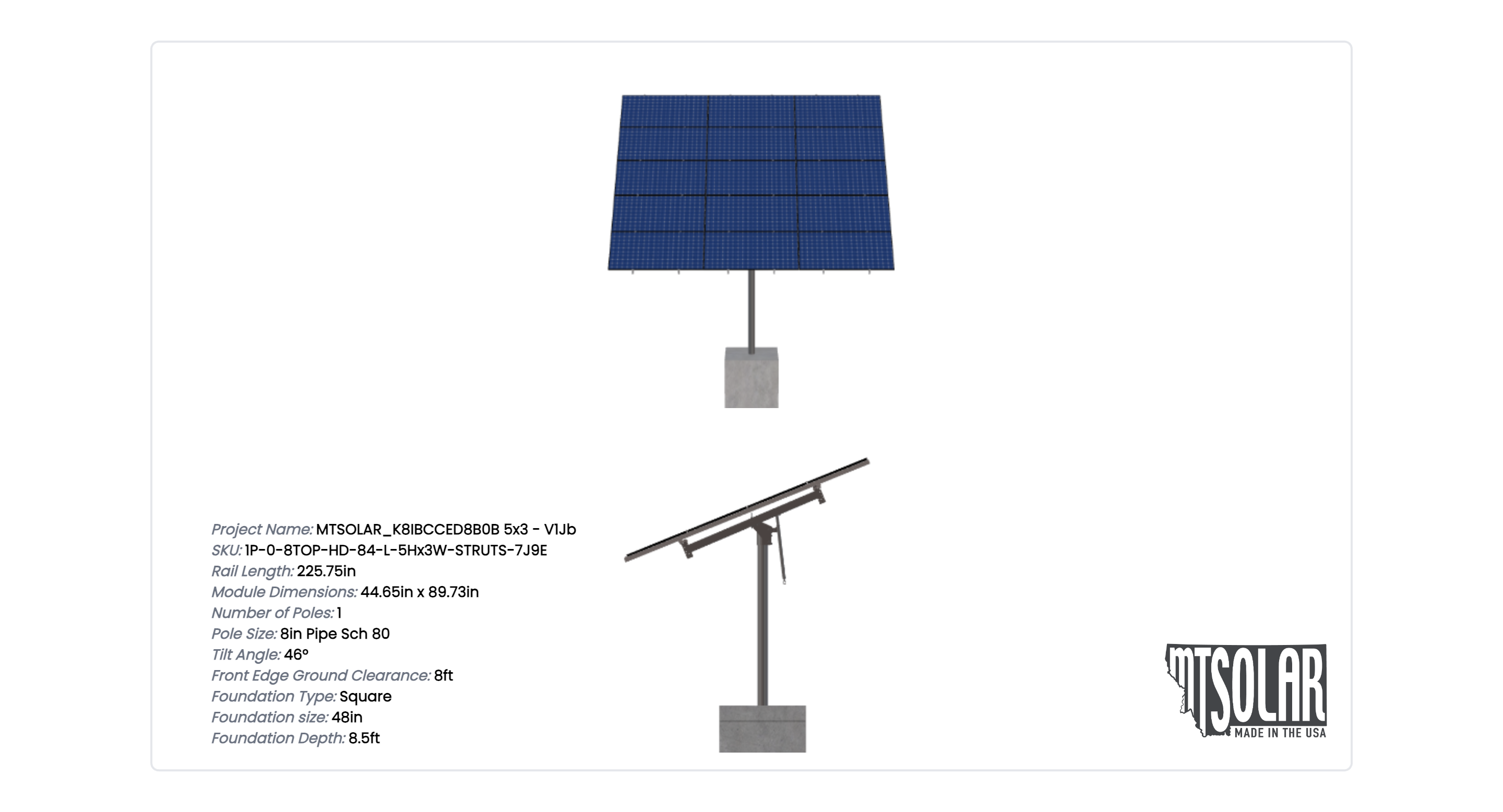

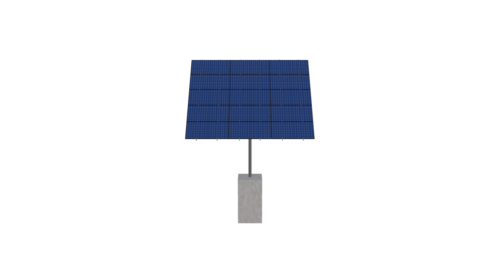

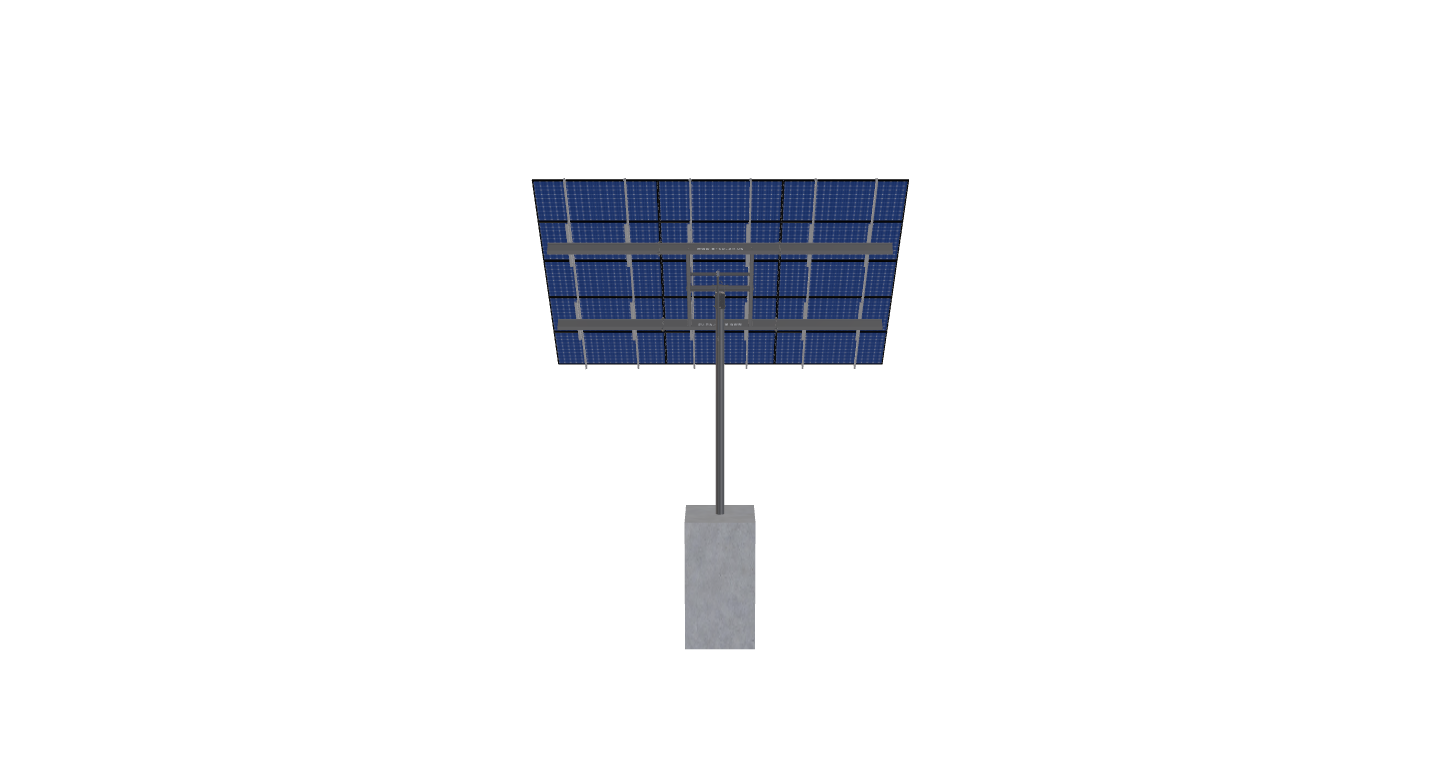

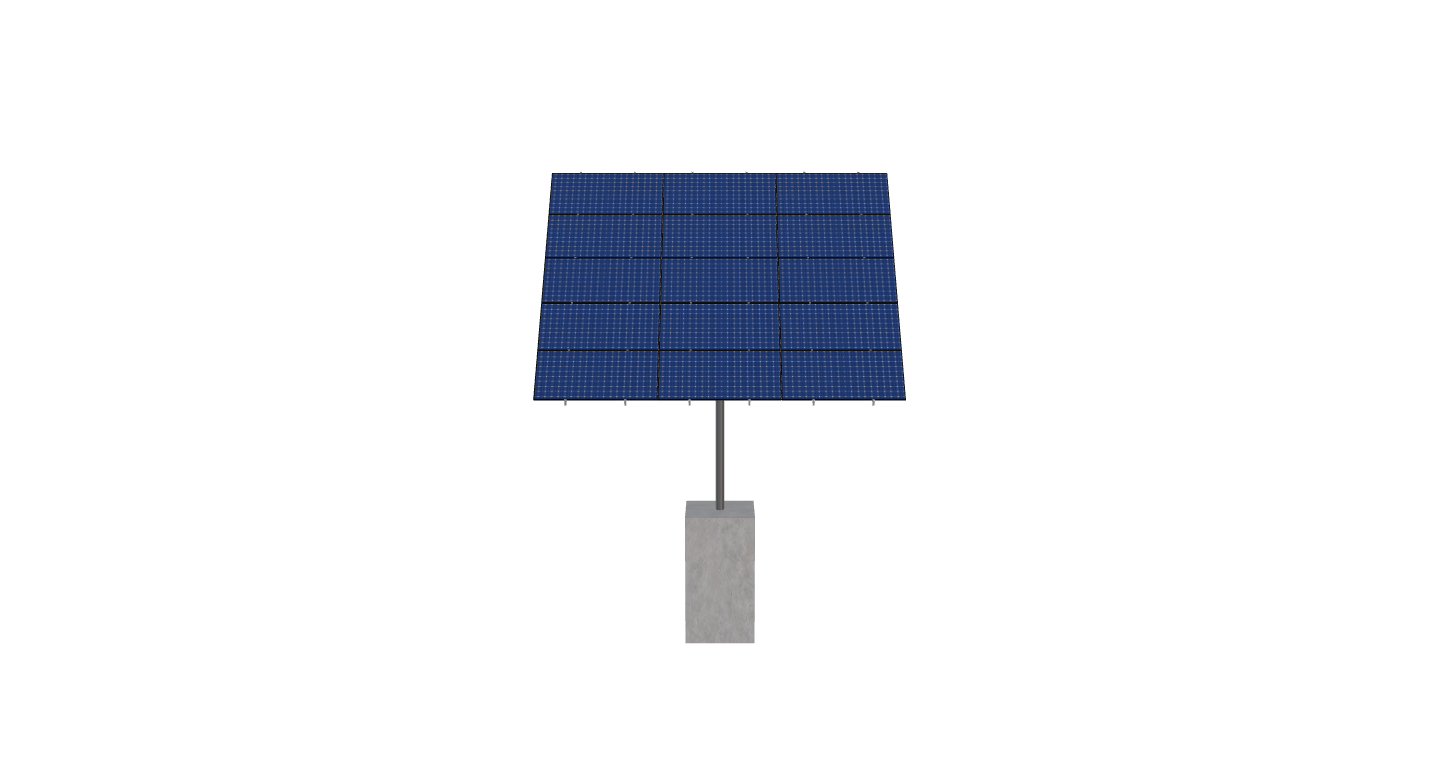

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.73 inches by 44.65 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_K8IBCCED8B0B 5×3 – V1Jb
$5,783.86
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.73 inches by 44.65 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1121.1299999999999 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-HD-84-L-5HX3W-STRUTS-7J9E |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 14.77 |
| WING SPAN | 84.00 |
| MAX FOUNDATION DEPTH | 8.50 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 258.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 1.00 |
| MODULE AREA | 426.71 |
| ARRAY WIDTH | 22.68 |
| ARRAY HEIGHT | 18.81 |
| RAIL LENGTH | 225.75 |
| MODULE LENGTH | 89.73 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 21.50 |
| GROUND TO TOP | 21.53 |
| PROJECTED PANEL HEIGHT | 13.53 |
| DESIGNER NAME | ISAAC, KETCHAM |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | MTSOLAR, K8IBCCED8B0B, 5X3, -, V1JB |
| SITE ADDRESS | E, 1/4, RD, GRAND, JUNCTION, CO, 81507, USA |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 35.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| TOTAL PRICE | 5508.44 |
| TOTAL WEIGHT | 1121.13 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/a167a092-a57e-47ea-b80a-270e2a9f3d20.pdf |
|
| ID | 10448.00 |
| 3D Solar link |
