MTSOLAR_L0CDBC9949FH

$8,327.72

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.8 inches by 41.5 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

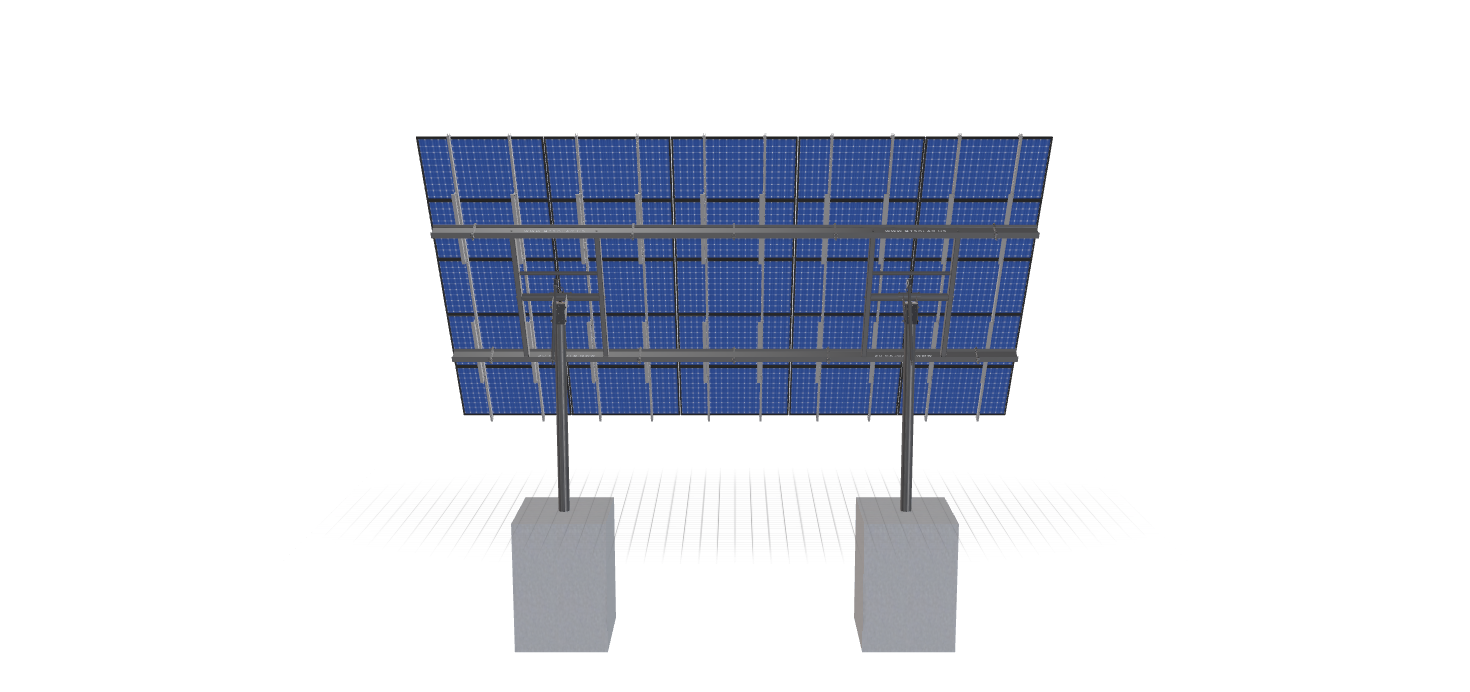

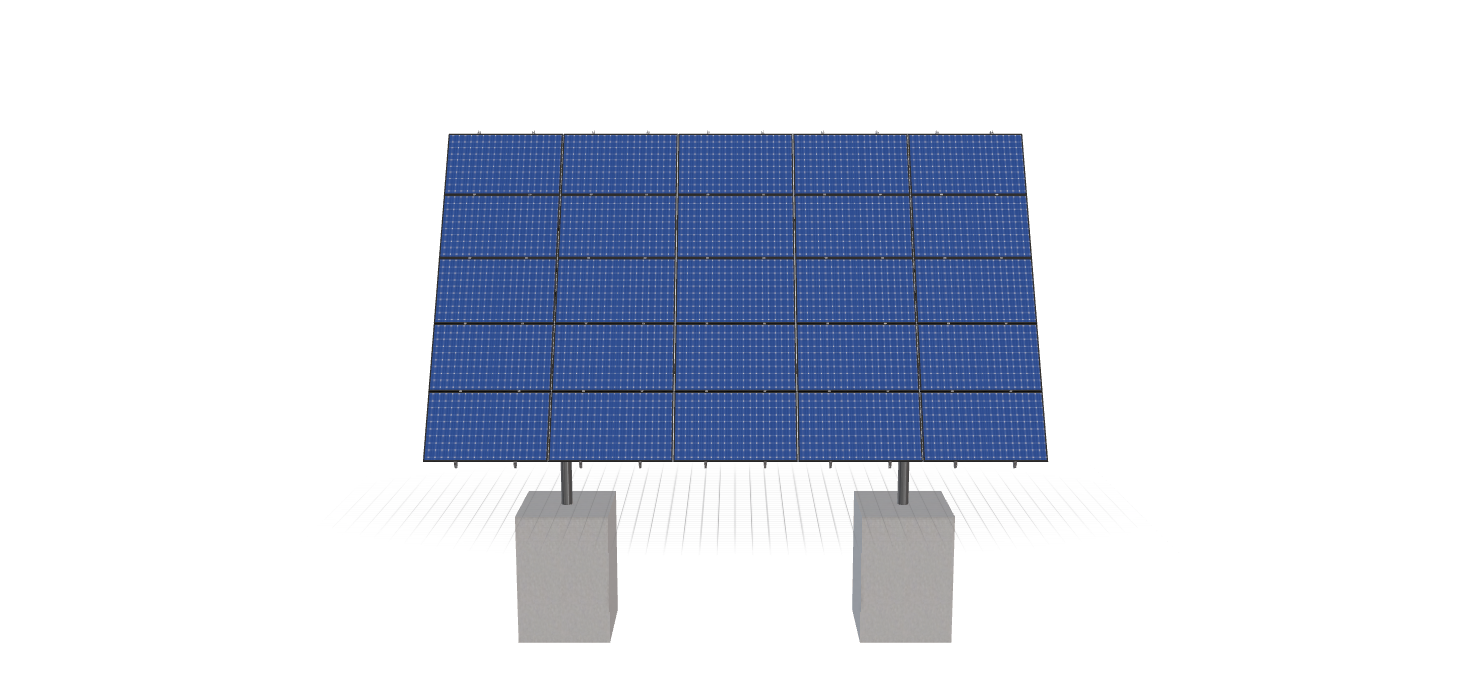

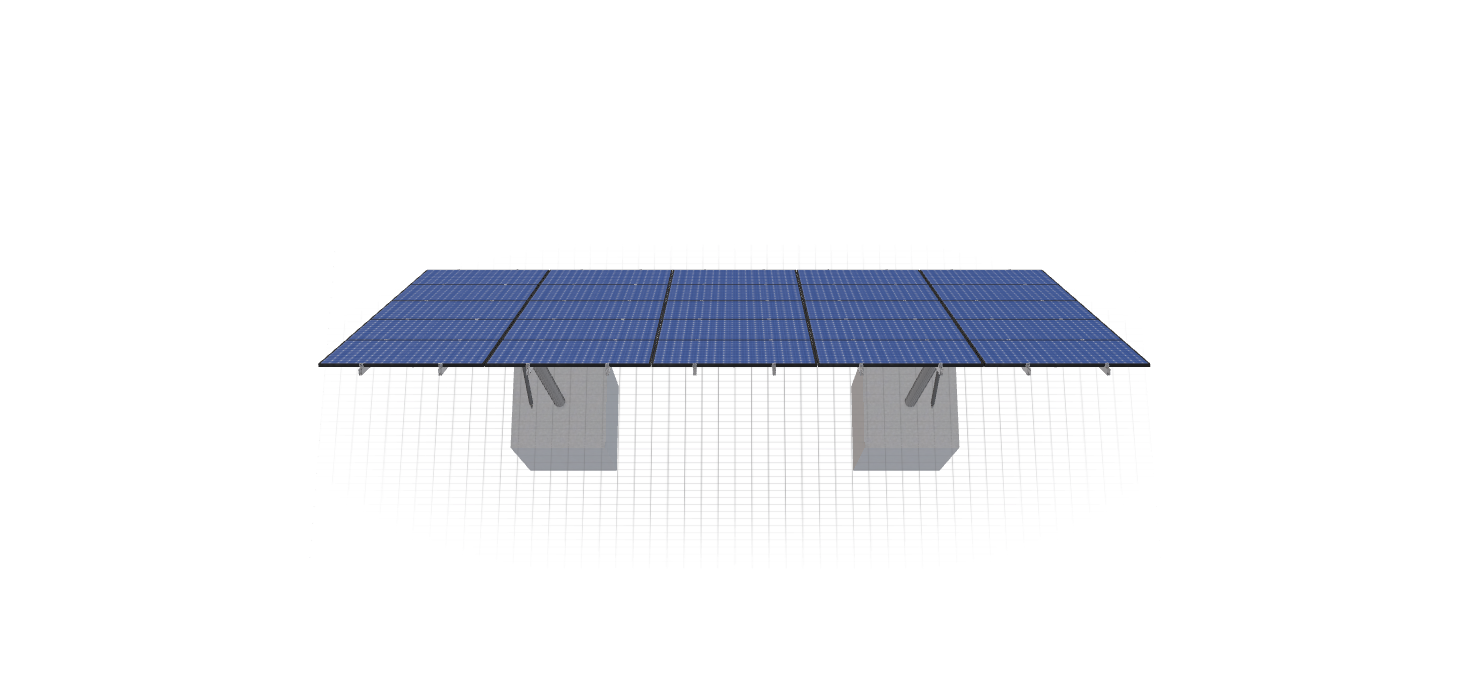

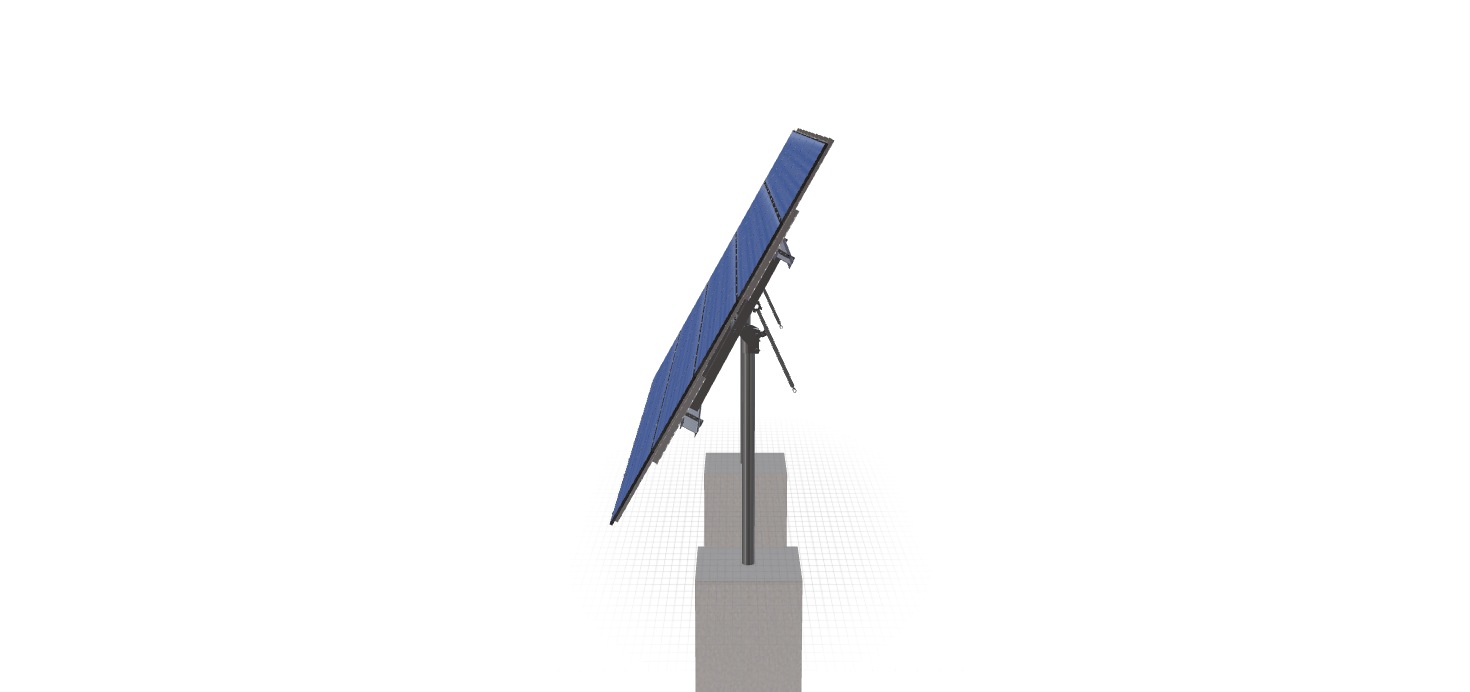

See 3D Model Here

SKU: 2P-17-6TOP-SD-24-L-5Hx5W-5BLJ Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.8 inches by 41.5 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1608.2 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-17-6TOP-SD-24-L-5HX5W-5BLJ

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 80

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

17.00

POLE HEIGHT

10.63

WING SPAN

24.00

MAX FOUNDATION DEPTH

6.50

TILT ANGLE

60.70

CANTILEVER

342.00

GROUND CLEARANCE

3.00

NO POLES

2.00

MODULE AREA

508.96

ARRAY WIDTH

29.08

ARRAY HEIGHT

17.50

RAIL LENGTH

210.00

MODULE LENGTH

68.80

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

28.50

GROUND TO TOP

18.17

PROJECTED PANEL HEIGHT

15.08

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

PROJECT ID

MTSOLAR, L0CDBC9949FH

SITE ADDRESS

310, FELDSPAR, WAY, BILLINGS, MT, 59106, USA

MODULE WIDTH

41.50

NUMBER ROWS

5.00

NUMBER COLUMNS

5.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

8327.72

TOTAL WEIGHT

1608.20

TOTAL PALLETS

2.00
