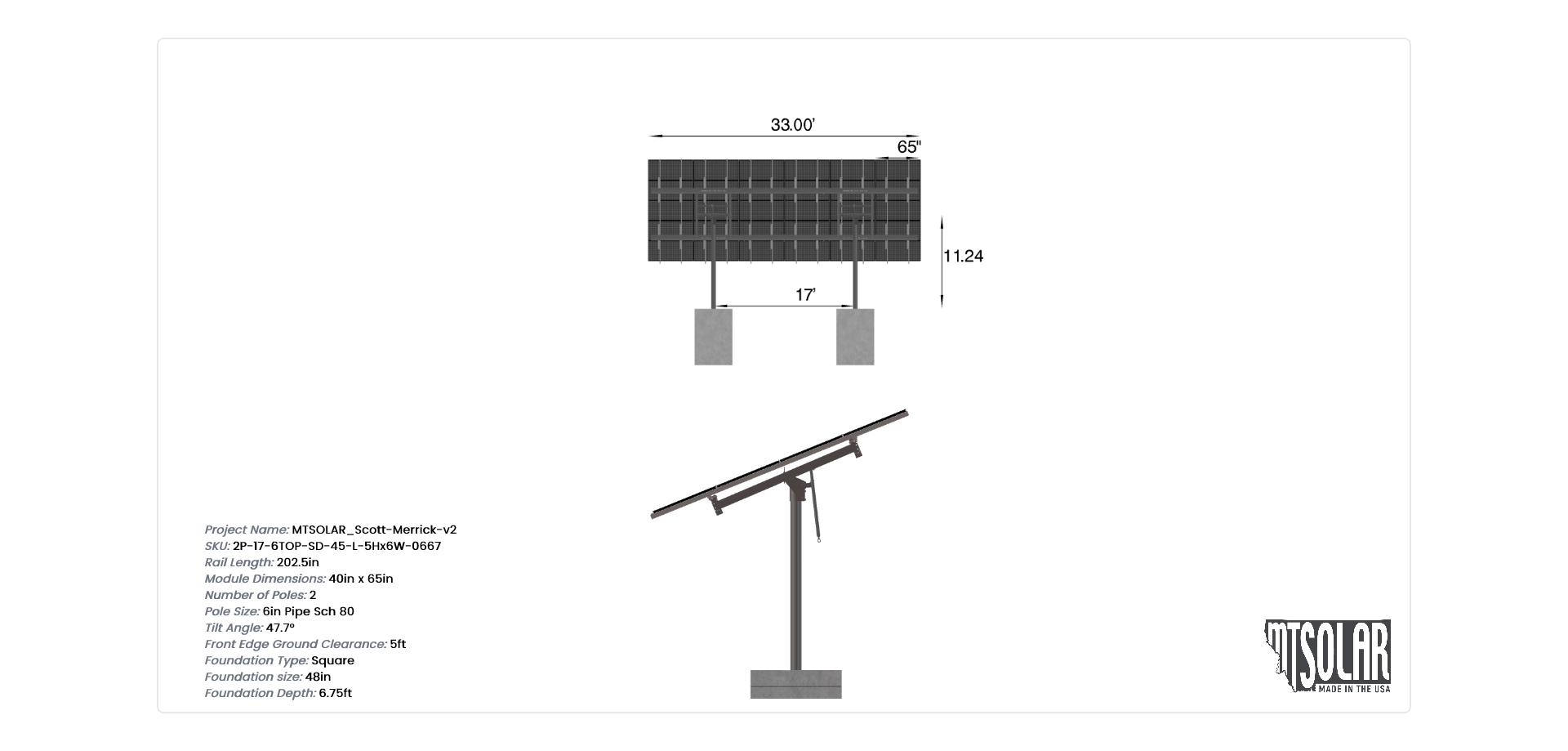

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 40 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_Scott-Merrick-v2
$9,067.50
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 40 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 1772.6399999999999 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 2P-17-6TOP-SD-45-L-5HX6W-0667 |
DUTY SIZE | SD |
POLE SIZE | 6IN, PIPE, SCH, 80 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 2.00 |
POLE SPACING | 17.00 |
POLE HEIGHT | 11.24 |
WING SPAN | 45.00 |
MAX FOUNDATION DEPTH | 6.75 |
TILT ANGLE | 47.70 |
CANTILEVER | 384.00 |
GROUND CLEARANCE | 5.00 |
NO POLES | 2.00 |
MODULE AREA | 556.88 |
ARRAY WIDTH | 33.00 |
ARRAY HEIGHT | 16.88 |
RAIL LENGTH | 202.50 |
MODULE LENGTH | 65.00 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 32.00 |
GROUND TO TOP | 17.40 |
PROJECTED PANEL HEIGHT | 12.33 |
WIND SPEED OVERRIDE | 105.00 |
SNOW LOAD OVERRIDE | 70.00 |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
PROJECT ID | MTSOLAR, SCOTT-MERRICK-V2 |
SITE ADDRESS | ATKINSON, NH, USA |
MODULE WIDTH | 40.00 |
NUMBER ROWS | 5.00 |
NUMBER COLUMNS | 6.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | C |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 9067.50 |
TOTAL WEIGHT | 1772.64 |
TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/48fa710d-23f4-4a81-aea3-3b419385f210.pdf |
|
ID | 7567.00 |
3D Solar link |
