This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44094 inches by 40.86614 inches and an array layout of 9 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

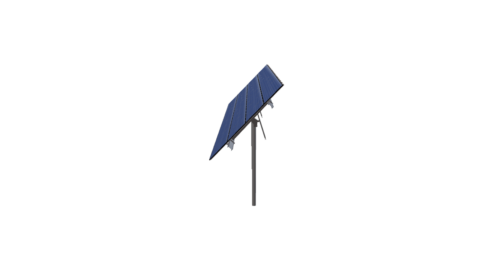

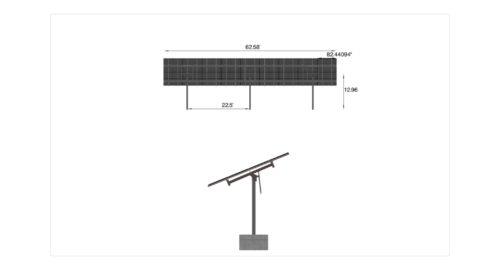

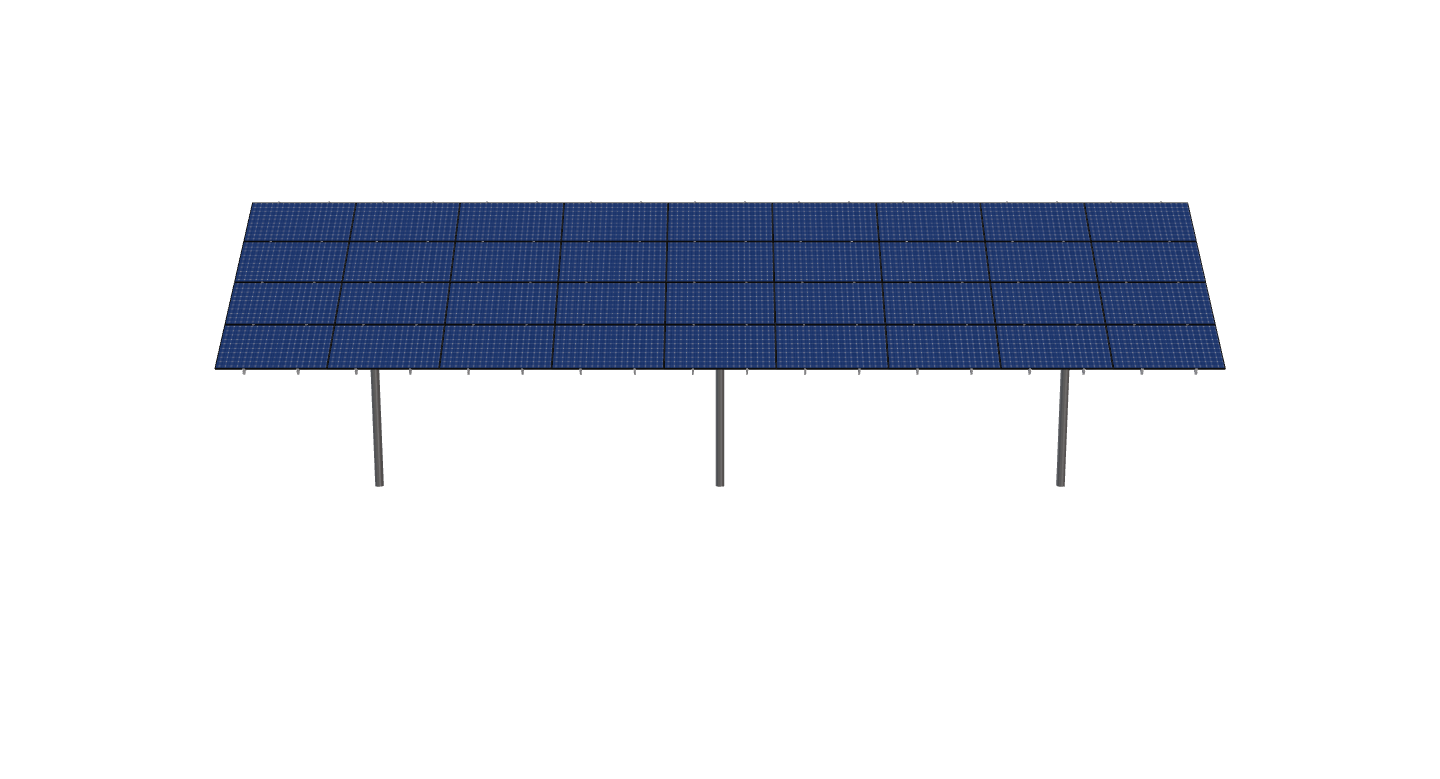

See 3D Model Here
MTSOLAR_stacy cook TOP36 – V1Jb
$13,642.74
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44094 inches by 40.86614 inches and an array layout of 9 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2344.98 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-6TOP-SD-57-L-4HX9W-A670 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 12.96 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 9.50 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 744.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 3.00 |
| MODULE AREA | 862.91 |
| ARRAY WIDTH | 62.58 |
| ARRAY HEIGHT | 13.79 |
| RAIL LENGTH | 165.46 |
| MODULE LENGTH | 82.44 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 62.00 |
| GROUND TO TOP | 17.86 |
| PROJECTED PANEL HEIGHT | 9.80 |
| PROJECT ID | MTSOLAR, STACY, COOK, TOP36, -, V1JB |
| SITE ADDRESS | 11944, ROCKFISH, RIVER, RD, FABER, VA, 22938, USA |
| MODULE WIDTH | 40.87 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 9.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 30.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 12993.09 |
| TOTAL WEIGHT | 2344.98 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/00284d4f-51ad-416c-8572-2b76c244f6be.pdf |
|
| ID | 7385.00 |
| 3D Solar link |
