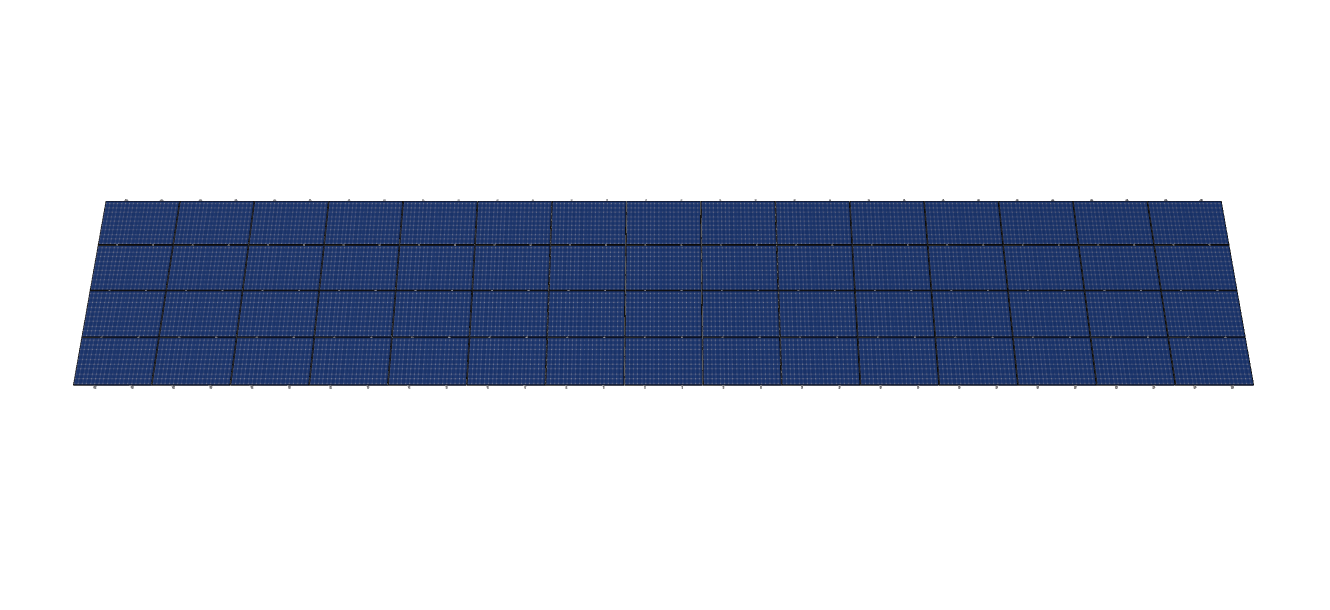

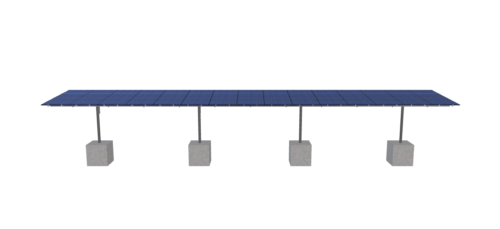

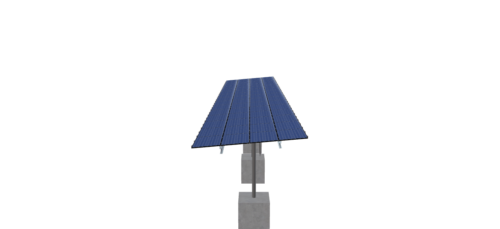

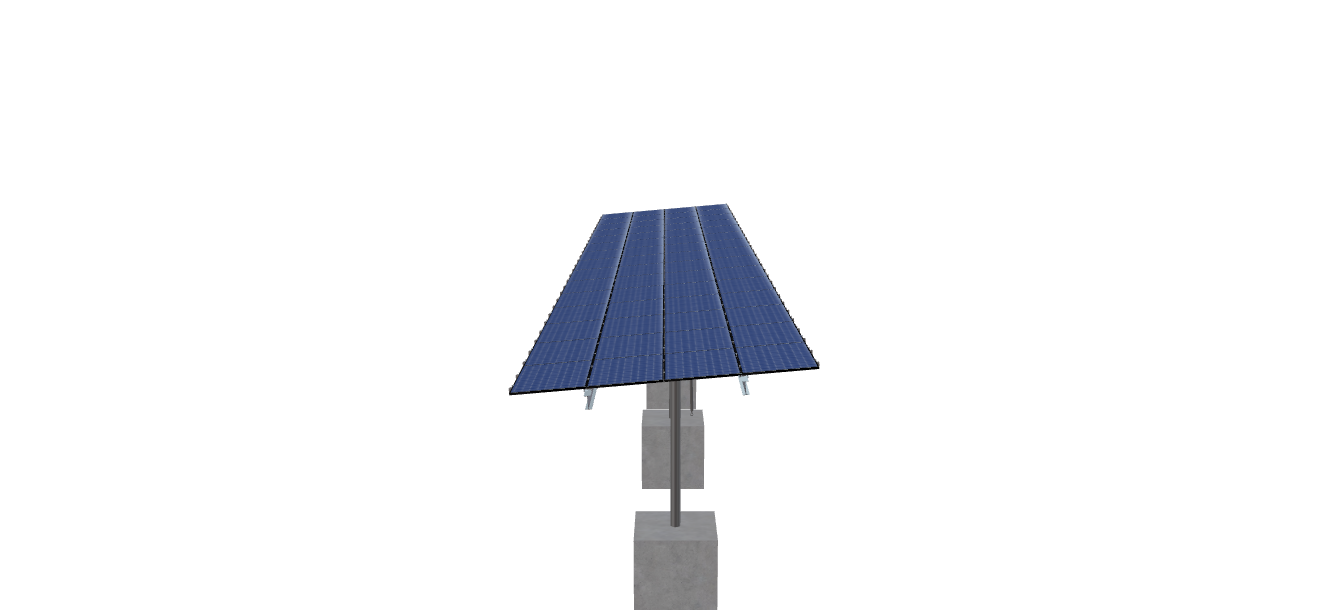

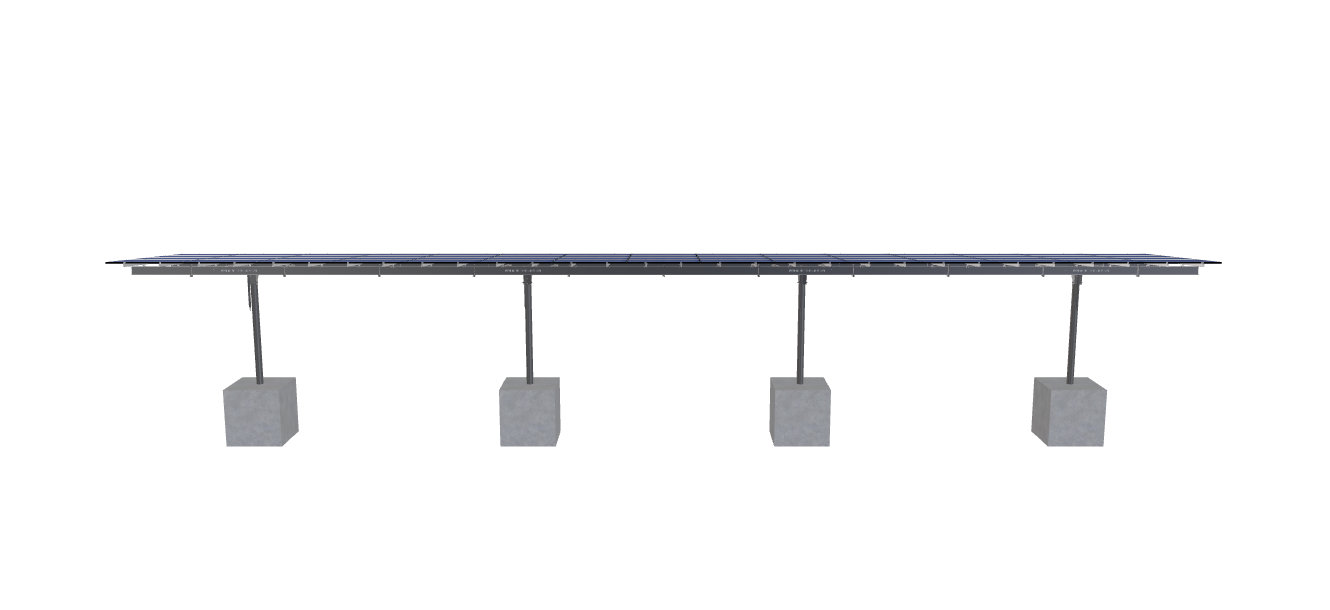

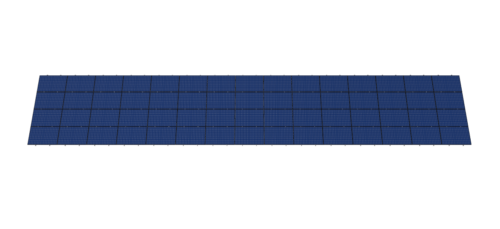

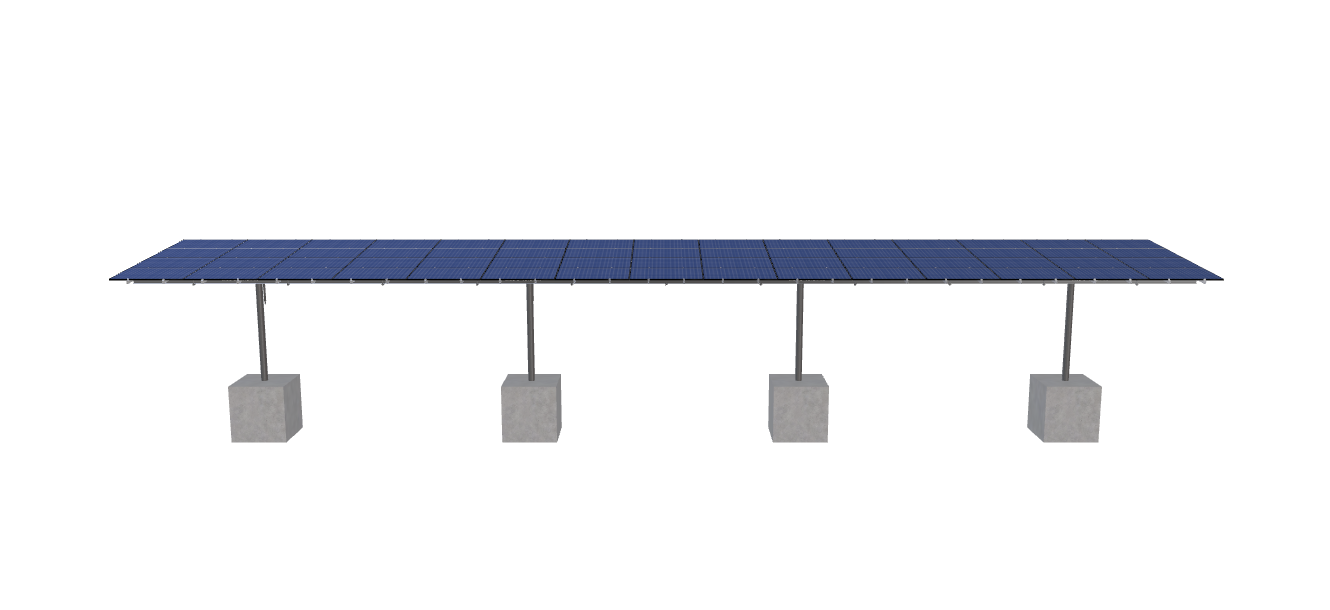

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.834 inches by 44.685 inches and an array layout of 15 wide by 4 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Newton Bridge Pump Station 24pt6 kW MTSOLAR_7G6CG953DK98
$19,188.14
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.834 inches by 44.685 inches and an array layout of 15 wide by 4 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information

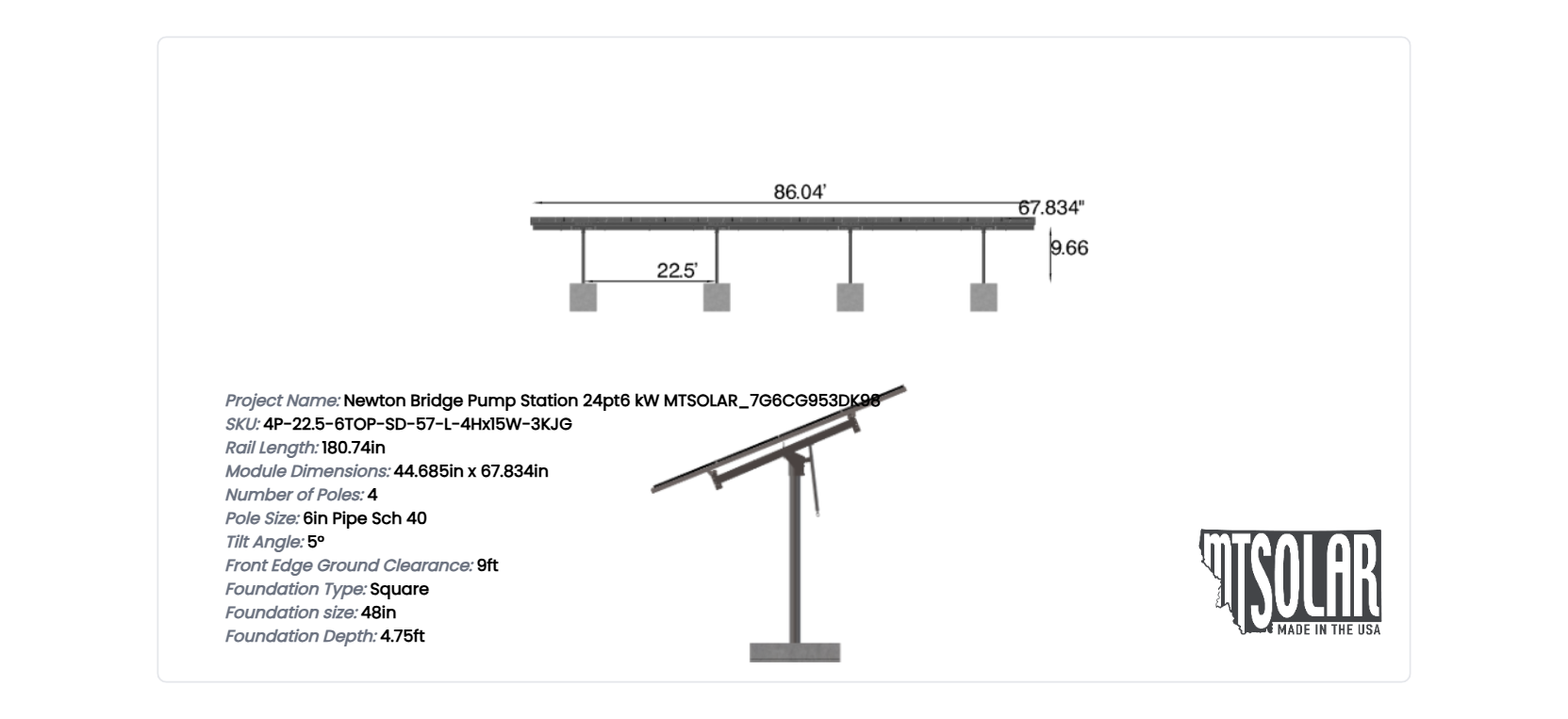

| Weight | 3371.7 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-22.5-6TOP-SD-57-L-4HX15W-3KJG |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 9.66 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 4.75 |
| TILT ANGLE | 5.00 |
| CANTILEVER | 1014.00 |
| GROUND CLEARANCE | 9.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1295.94 |
| ARRAY WIDTH | 86.04 |
| ARRAY HEIGHT | 15.06 |
| RAIL LENGTH | 180.74 |
| MODULE LENGTH | 67.83 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 84.50 |
| GROUND TO TOP | 10.31 |
| PROJECTED PANEL HEIGHT | 1.31 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | ADAM, HOYT |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | NEWTON, BRIDGE, PUMP, STATION, 24PT6, KW, MTSOLAR, 7G6CG953DK98 |
| SITE ADDRESS | ATHENS, GA, USA |
| MODULE INFO | MISSION, SOLAR, 410W |
| MODULE WIDTH | 44.69 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 15.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 19188.14 |
| TOTAL WEIGHT | 3371.70 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/e3b959e2-ec6f-40c0-9c91-33e384088254.pdf |
|
| ID | 10929.00 |
| 3D Solar link |
