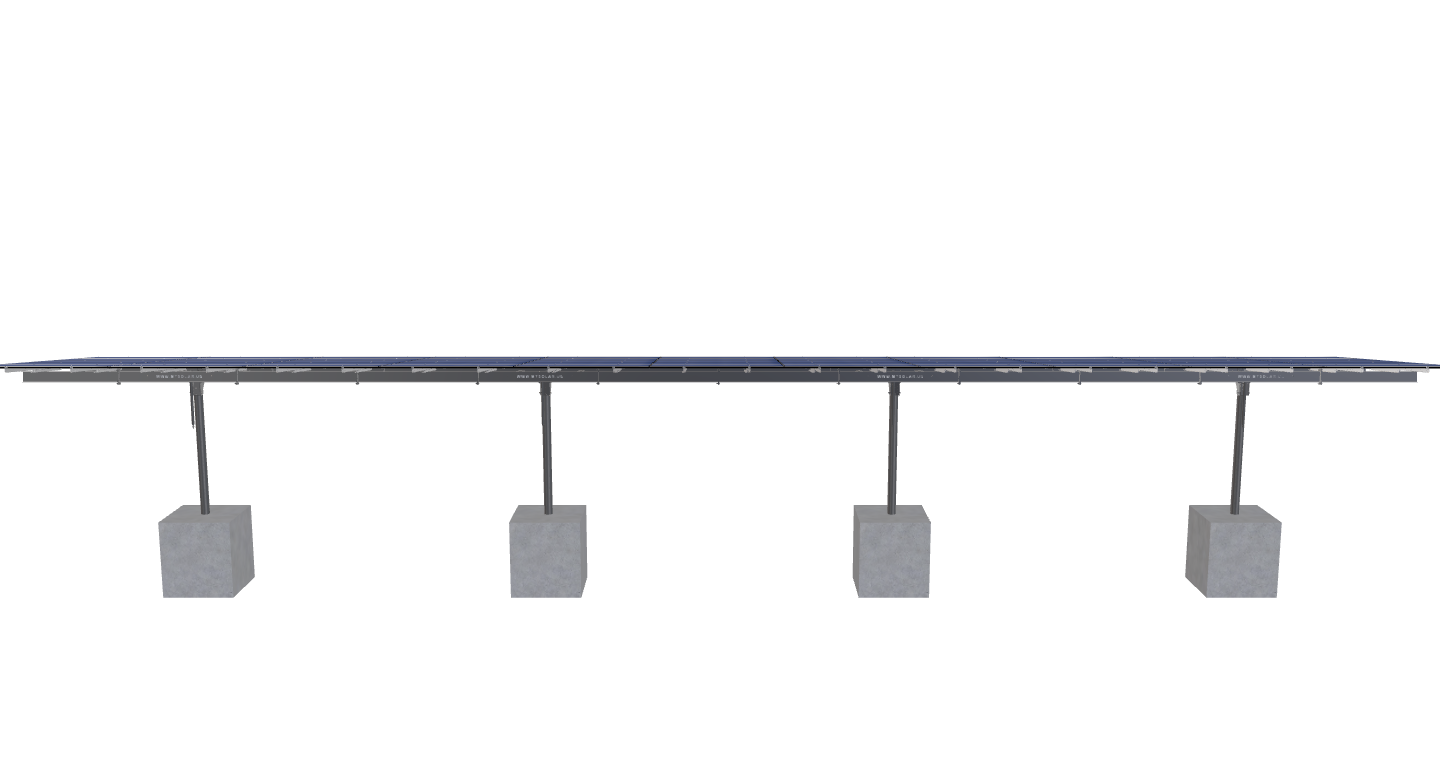

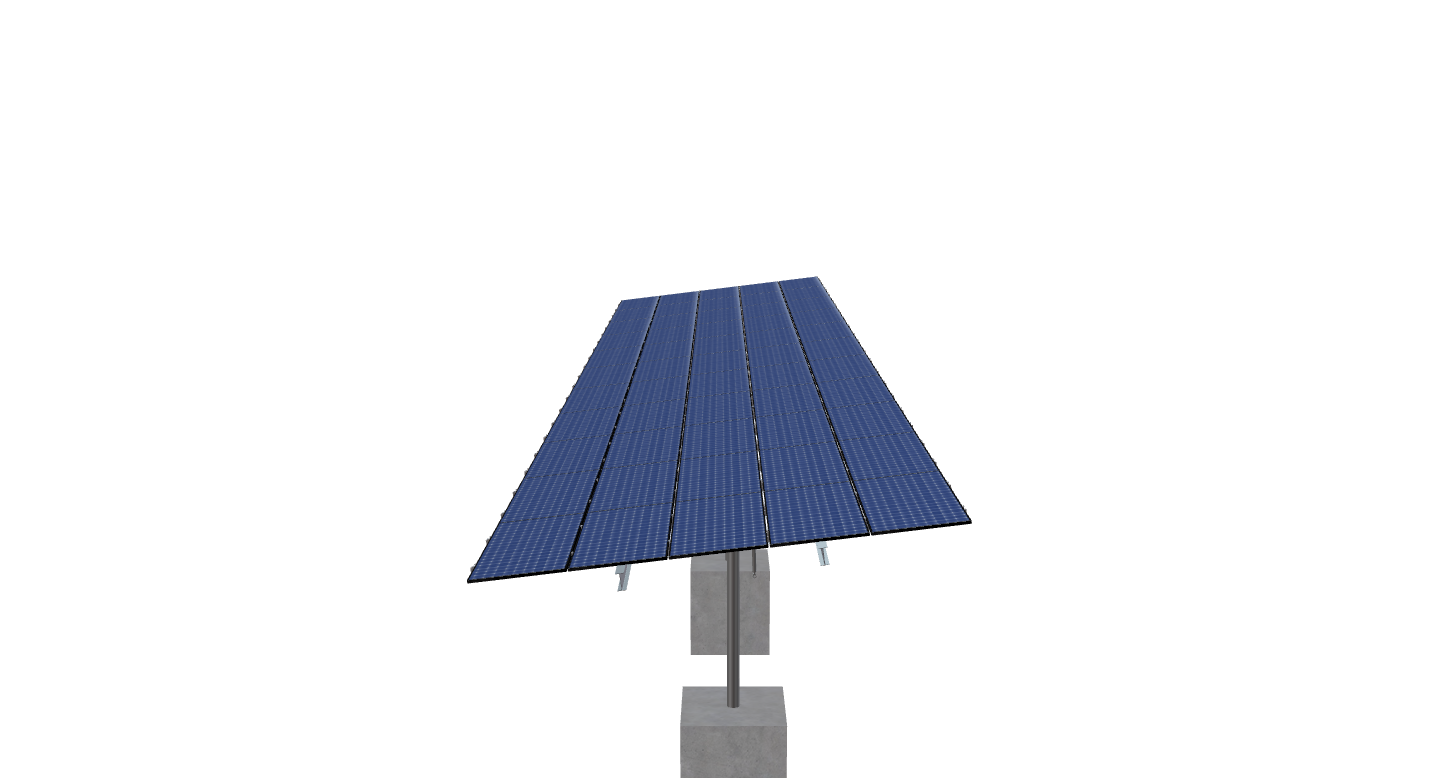

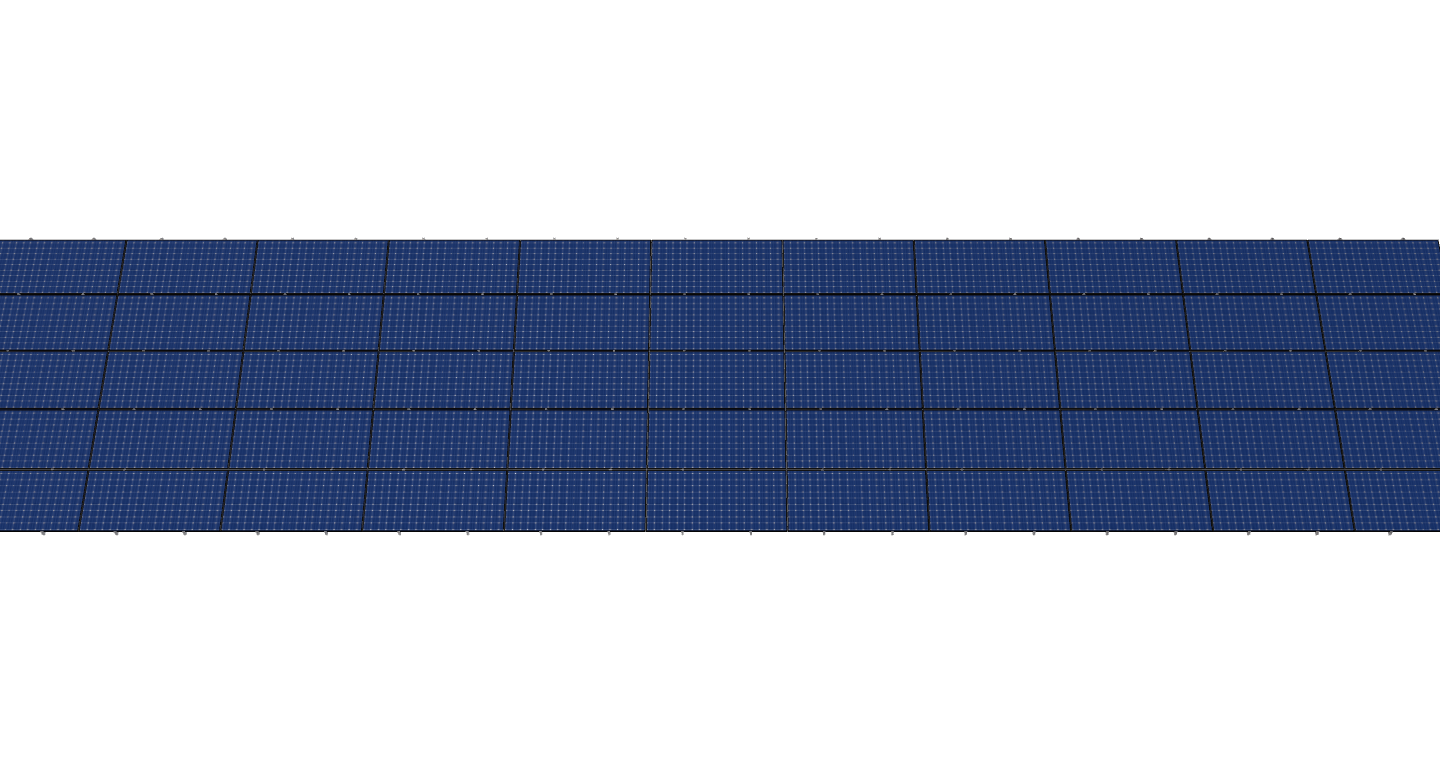

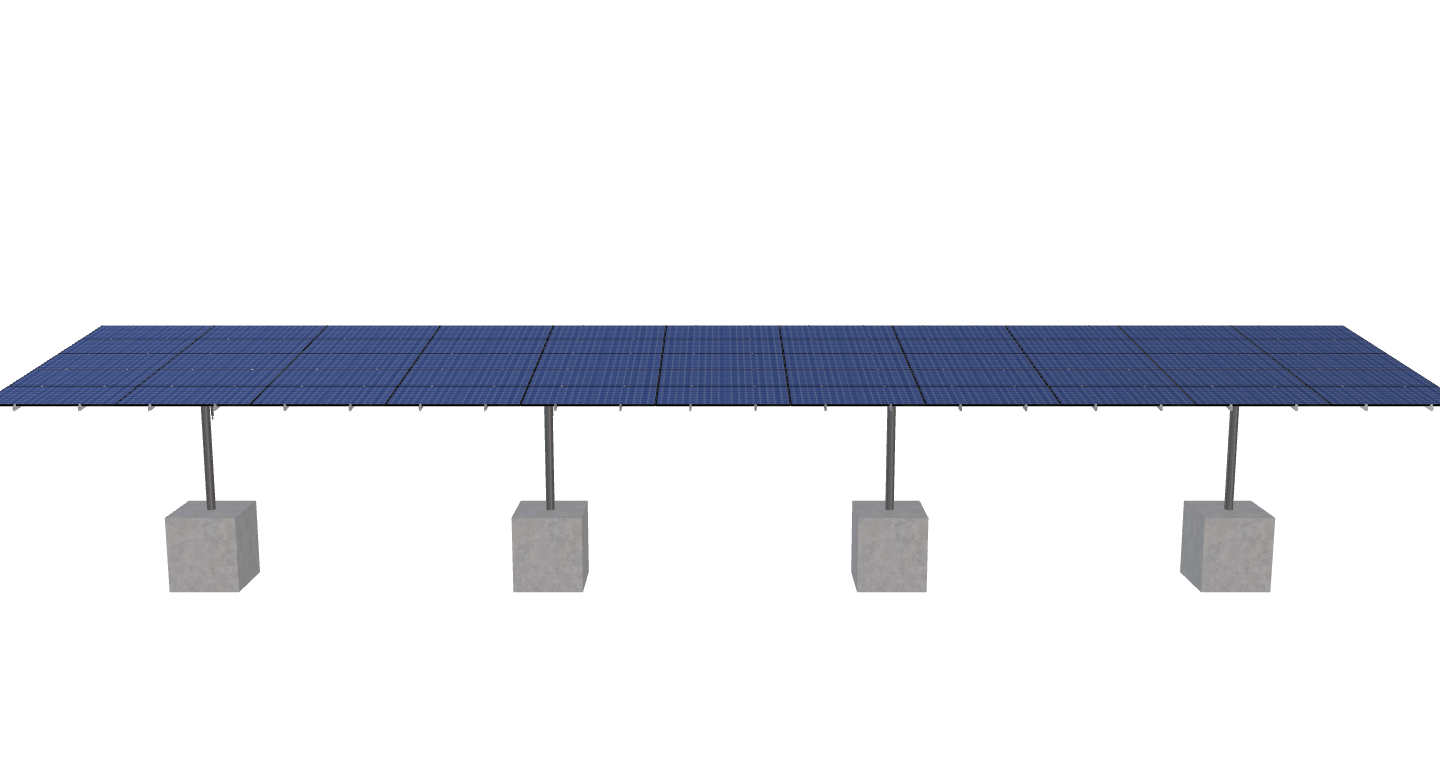

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 95.1 inches by 44.7 inches and an array layout of 11 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

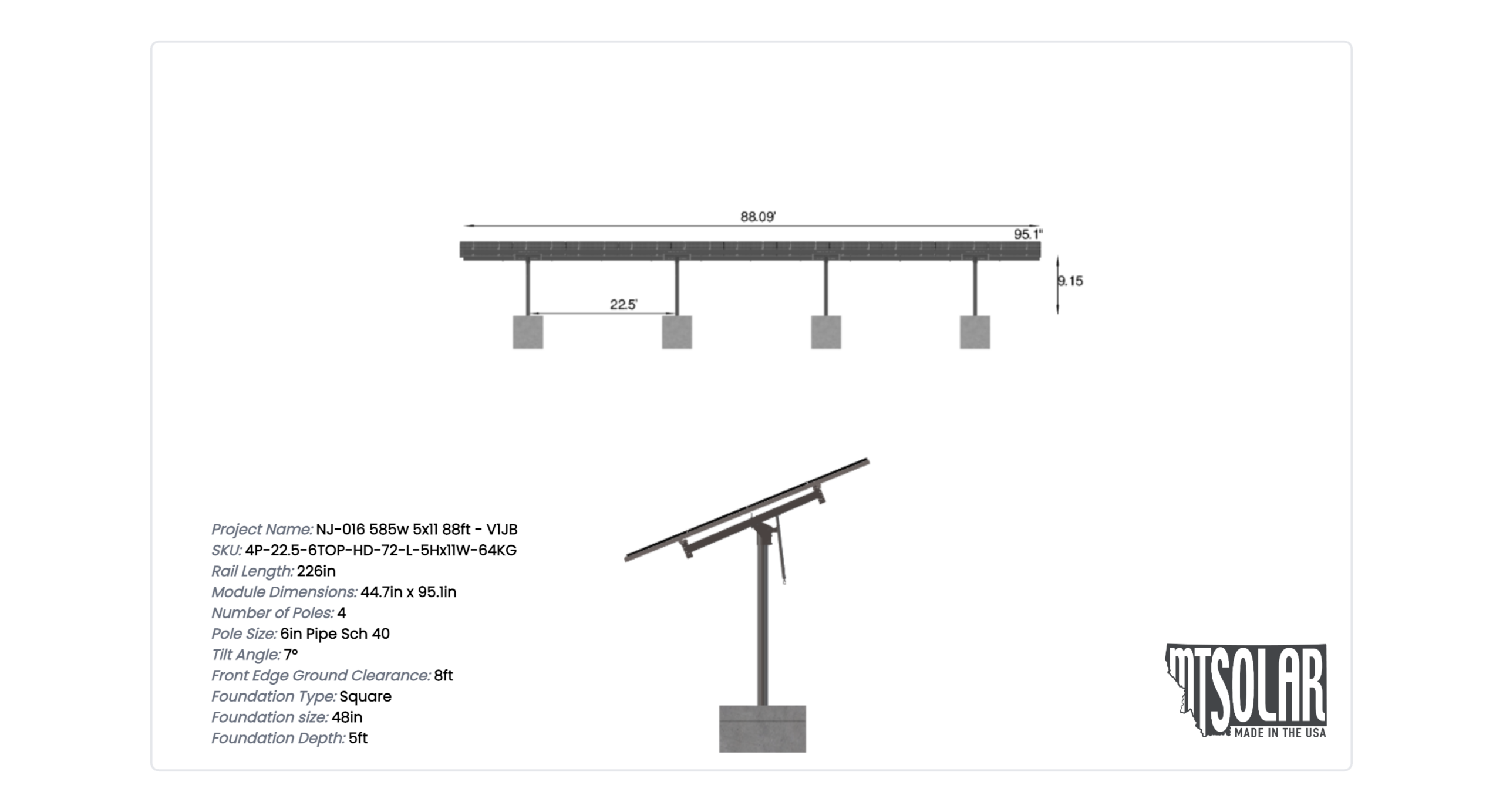

See 3D Model Here
NJ-016 585w 5×11 88ft – V1JB
$22,739.97
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 95.1 inches by 44.7 inches and an array layout of 11 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4412.92 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-22.5-6TOP-HD-72-L-5HX11W-64KG |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 9.15 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 5.00 |
| TILT ANGLE | 7.00 |
| CANTILEVER | 1044.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1659.06 |
| ARRAY WIDTH | 88.09 |
| ARRAY HEIGHT | 18.83 |
| RAIL LENGTH | 226.00 |
| MODULE LENGTH | 95.10 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 87.00 |
| GROUND TO TOP | 10.30 |
| PROJECTED PANEL HEIGHT | 2.30 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | NJ-016, 585W, 5X11, 88FT, -, V1JB |
| SITE ADDRESS | 1120, COMMERCE, BLVD, LOGAN, TOWNSHIP, NJ, 08085, USA |
| MODULE WIDTH | 44.70 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 11.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 21657.11 |
| TOTAL WEIGHT | 4412.92 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/756c1536-1272-4be0-aef0-45daa1740a46.pdf |
|
| ID | 10601.00 |
| 3D Solar link |
