This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 15 wide by 4 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

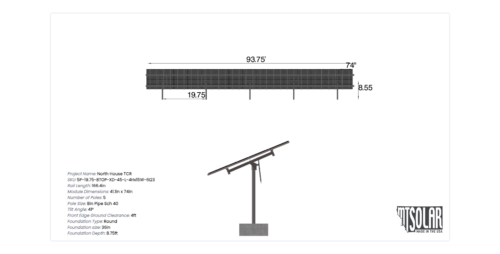

See 3D Model Here
North House TCR
$26,983.84
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 15 wide by 4 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 5056.450000000001 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 5P-19.75-8TOP-XD-45-L-4HX15W-6I23 |
DUTY SIZE | XD |
POLE SIZE | 8IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 5.00 |
POLE SPACING | 19.75 |
POLE HEIGHT | 8.55 |
WING SPAN | 45.00 |
MAX FOUNDATION DEPTH | 8.75 |
TILT ANGLE | 41.00 |
CANTILEVER | 1128.00 |
GROUND CLEARANCE | 4.00 |
NO POLES | 5.00 |
MODULE AREA | 1300.00 |
ARRAY WIDTH | 93.75 |
ARRAY HEIGHT | 13.87 |
RAIL LENGTH | 166.40 |
MODULE LENGTH | 74.00 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 94.00 |
GROUND TO TOP | 13.04 |
PROJECTED PANEL HEIGHT | 8.99 |
PROJECT ID | NORTH, HOUSE, TCR |
SITE ADDRESS | CODY, WY, 82414, USA |
MODULE WIDTH | 41.10 |
NUMBER ROWS | 4.00 |
NUMBER COLUMNS | 15.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | C |
FRAME DUTY OVERRIDE | XD |
POLE OVERRIDE | 8, 40 |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
FOUNDATION TYPE | ROUND |
FOUNDATION SIZE | 36.00 |
CHECK RAILS | FALSE |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | TRUE |
ADD ANGLE BRACE | FALSE |
TOTAL PRICE | 26983.84 |
TOTAL WEIGHT | 5056.45 |
TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/2f3b771f-d08d-440f-bd73-96aeb8b8a272.pdf |
|
ID | 3087.00 |
3D Solar link |
