Orion Stanger

$21,020.69

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 12 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

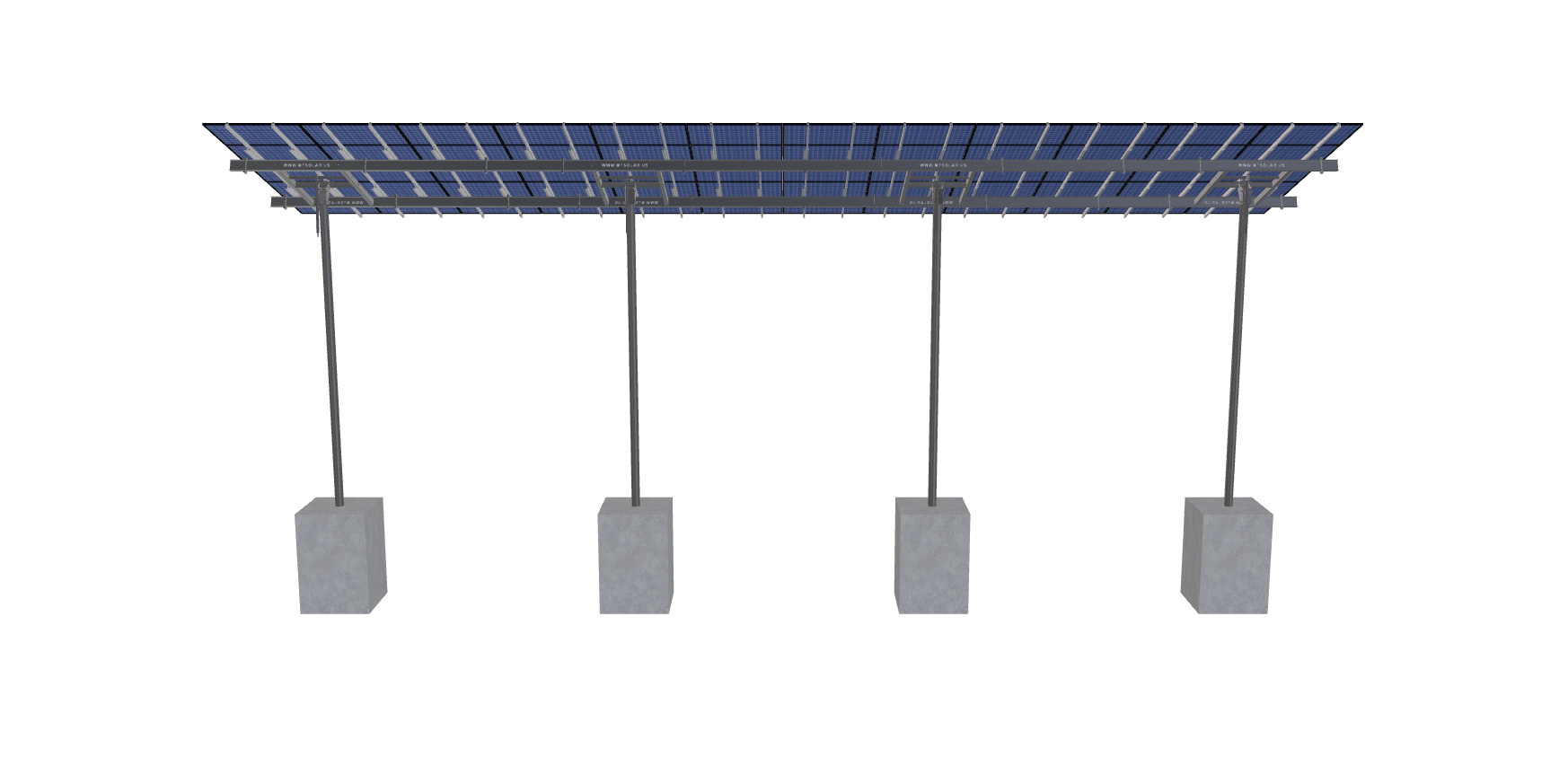

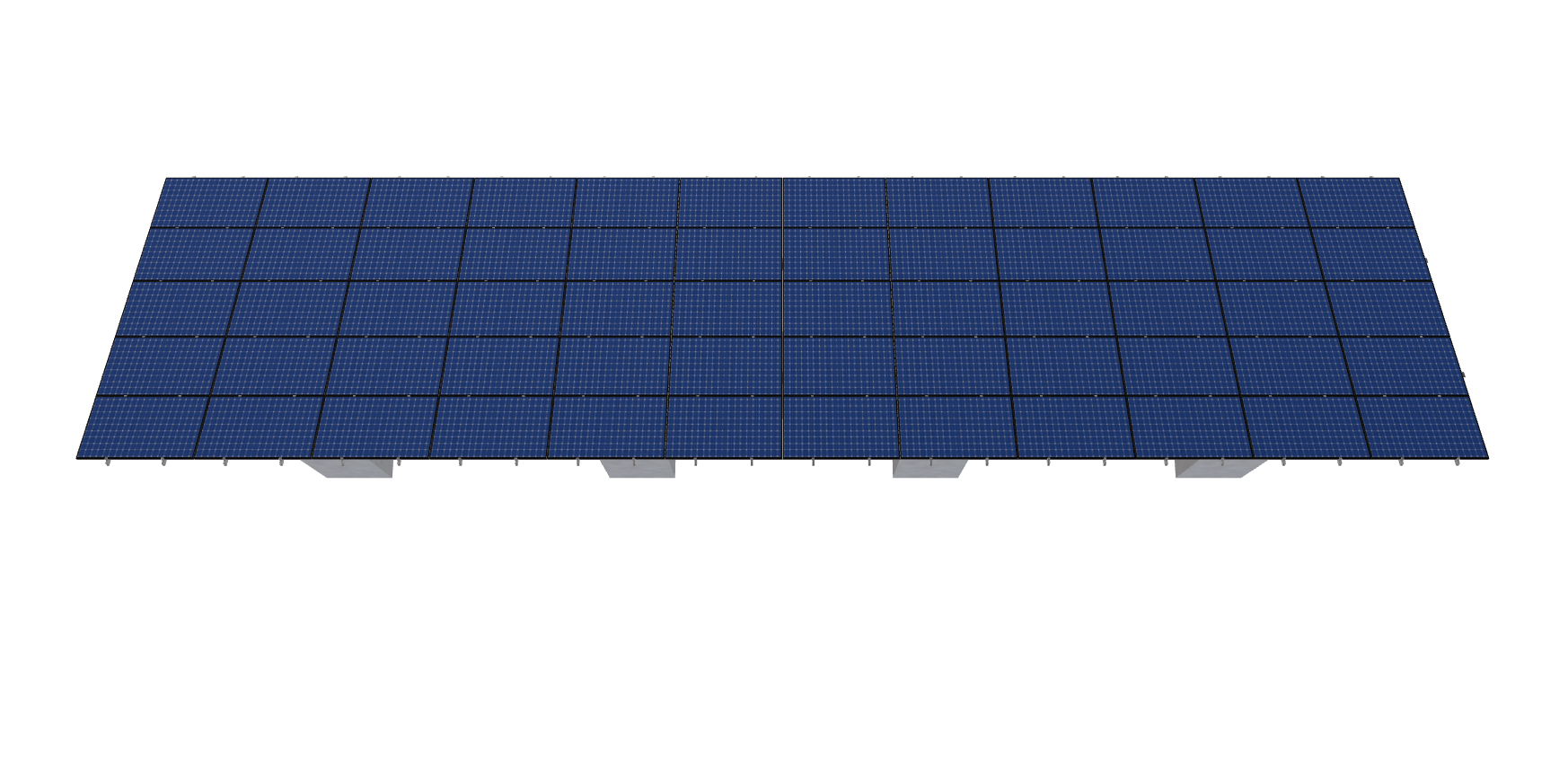

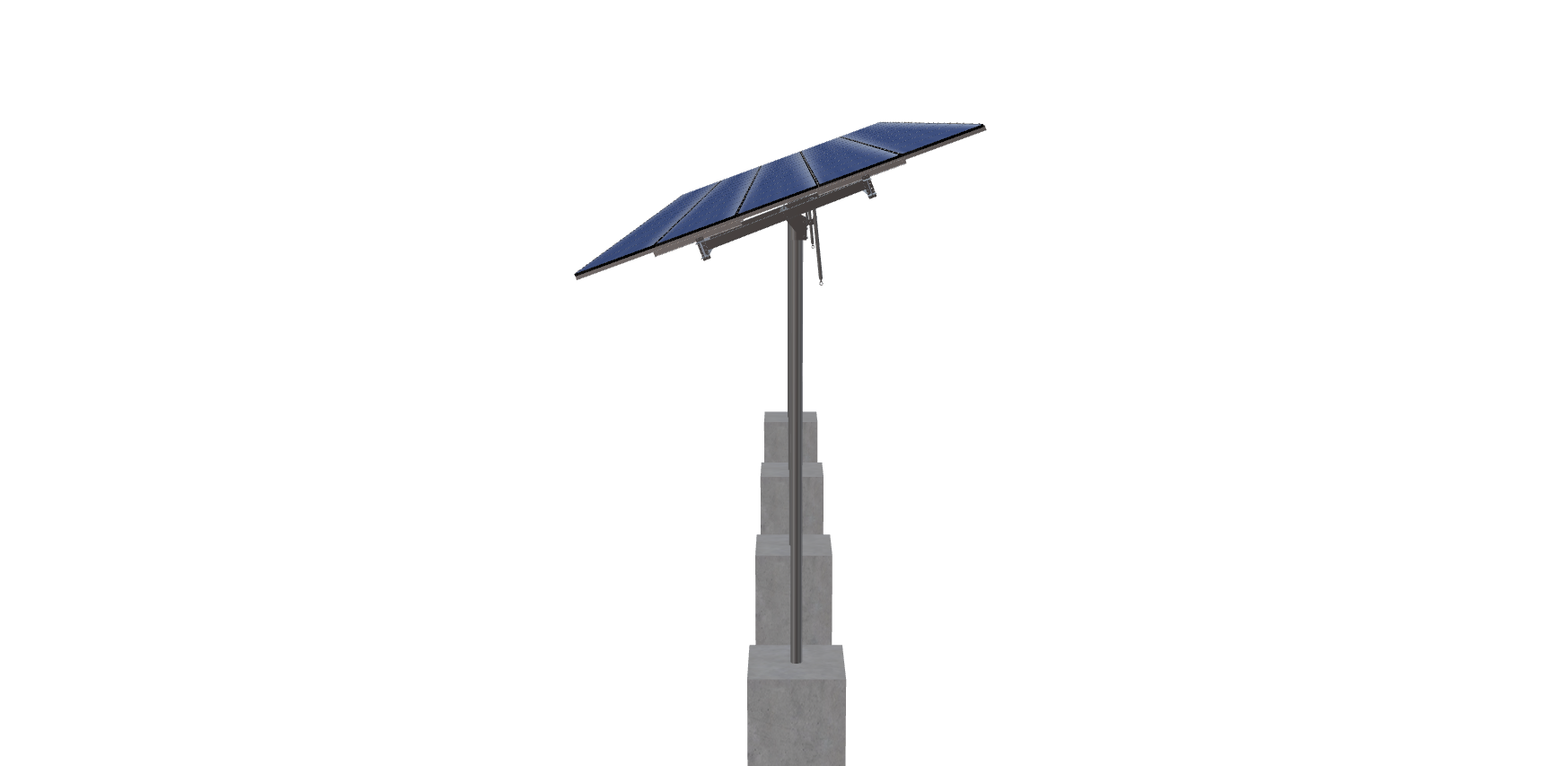

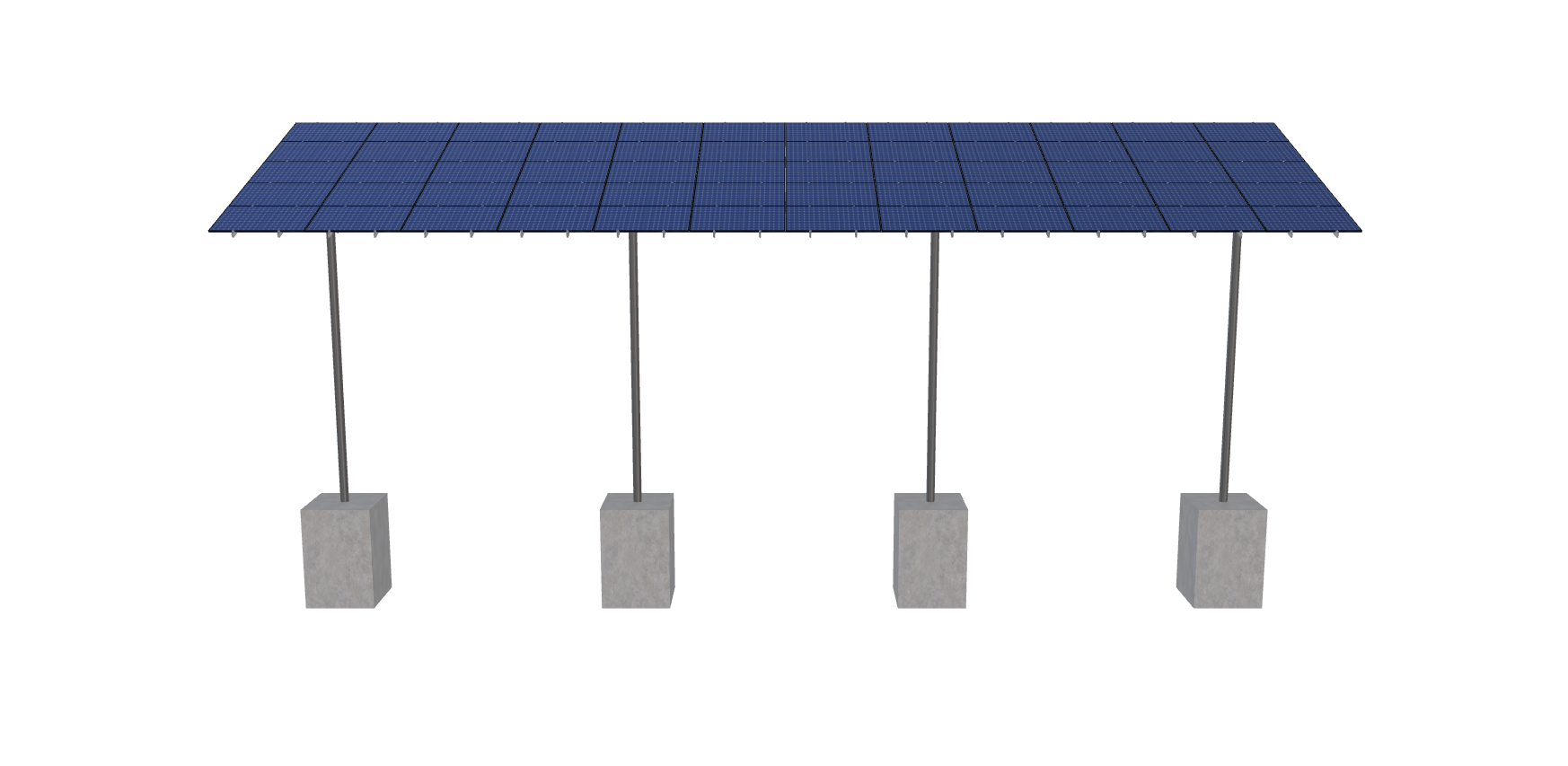

See 3D Model Here

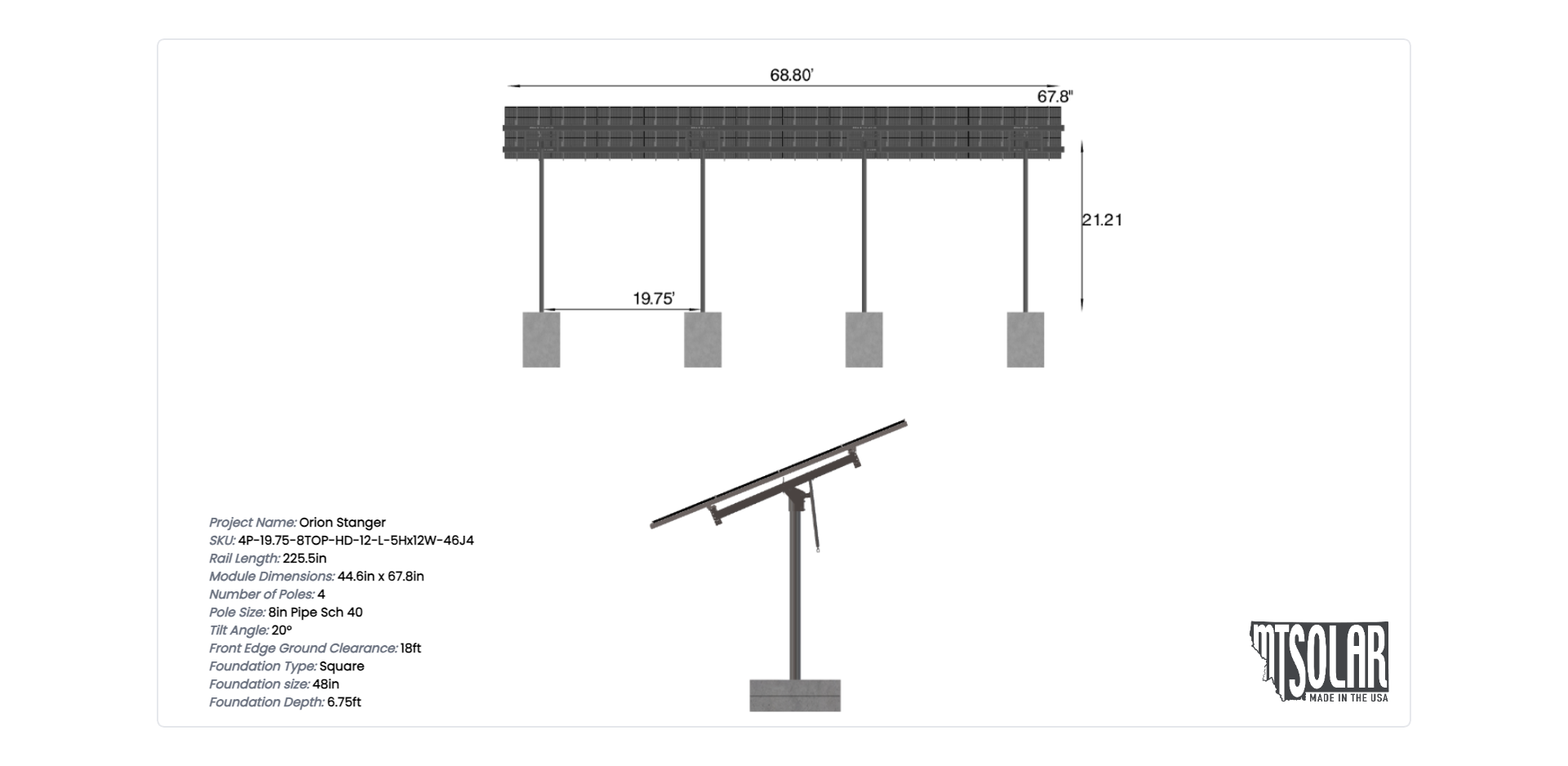

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

Product price: $21,020.69
Total options:
Order total:
SKU: 4P-19.75-8TOP-HD-12-L-5Hx12W-46J4 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 12 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 4209.5 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

4P-19.75-8TOP-HD-12-L-5HX12W-46J4

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

4.00

POLE SPACING

19.75

POLE HEIGHT

21.21

WING SPAN

12.00

MAX FOUNDATION DEPTH

6.75

TILT ANGLE

20.00

CANTILEVER

825.00

GROUND CLEARANCE

18.00

NO POLES

4.00

MODULE AREA

1292.87

ARRAY WIDTH

68.80

ARRAY HEIGHT

18.79

RAIL LENGTH

225.50

MODULE LENGTH

67.80

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

68.75

GROUND TO TOP

24.39

PROJECTED PANEL HEIGHT

6.36

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

ORION, STANGER

SITE ADDRESS

22212, LOCUST, WY, BRIER, WA, 98036, USA

MODULE WIDTH

44.60

NUMBER ROWS

5.00

NUMBER COLUMNS

12.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

21020.69

TOTAL WEIGHT

4209.50

TOTAL PALLETS

4.00

pdf

https://skycivquotes.s3.amazonaws.com/6d0b2e87-e5f3-4ae7-b401-e34eaa14787b.pdf

ID

6698.00
