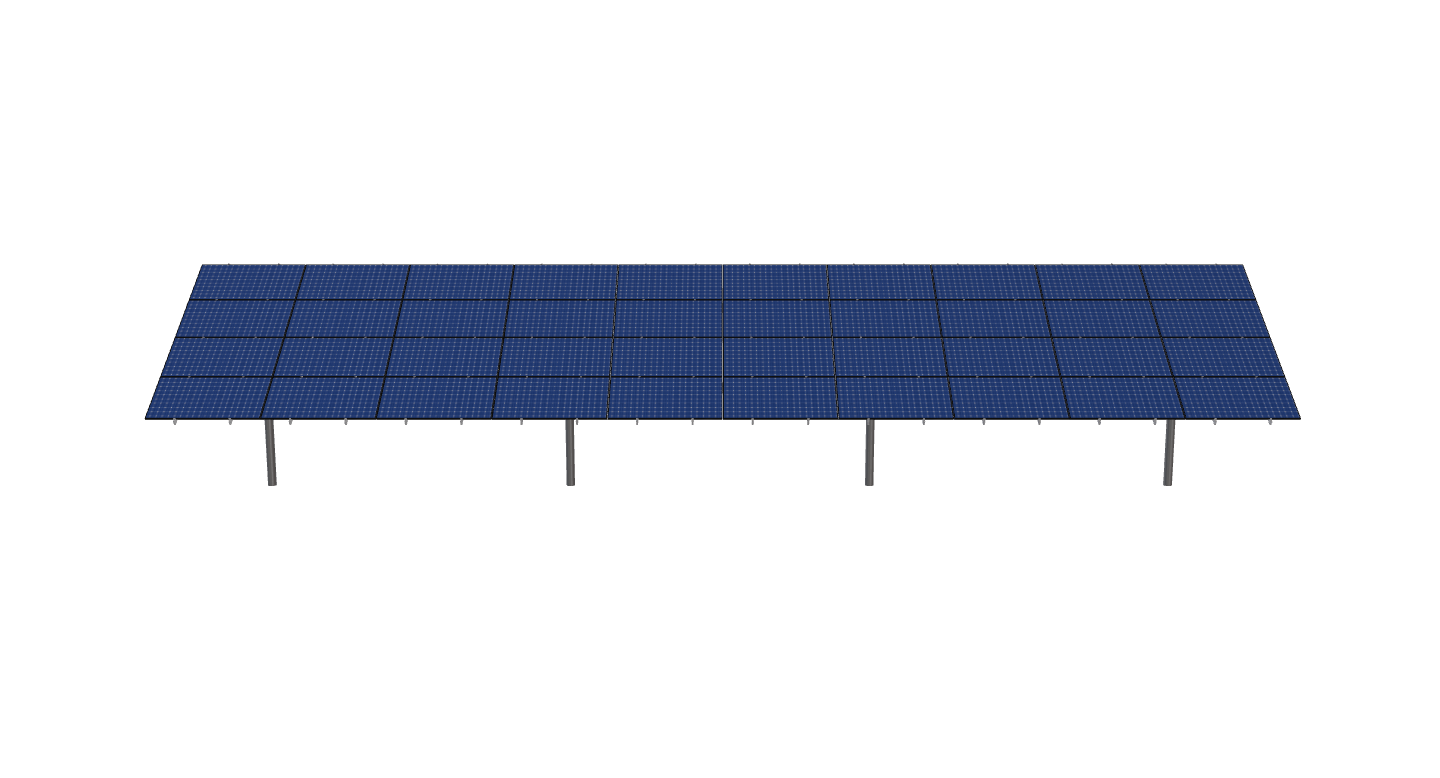

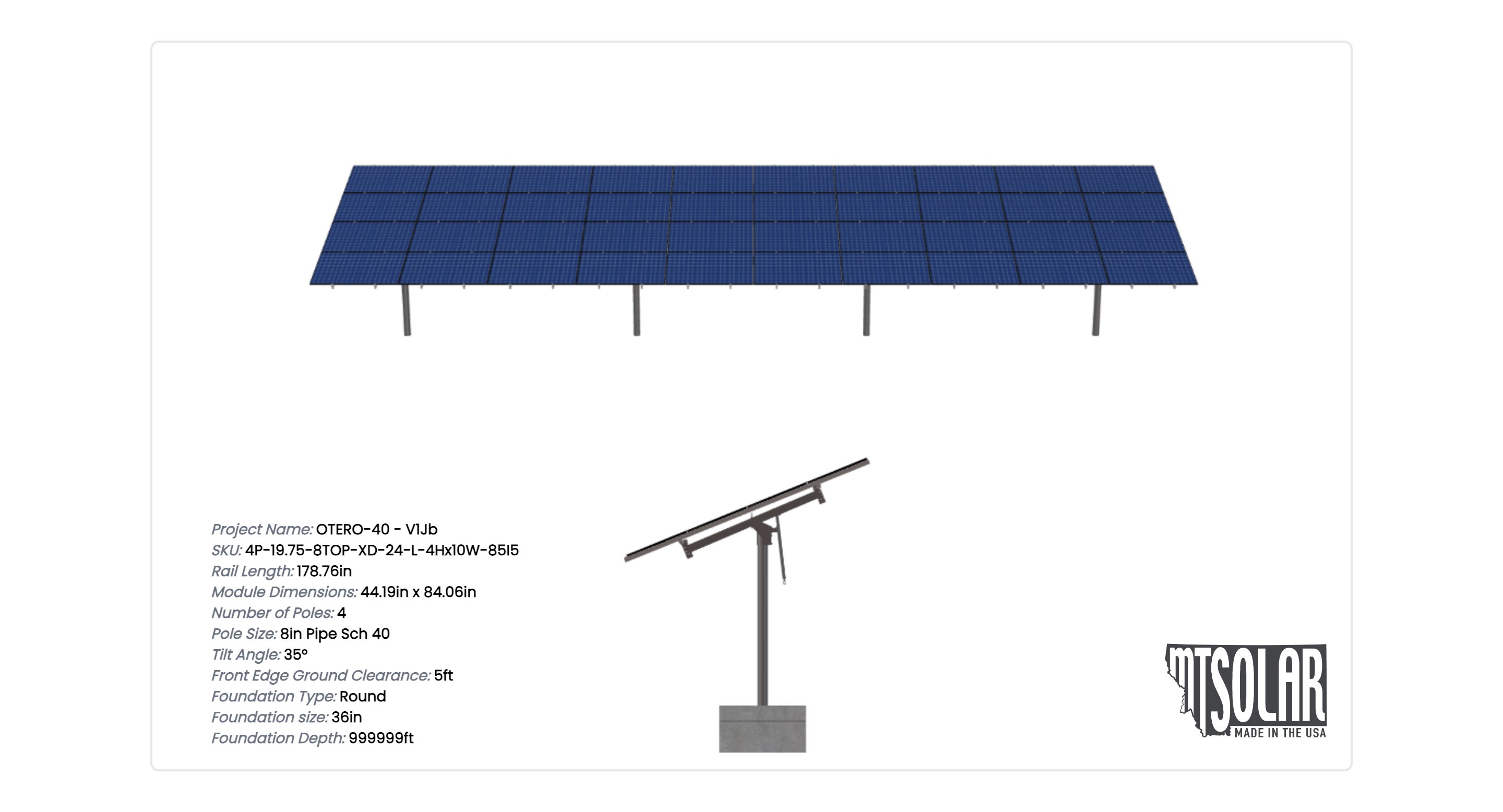

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 84.06 inches by 44.19 inches and an array layout of 10 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
OTERO-40 – V1Jb
$21,550.64
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 84.06 inches by 44.19 inches and an array layout of 10 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3857.2 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-8TOP-XD-24-L-4HX10W-85I5 |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 9.27 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 999999.00 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 849.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1055.93 |
| ARRAY WIDTH | 70.88 |
| ARRAY HEIGHT | 14.90 |
| RAIL LENGTH | 178.76 |
| MODULE LENGTH | 84.06 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 70.75 |
| GROUND TO TOP | 13.54 |
| PROJECTED PANEL HEIGHT | 8.54 |
| WIND SPEED OVERRIDE | 130.00 |
| SNOW LOAD OVERRIDE | 30.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | PAUL, MUNCH |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 3038197797.00 |
| PROJECT ID | OTERO-40, -, V1JB |
| SITE ADDRESS | 10020, OTERO, AVE, COLORADO, SPRINGS, CO, 80920, USA |
| MODULE WIDTH | 44.19 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 20524.42 |
| TOTAL WEIGHT | 3857.20 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/32bd6ce8-3cbb-492b-bfcc-403cfc7e1a2c.pdf |
|
| ID | 9847.00 |
| 3D Solar link |
