This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 71.7 inches by 38.4 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

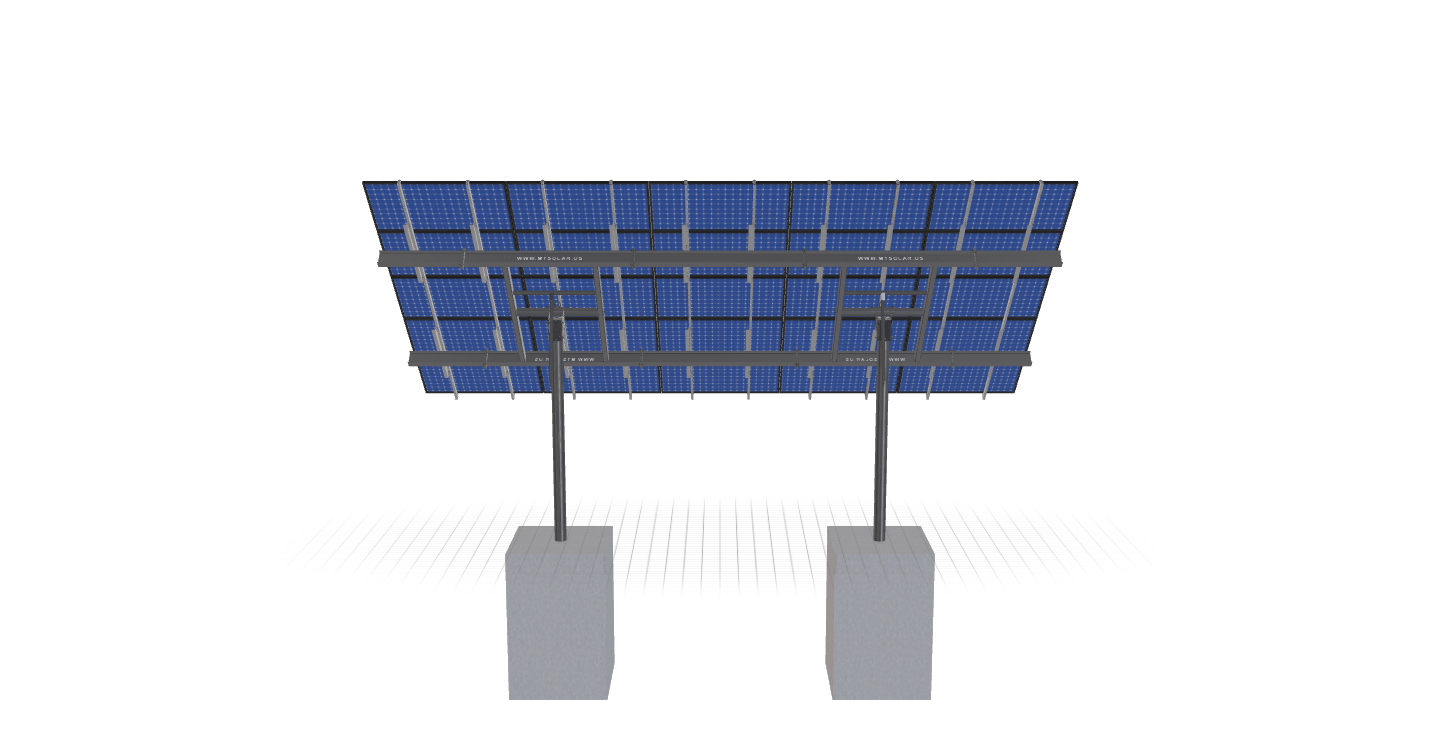

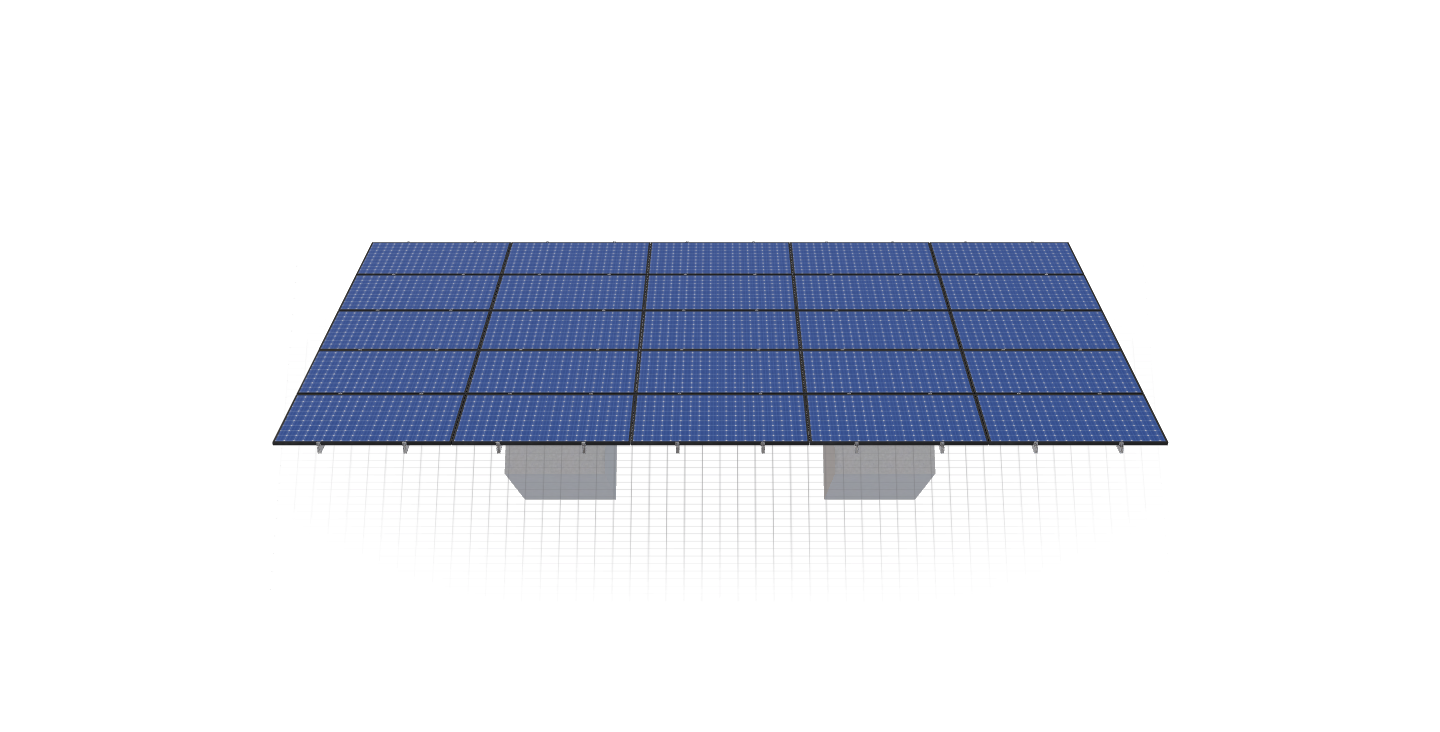

See 3D Model Here
Patrick#2-RevA
$9,431.98
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 71.7 inches by 38.4 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1874.3000000000002 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-15-8TOP-HD-45-L-5HX5W-2L7G |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 10.73 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 7.00 |
| TILT ANGLE | 45.00 |
| CANTILEVER | 360.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 490.98 |
| ARRAY WIDTH | 30.29 |
| ARRAY HEIGHT | 16.21 |
| RAIL LENGTH | 194.50 |
| MODULE LENGTH | 71.70 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 30.00 |
| GROUND TO TOP | 16.39 |
| PROJECTED PANEL HEIGHT | 11.31 |
| PROJECT ID | PATRICK#2-REVA |
| SITE ADDRESS | 2117, SOUTHFORK, RD, CODY, WY, 82414, USA |
| MODULE WIDTH | 38.40 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 101.00 |
| SNOW LOAD OVERRIDE | 36.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 9431.98 |
| TOTAL WEIGHT | 1874.30 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/cddf7853-031d-4d29-a2c8-9eba4b0a2606.pdf |
|
| ID | 1141.00 |
| 3D Solar link |
