This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

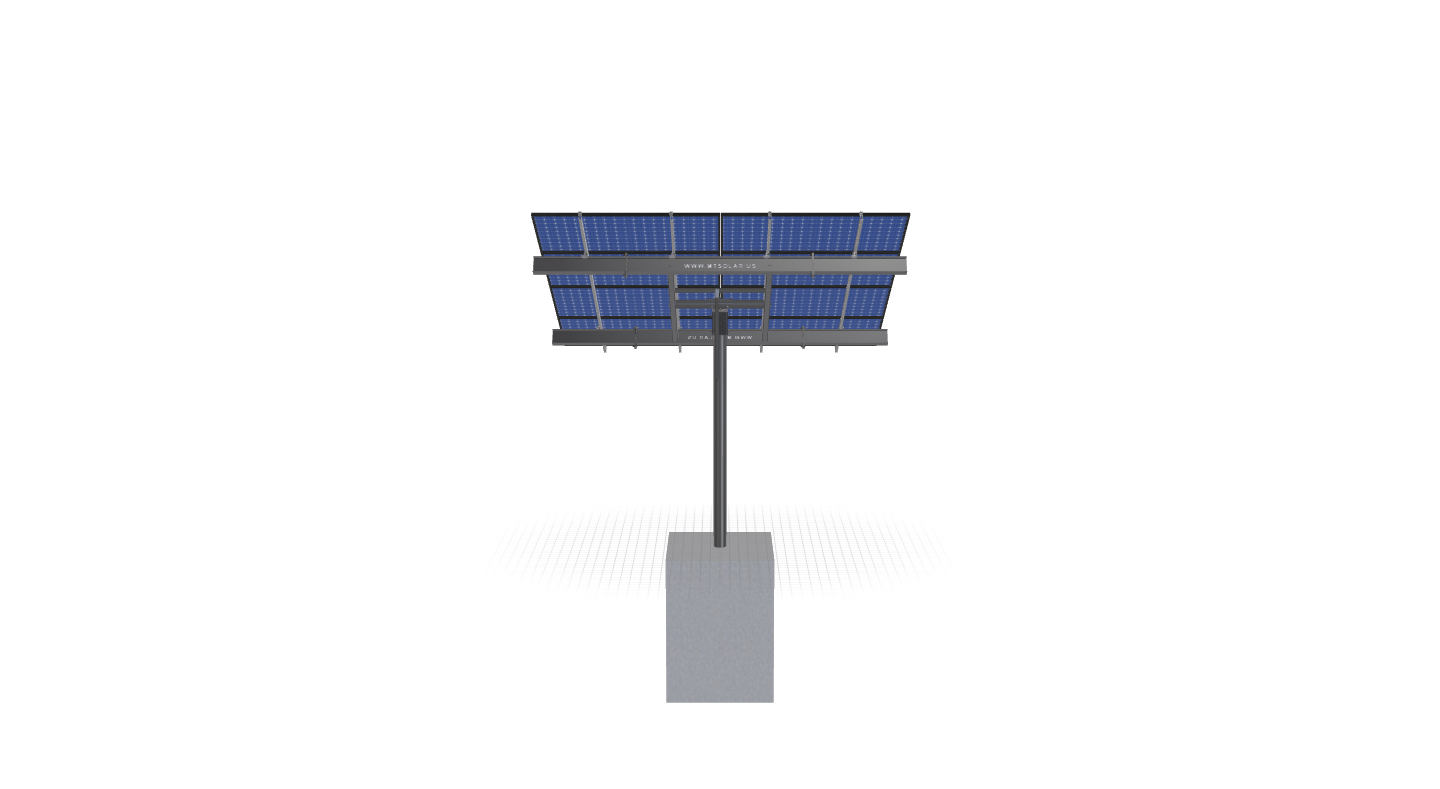

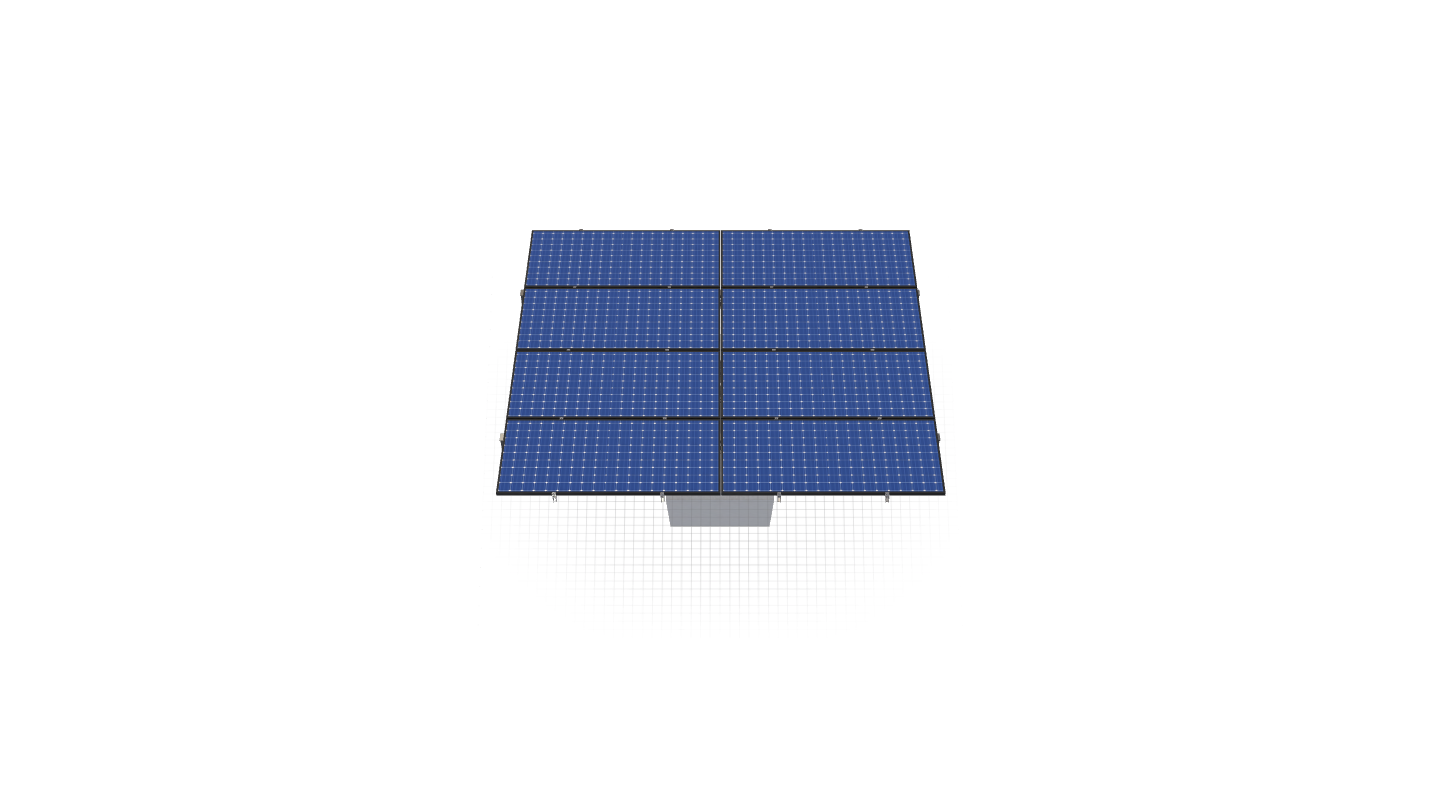

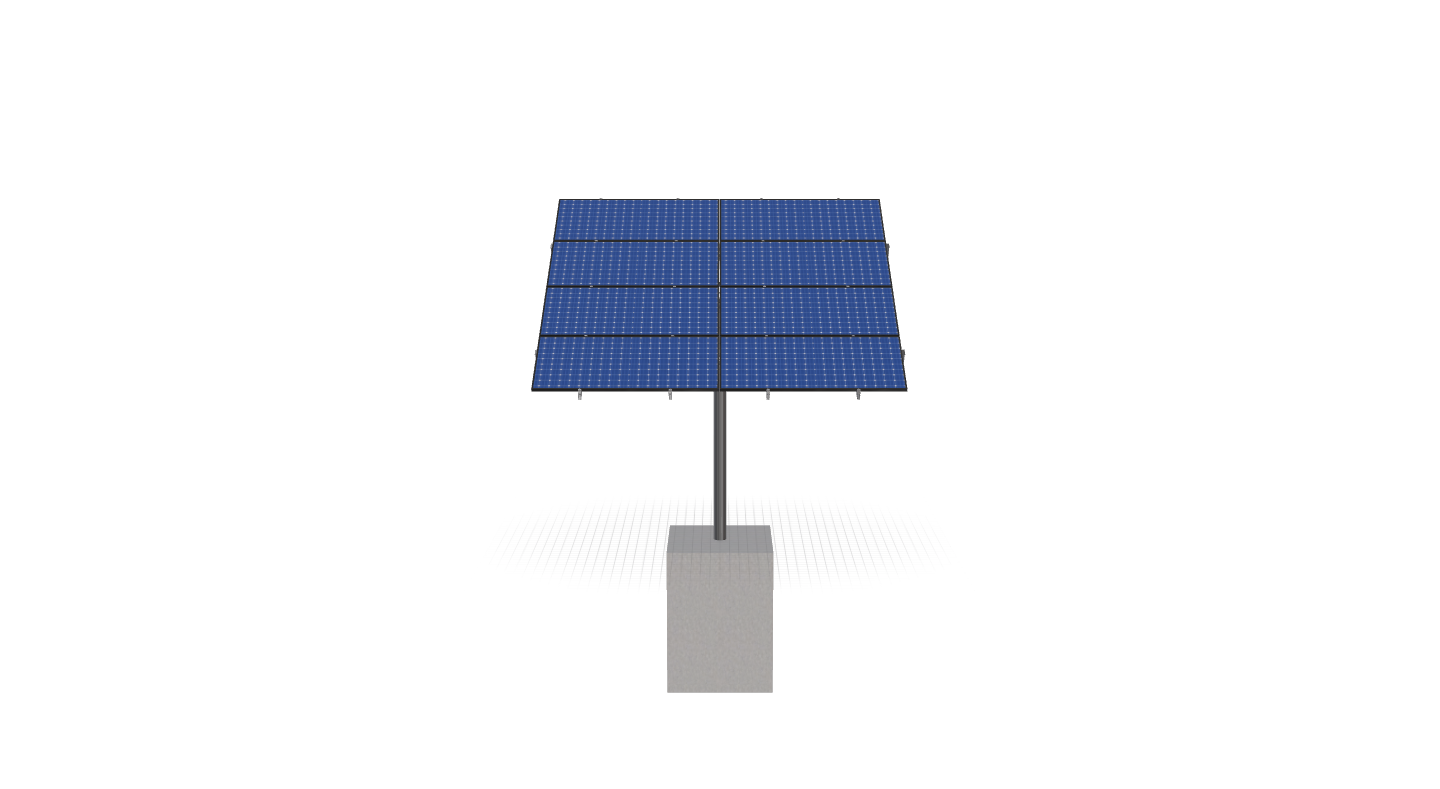

See 3D Model Here
Pearson-Campbell-RevA
$4,116.28
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 757.1500000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-HD-45-L-4HX2W-E6JG |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 10.47 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.25 |
| TILT ANGLE | 30.00 |
| CANTILEVER | 180.00 |
| GROUND CLEARANCE | 7.00 |
| NO POLES | 1.00 |
| MODULE AREA | 203.84 |
| ARRAY WIDTH | 14.70 |
| ARRAY HEIGHT | 13.87 |
| RAIL LENGTH | 166.40 |
| MODULE LENGTH | 87.20 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 15.00 |
| GROUND TO TOP | 13.89 |
| PROJECTED PANEL HEIGHT | 6.85 |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 25.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | PEARSON-CAMPBELL-REVA |
| SITE ADDRESS | 1331, MEADOR, AVE, STE, 103, BELLINGHAM, WA, 98229, USA |
| MODULE WIDTH | 41.10 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 2.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 4116.28 |
| TOTAL WEIGHT | 757.15 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/75ccc1e6-5572-41c1-b6b2-8559176391bf.pdf |
|
| ID | 756.00 |
| 3D Solar link |
