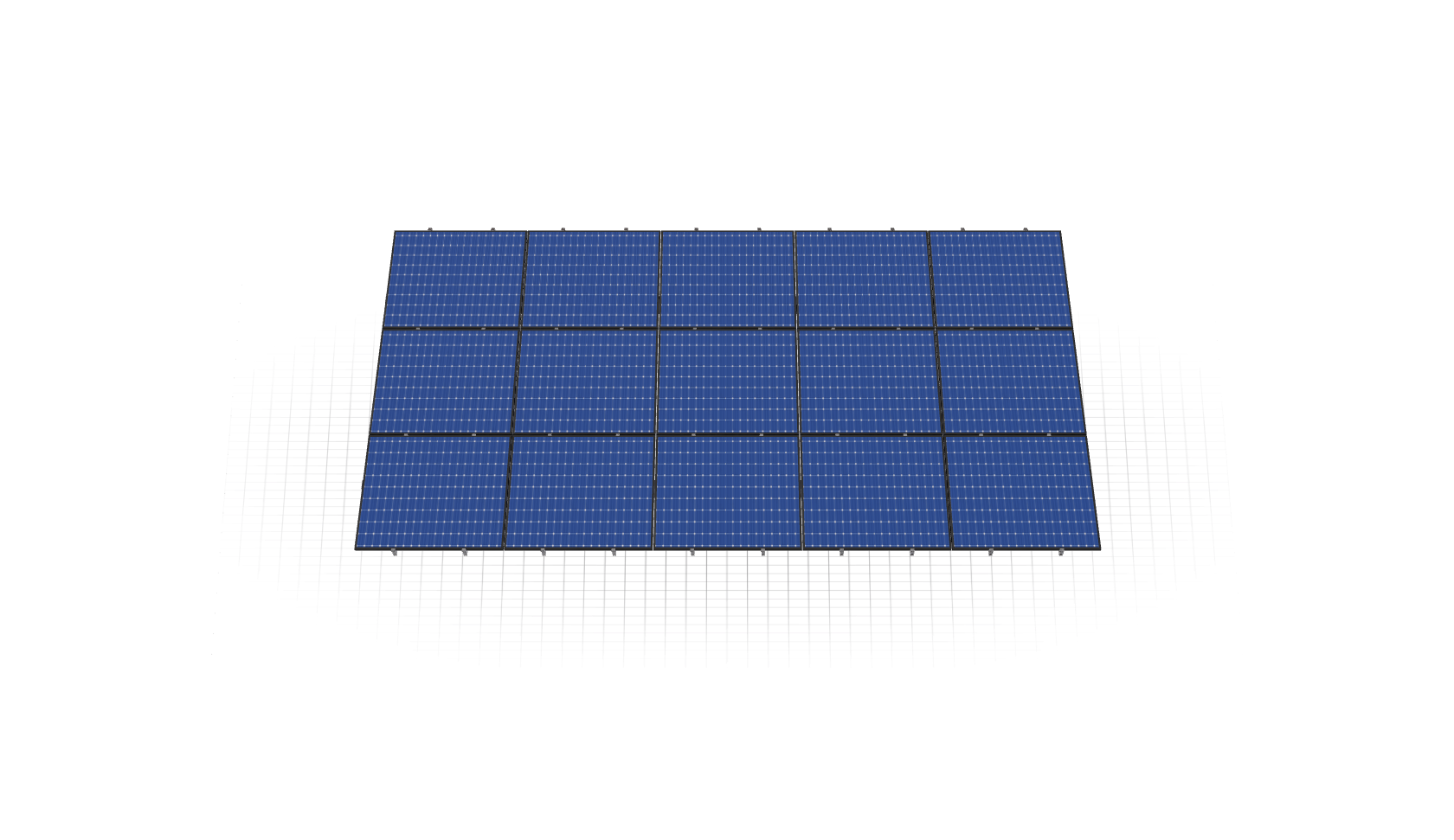

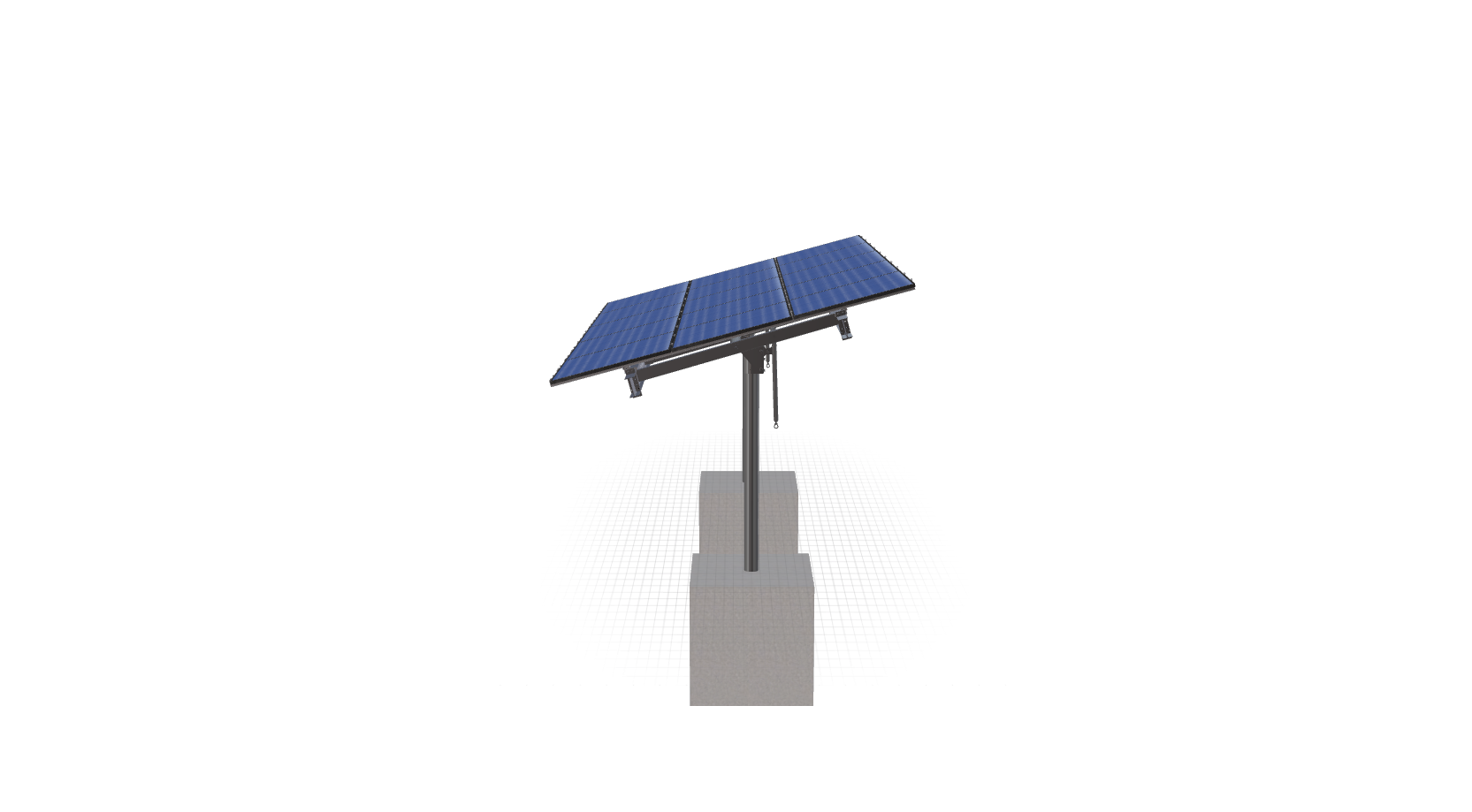

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 58 inches by 52 inches and an array layout of 5 wide by 3 high.

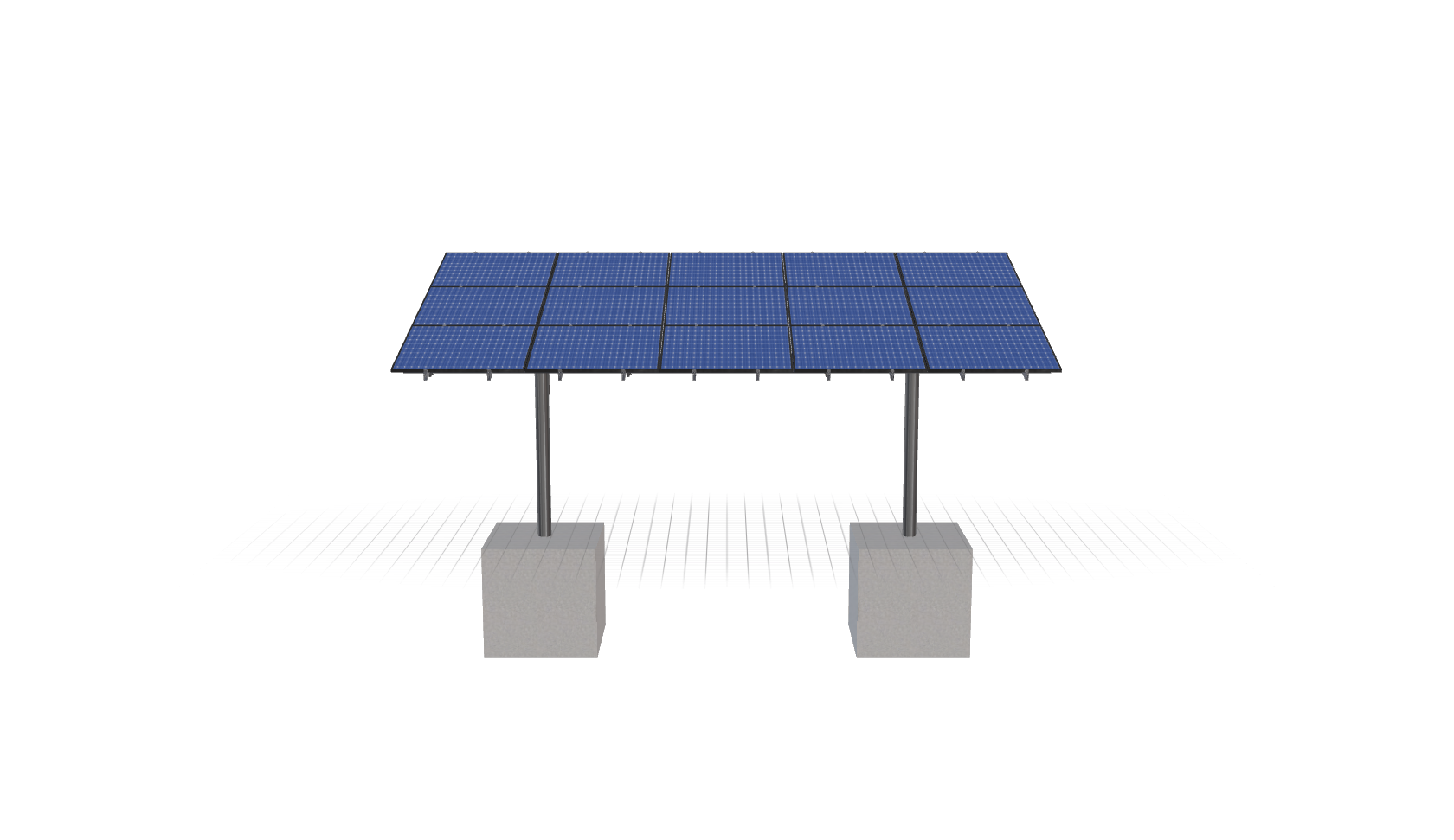

This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
PlanetaryCarport
$7,676.12
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 58 inches by 52 inches and an array layout of 5 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1376.74 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-15-6TOP-HD-12-L-3HX5W-H3HE |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 8.70 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 4.50 |
| TILT ANGLE | 15.00 |
| CANTILEVER | 294.00 |
| GROUND CLEARANCE | 7.00 |
| NO POLES | 2.00 |
| MODULE AREA | 322.66 |
| ARRAY WIDTH | 24.58 |
| ARRAY HEIGHT | 13.13 |
| RAIL LENGTH | 157.50 |
| MODULE LENGTH | 58.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 24.50 |
| GROUND TO TOP | 10.38 |
| PROJECTED PANEL HEIGHT | 3.36 |
| PROJECT ID | PLANETARYCARPORT |
| SITE ADDRESS | 43, BADGER, RD, ENNIS, MT, 59729, USA |
| MODULE WIDTH | 52.00 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 105.00 |
| SNOW LOAD OVERRIDE | 40.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 7676.12 |
| TOTAL WEIGHT | 1376.74 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/7b0ca93d-5e07-4576-b226-9caedf710cd2.pdf |
|
| ID | 803.00 |
| 3D Solar link |
