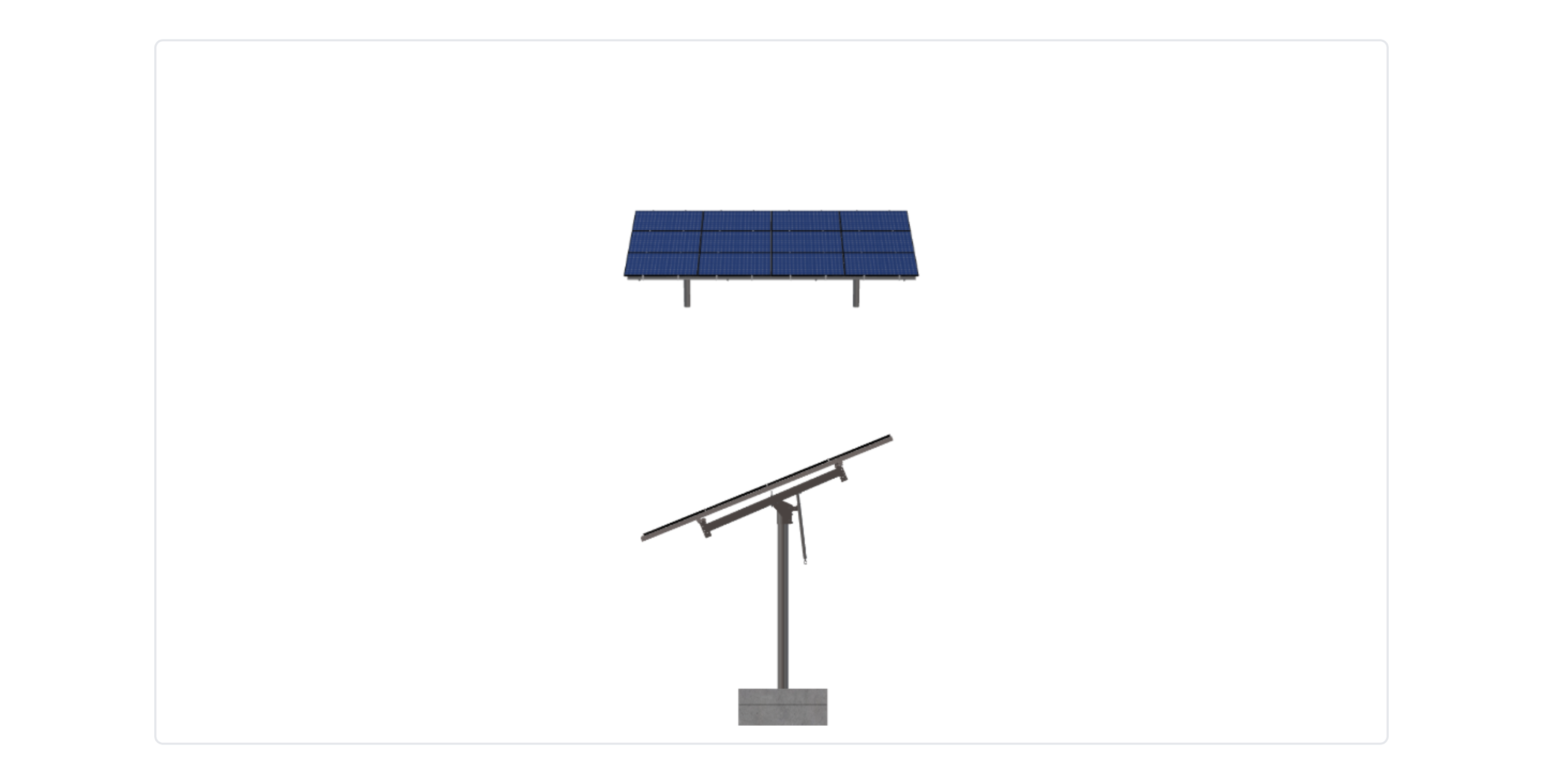

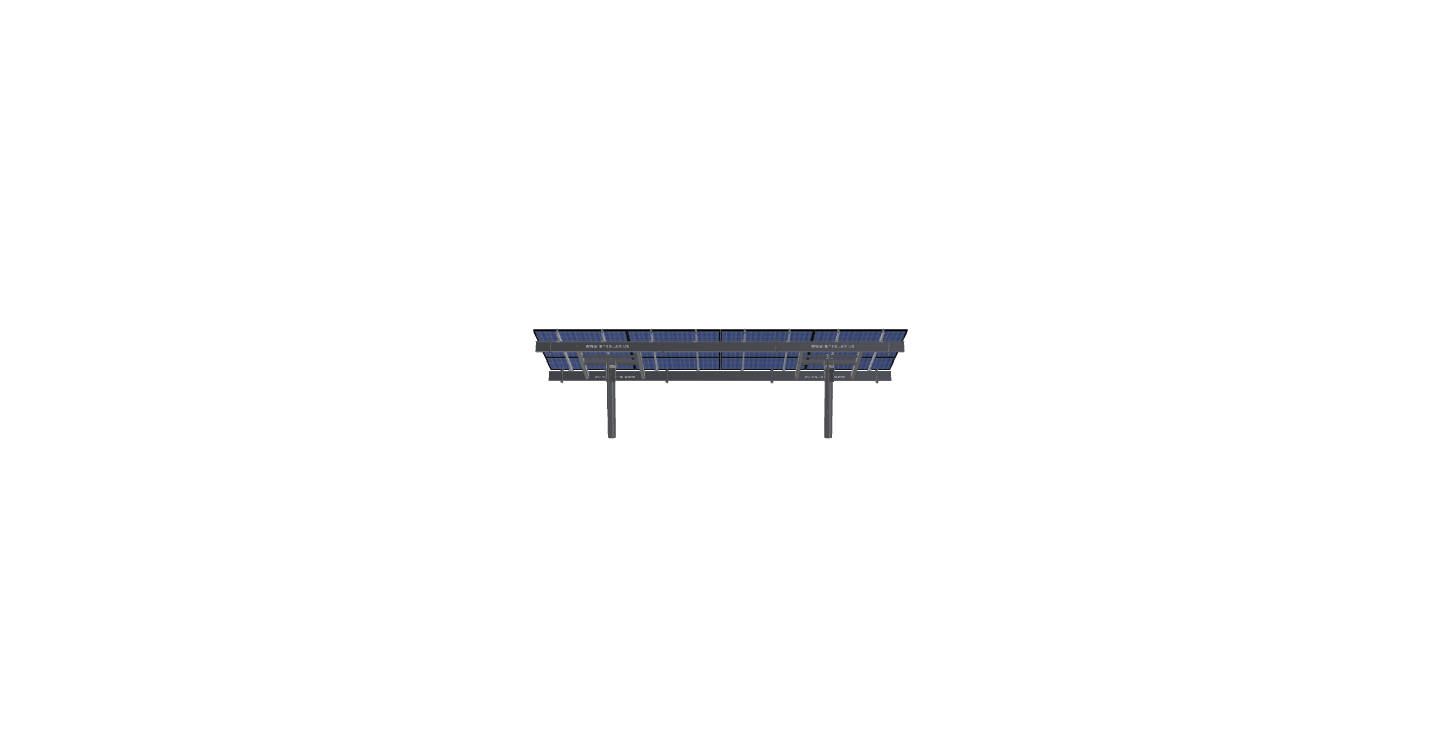

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.7 inches by 40.6 inches and an array layout of 4 wide by 3 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
PR04243BretWoz-JB-RevB1
$6,963.31
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.7 inches by 40.6 inches and an array layout of 4 wide by 3 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1156.18 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-15-8TOP-SD-12-L-3HX4W-BJ6K |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 5.17 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 6.25 |
| TILT ANGLE | 25.00 |
| CANTILEVER | 294.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 2.00 |
| MODULE AREA | 255.85 |
| ARRAY WIDTH | 24.90 |
| ARRAY HEIGHT | 10.28 |
| RAIL LENGTH | 123.30 |
| MODULE LENGTH | 73.70 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 24.50 |
| GROUND TO TOP | 7.32 |
| PROJECTED PANEL HEIGHT | 4.29 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | PR04243BRETWOZ-JB-REVB1 |
| SITE ADDRESS | 1072, PILGRIM, PASS, VICTOR, NY, 14564, USA |
| MODULE WIDTH | 40.60 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 6631.72 |
| TOTAL WEIGHT | 1156.18 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/e28580b8-1dfb-4f4a-912d-a091d341735c.pdf |
|
| ID | 1998.00 |
| 3D Solar link |
