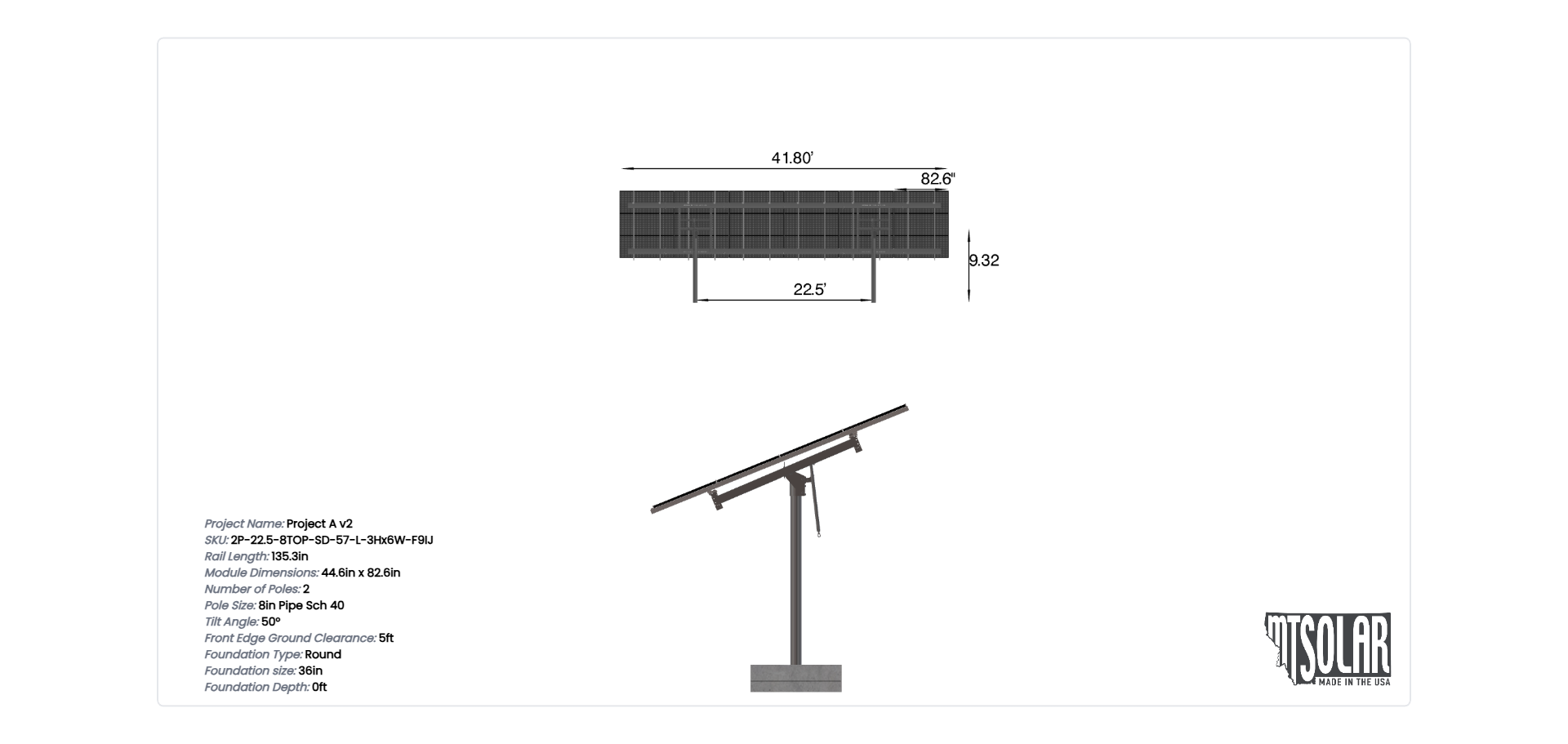

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.6 inches by 44.6 inches and an array layout of 6 wide by 3 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

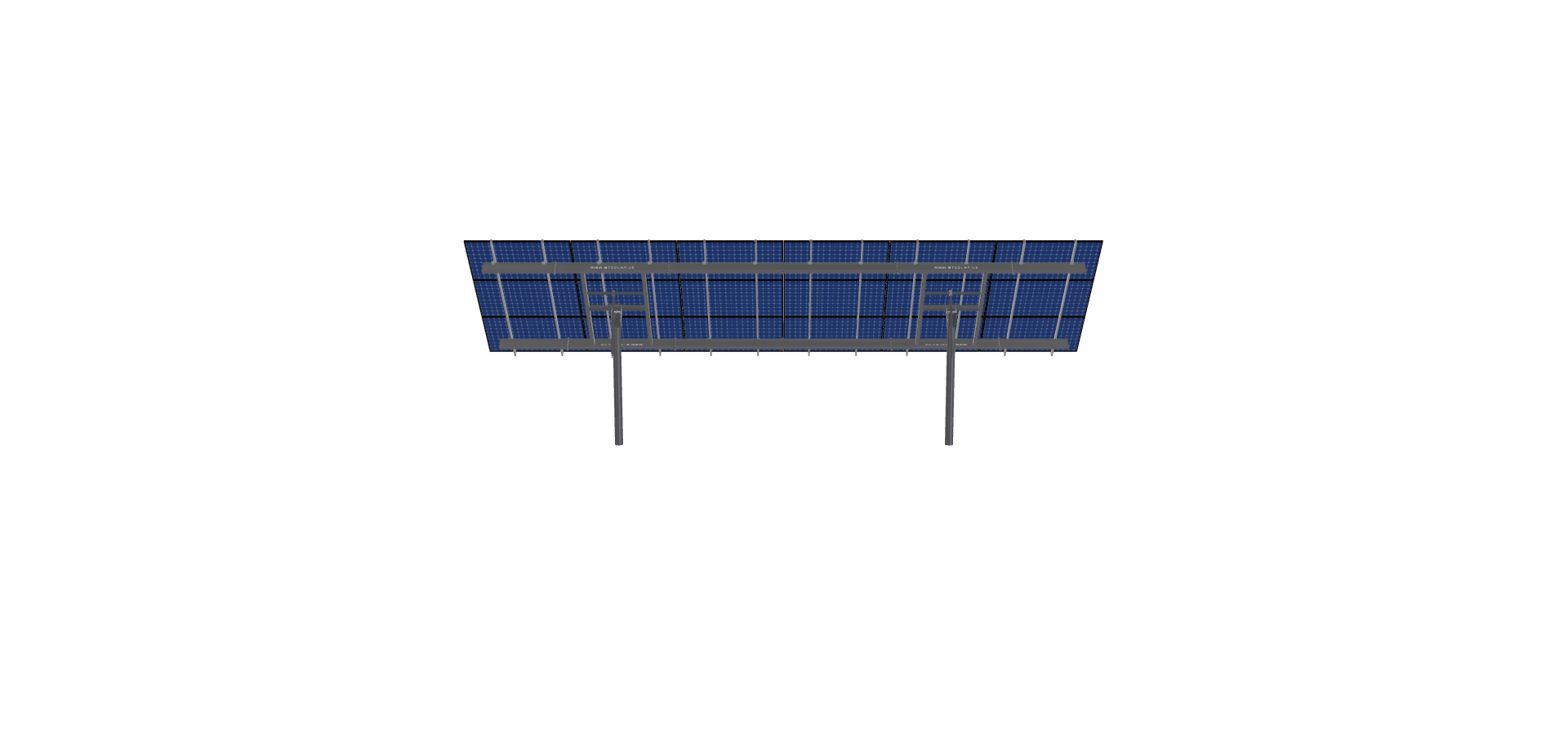

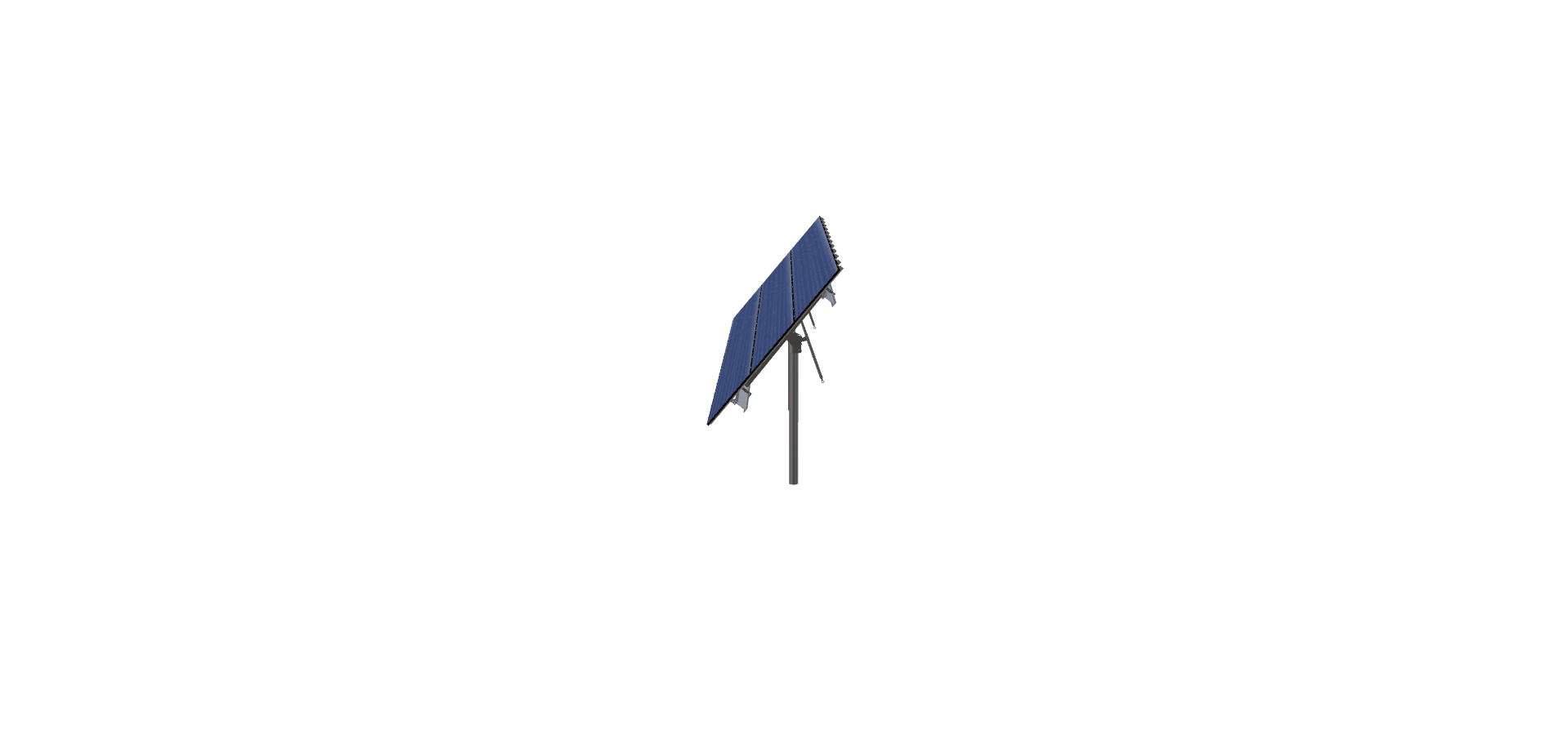

See 3D Model Here
Project A v2
$8,951.89
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.6 inches by 44.6 inches and an array layout of 6 wide by 3 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1508.52 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-8TOP-SD-57-L-3HX6W-F9IJ |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 9.32 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 0.00 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 474.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 471.29 |
| ARRAY WIDTH | 41.80 |
| ARRAY HEIGHT | 11.28 |
| RAIL LENGTH | 135.30 |
| MODULE LENGTH | 82.60 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 39.50 |
| GROUND TO TOP | 13.64 |
| PROJECTED PANEL HEIGHT | 8.64 |
| WIND SPEED OVERRIDE | 114.00 |
| SNOW LOAD OVERRIDE | 20.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | LEX, A., PRICE |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 6207943441.00 |
| PROJECT ID | PROJECT, A, V2 |
| SITE ADDRESS | 2431, RD, X, READING, KS, 66868, USA |
| MODULE INFO | SIL-530, XM |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | CLAY |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 8951.89 |
| TOTAL WEIGHT | 1508.52 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/85f1112c-cbde-4e54-a992-739a55de9070.pdf |
|
| ID | 13917.00 |
| 3D Solar link |
