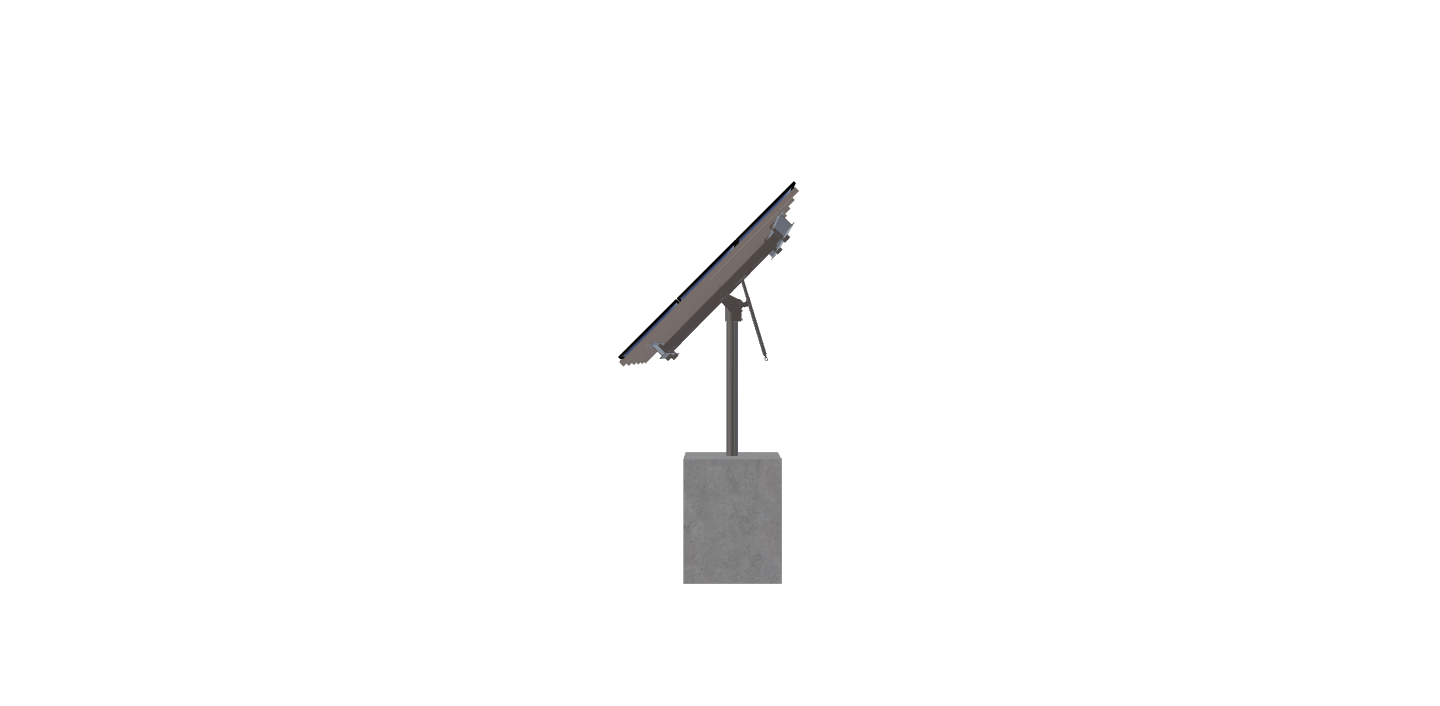

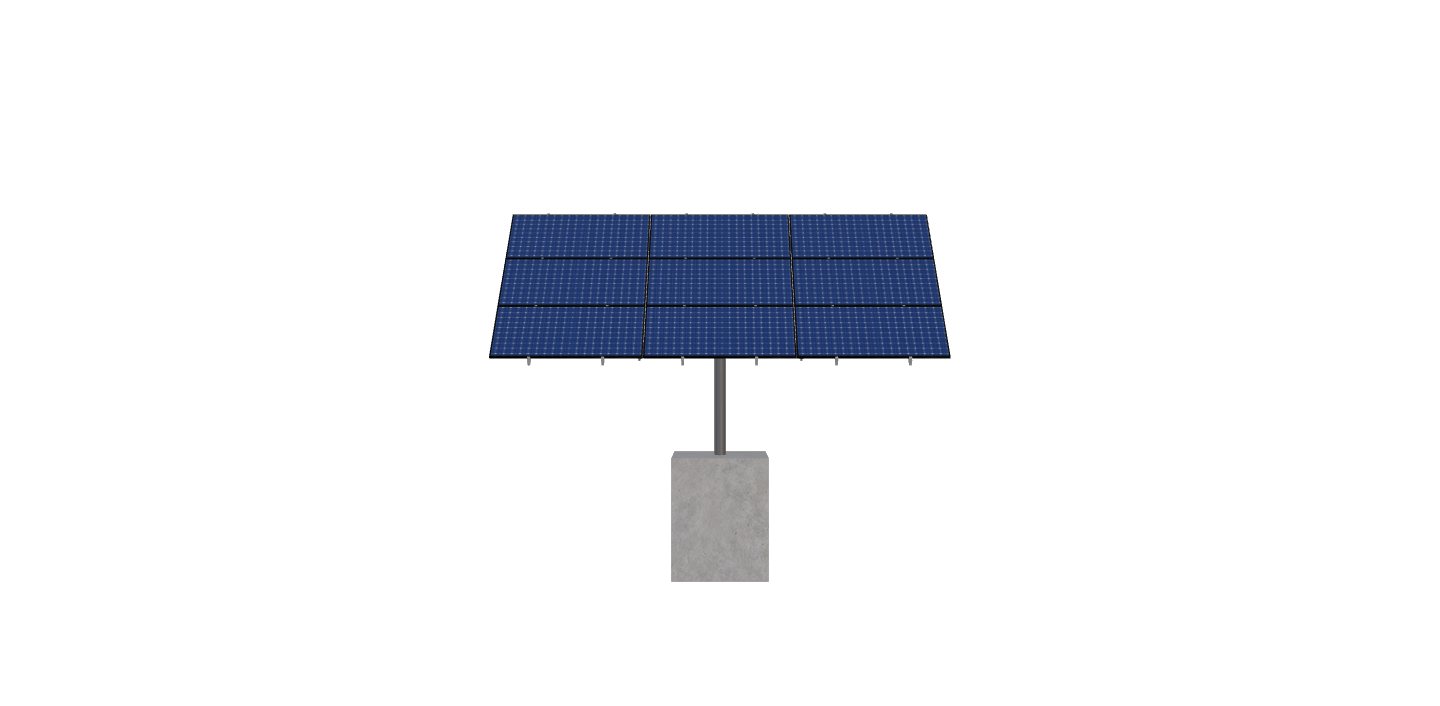

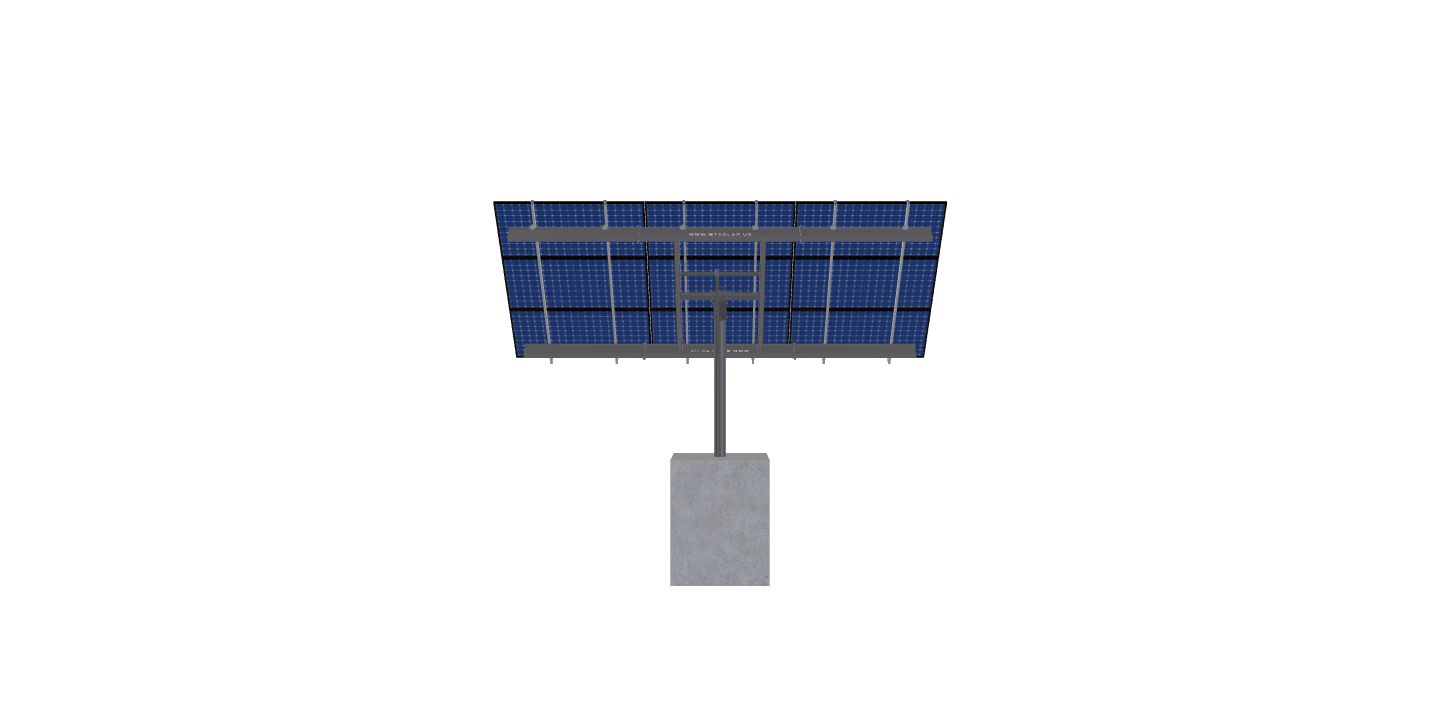

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.52 inches by 40.91 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Pruett Off-Grid B
$4,623.41
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.52 inches by 40.91 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 834.0500000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-HD-72-L-3HX3W-A290 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 7.66 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 5.75 |
| TILT ANGLE | 45.00 |
| CANTILEVER | 234.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 1.00 |
| MODULE AREA | 216.16 |
| ARRAY WIDTH | 20.88 |
| ARRAY HEIGHT | 10.35 |
| RAIL LENGTH | 124.23 |
| MODULE LENGTH | 82.52 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 19.50 |
| GROUND TO TOP | 11.28 |
| PROJECTED PANEL HEIGHT | 7.23 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | PRUETT, OFF-GRID, B |
| SITE ADDRESS | 3861, ID-71, CAMBRIDGE, ID, 83610, USA |
| MODULE WIDTH | 40.91 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 4403.25 |
| TOTAL WEIGHT | 834.05 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/9312b873-eac3-4422-91ae-8c9c549768dd.pdf |
|
| ID | 1529.00 |
| 3D Solar link |
