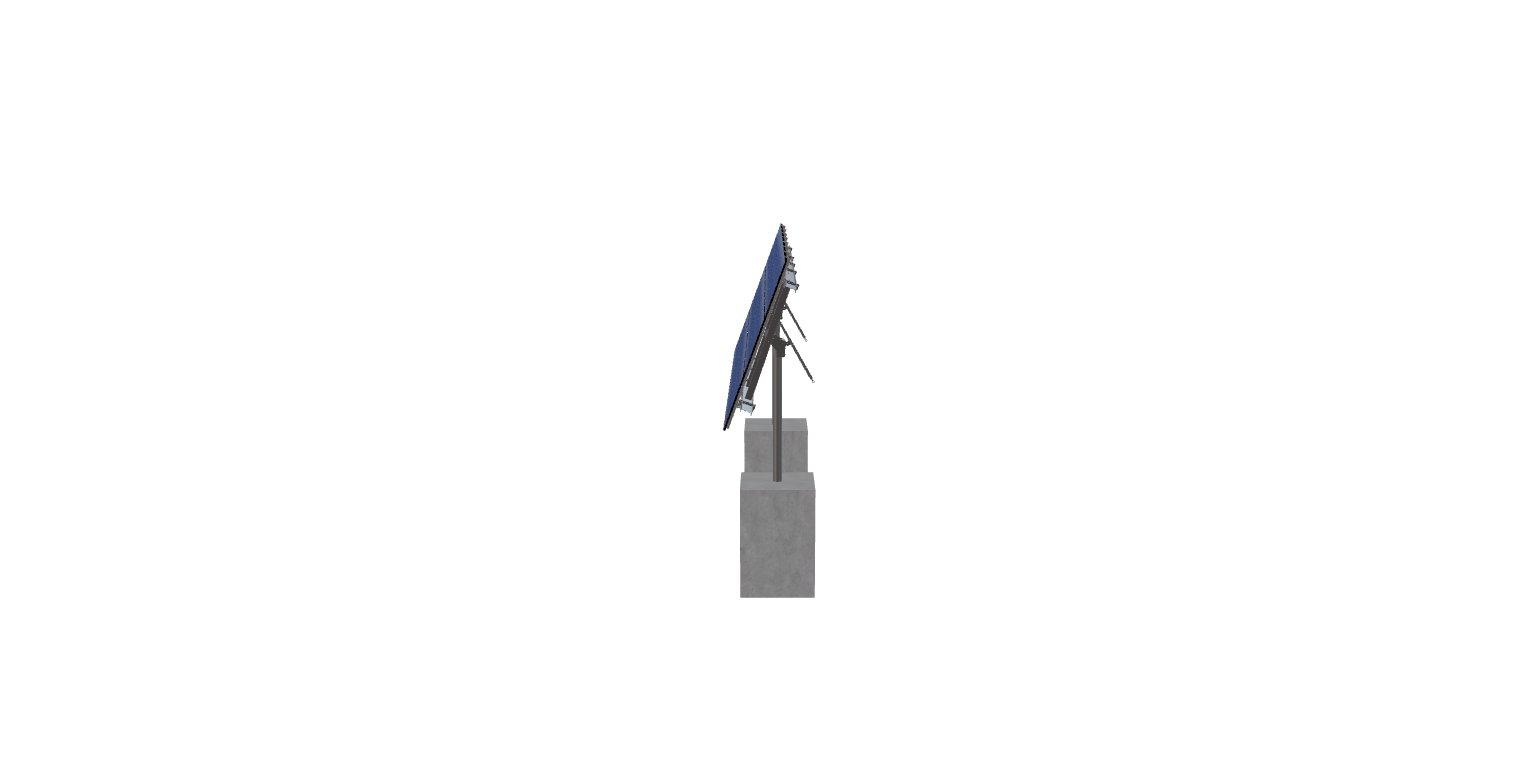

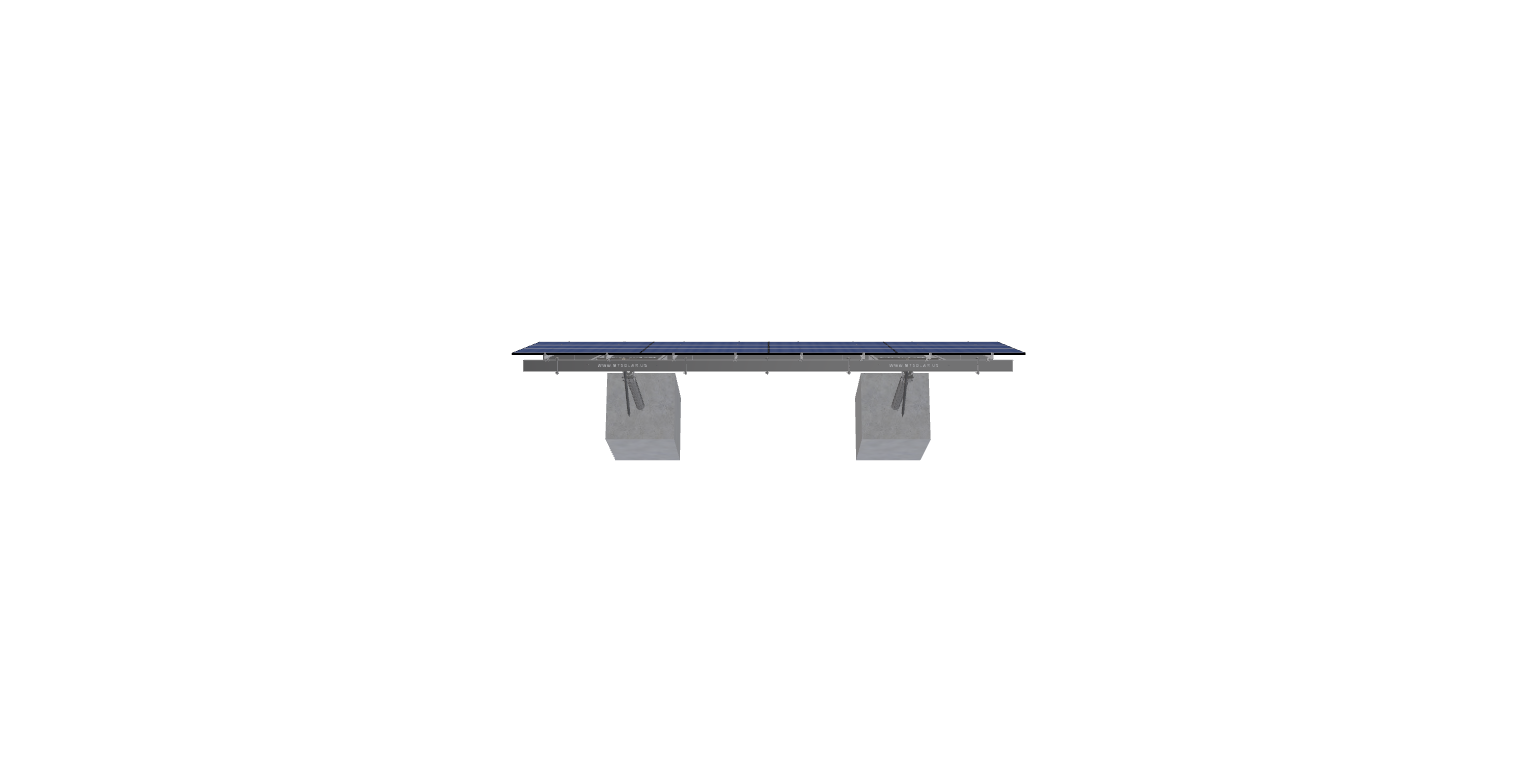

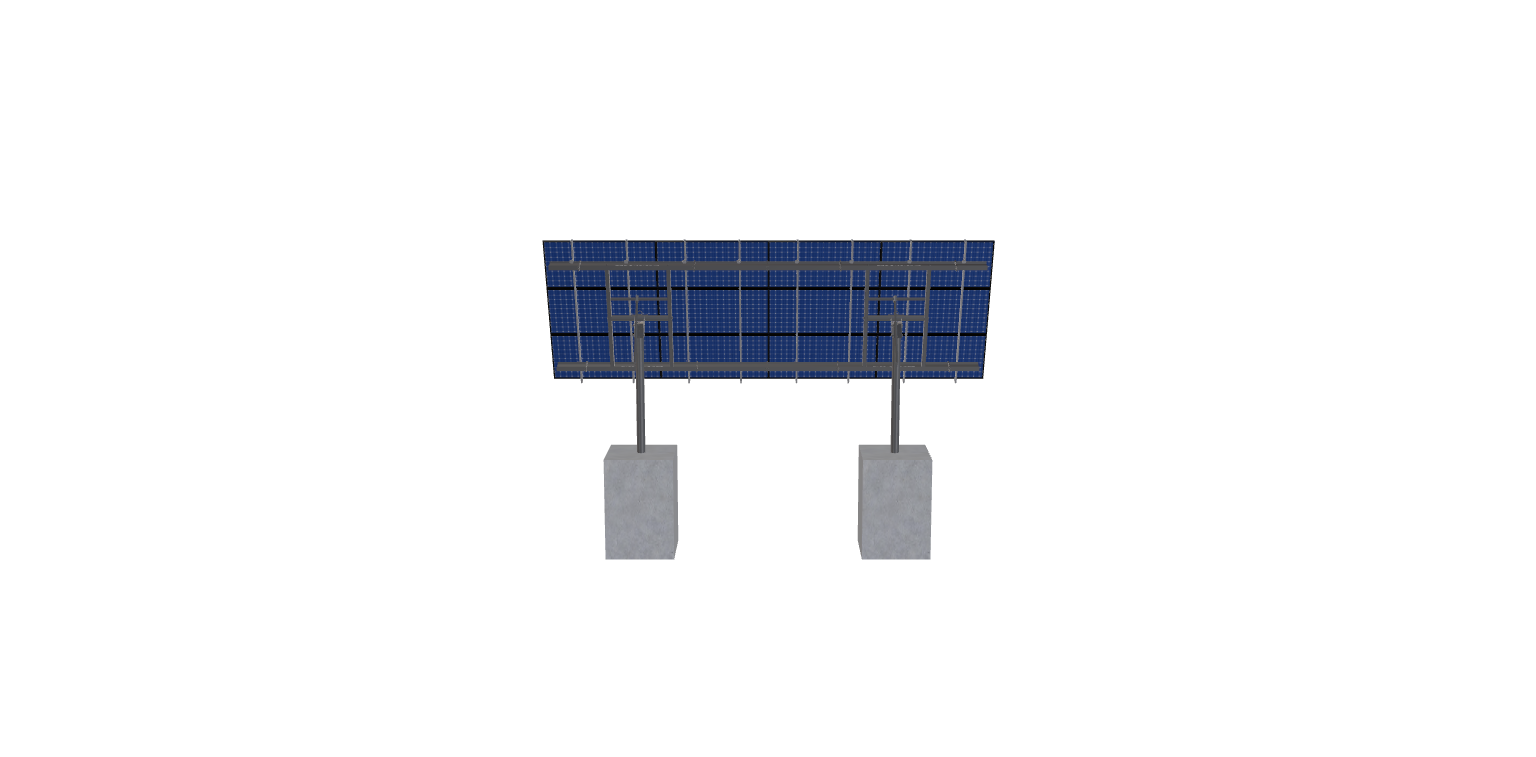

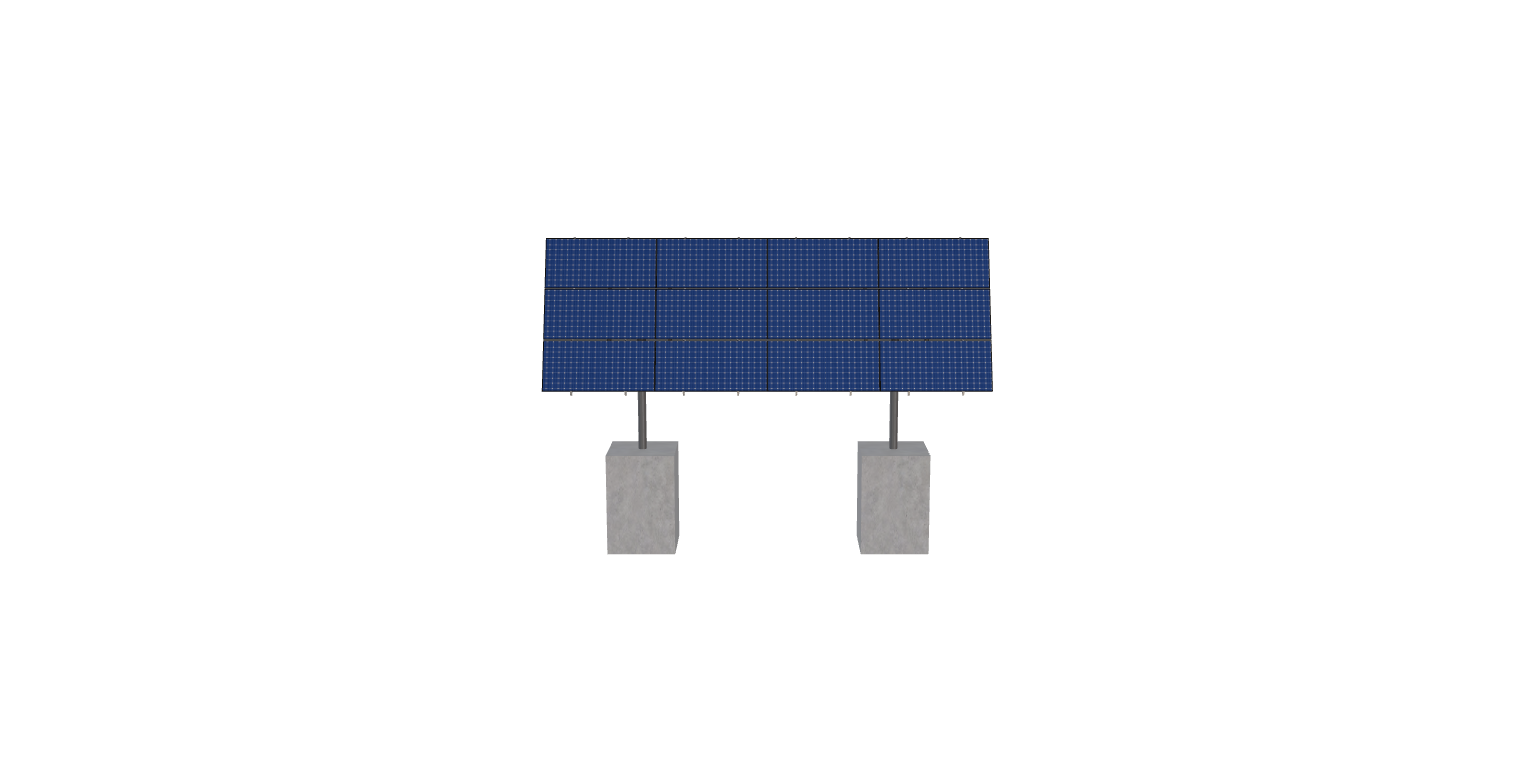

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 88 inches by 42 inches and an array layout of 4 wide by 3 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
qcell 480W bifacial
$8,196.08
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 88 inches by 42 inches and an array layout of 4 wide by 3 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1513.94 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-10TOP-HD-24-L-3HX4W-GIGK |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 8.99 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 6.75 |
| TILT ANGLE | 70.00 |
| CANTILEVER | 342.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 2.00 |
| MODULE AREA | 315.21 |
| ARRAY WIDTH | 29.67 |
| ARRAY HEIGHT | 10.63 |
| RAIL LENGTH | 127.50 |
| MODULE LENGTH | 88.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 28.50 |
| GROUND TO TOP | 13.93 |
| PROJECTED PANEL HEIGHT | 9.87 |
| PROJECT ID | QCELL, 480W, BIFACIAL |
| SITE ADDRESS | 6204, BOLDT, RD, VALDERS, WI, 54245, USA |
| MODULE WIDTH | 42.00 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | HD |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 130.00 |
| SNOW LOAD OVERRIDE | 40.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 8196.08 |
| TOTAL WEIGHT | 1513.94 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/86cb7277-036a-4412-8b19-927eb7b4626a.pdf |
|
| ID | 4625.00 |
| 3D Solar link |
