This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.1 inches by 41.5 inches and an array layout of 8 wide by 3 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

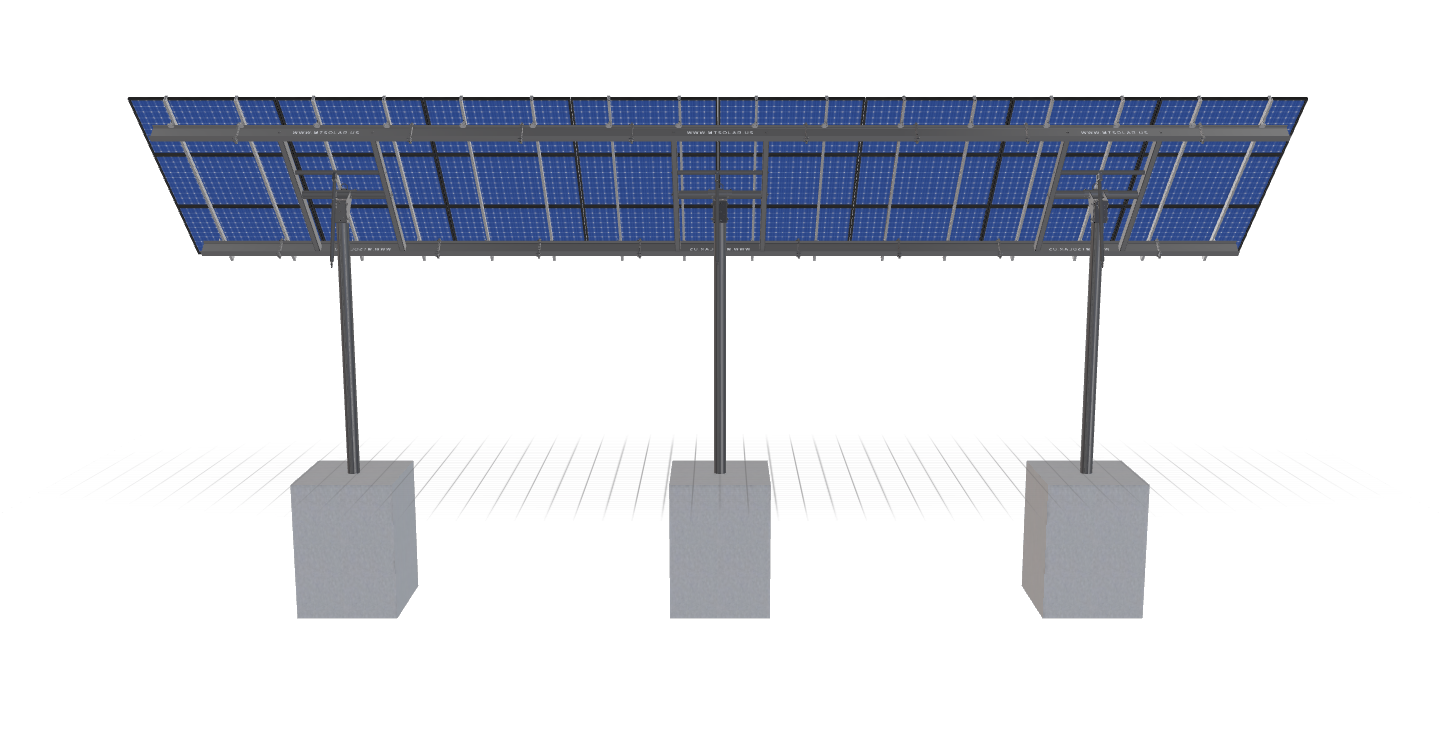

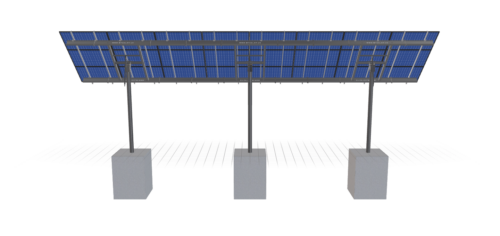

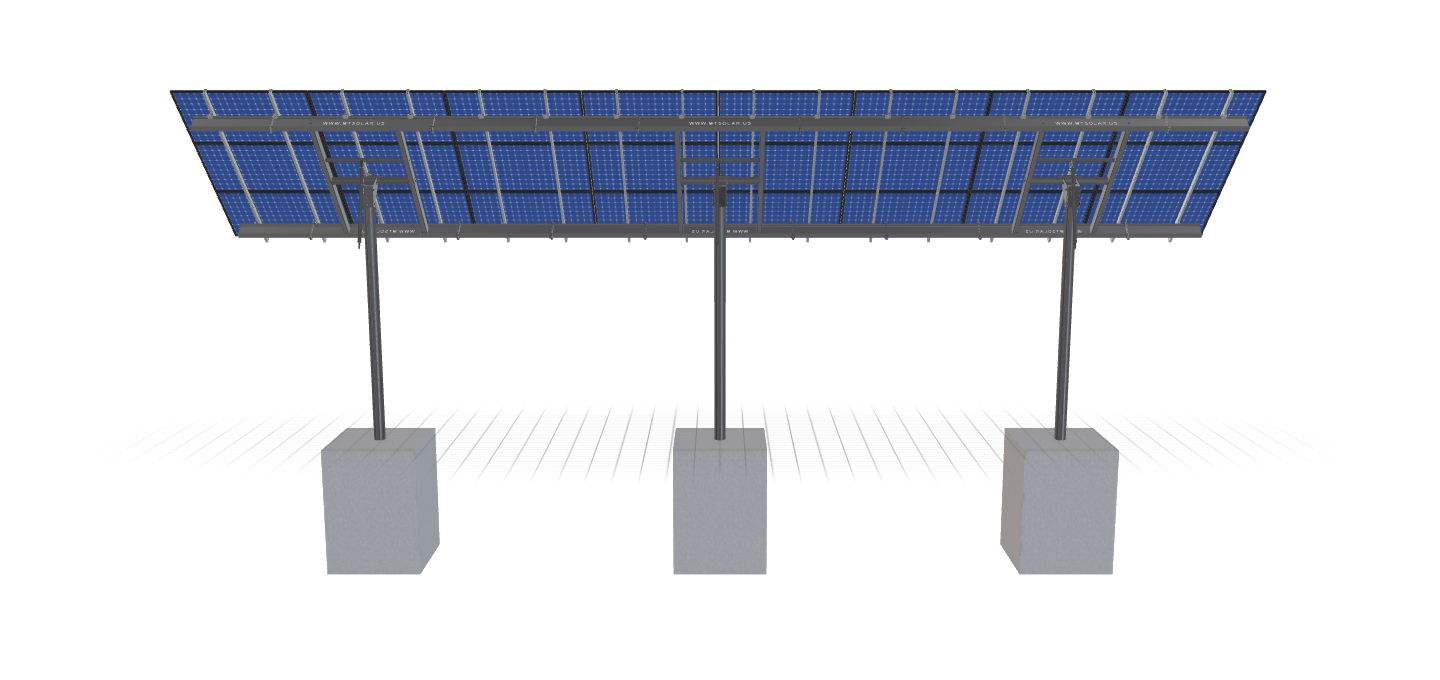

See 3D Model Here
Ramseysdesign-RevB
$11,340.90
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.1 inches by 41.5 inches and an array layout of 8 wide by 3 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2015.3600000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-6TOP-SD-45-L-3HX8W-229D |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 12.78 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.25 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 588.00 |
| GROUND CLEARANCE | 9.00 |
| NO POLES | 3.00 |
| MODULE AREA | 532.70 |
| ARRAY WIDTH | 50.73 |
| ARRAY HEIGHT | 10.50 |
| RAIL LENGTH | 126.00 |
| MODULE LENGTH | 75.10 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 49.00 |
| GROUND TO TOP | 16.51 |
| PROJECTED PANEL HEIGHT | 7.46 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | RAMSEYSDESIGN-REVB |
| SITE ADDRESS | SKWENTNA, AIRPORT, SKWENTNA, AK, 99667, USA |
| MODULE WIDTH | 41.50 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 11340.90 |
| TOTAL WEIGHT | 2015.36 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/543f25be-89e0-4cad-ba55-708c2fb03956.pdf |
|
| ID | 953.00 |
| 3D Solar link |
