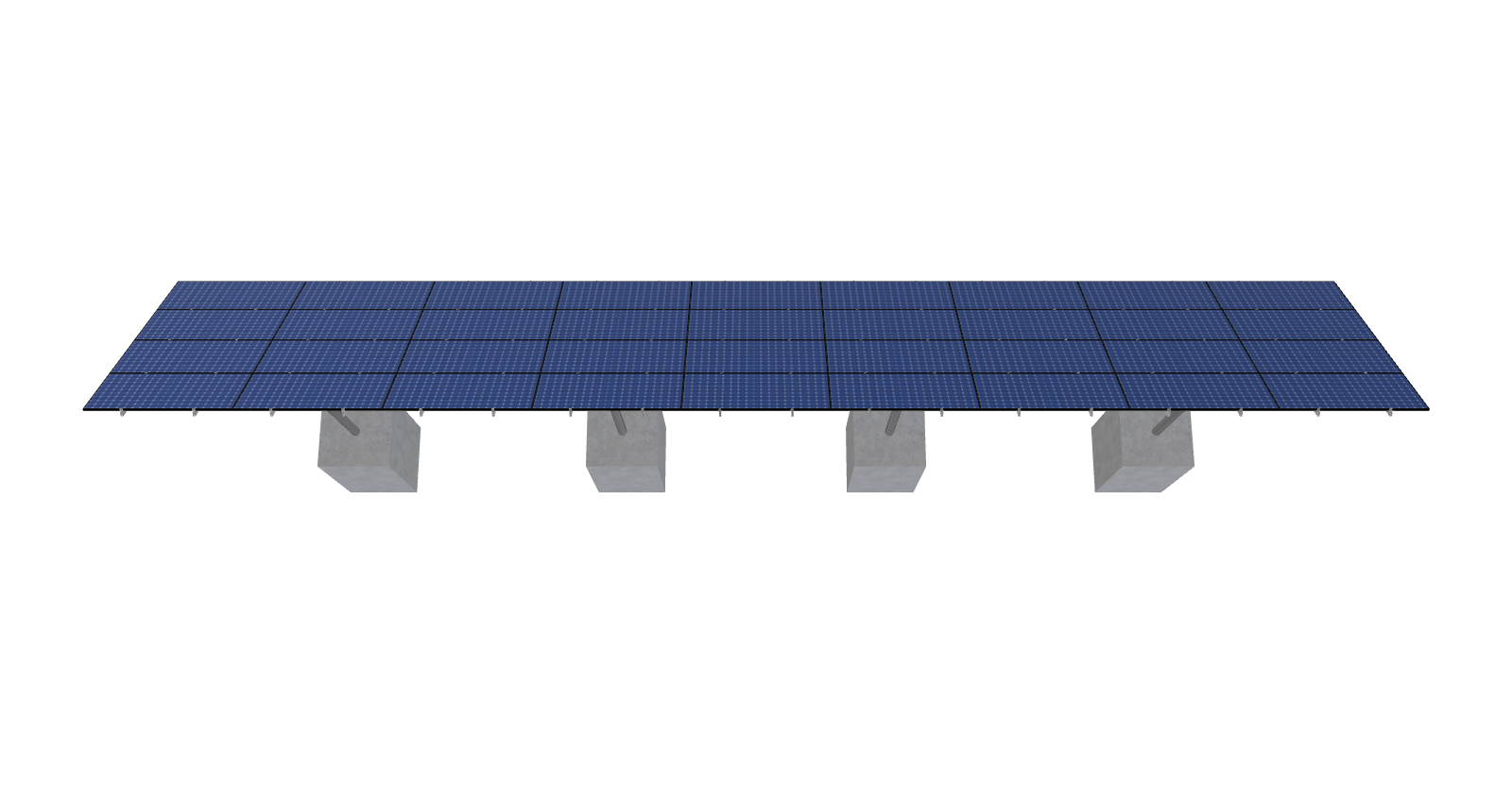

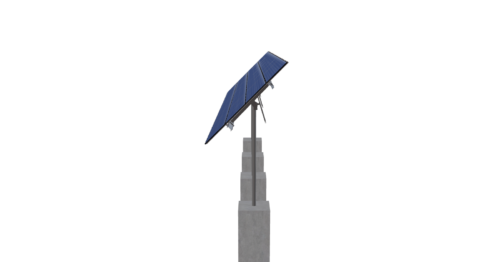

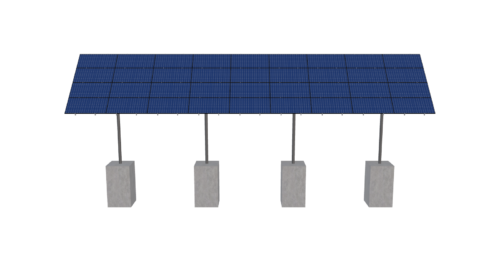

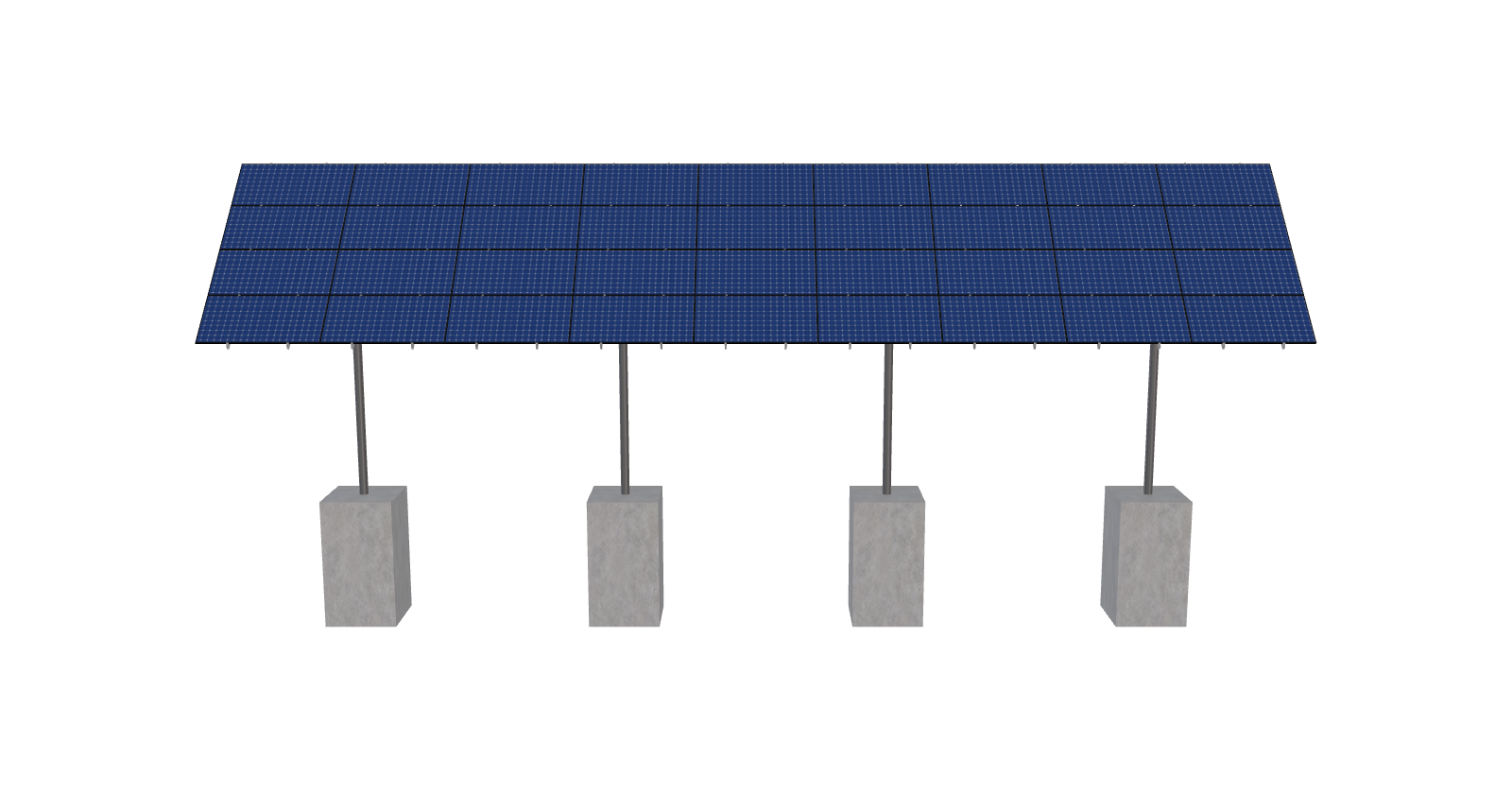

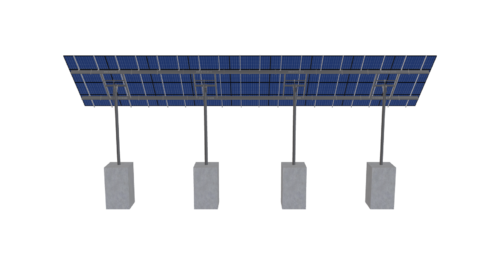

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.2 inches by 44.6 inches and an array layout of 9 wide by 4 high.
This mount fits on 4 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
RG670A_MT Solar-v2CU
$20,071.50
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.2 inches by 44.6 inches and an array layout of 9 wide by 4 high.
This mount fits on 4 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 3765.98 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 4P-17-10TOP-XD-45-L-4HX9W-L2HJ |
DUTY SIZE | XD |
POLE SIZE | 10IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 4.00 |
POLE SPACING | 17.00 |
POLE HEIGHT | 15.32 |
WING SPAN | 45.00 |
MAX FOUNDATION DEPTH | 8.25 |
TILT ANGLE | 45.00 |
CANTILEVER | 792.00 |
GROUND CLEARANCE | 10.00 |
NO POLES | 4.00 |
MODULE AREA | 1017.01 |

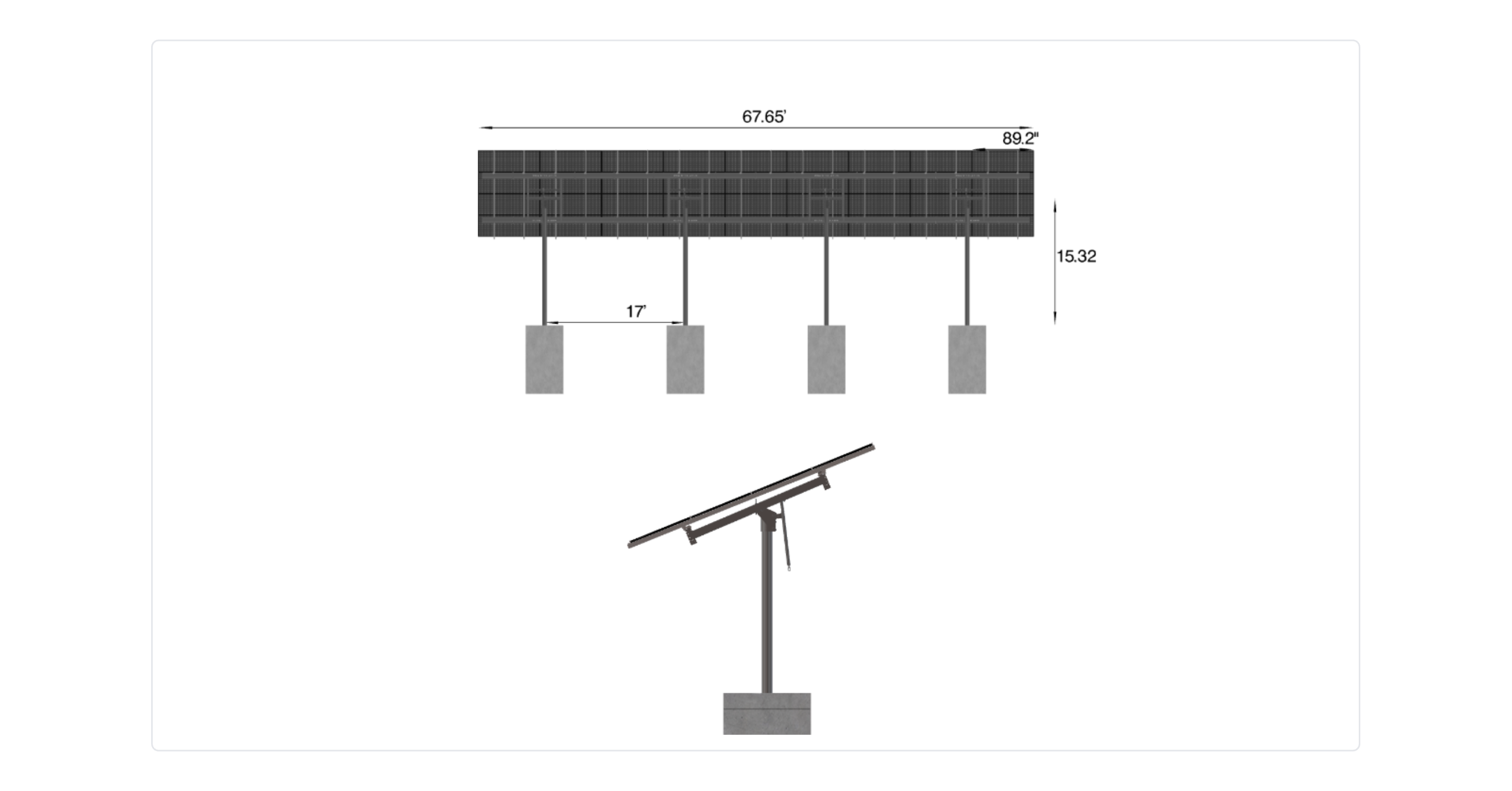

ARRAY WIDTH | 67.65 |
ARRAY HEIGHT | 15.03 |
RAIL LENGTH | 180.40 |
MODULE LENGTH | 89.20 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 66.00 |
GROUND TO TOP | 20.57 |
PROJECTED PANEL HEIGHT | 10.51 |
PROJECT ID | RG670A, MT, SOLAR-V2CU |
SITE ADDRESS | 3250, SANHEDRIN, RD, ELK, CREEK, CA, 95939, USA |
MODULE WIDTH | 44.60 |
NUMBER ROWS | 4.00 |
NUMBER COLUMNS | 9.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | C |
FRAME DUTY OVERRIDE | XD |
POLE OVERRIDE | 10, 40 |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
WIND SPEED OVERRIDE | 100.00 |
SNOW LOAD OVERRIDE | 138.00 |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
TOTAL PRICE | 20071.50 |
TOTAL WEIGHT | 3765.98 |
TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/b9012bcf-4baa-4596-a9be-b3f22eee8b4e.pdf |
|
ID | 7246.00 |
3D Solar link |
