Sagamore Golf Club 5×10 – V1Jb

$20,461.82

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87 inches by 45 inches and an array layout of 10 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

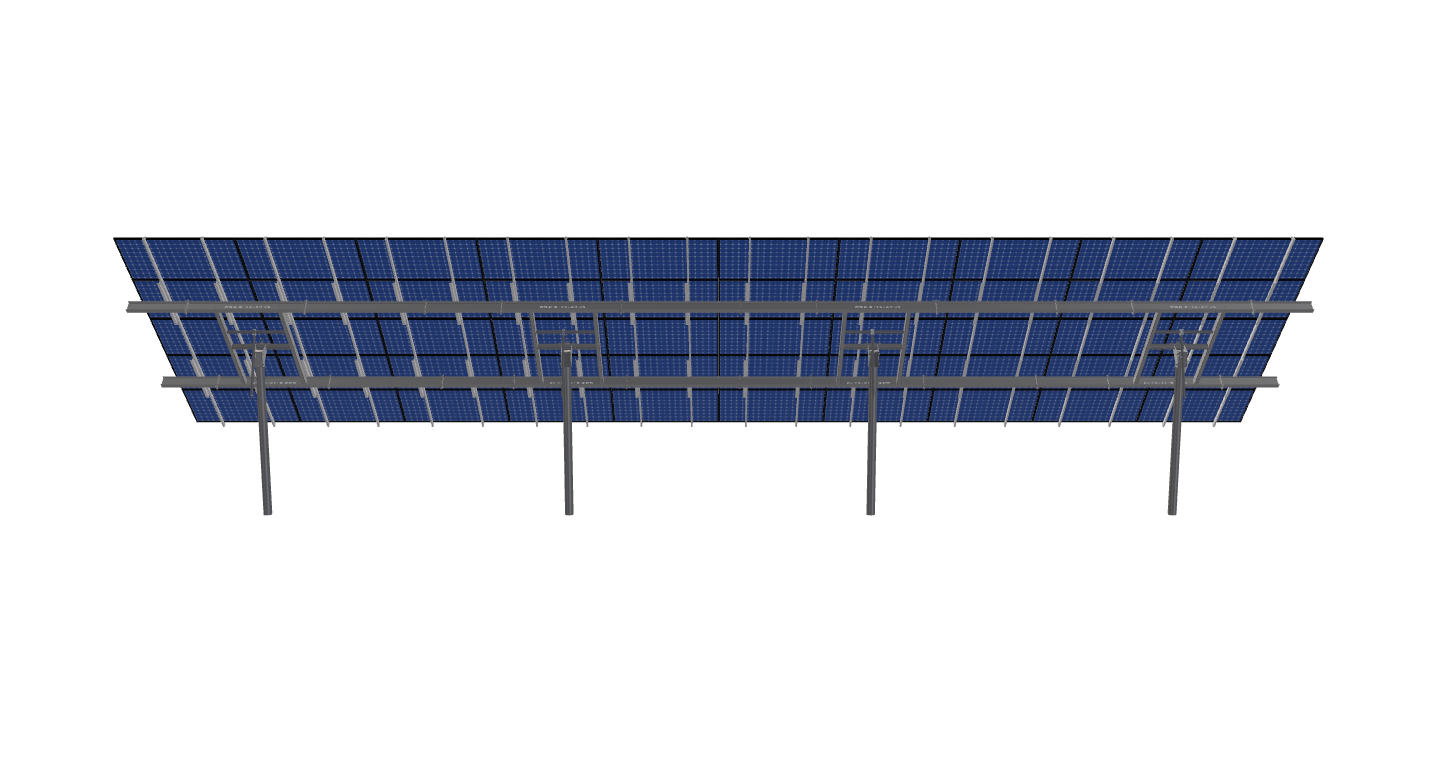

See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 4P-19.75-8TOP-HD-45-L-5Hx10W-2CA7 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87 inches by 45 inches and an array layout of 10 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

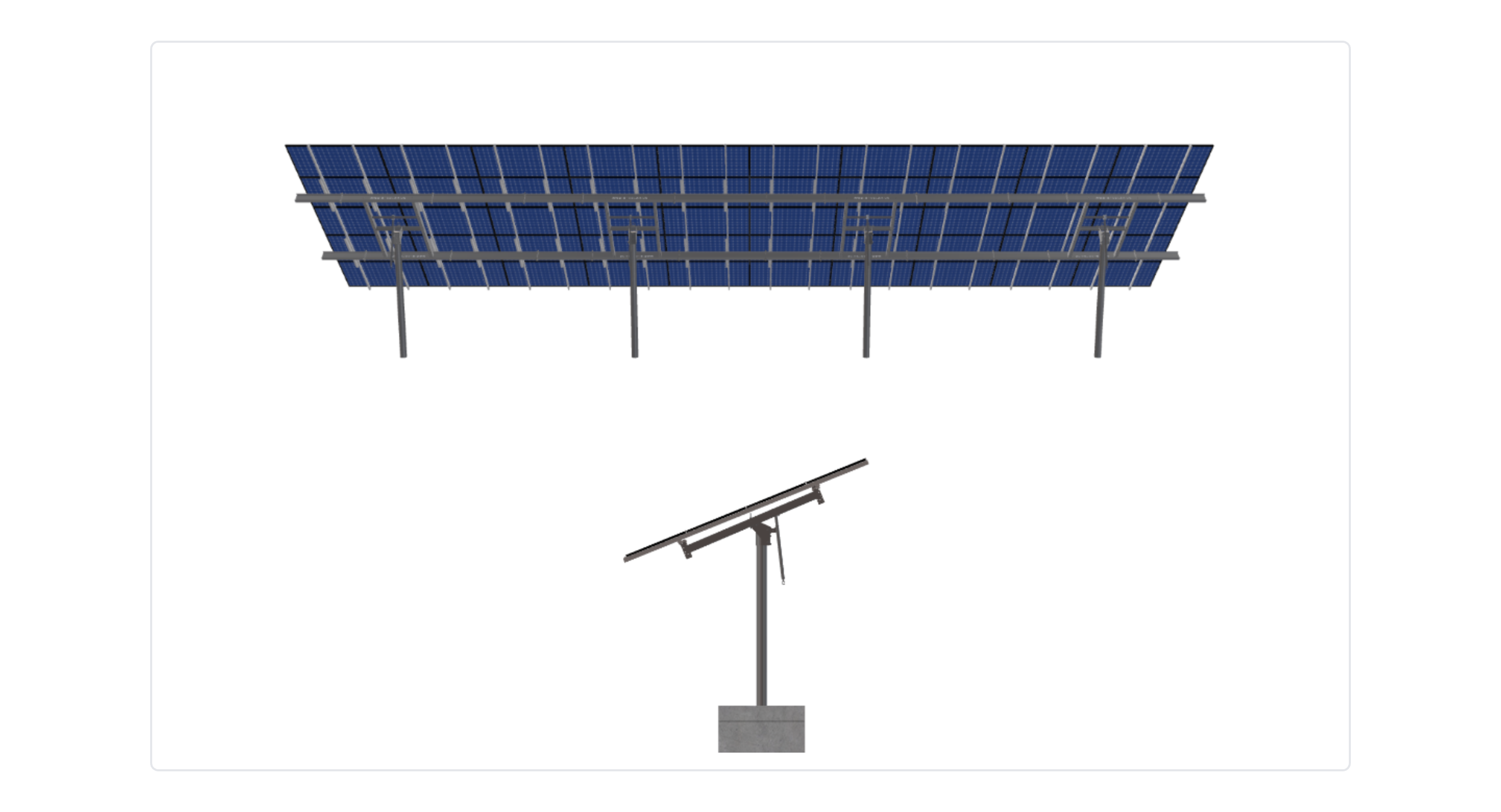

See 3D Model Here

Additional information

Weight 4116.58 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

4P-19.75-8TOP-HD-45-L-5HX10W-2CA7

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

4.00

POLE SPACING

19.75

POLE HEIGHT

11.04

WING SPAN

45.00

MAX FOUNDATION DEPTH

9.25

TILT ANGLE

48.00

CANTILEVER

891.00

GROUND CLEARANCE

4.00

NO POLES

4.00

MODULE AREA

1390.28

ARRAY WIDTH

73.33

ARRAY HEIGHT

18.96

RAIL LENGTH

227.50

MODULE LENGTH

87.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

74.25

GROUND TO TOP

18.01

PROJECTED PANEL HEIGHT

13.93

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

SAGAMORE, GOLF, CLUB, 5X10, -, V1JB

SITE ADDRESS

22, NORTH, ROAD, NORTH, HAMPTON, NH, 03862, USA

MODULE WIDTH

45.00

NUMBER ROWS

5.00

NUMBER COLUMNS

10.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

8, 40

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

36, ROUND

FOUNDATION TYPE

ROUND

FOUNDATION SIZE

36.00

CHECK RAILS

FALSE

TOTAL PRICE

20461.82

TOTAL WEIGHT

4116.58

TOTAL PALLETS

4.00

pdf

https://skycivquotes.s3.amazonaws.com/7ad58edc-4b34-4326-b518-49c769af9918.pdf

ID

6862.00
