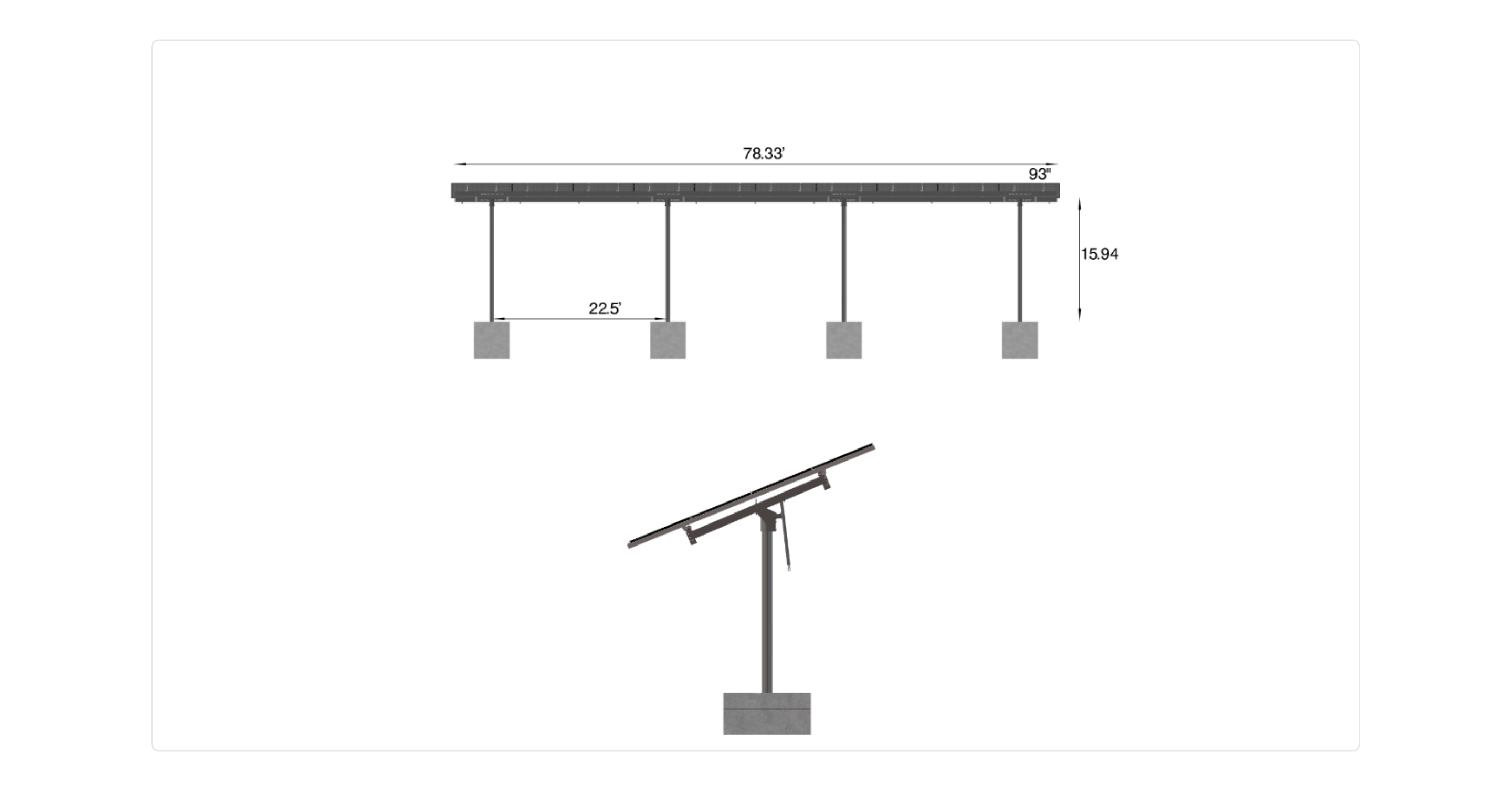

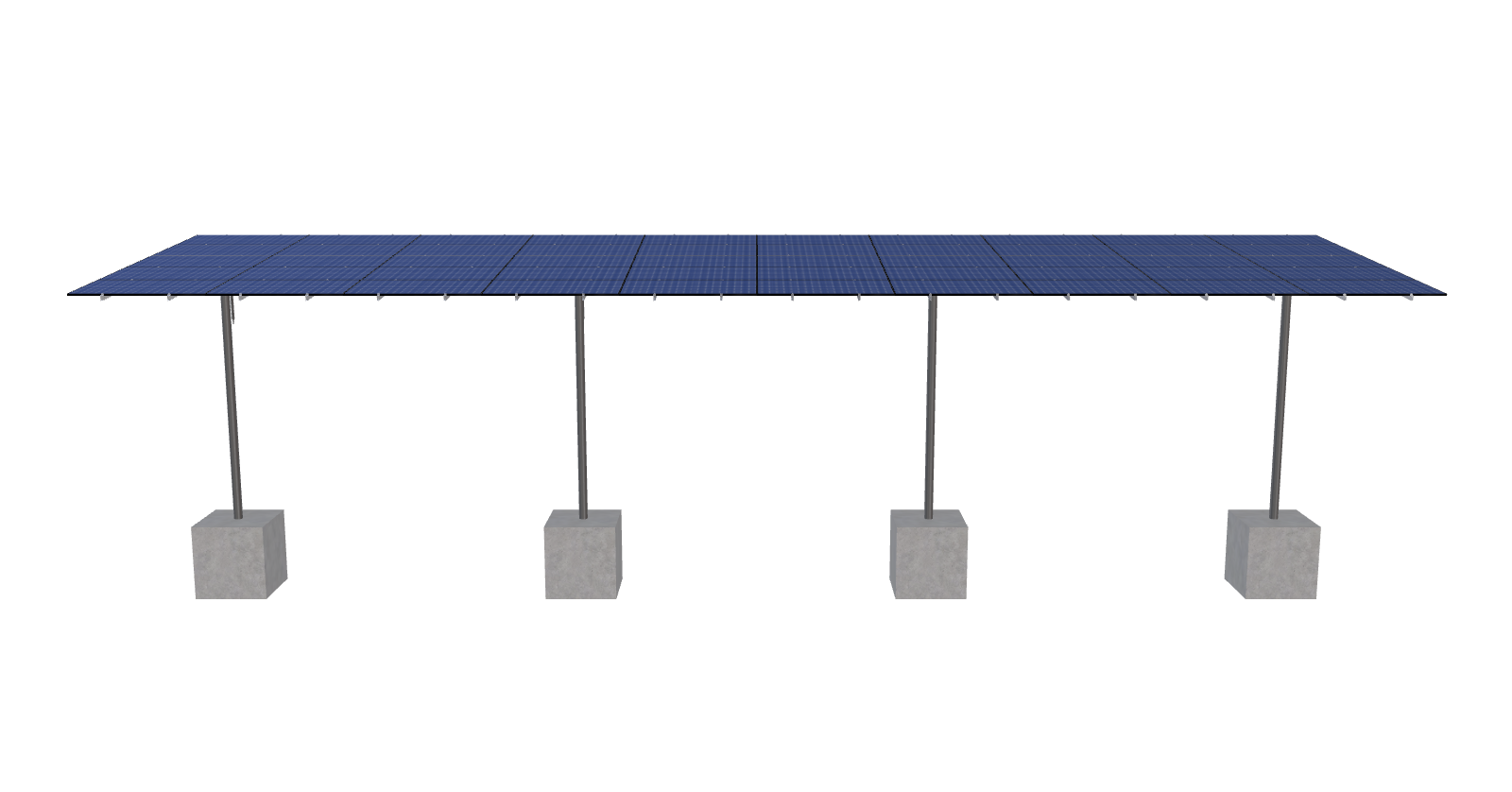

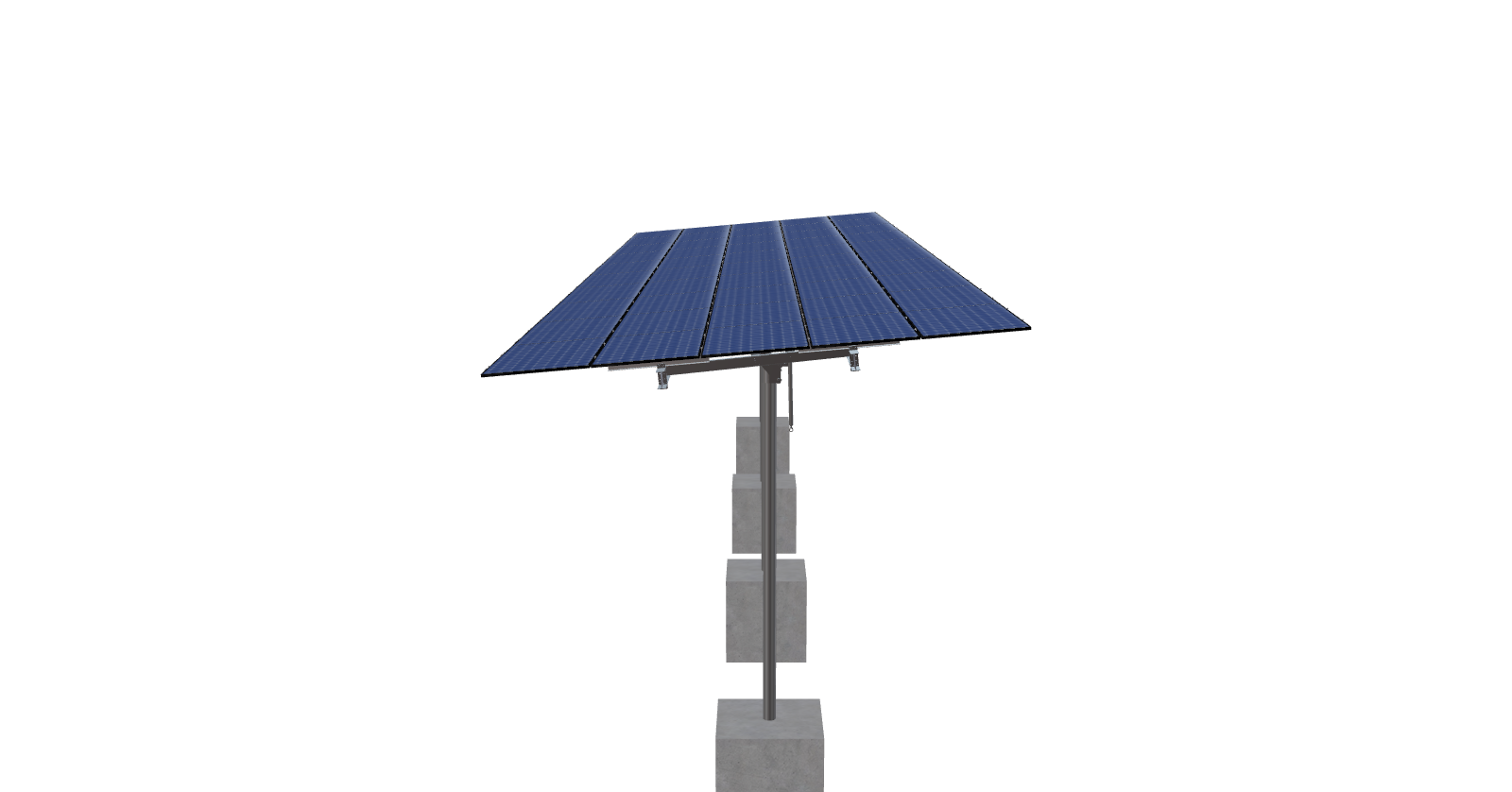

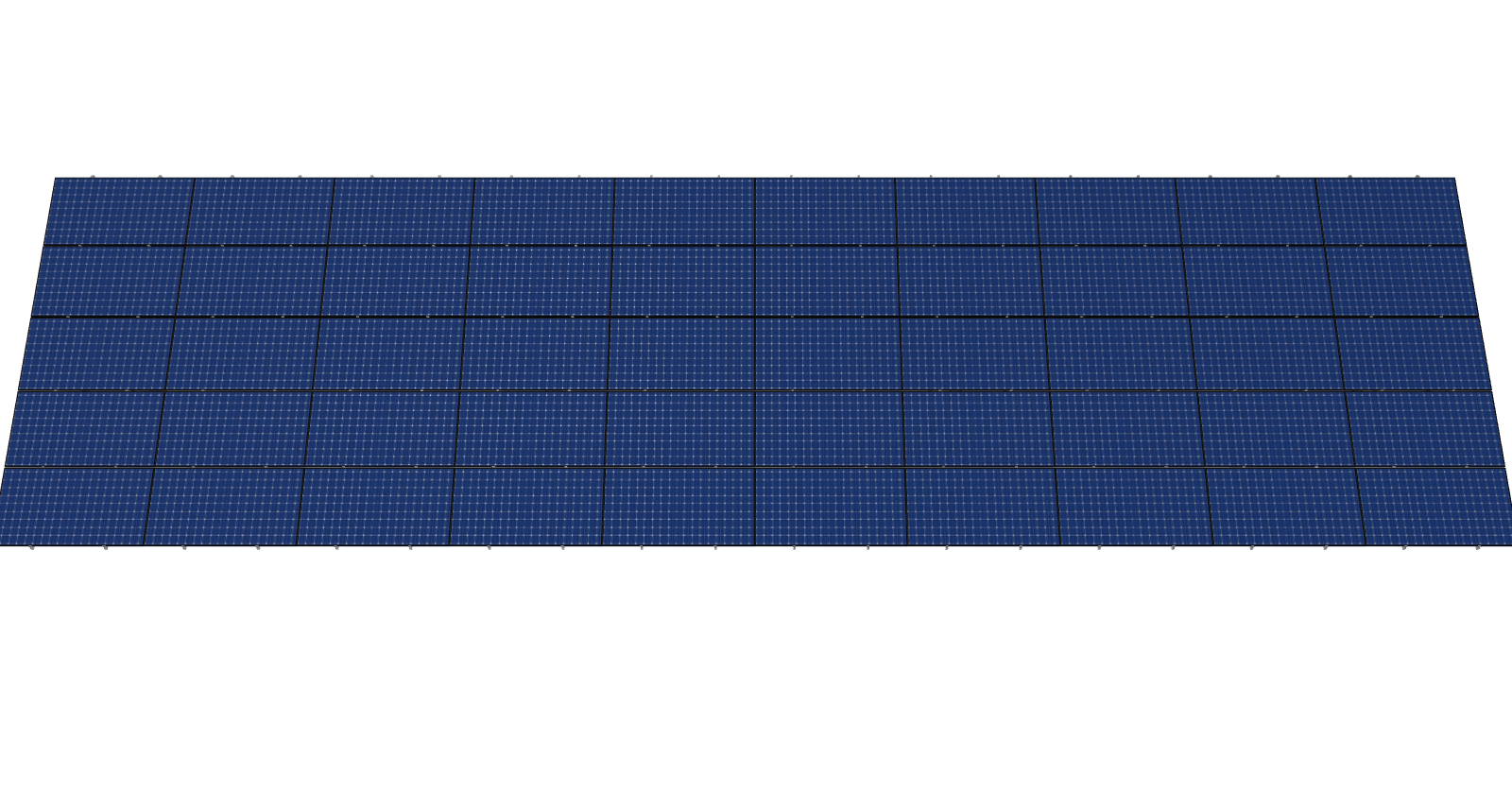

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 93 inches by 51 inches and an array layout of 10 wide by 5 high.

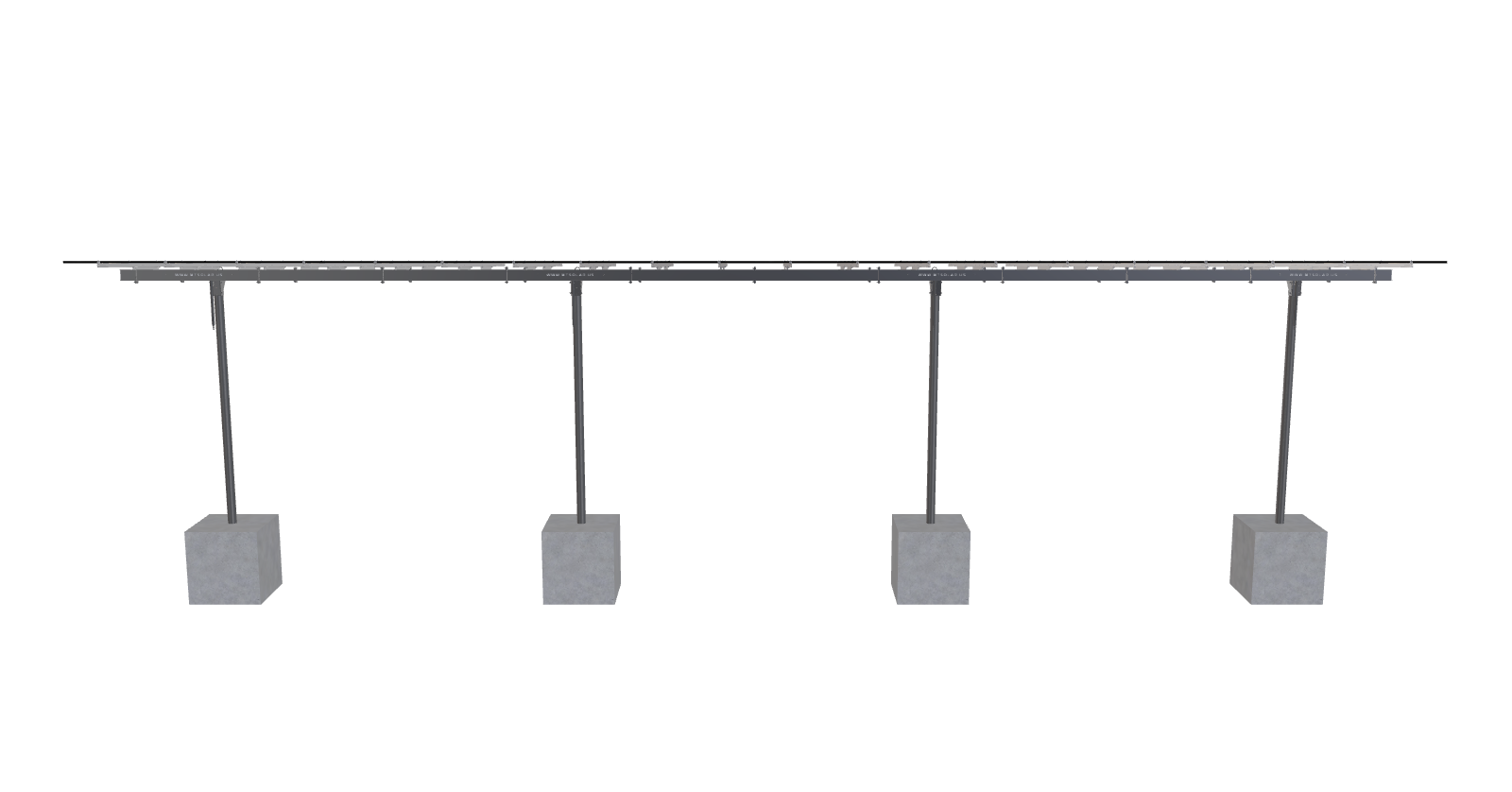

This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Sauk Village-v1
$22,651.07
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 93 inches by 51 inches and an array layout of 10 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4589.4 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-22.5-6TOP-XD-12-L-5HX10W-D85H |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 15.94 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 4.75 |
| TILT ANGLE | 5.00 |
| CANTILEVER | 924.00 |
| GROUND CLEARANCE | 15.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1680.90 |
| ARRAY WIDTH | 78.33 |
| ARRAY HEIGHT | 21.46 |
| RAIL LENGTH | 257.50 |
| MODULE LENGTH | 93.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 77.00 |
| GROUND TO TOP | 16.86 |
| PROJECTED PANEL HEIGHT | 1.85 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | SAUK, VILLAGE-V1 |
| SITE ADDRESS | 21539, PETERSON, AVE, SAUK, VILLAGE, IL, 60411, USA |
| MODULE WIDTH | 51.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 22651.07 |
| TOTAL WEIGHT | 4589.40 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/43fe0704-5054-46de-8c2c-e4b74d3f661b.pdf |
|
| ID | 6048.00 |
| 3D Solar link |
