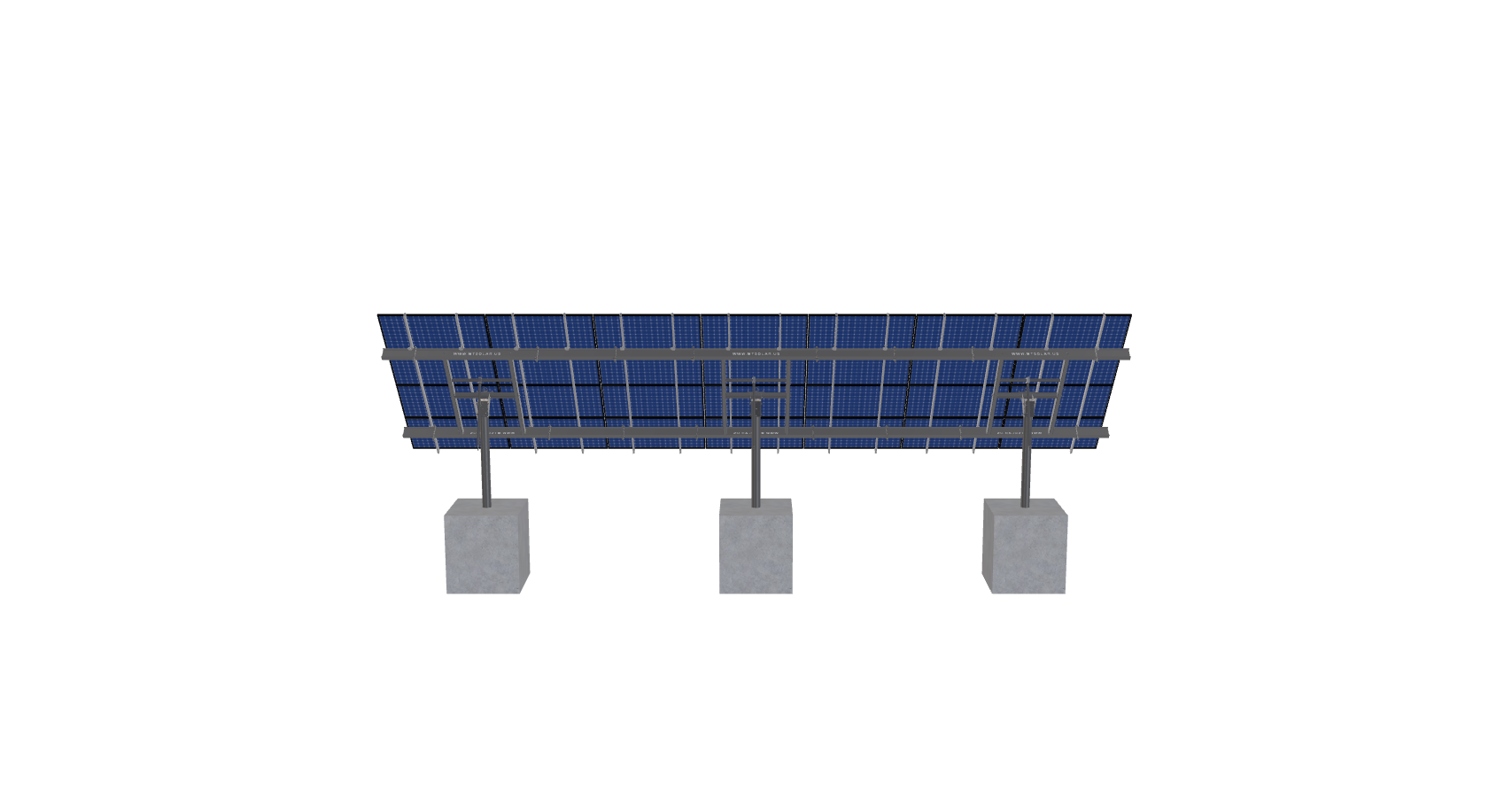

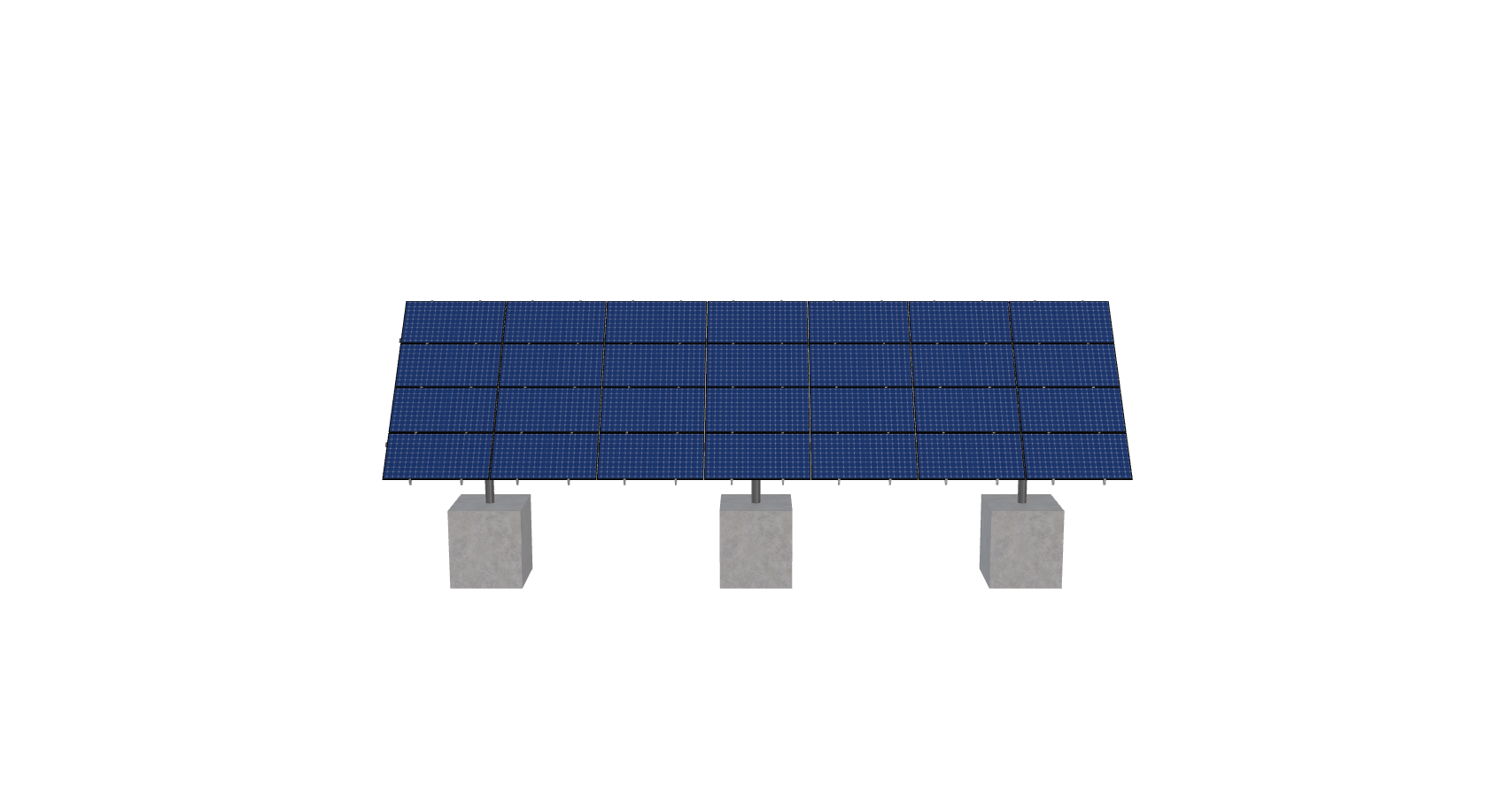

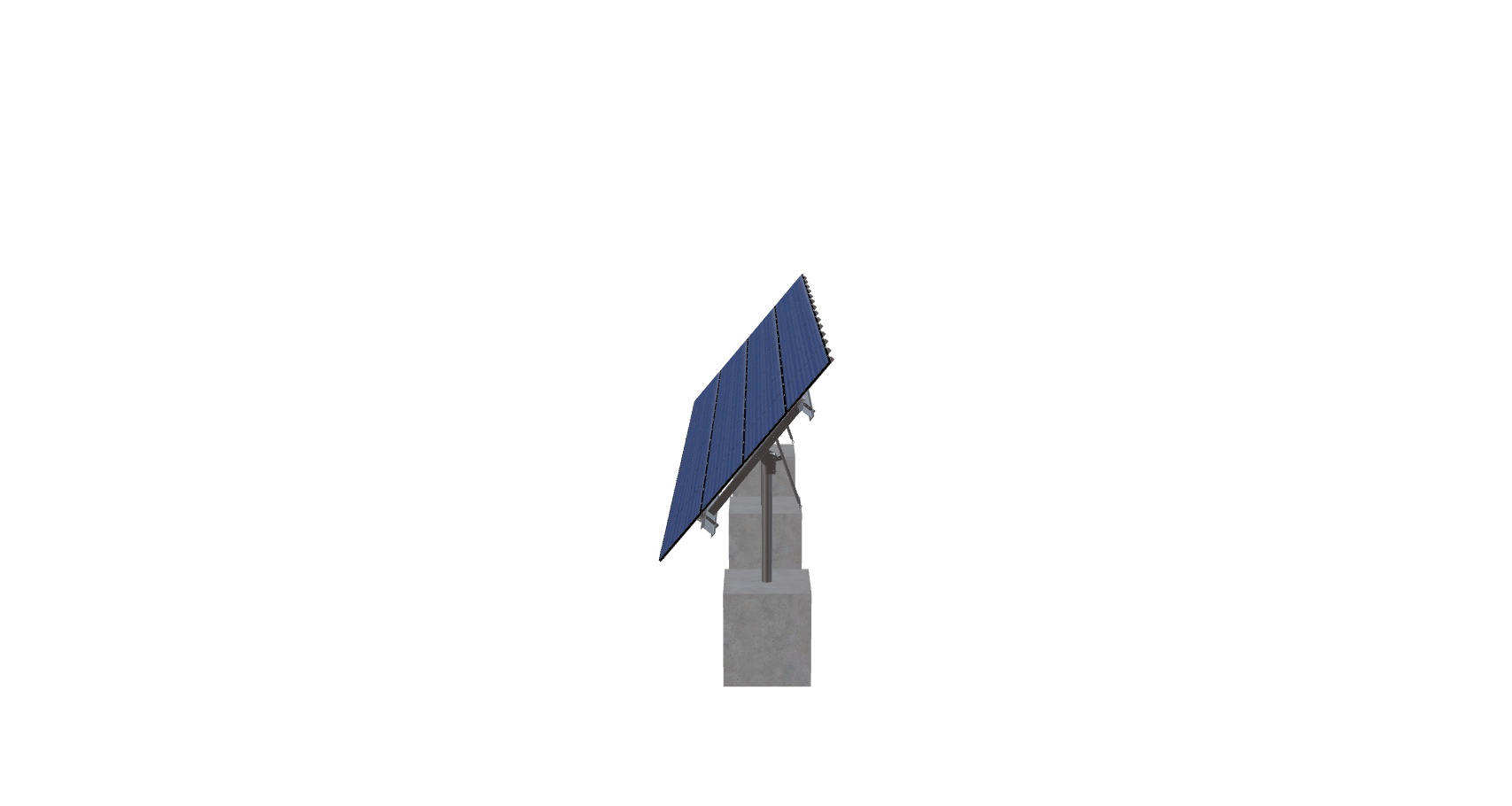

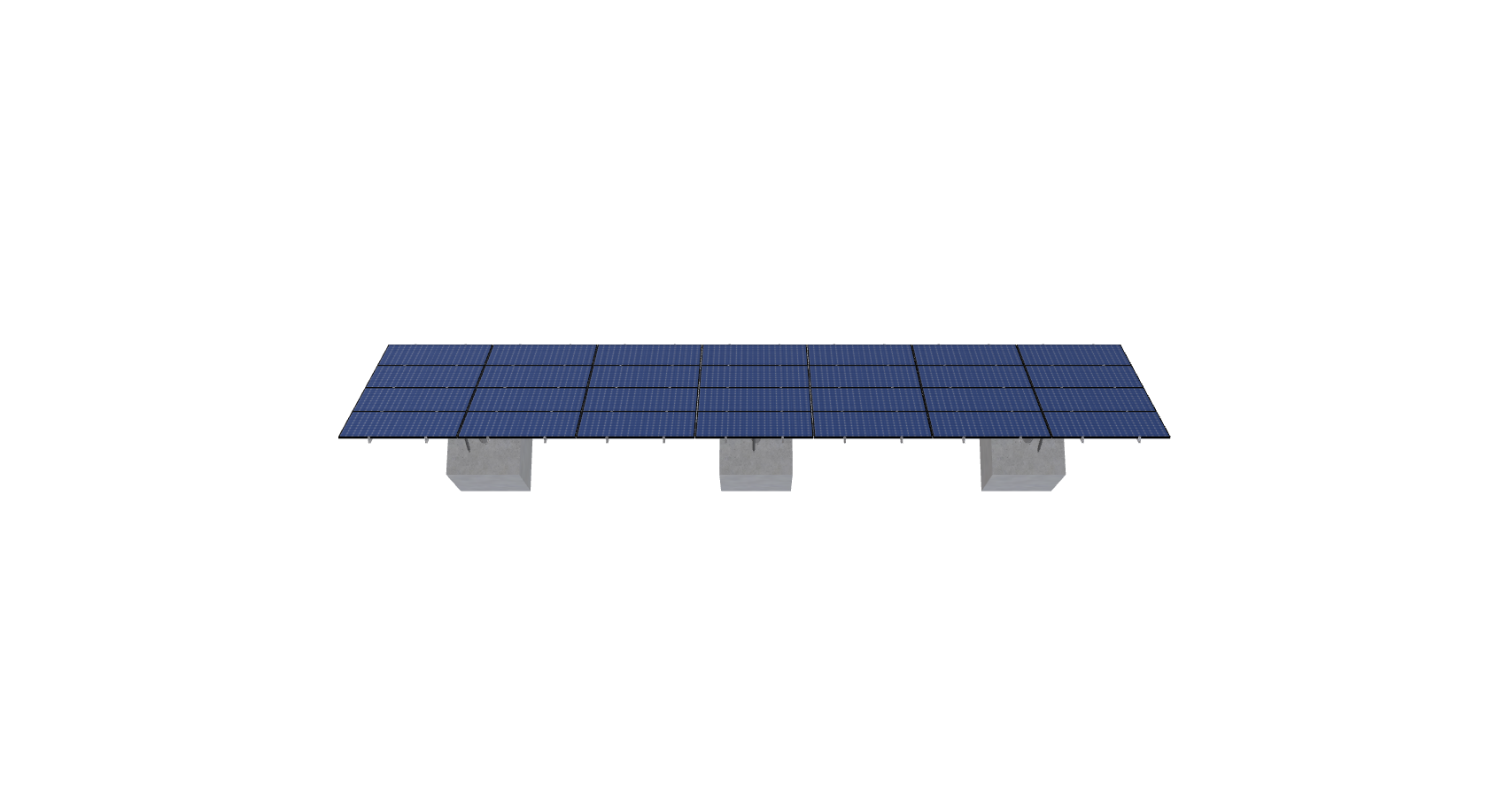

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 77 inches by 39.2 inches and an array layout of 7 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Saylor Ground Design
$11,208.64
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 77 inches by 39.2 inches and an array layout of 7 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1973.54 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-6TOP-SD-24-L-4HX7W-FD6E |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 7.07 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 5.00 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 546.00 |
| GROUND CLEARANCE | 2.00 |
| NO POLES | 3.00 |
| MODULE AREA | 602.12 |
| ARRAY WIDTH | 45.50 |
| ARRAY HEIGHT | 13.23 |
| RAIL LENGTH | 158.80 |
| MODULE LENGTH | 77.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 45.50 |
| GROUND TO TOP | 12.07 |
| PROJECTED PANEL HEIGHT | 10.01 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | SAYLOR, GROUND, DESIGN |
| SITE ADDRESS | 1003, HWY, 10, GREYCLIFF, MT, 59033, USA |
| MODULE WIDTH | 39.20 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 7.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 11208.64 |
| TOTAL WEIGHT | 1973.54 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/920cf19d-db7a-41a0-bf87-6a456a231f95.pdf |
|
| ID | 3281.00 |
| 3D Solar link |
