This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 39 inches and an array layout of 7 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

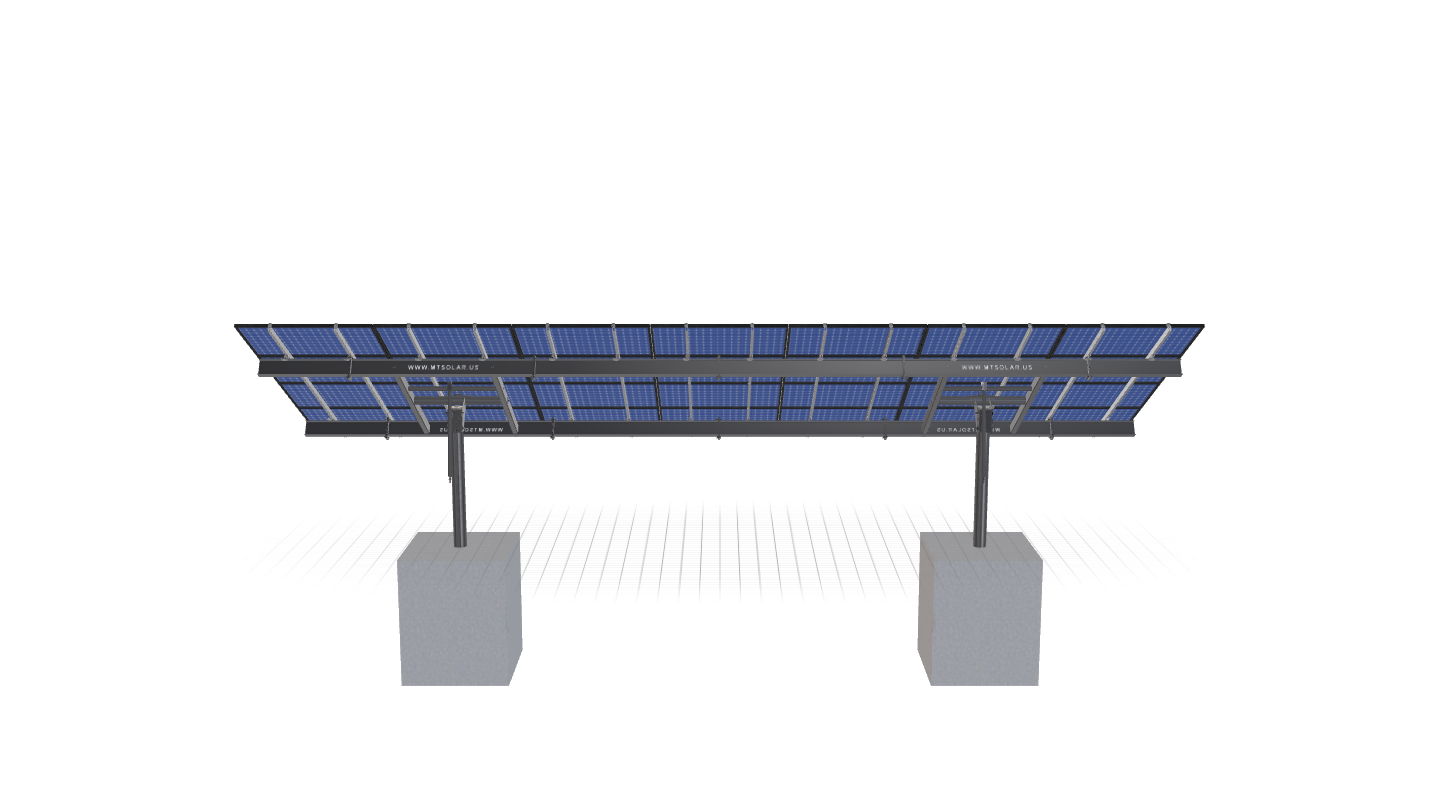

See 3D Model Here
SchoolProject-RevA
$9,749.34
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 39 inches and an array layout of 7 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 1774.72 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 2P-22.5-6TOP-HD-45-L-4HX7W-BKI7 |
DUTY SIZE | HD |
POLE SIZE | 6IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 2.00 |
POLE SPACING | 22.50 |
POLE HEIGHT | 6.29 |
WING SPAN | 45.00 |
MAX FOUNDATION DEPTH | 5.50 |
TILT ANGLE | 30.00 |
CANTILEVER | 450.00 |
GROUND CLEARANCE | 3.00 |
NO POLES | 2.00 |
MODULE AREA | 506.92 |
ARRAY WIDTH | 38.50 |
ARRAY HEIGHT | 13.17 |
RAIL LENGTH | 158.00 |
MODULE LENGTH | 65.00 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 37.50 |
GROUND TO TOP | 9.54 |
PROJECTED PANEL HEIGHT | 6.50 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
PROJECT ID | SCHOOLPROJECT-REVA |
SITE ADDRESS | 540, VERA, DR, JACKSONVILLE, FL, 32218, USA |
MODULE WIDTH | 39.00 |
NUMBER ROWS | 4.00 |
NUMBER COLUMNS | 7.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 9749.34 |
TOTAL WEIGHT | 1774.72 |
TOTAL PALLETS | 2.00 |
