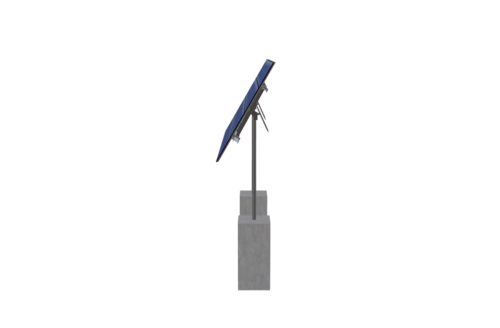

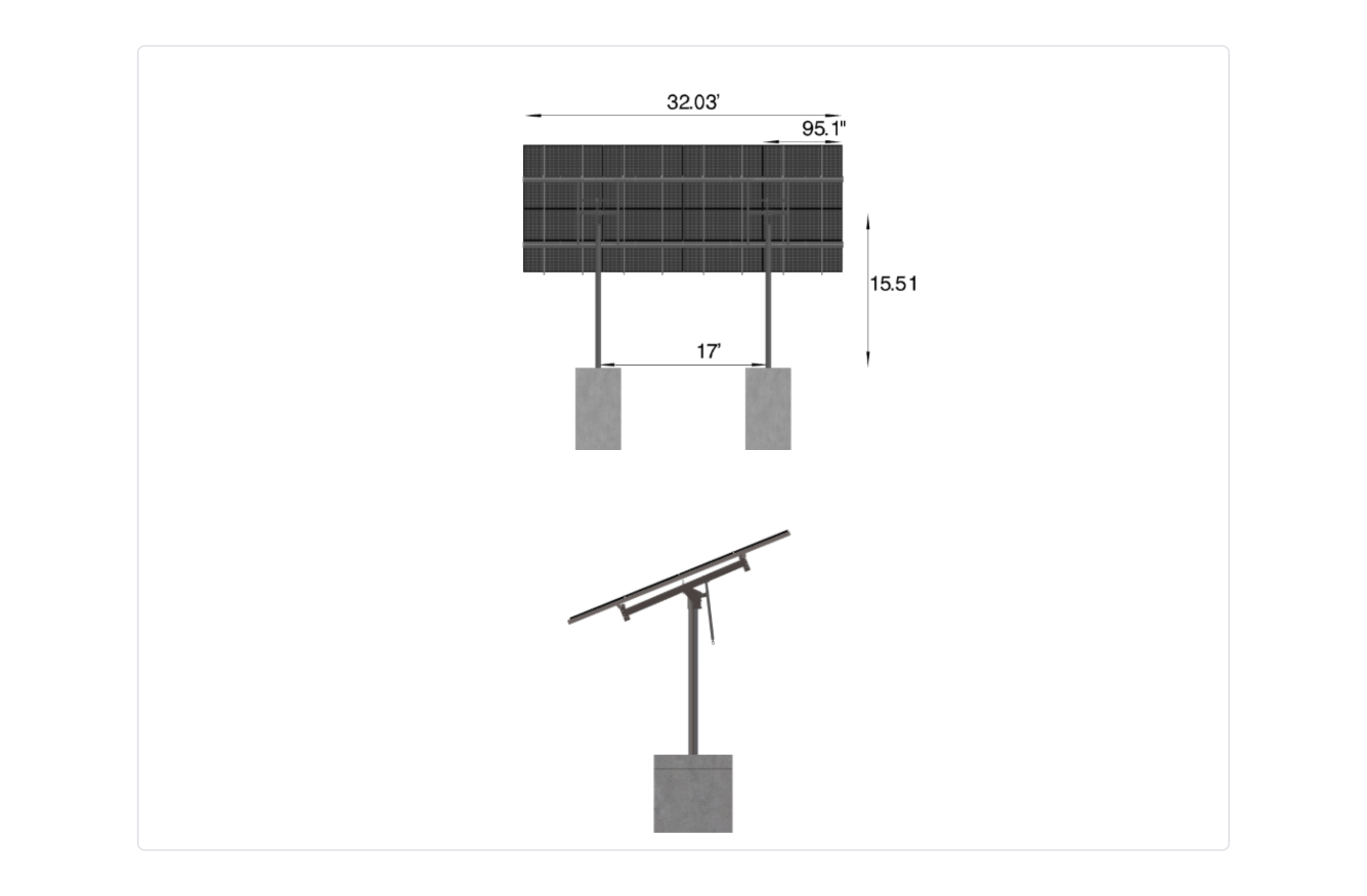

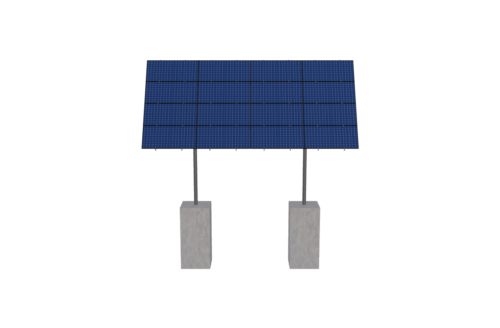

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 95.1 inches by 44.6 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Shasta Bally
$10,209,234.00
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 95.1 inches by 44.6 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1823.58 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-10TOP-XD-45-L-4HX4W-798B |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 15.51 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 9.75 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 384.00 |
| GROUND CLEARANCE | 9.00 |
| NO POLES | 2.00 |
| MODULE AREA | 481.57 |
| ARRAY WIDTH | 32.03 |
| ARRAY HEIGHT | 15.03 |
| RAIL LENGTH | 180.40 |
| MODULE LENGTH | 95.10 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 32.00 |
| GROUND TO TOP | 21.95 |
| PROJECTED PANEL HEIGHT | 12.87 |
| PROJECT ID | SHASTA, BALLY |
| SITE ADDRESS | SHASTA, BALLY, CALIFORNIA, 96047, USA |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 130.00 |
| SNOW LOAD OVERRIDE | 415.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 9723.08 |
| TOTAL WEIGHT | 1823.58 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/adea02fe-cc95-438b-957c-eb2fb1a819a8.pdf |
|
| ID | 5691.00 |
| 3D Solar link |
