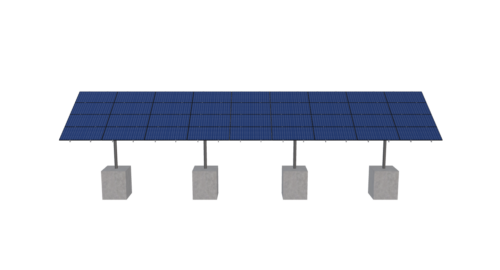

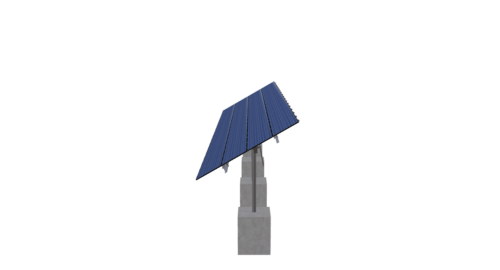

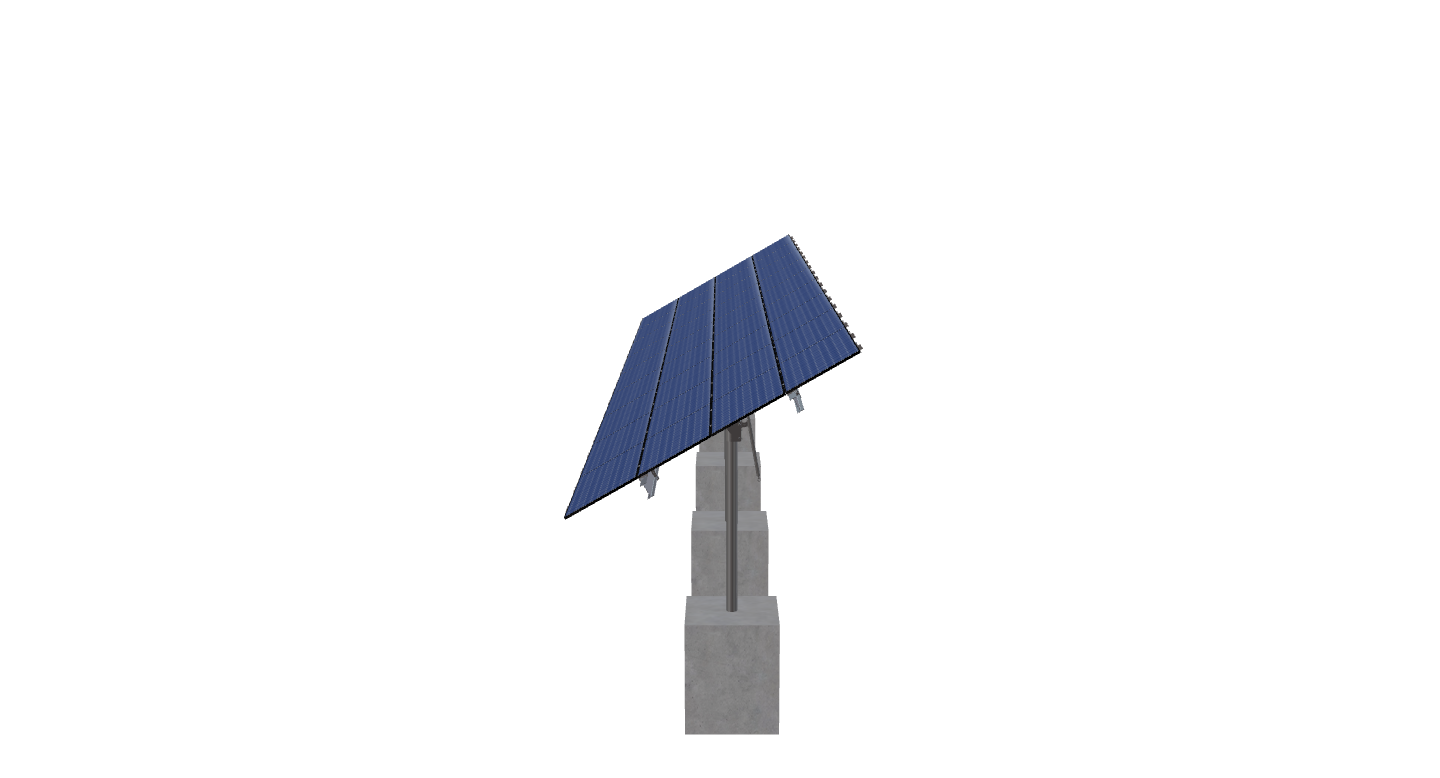

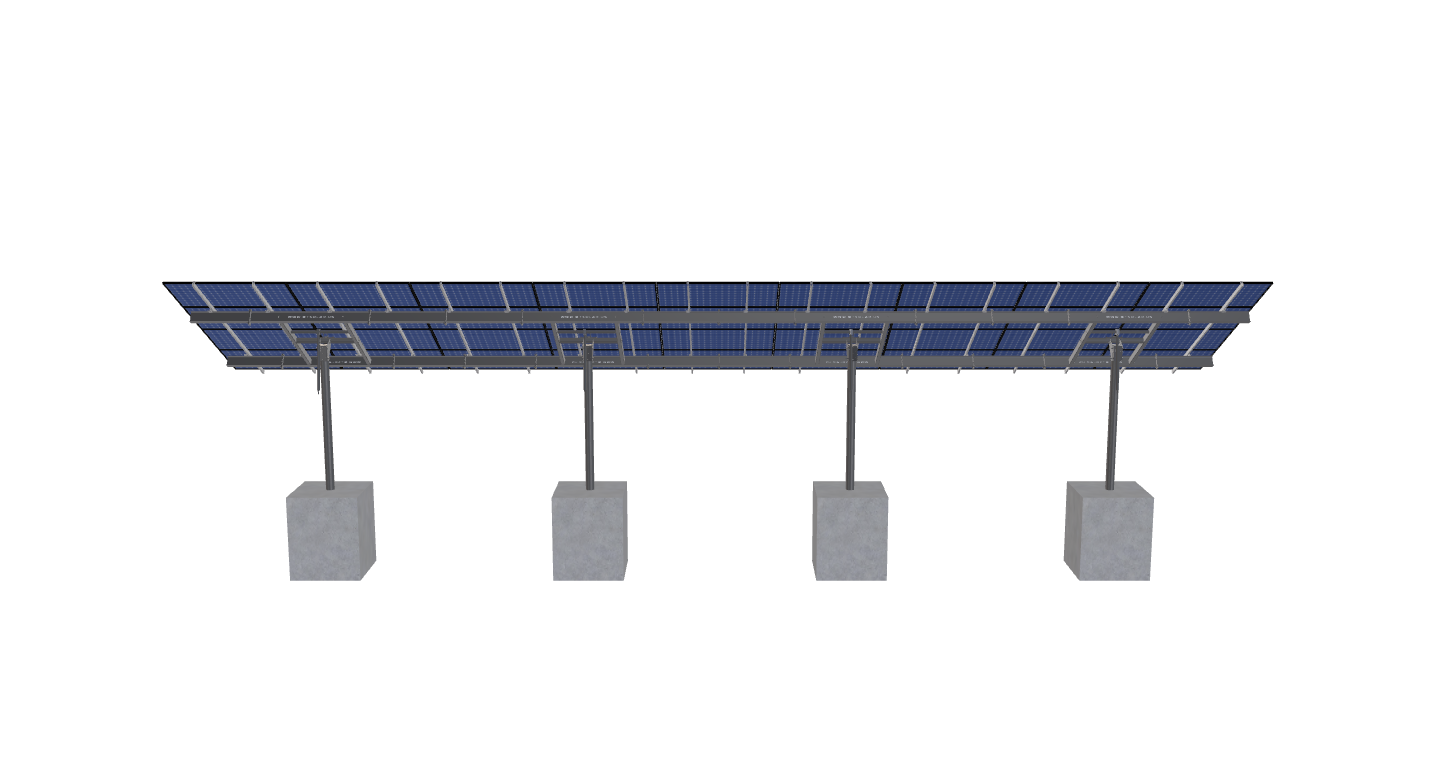

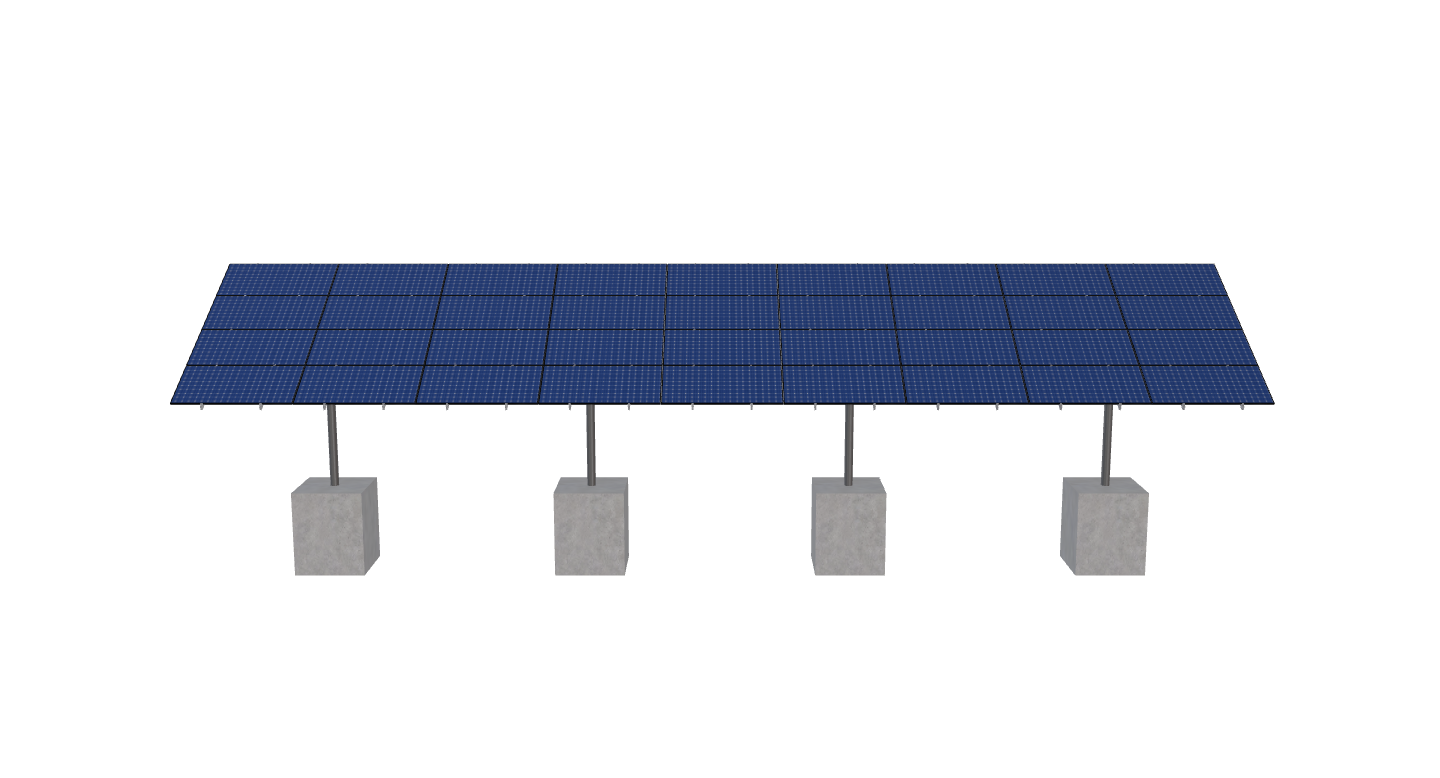

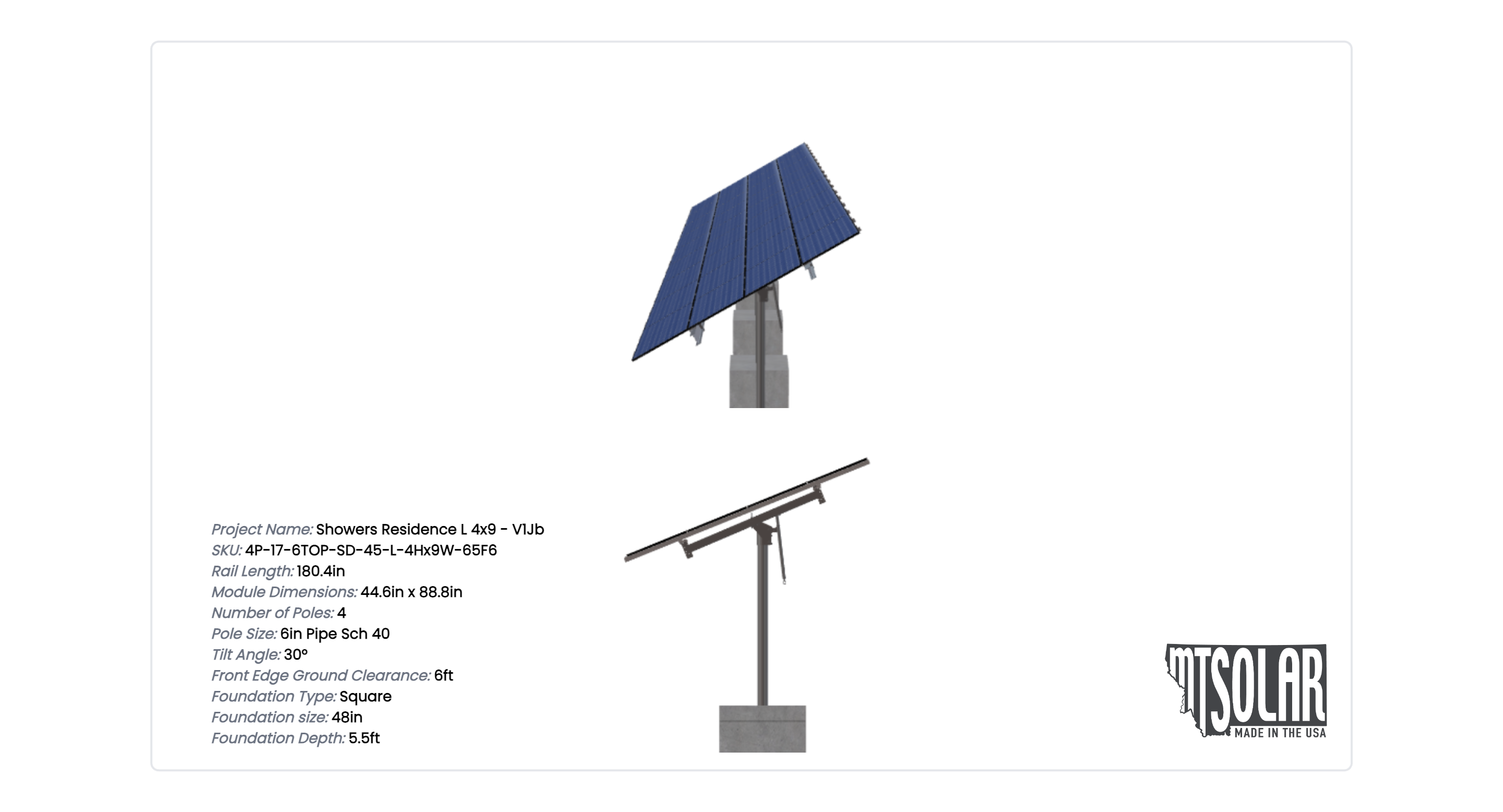

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 88.8 inches by 44.6 inches and an array layout of 9 wide by 4 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Showers Residence L 4×9 – V1Jb
$15,920.84
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 88.8 inches by 44.6 inches and an array layout of 9 wide by 4 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2778.42 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-17-6TOP-SD-45-L-4HX9W-65F6 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 9.76 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 5.50 |
| TILT ANGLE | 30.00 |
| CANTILEVER | 792.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1012.49 |
| ARRAY WIDTH | 67.35 |
| ARRAY HEIGHT | 15.03 |
| RAIL LENGTH | 180.40 |
| MODULE LENGTH | 88.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 66.00 |
| GROUND TO TOP | 13.52 |
| PROJECTED PANEL HEIGHT | 7.52 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | SHOWERS, RESIDENCE, L, 4X9, -, V1JB |
| SITE ADDRESS | 65121, HITCHCOCK, LN, LORE, CITY, OH, 43755, USA |
| MODULE INFO | LR5-72HBD-540M |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 9.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 15920.84 |
| TOTAL WEIGHT | 2778.42 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/f4bf64b2-8135-4e7c-827e-ceef83c9e08b.pdf |
|
| ID | 11000.00 |
| 3D Solar link |
