This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 12 wide by 5 high.
This mount fits on 4 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

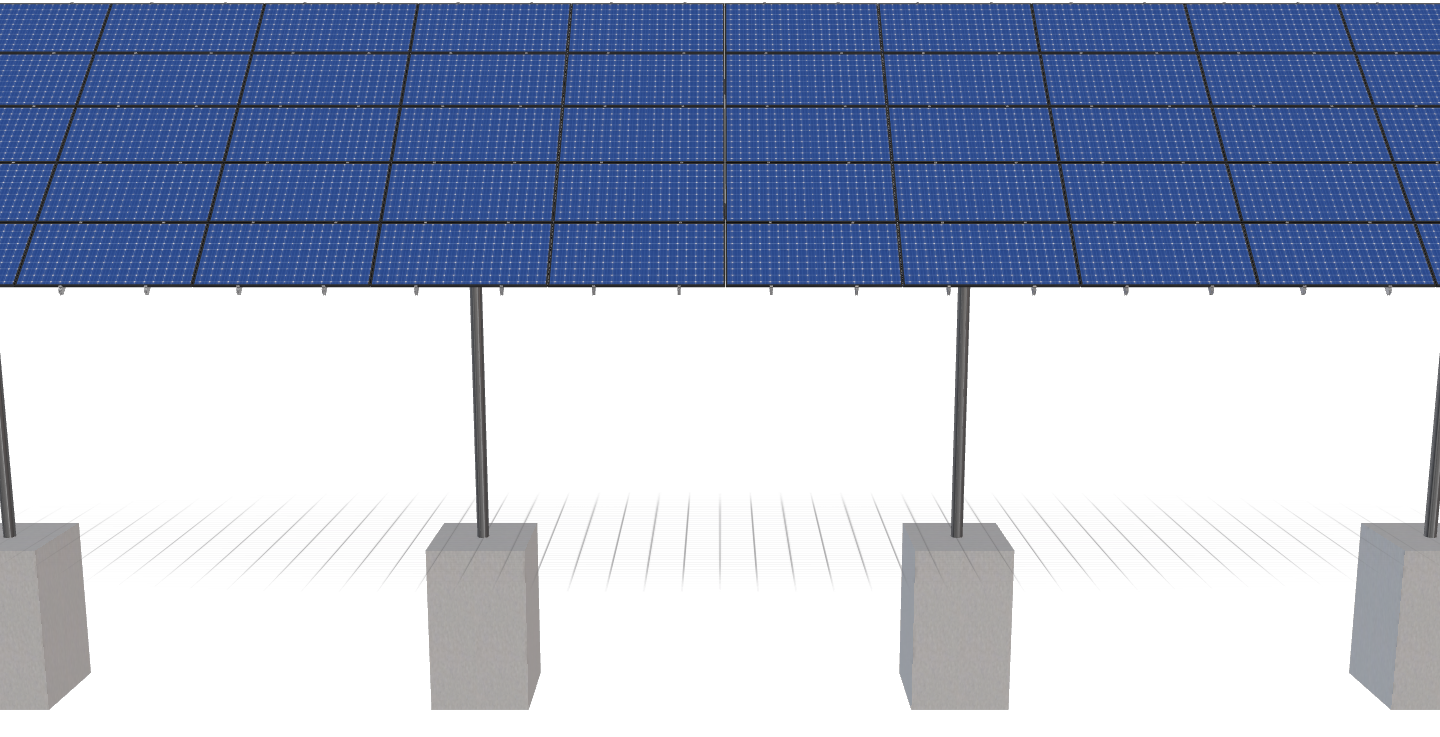

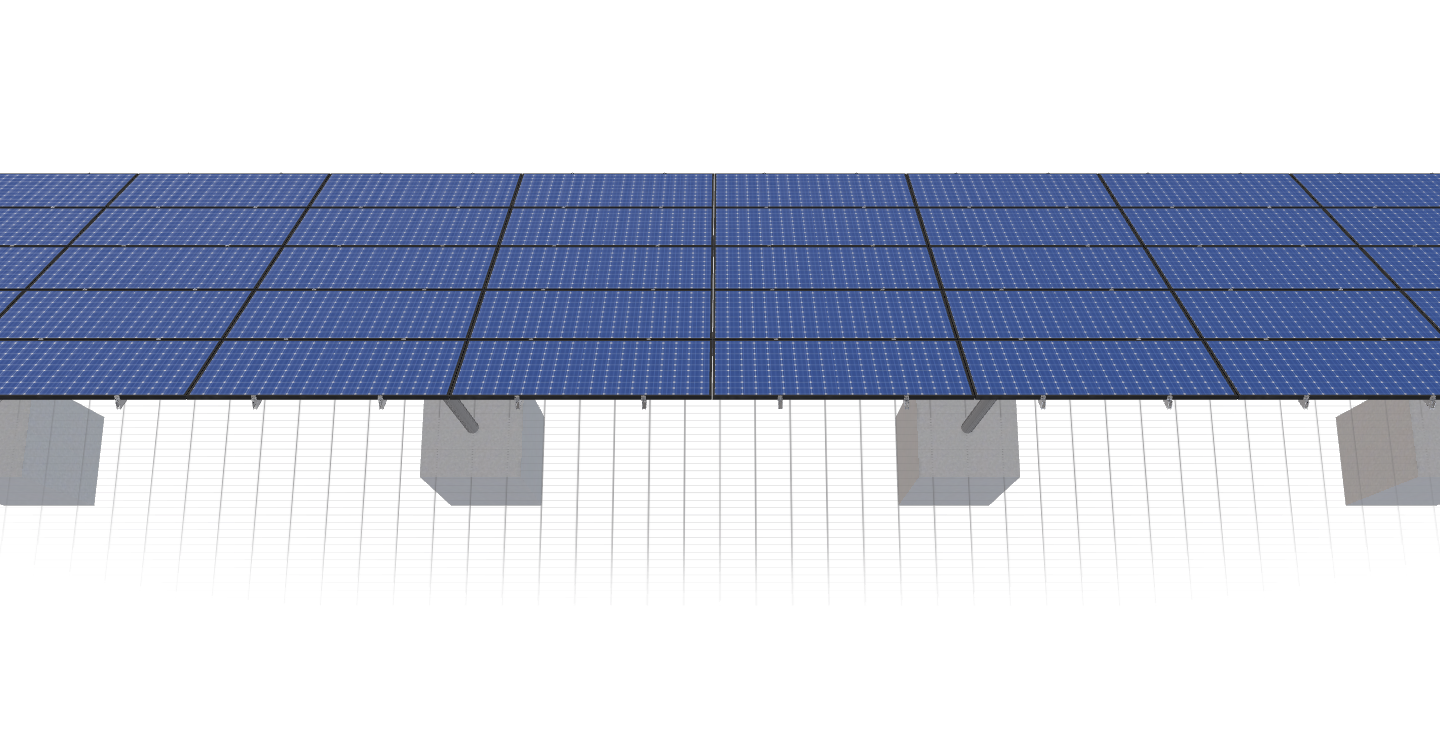

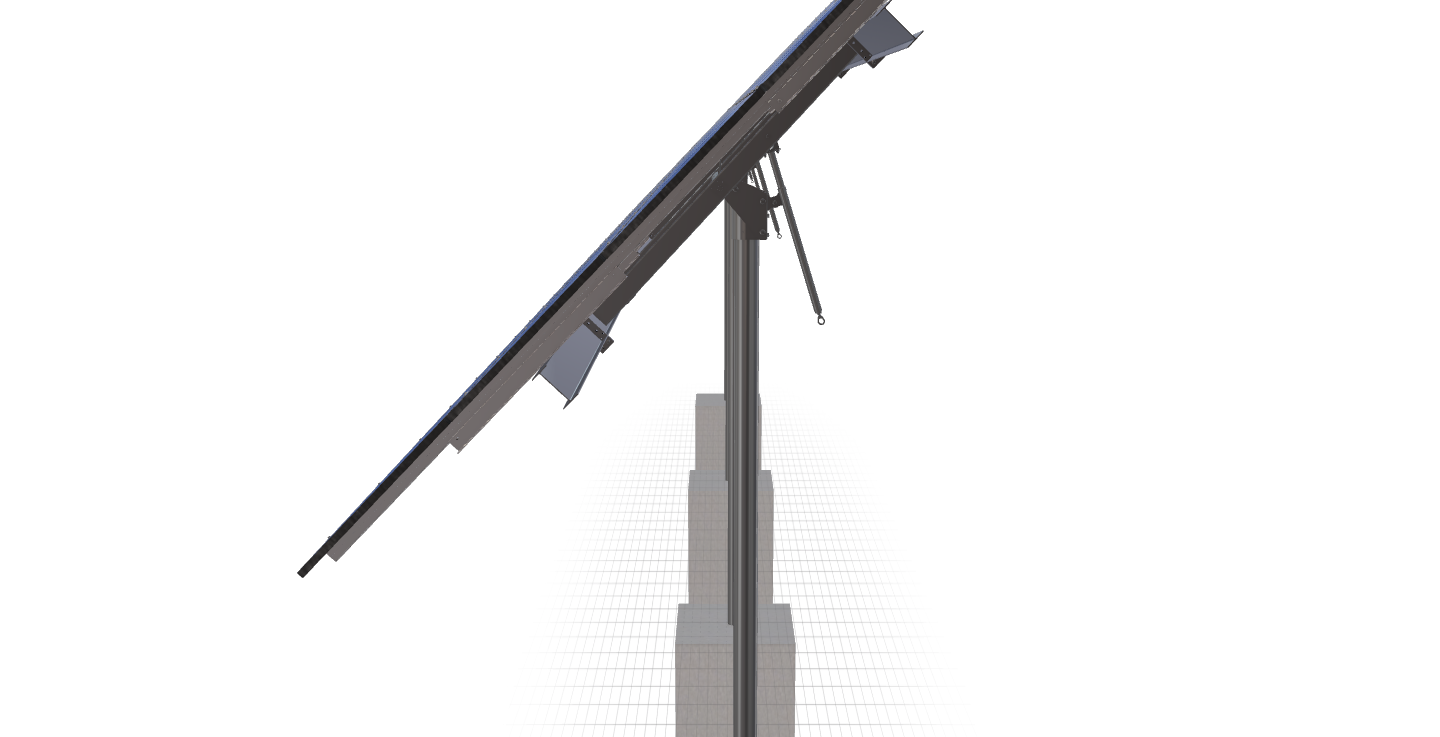

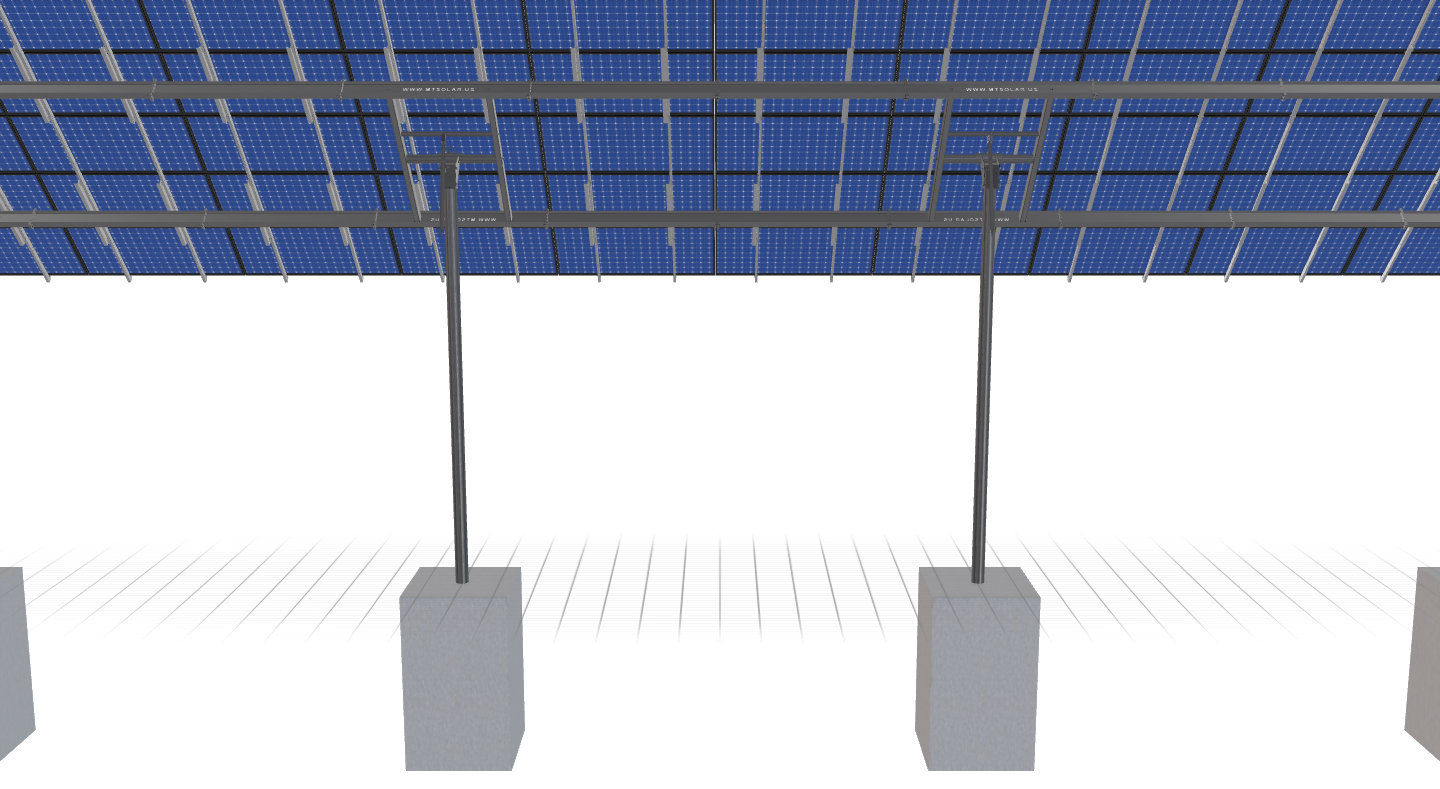

See 3D Model Here
SilverBayYMCA-RevA
$26,418.40
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 12 wide by 5 high.
This mount fits on 4 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 5152.28 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-22.5-10TOP-XD-72-L-5HX12W-6FBA |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 18.23 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 7.75 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 1044.00 |
| GROUND CLEARANCE | 12.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1528.80 |
| ARRAY WIDTH | 88.20 |
| ARRAY HEIGHT | 17.33 |
| RAIL LENGTH | 208.00 |
| MODULE LENGTH | 87.20 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 87.00 |
| GROUND TO TOP | 24.39 |
| PROJECTED PANEL HEIGHT | 12.32 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | SILVERBAYYMCA-REVA |
| SITE ADDRESS | 87, SILVER, BAY, RD, SILVER, BAY, NY, 12874, USA |
| MODULE WIDTH | 41.10 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 12.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 25160.38 |
| TOTAL WEIGHT | 5152.28 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/4242b6c7-9802-4f7a-83c1-15ad70c82275.pdf |
|
| ID | 933.00 |
| 3D Solar link |
