single pole 15 panel

$4,885.77

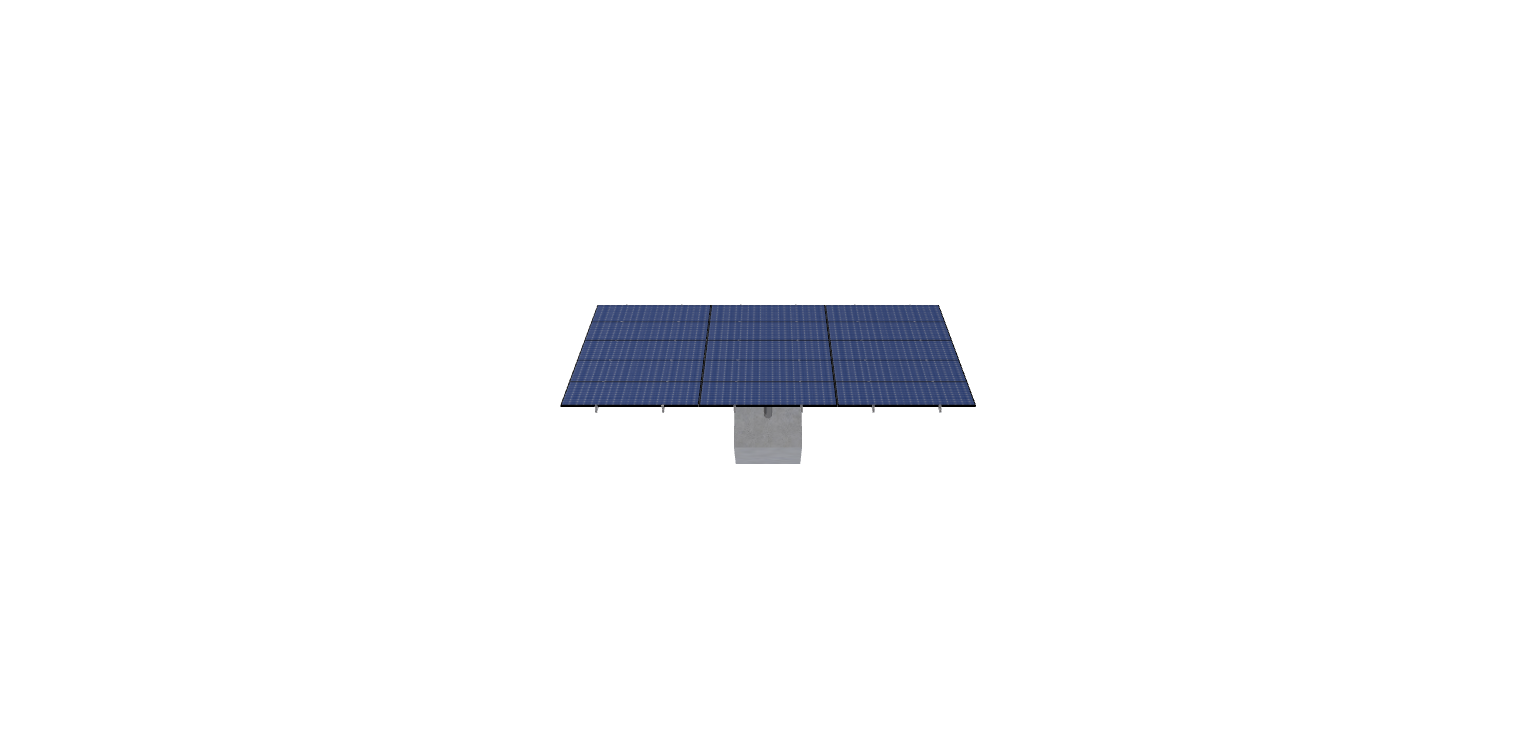

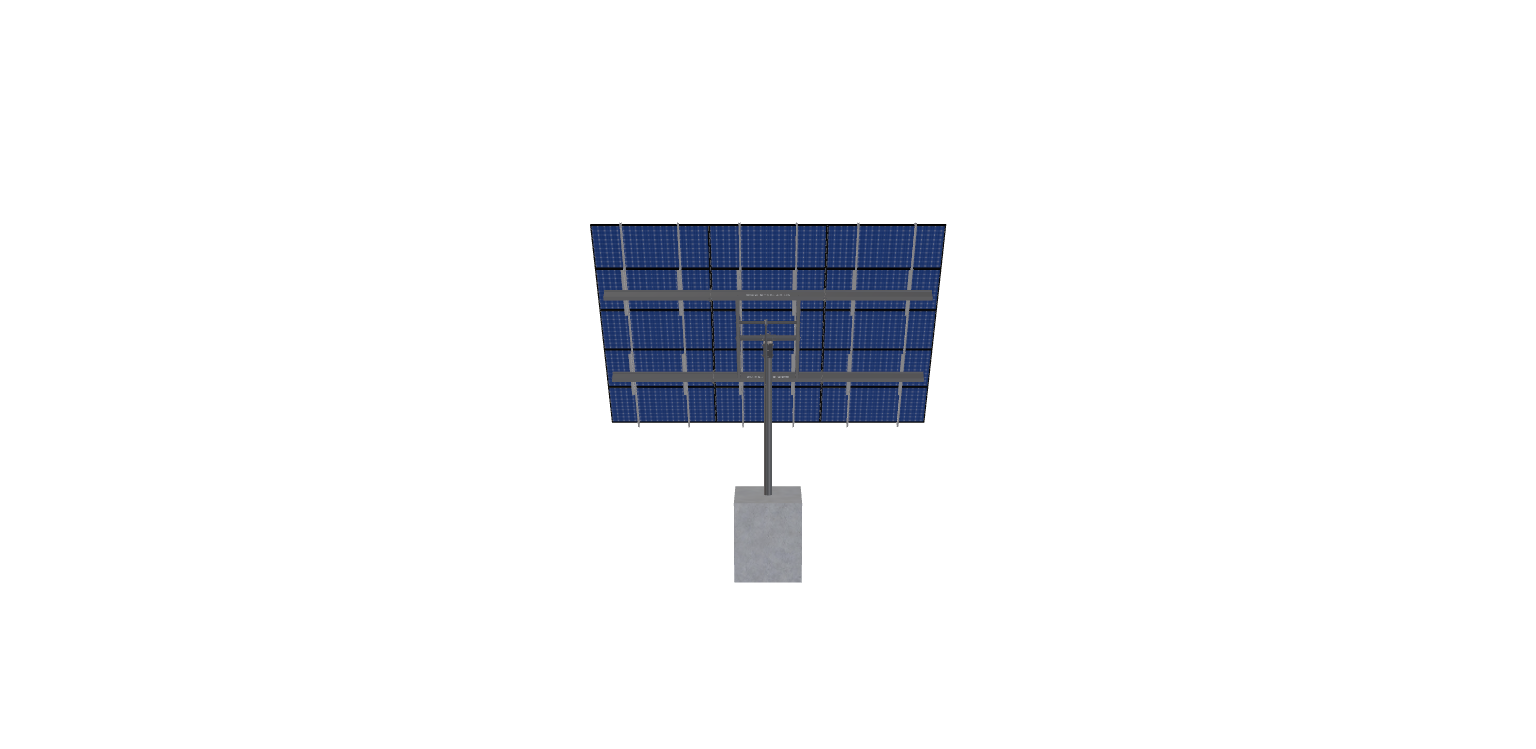

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.68 inches by 44.64 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

SKU: 1P-0-6TOP-SD-84-L-5Hx3W-3ABH Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.68 inches by 44.64 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 976.8199999999999 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-6TOP-SD-84-L-5HX3W-3ABH

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

10.70

WING SPAN

84.00

MAX FOUNDATION DEPTH

5.50

TILT ANGLE

55.00

CANTILEVER

258.00

GROUND CLEARANCE

3.00

NO POLES

1.00

MODULE AREA

426.38

ARRAY WIDTH

22.67

ARRAY HEIGHT

18.81

RAIL LENGTH

225.70

MODULE LENGTH

89.68

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

21.50

GROUND TO TOP

18.32

PROJECTED PANEL HEIGHT

15.24

PROJECT ID

SINGLE, POLE, 15, PANEL

SITE ADDRESS

201, HESSIAN, HILL, RD, CORNISH, ME, 04020, USA

MODULE WIDTH

44.64

NUMBER ROWS

5.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

60.00

SNOW LOAD OVERRIDE

30.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

4885.77

TOTAL WEIGHT

976.82

TOTAL PALLETS

1.00
