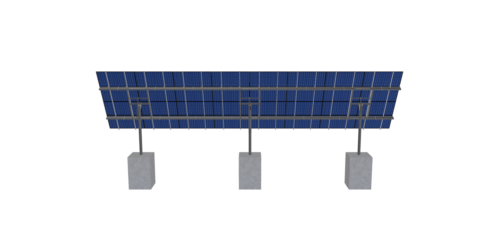

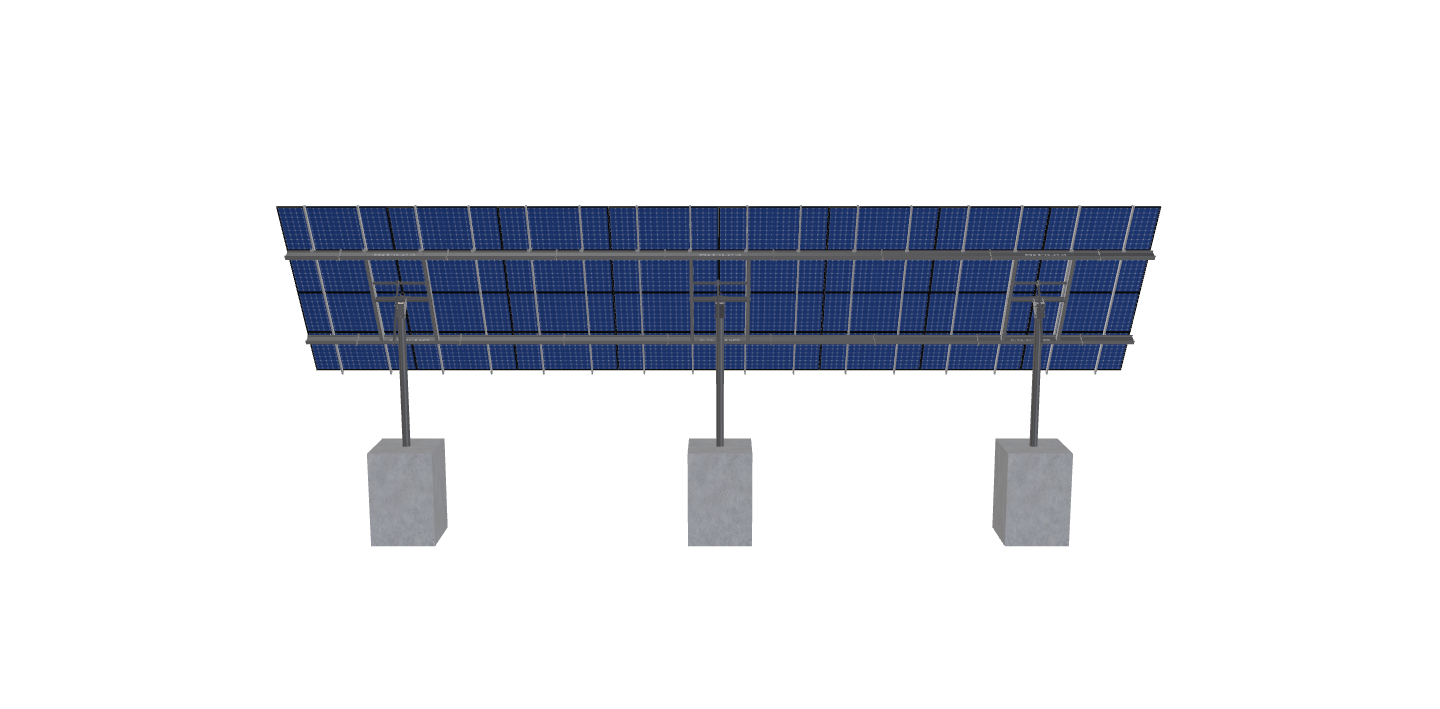

This Pole Mount is designed for modules with dimensions of 89.69″ by 44.65″ and an array layout of 4 high by 8 wide.
This mount fits on 3 – 6″ Sch 80 steel poles with a spacing of 22.5′ (not included).
A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

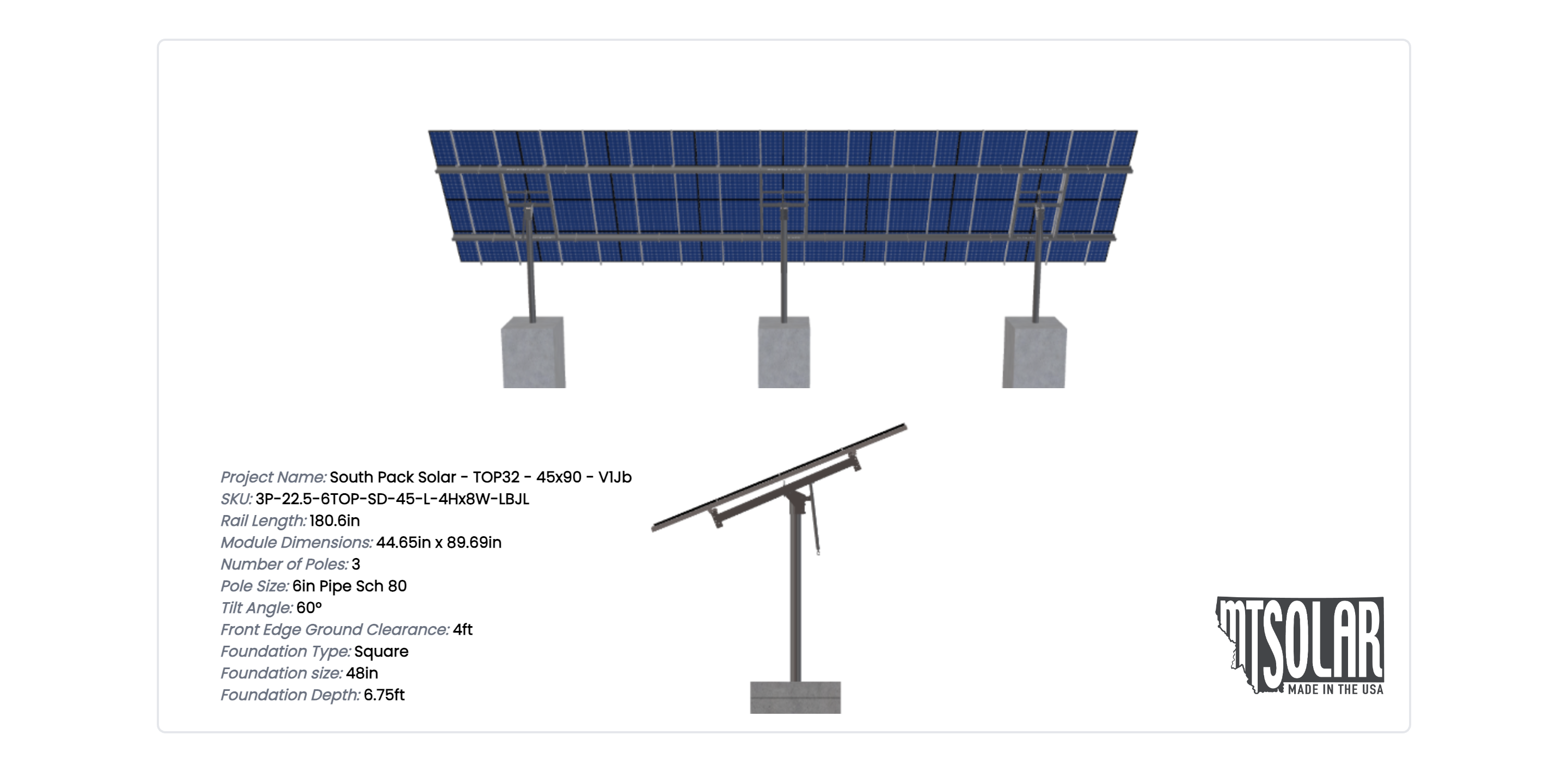

South Pack Solar – TOP32 – 45×90 – V1Jb No Rails
$11,157.07
Description
This Pole Mount is designed for modules with dimensions of 89.69″ by 44.65″ and an array layout of 4 high by 8 wide.
This mount fits on 3 – 6″ Sch 80 steel poles with a spacing of 22.5′ (not included).
A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2271.76 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-6TOP-SD-45-L-4HX8W-LBJL |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 10.52 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.75 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 720.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 3.00 |
| MODULE AREA | 909.92 |
| ARRAY WIDTH | 60.46 |
| ARRAY HEIGHT | 15.05 |
| RAIL LENGTH | 180.60 |
| MODULE LENGTH | 89.69 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 60.00 |
| GROUND TO TOP | 16.96 |
| PROJECTED PANEL HEIGHT | 12.89 |
| DESIGNER EMAIL | |
| PROJECT ID | SOUTH, PACK, SOLAR, -, TOP32, -, 45X90, -, V1JB |
| SITE ADDRESS | NEW, IPSWICH, NH, 03071, USA |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 104.00 |
| SNOW LOAD OVERRIDE | 88.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 12545.78 |
| TOTAL WEIGHT | 2271.76 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/931479a7-6c1f-4fd0-bc83-cd5f870493f1.pdf |
|
| ID | 7720.00 |
| 3D Solar link |
