This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 80 inches by 40 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

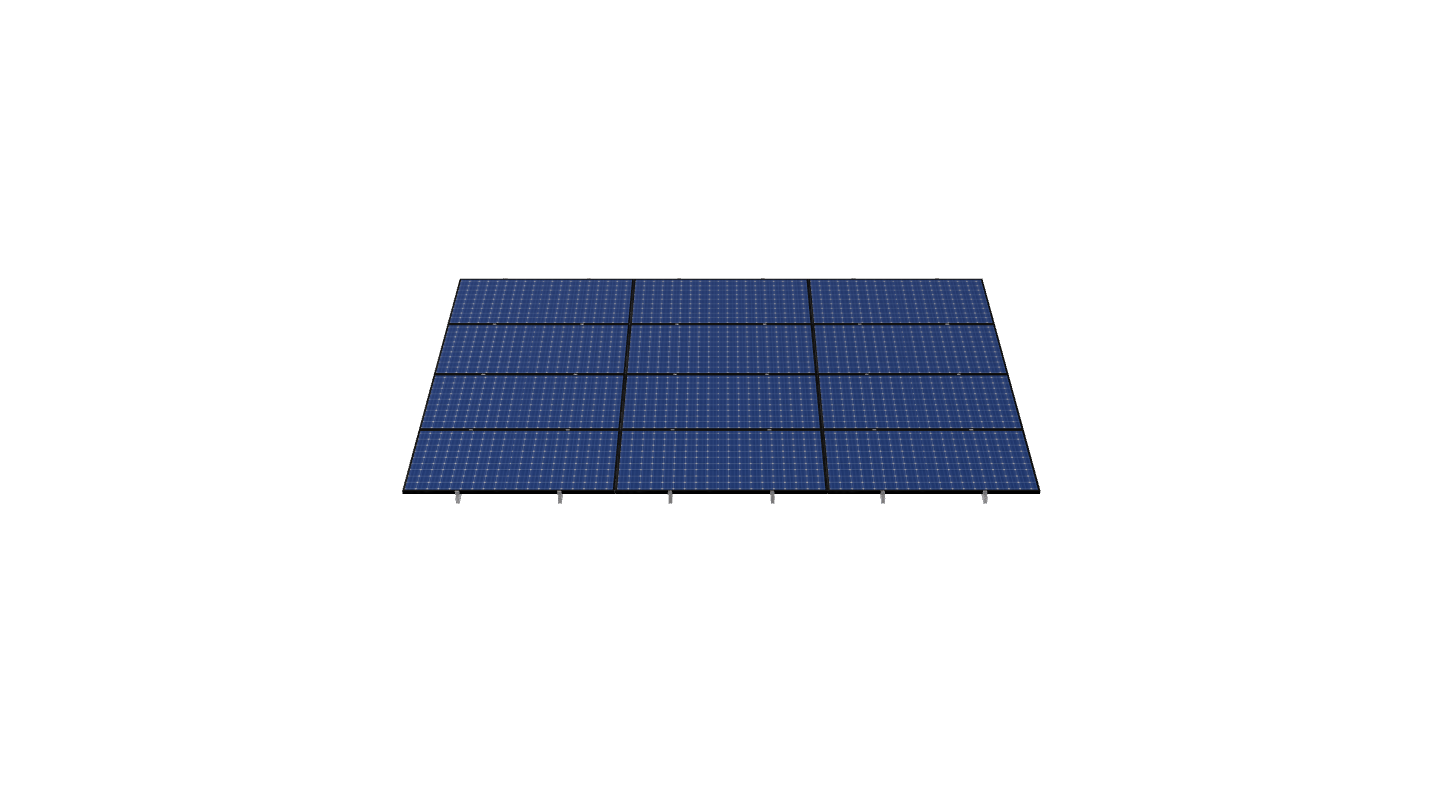

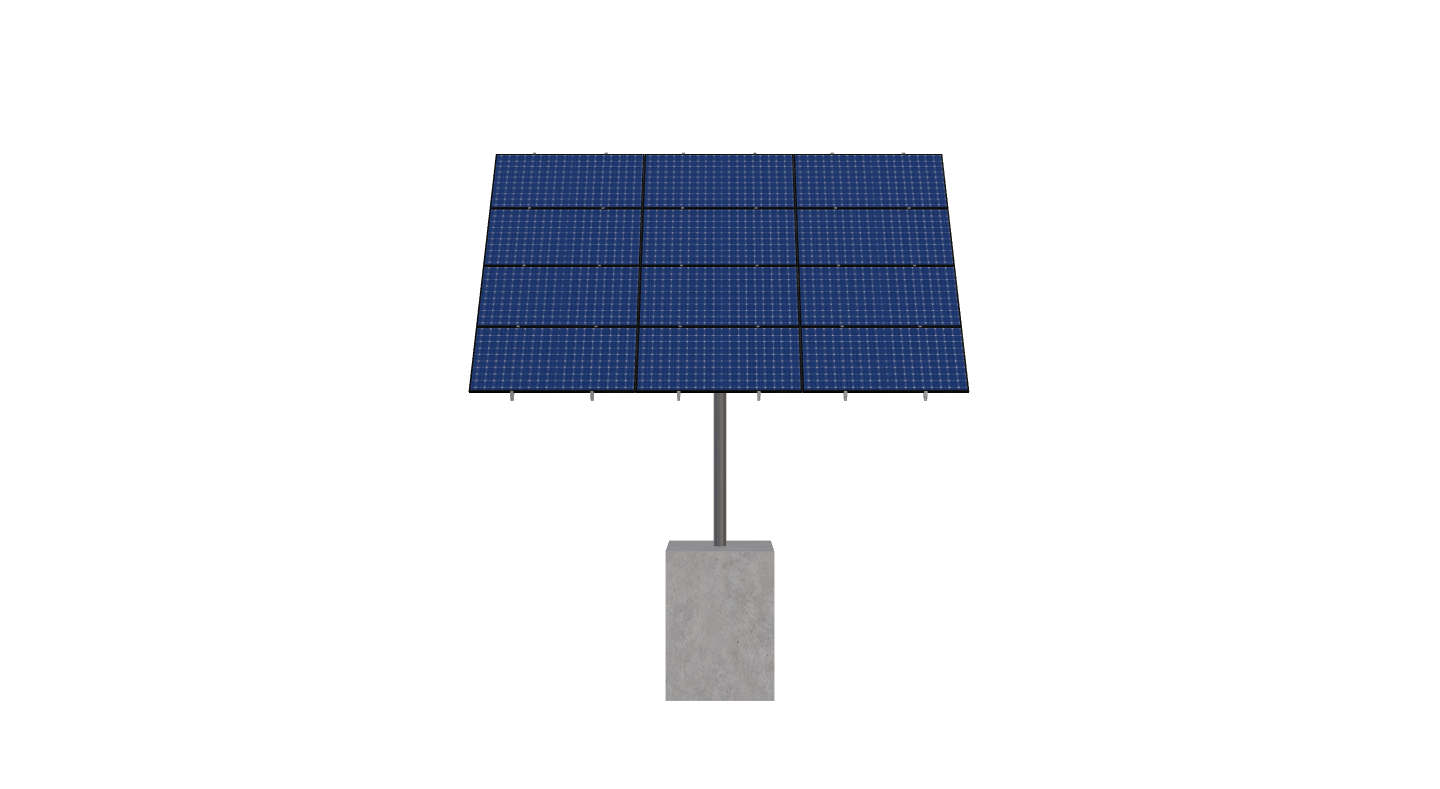

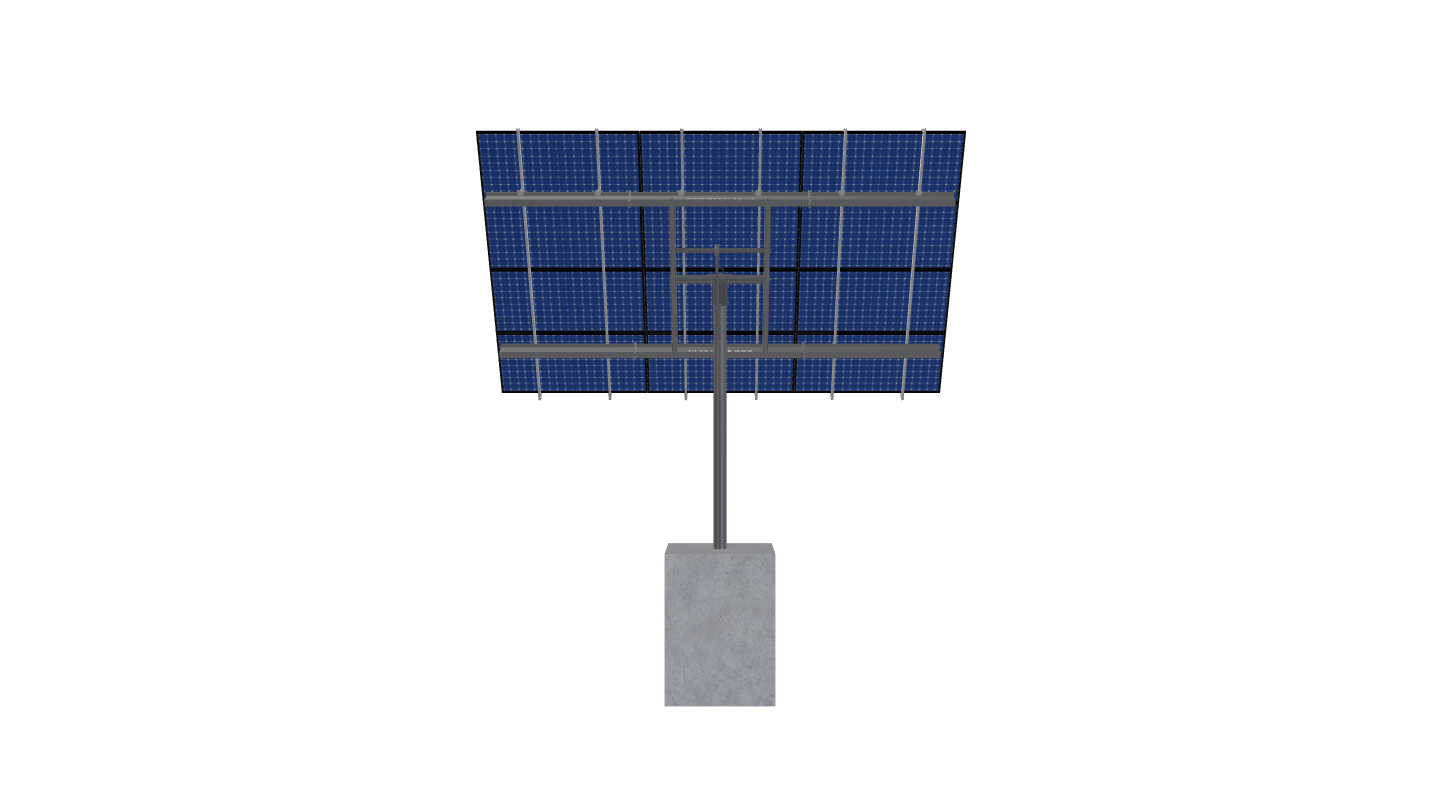

See 3D Model Here
SpecieMesa-RevA
$5,617.14
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 80 inches by 40 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1001.21 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-XD-72-L-4HX3W-96F8 |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 11.53 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 6.25 |
| TILT ANGLE | 55.00 |
| CANTILEVER | 234.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 1.00 |
| MODULE AREA | 273.38 |
| ARRAY WIDTH | 20.25 |
| ARRAY HEIGHT | 13.50 |
| RAIL LENGTH | 162.00 |
| MODULE LENGTH | 80.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 19.50 |
| GROUND TO TOP | 16.99 |
| PROJECTED PANEL HEIGHT | 10.92 |
| WIND SPEED OVERRIDE | 98.00 |
| SNOW LOAD OVERRIDE | 108.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | SPECIEMESA-REVA |
| SITE ADDRESS | PLACERVILLE, CO, 81430, USA |
| MODULE WIDTH | 40.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 5349.66 |
| TOTAL WEIGHT | 1001.21 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/0d15f960-a7b8-449e-8425-57264a132e9c.pdf |
|
| ID | 1568.00 |
| 3D Solar link |
