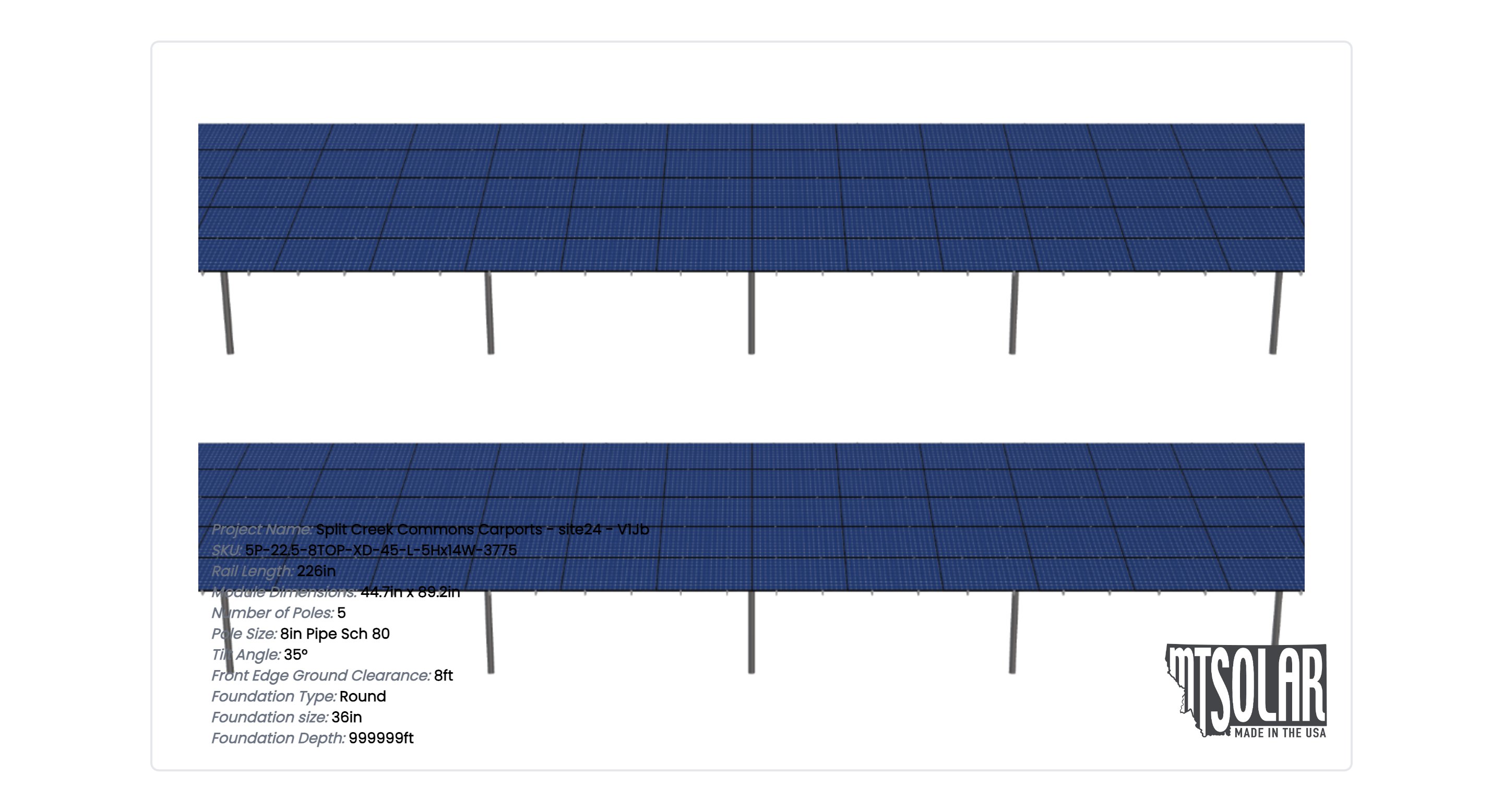

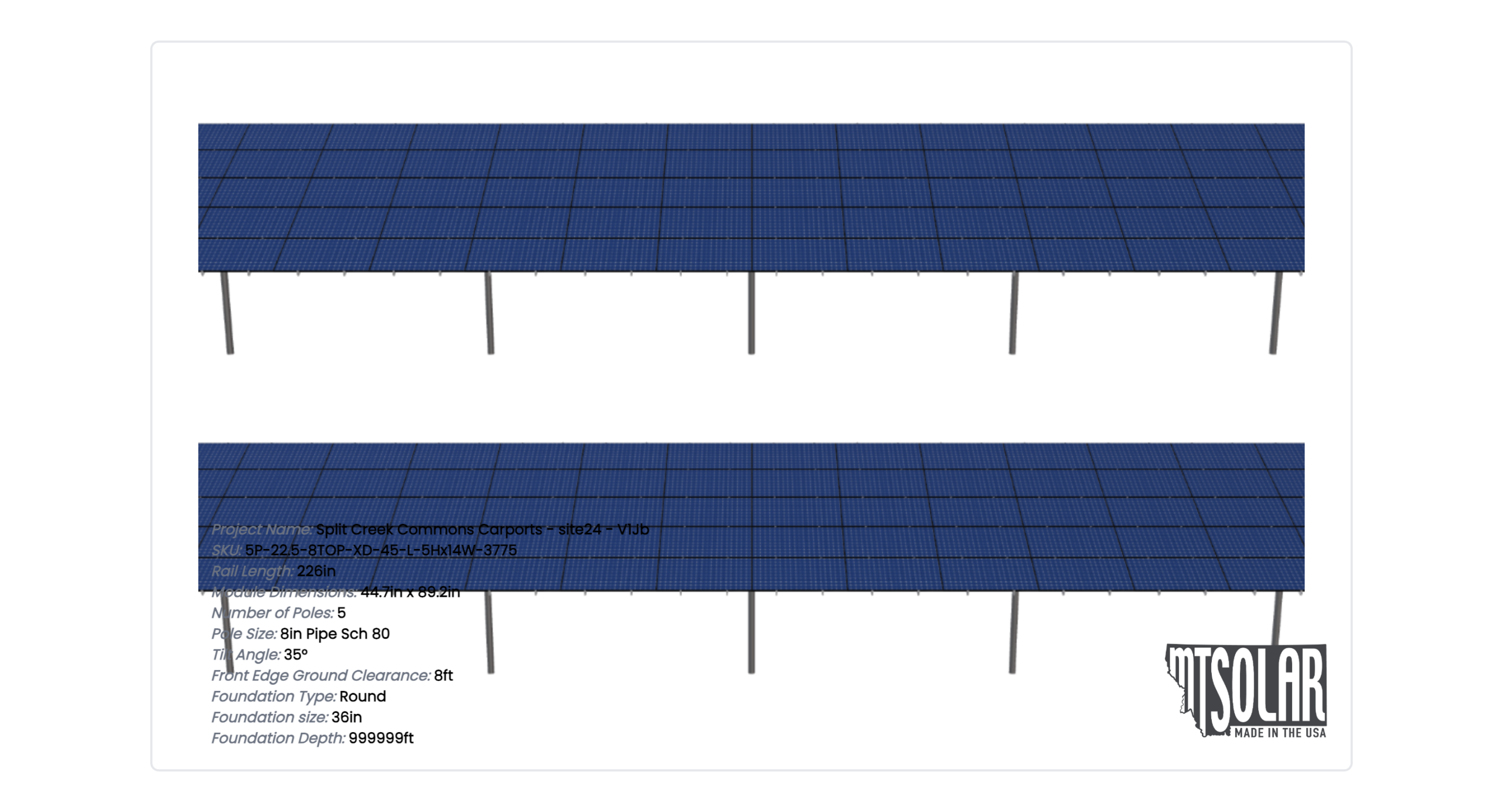

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.2 inches by 44.7 inches and an array layout of 14 wide by 5 high.
This mount fits on 5 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

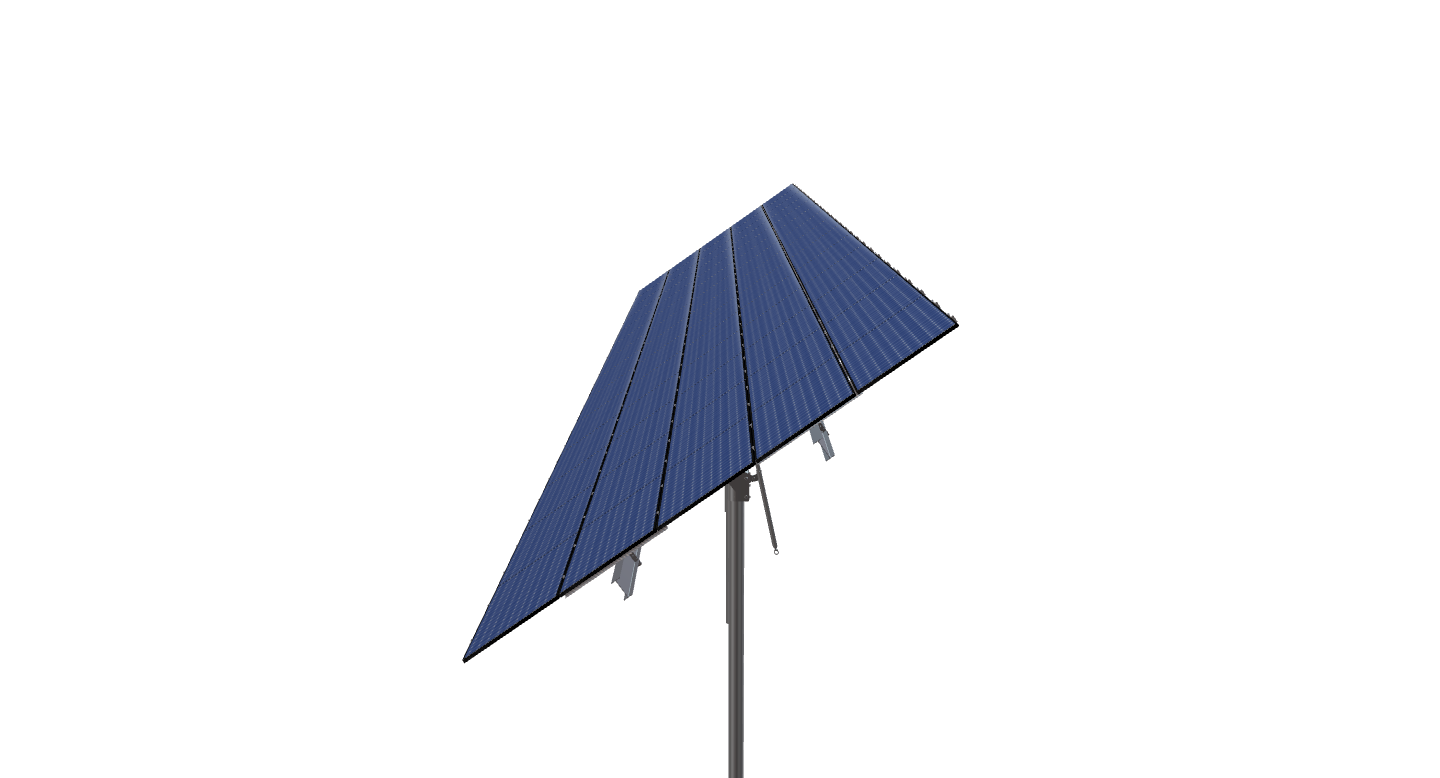

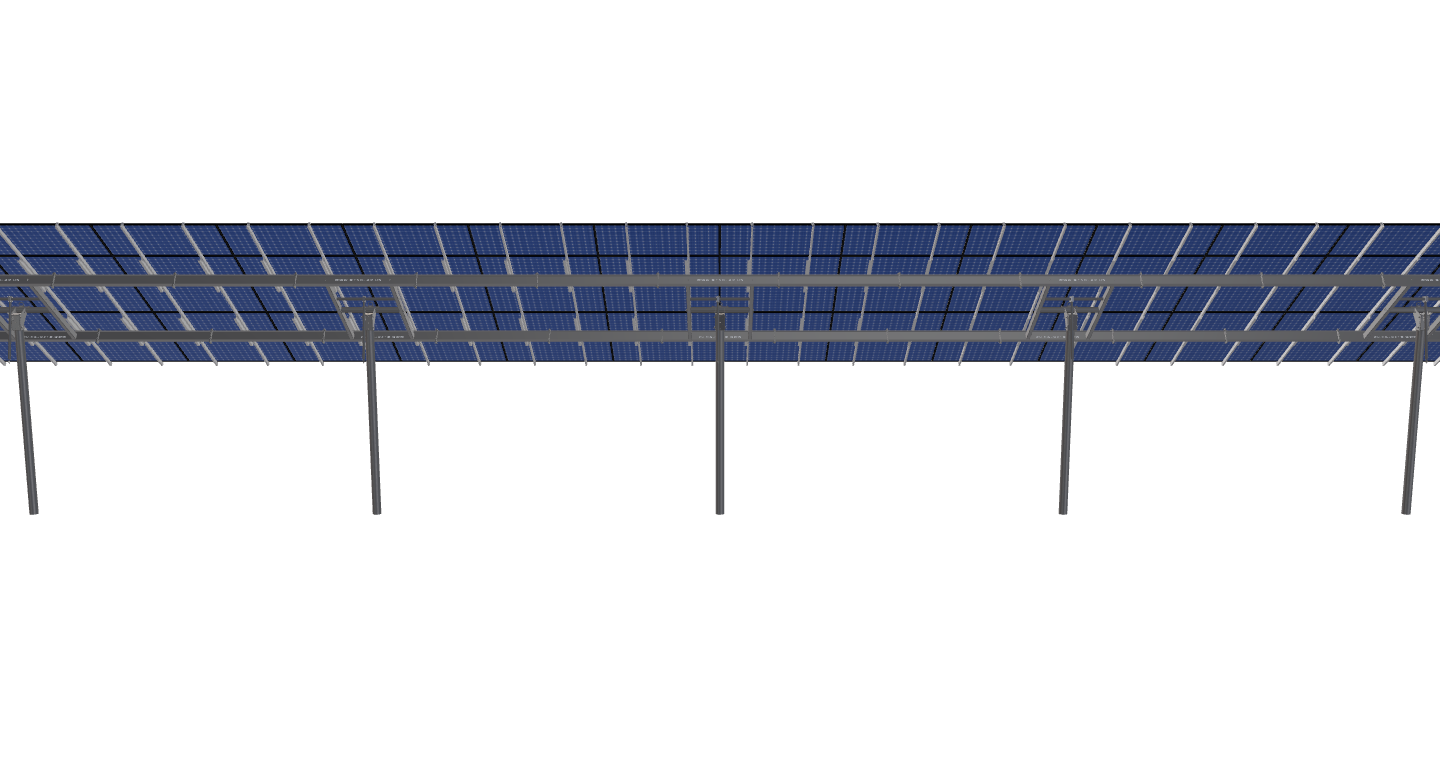

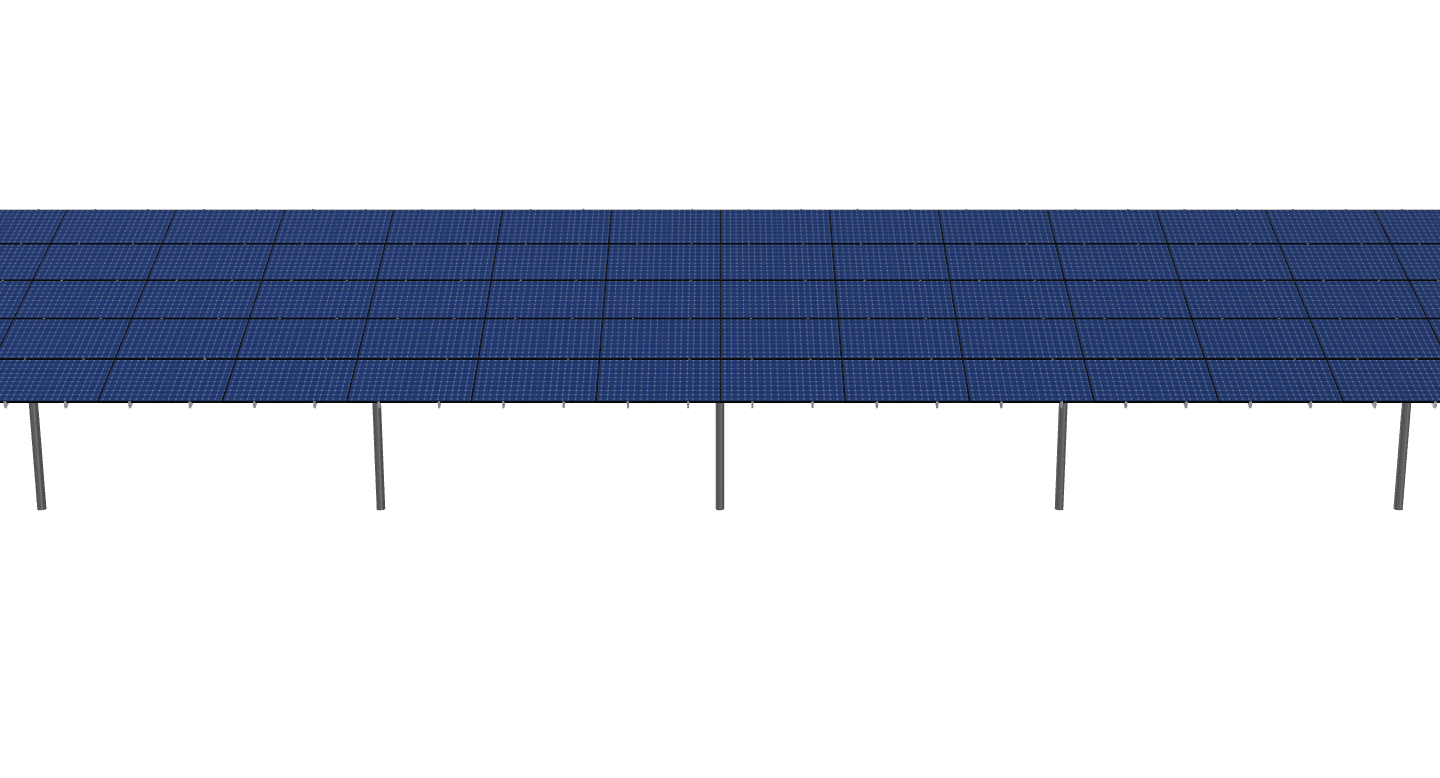

See 3D Model Here
Split Creek Commons Carports – site24 – V1Jb
$30,268.33
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.2 inches by 44.7 inches and an array layout of 14 wide by 5 high.
This mount fits on 5 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 6182.31 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-22.5-8TOP-XD-45-L-5HX14W-3775 |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 13.40 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 999999.00 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 1260.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1981.89 |
| ARRAY WIDTH | 105.23 |
| ARRAY HEIGHT | 18.83 |
| RAIL LENGTH | 226.00 |
| MODULE LENGTH | 89.20 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 105.00 |
| GROUND TO TOP | 18.80 |
| PROJECTED PANEL HEIGHT | 10.80 |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 42.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | BLACK, HILLS, SOLAR |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 6057022510.00 |
| PROJECT ID | SPLIT, CREEK, COMMONS, CARPORTS, -, SITE24, -, V1JB |
| SITE ADDRESS | 5102, SHELBY, AVE, RAPID, CITY, SD, 57701, USA |
| MODULE WIDTH | 44.70 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 14.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 30268.33 |
| TOTAL WEIGHT | 6182.31 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/645878c1-2b67-4458-857a-c84f79d8bd53.pdf |
|
| ID | 8654.00 |
| 3D Solar link |
