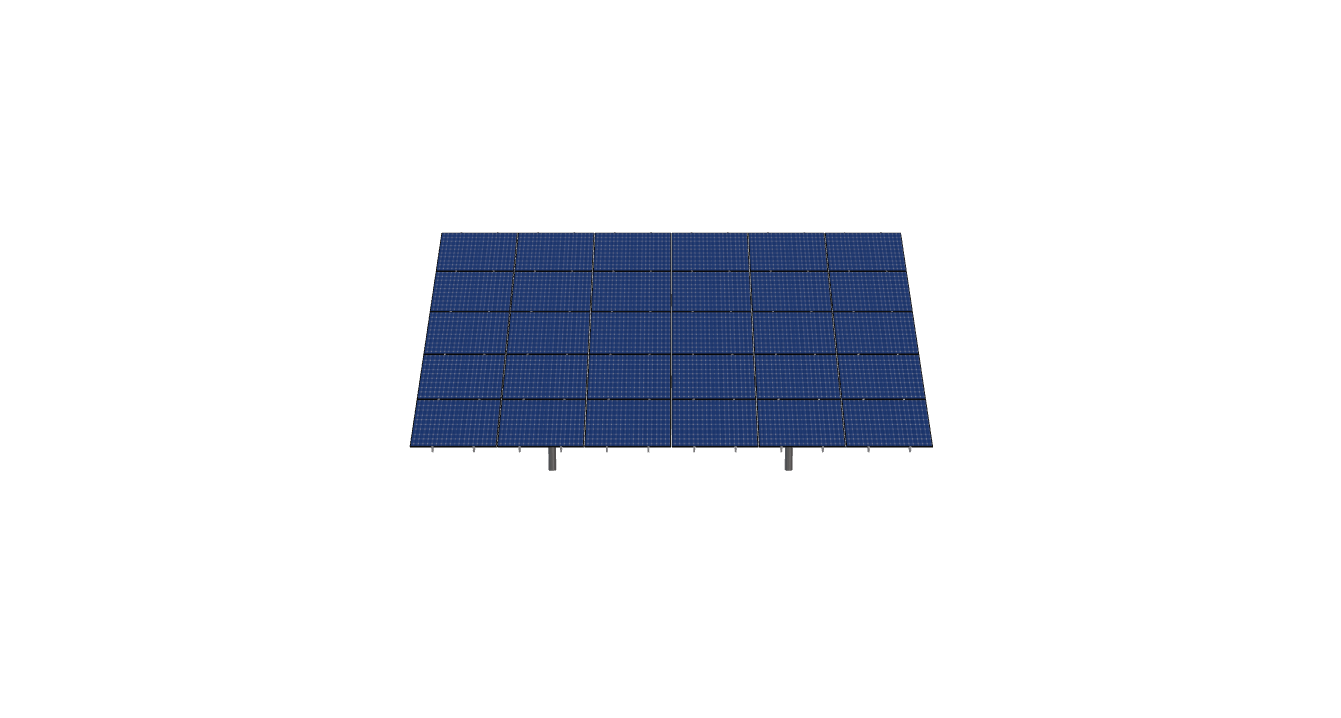

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 48 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
stapf
$9,853.65
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 48 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1808.6399999999999 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-6TOP-SD-57-L-5HX6W-L0B0 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 9.49 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 0.00 |
| TILT ANGLE | 40.00 |
| CANTILEVER | 408.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 2.00 |
| MODULE AREA | 697.19 |
| ARRAY WIDTH | 34.50 |
| ARRAY HEIGHT | 20.21 |
| RAIL LENGTH | 242.50 |
| MODULE LENGTH | 68.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 34.00 |
| GROUND TO TOP | 15.99 |
| PROJECTED PANEL HEIGHT | 12.99 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | ARI |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 8059659292.00 |
| PROJECT ID | STAPF |
| SITE ADDRESS | 1200, ESTRELLA, DR, SANTA, BARBARA, CA, 93110, USA |
| MODULE INFO | REC, 460 |
| MODULE WIDTH | 48.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 9853.65 |
| TOTAL WEIGHT | 1808.64 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/43db00be-1396-461a-b173-aadd6d226b0b.pdf |
|
| ID | 13890.00 |
| 3D Solar link |
