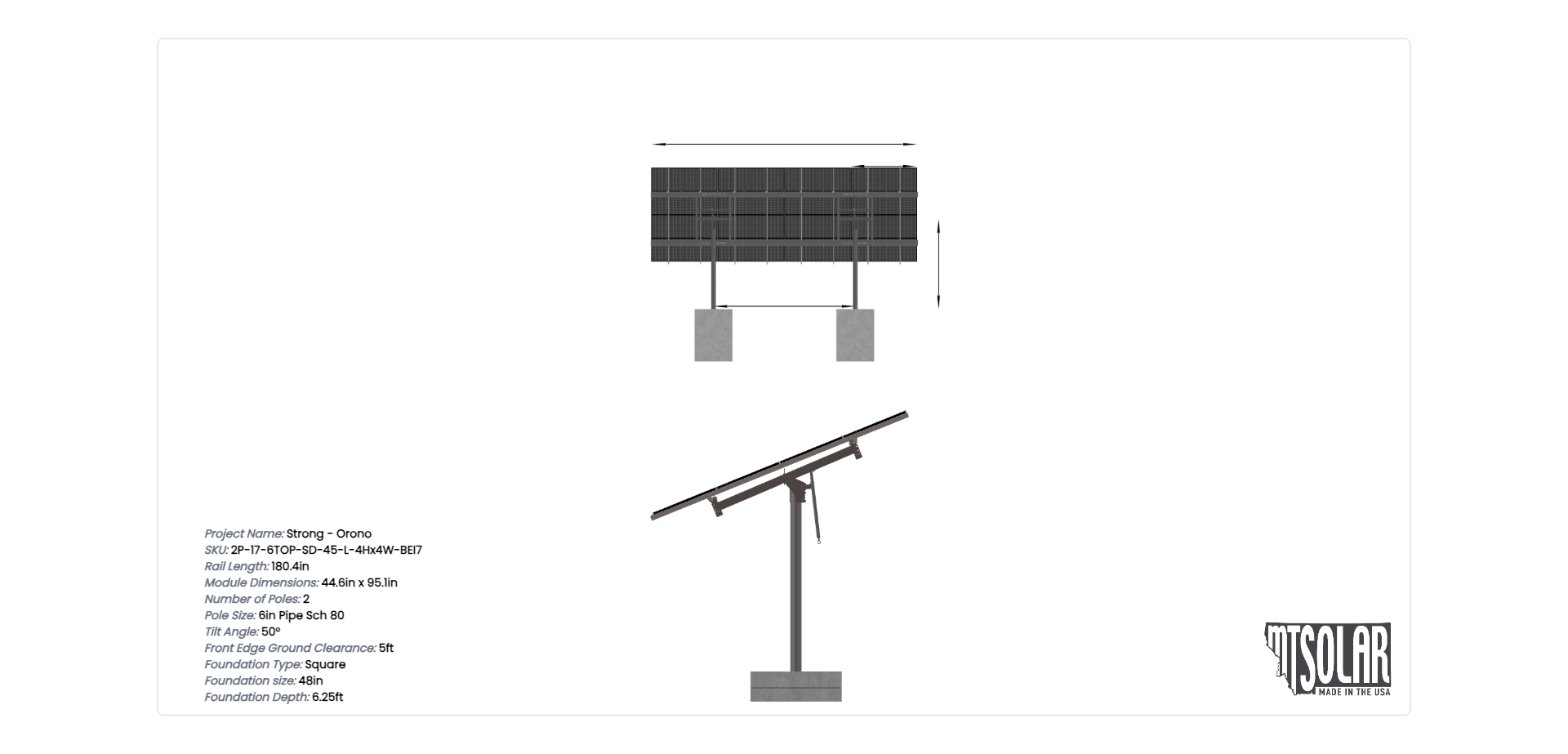

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 95.1 inches by 44.6 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

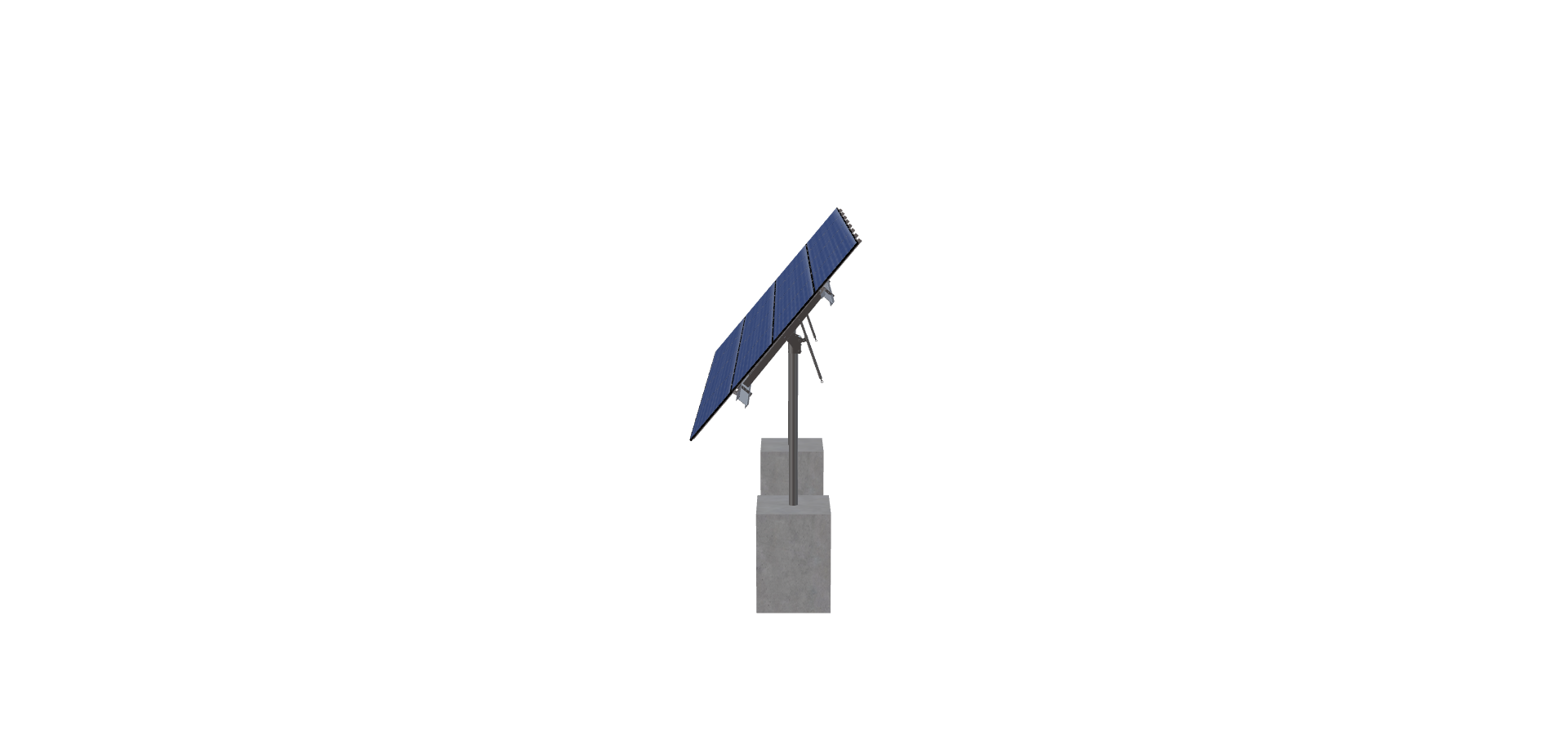

See 3D Model Here
Strong – Orono
$7,348.72
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 95.1 inches by 44.6 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 1312.88 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 2P-17-6TOP-SD-45-L-4HX4W-BEI7 |
DUTY SIZE | SD |
POLE SIZE | 6IN, PIPE, SCH, 80 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 2.00 |
POLE SPACING | 17.00 |
POLE HEIGHT | 10.76 |
WING SPAN | 45.00 |
MAX FOUNDATION DEPTH | 6.25 |
TILT ANGLE | 50.00 |
CANTILEVER | 384.00 |
GROUND CLEARANCE | 5.00 |
NO POLES | 2.00 |
MODULE AREA | 481.57 |
ARRAY WIDTH | 32.03 |
ARRAY HEIGHT | 15.03 |
RAIL LENGTH | 180.40 |
MODULE LENGTH | 95.10 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 32.00 |
GROUND TO TOP | 16.45 |
PROJECTED PANEL HEIGHT | 11.39 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
PROJECT ID | STRONG, -, ORONO |
SITE ADDRESS | 1, SPENCER, ST, ORONO, ME, 04473, USA |
MODULE WIDTH | 44.60 |
NUMBER ROWS | 4.00 |
NUMBER COLUMNS | 4.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | C |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 7348.72 |
TOTAL WEIGHT | 1312.88 |
TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/b9c1fcd5-0414-47f3-9890-f38552d326e5.pdf |
|
ID | 3622.00 |
3D Solar link |
