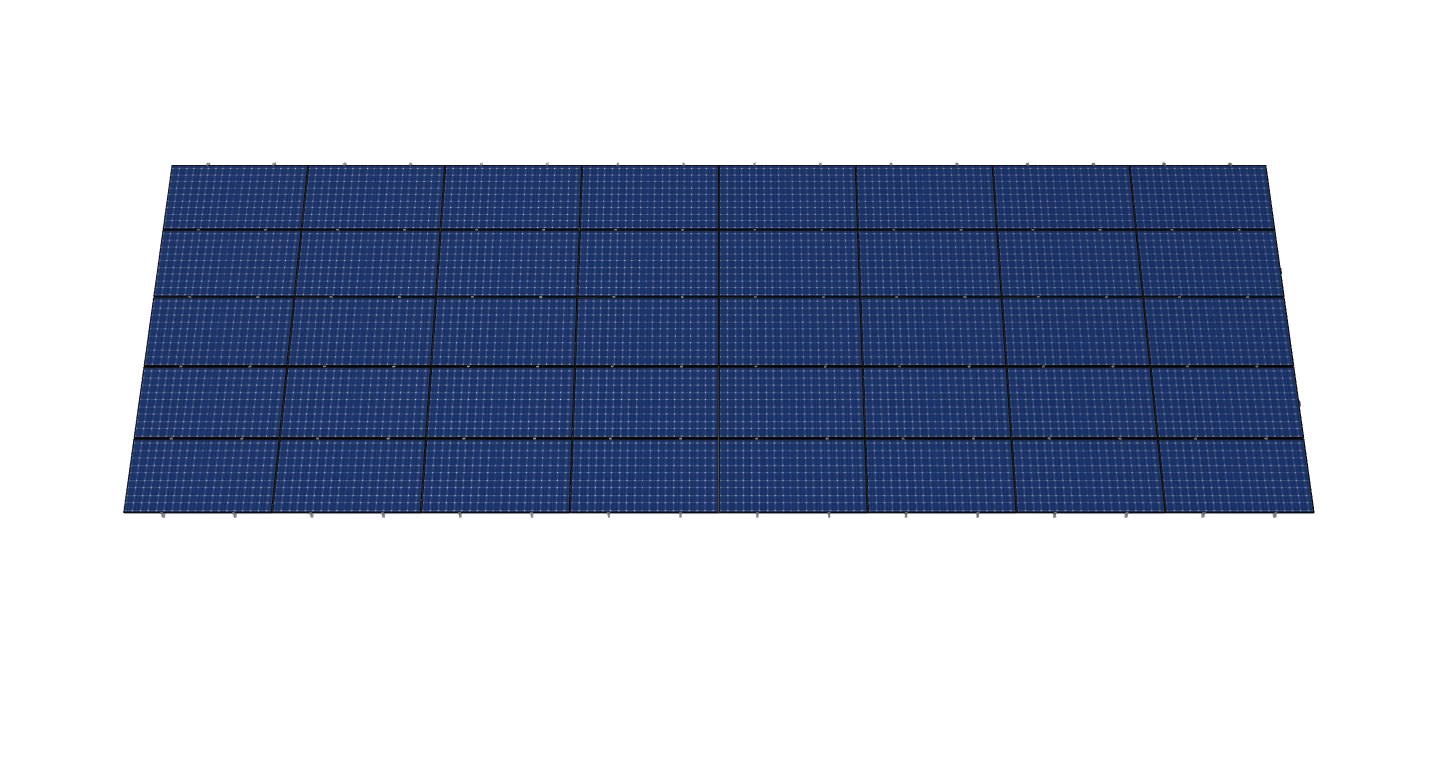

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89 inches by 47.6 inches and an array layout of 8 wide by 5 high.

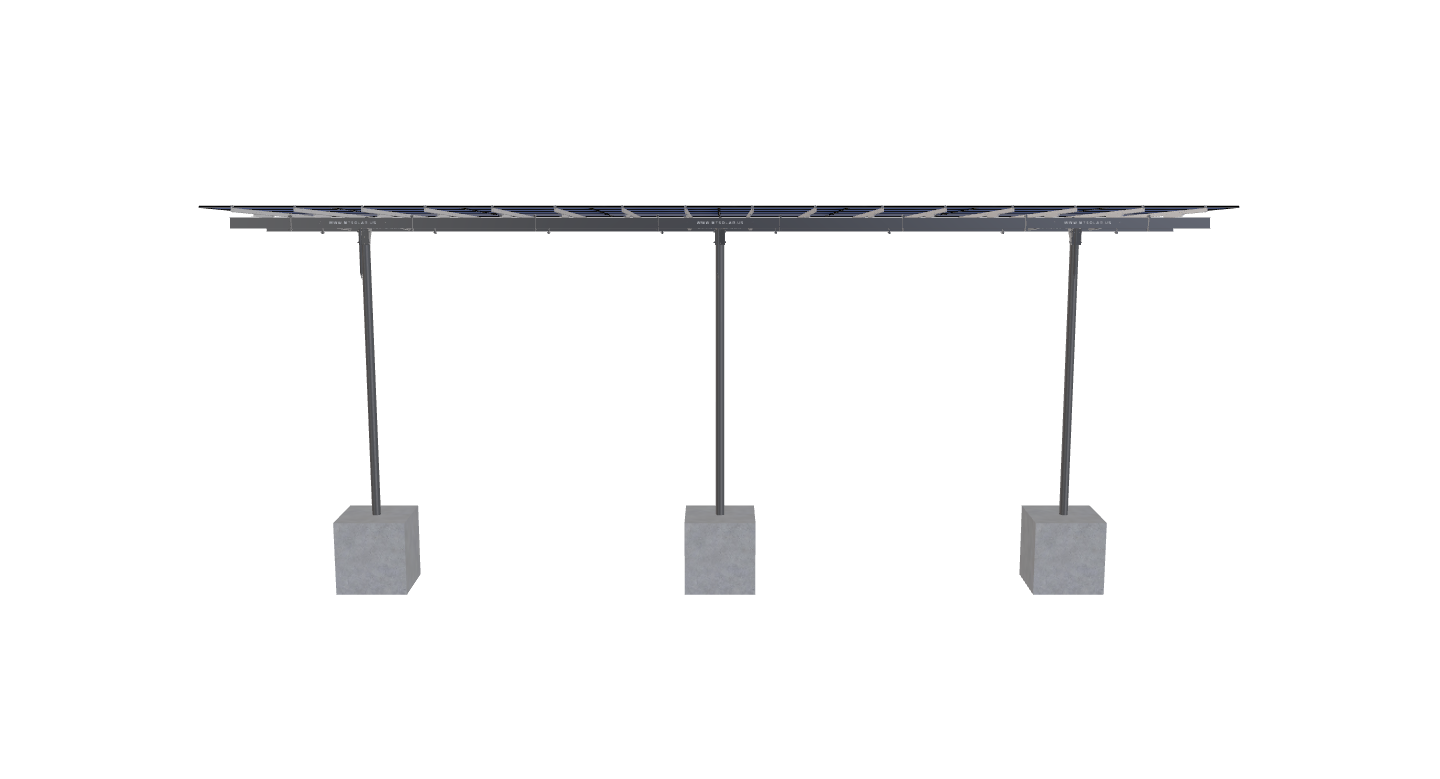

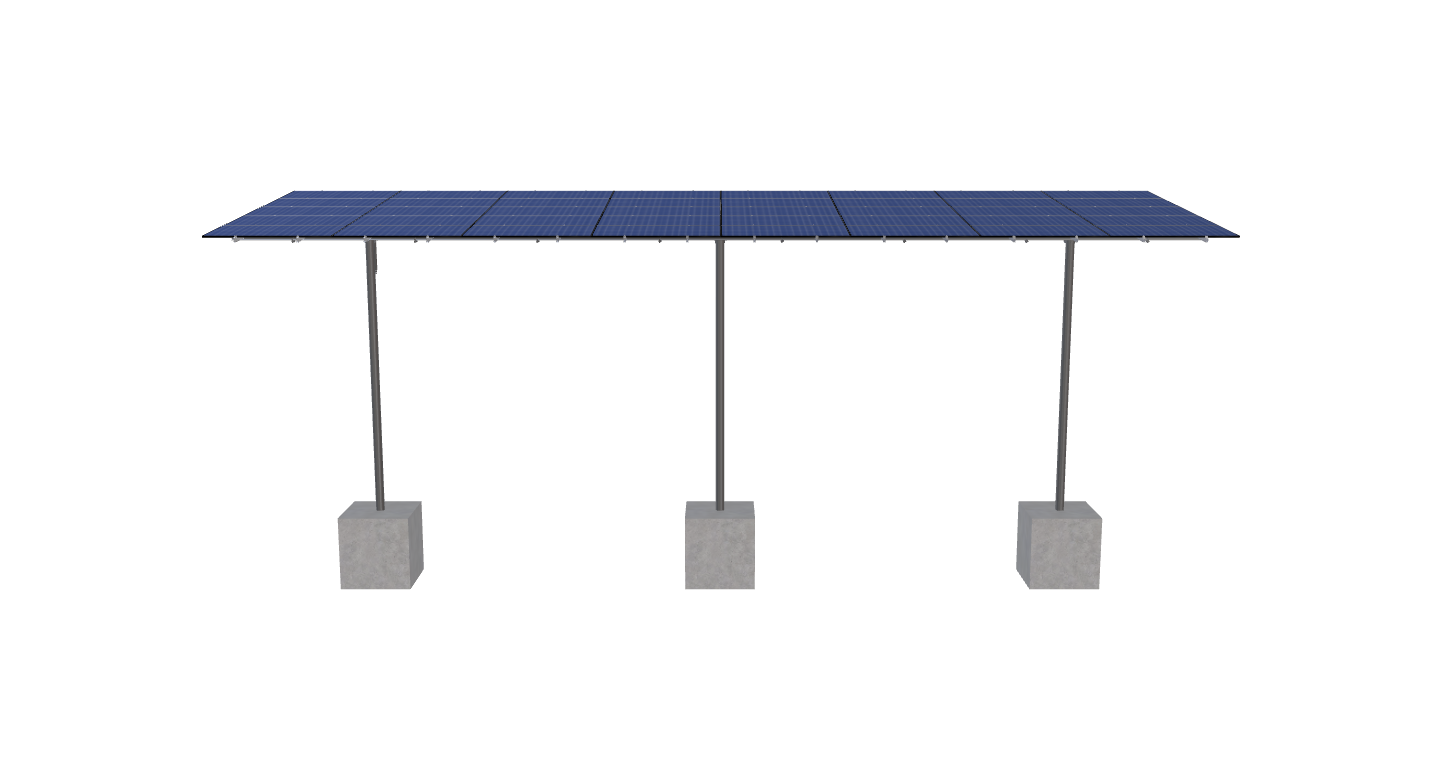

This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

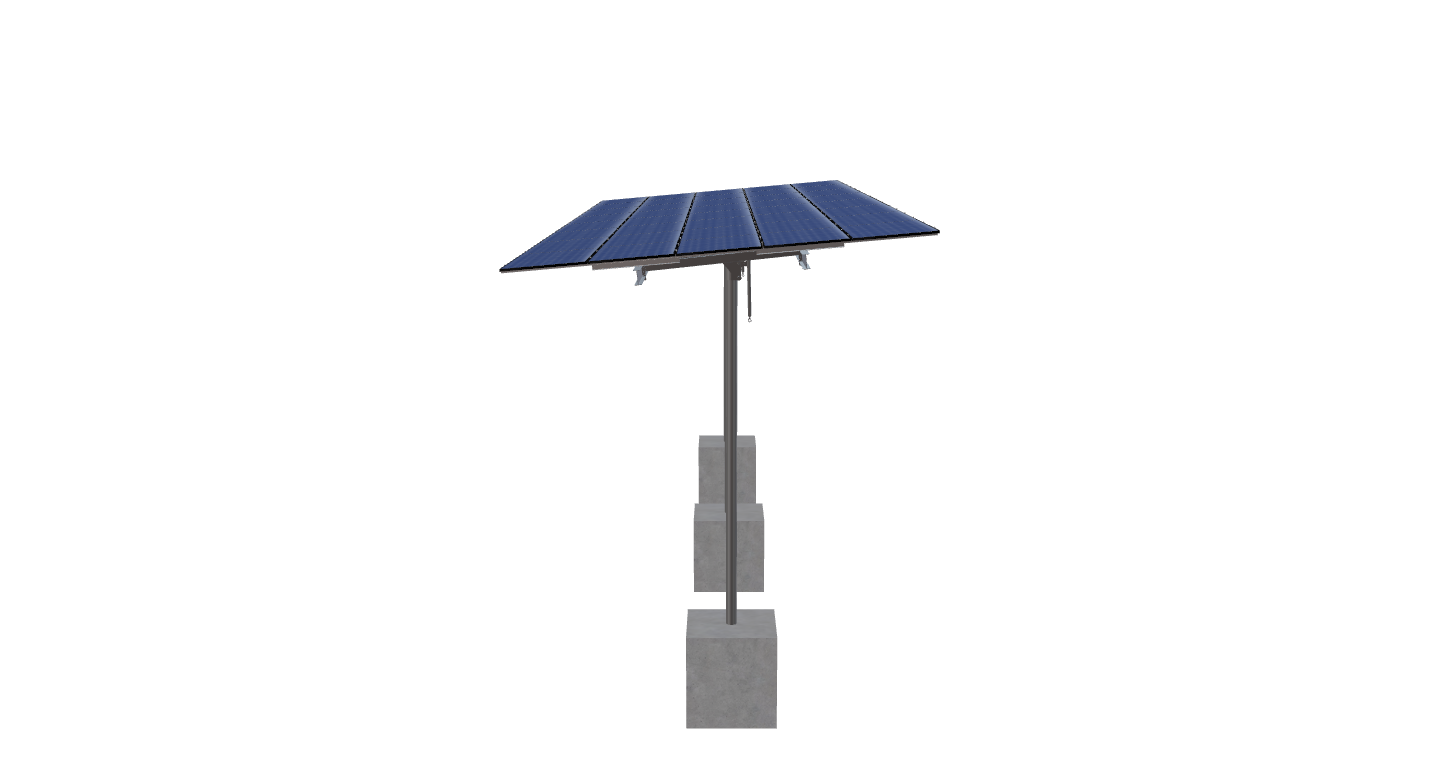

See 3D Model Here
Sunderland RV Safe Park-22ft-RevA-JB
$14,942.43
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89 inches by 47.6 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2830.52 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-8TOP-SD-45-L-5HX8W-4IDB |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 18.87 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 4.75 |
| TILT ANGLE | 5.00 |
| CANTILEVER | 720.00 |
| GROUND CLEARANCE | 18.00 |
| NO POLES | 3.00 |
| MODULE AREA | 1202.50 |
| ARRAY WIDTH | 60.00 |
| ARRAY HEIGHT | 20.04 |
| RAIL LENGTH | 240.50 |
| MODULE LENGTH | 89.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 60.00 |
| GROUND TO TOP | 19.74 |
| PROJECTED PANEL HEIGHT | 1.73 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | SUNDERLAND, RV, SAFE, PARK-22FT-REVA-JB |
| SITE ADDRESS | 9827, NE, SUNDERLAND, AVE, PORTLAND, OR, 97211, USA |
| MODULE WIDTH | 47.60 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 14230.89 |
| TOTAL WEIGHT | 2830.52 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/d3cf4192-8a4f-4f23-aebc-302445ea09ca.pdf |
|
| ID | 4709.00 |
| 3D Solar link |
