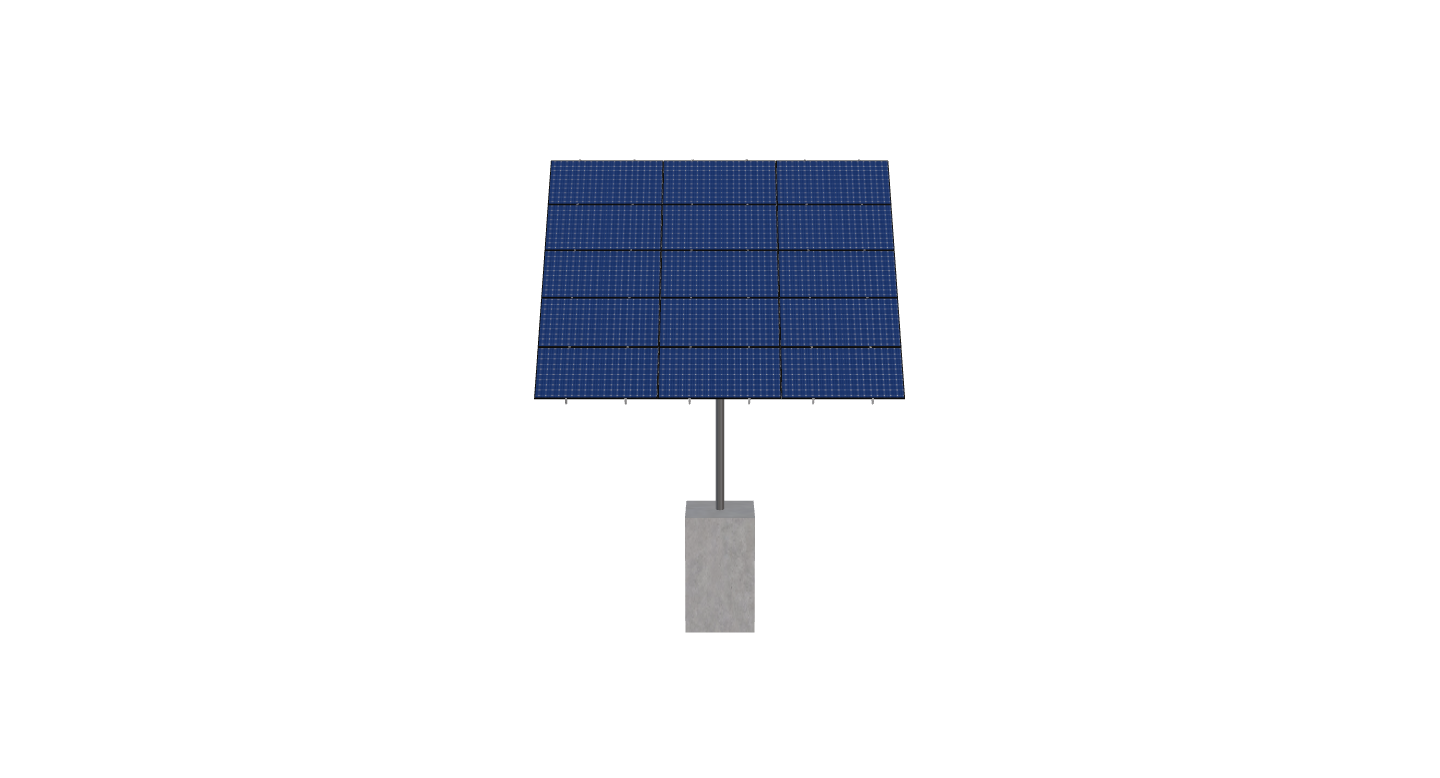

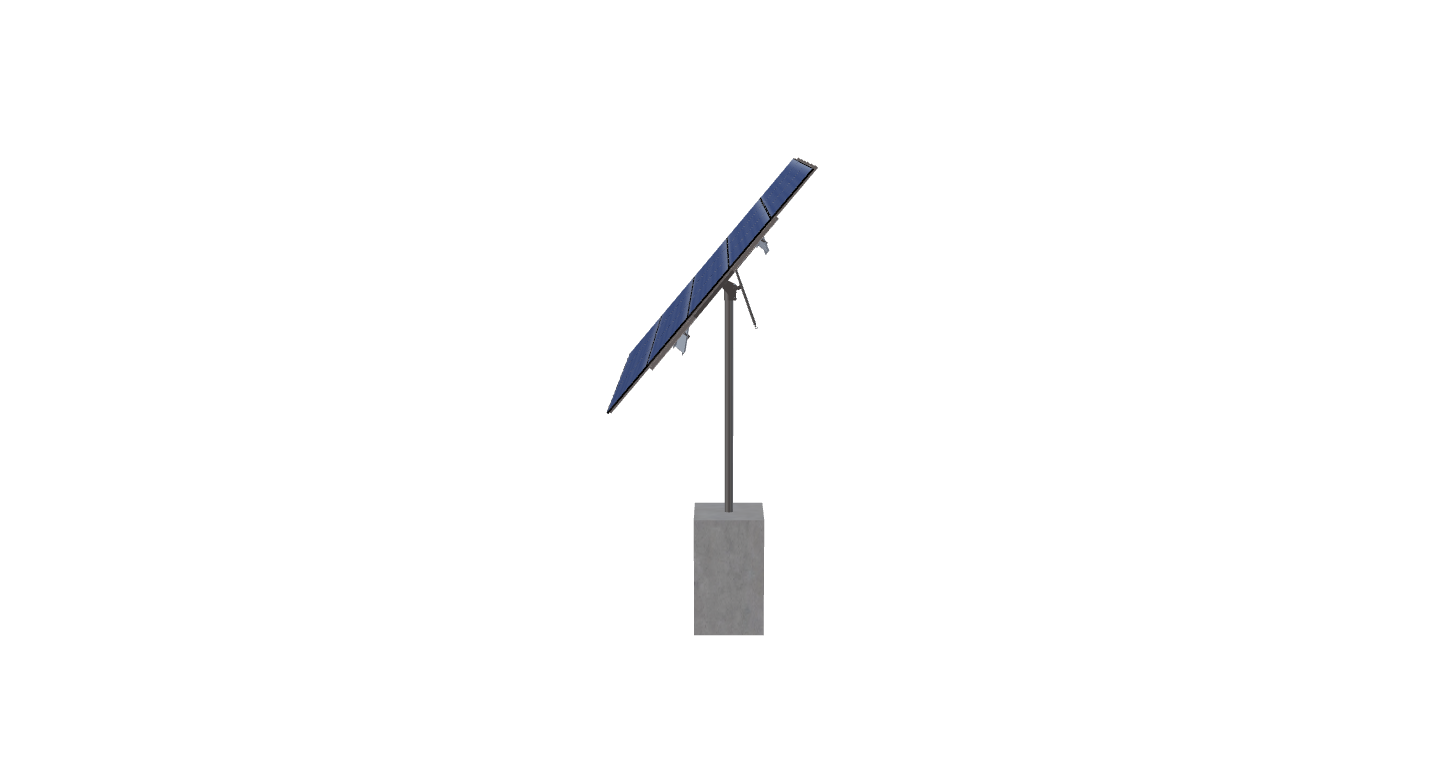

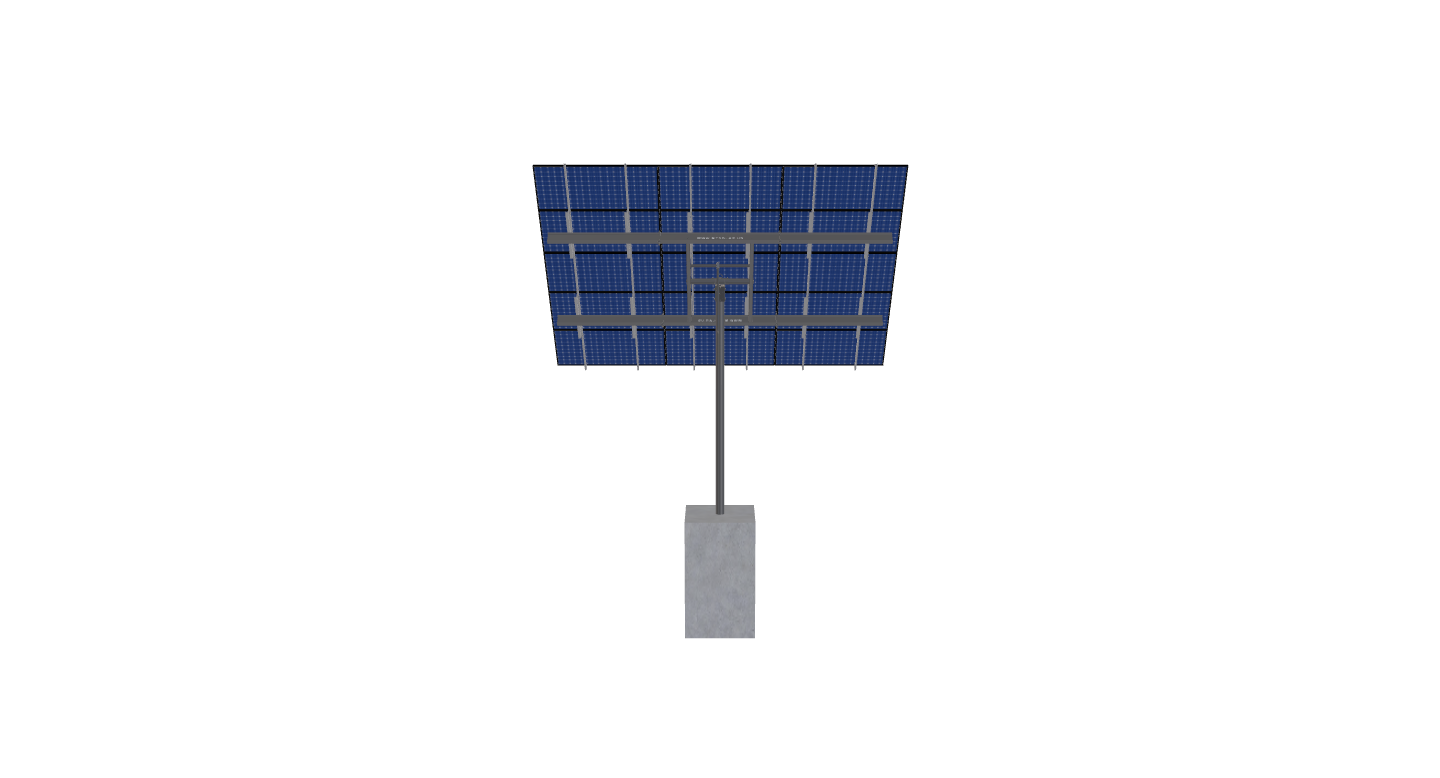

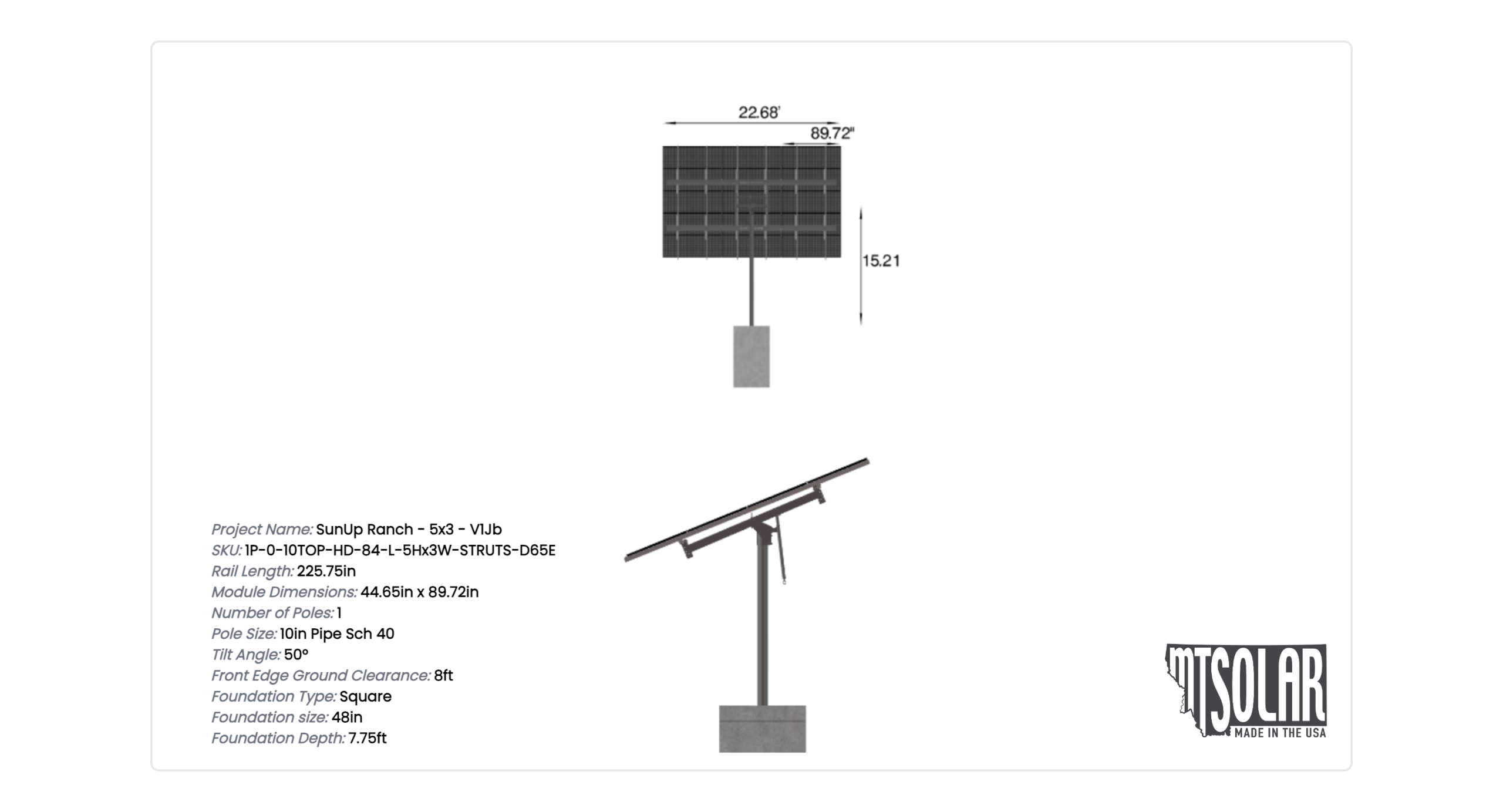

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.72 inches by 44.65 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
SunUp Ranch – 5×3 – V1Jb
$5,864.13
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.72 inches by 44.65 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1136.1299999999999 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-10TOP-HD-84-L-5HX3W-STRUTS-D65E |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 15.21 |
| WING SPAN | 84.00 |
| MAX FOUNDATION DEPTH | 7.75 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 258.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 1.00 |
| MODULE AREA | 426.67 |
| ARRAY WIDTH | 22.68 |
| ARRAY HEIGHT | 18.81 |
| RAIL LENGTH | 225.75 |
| MODULE LENGTH | 89.72 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 21.50 |
| GROUND TO TOP | 22.41 |
| PROJECTED PANEL HEIGHT | 14.41 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | SUNUP, RANCH, -, 5X3, -, V1JB |
| SITE ADDRESS | 9J3F+65, EAST, GULL, LAKE, MN, 56401, USA |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | HD |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 5584.89 |
| TOTAL WEIGHT | 1136.13 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/1435f5ad-05a5-4d58-ba53-f0a5abf11edc.pdf |
|
| ID | 9495.00 |
| 3D Solar link |
